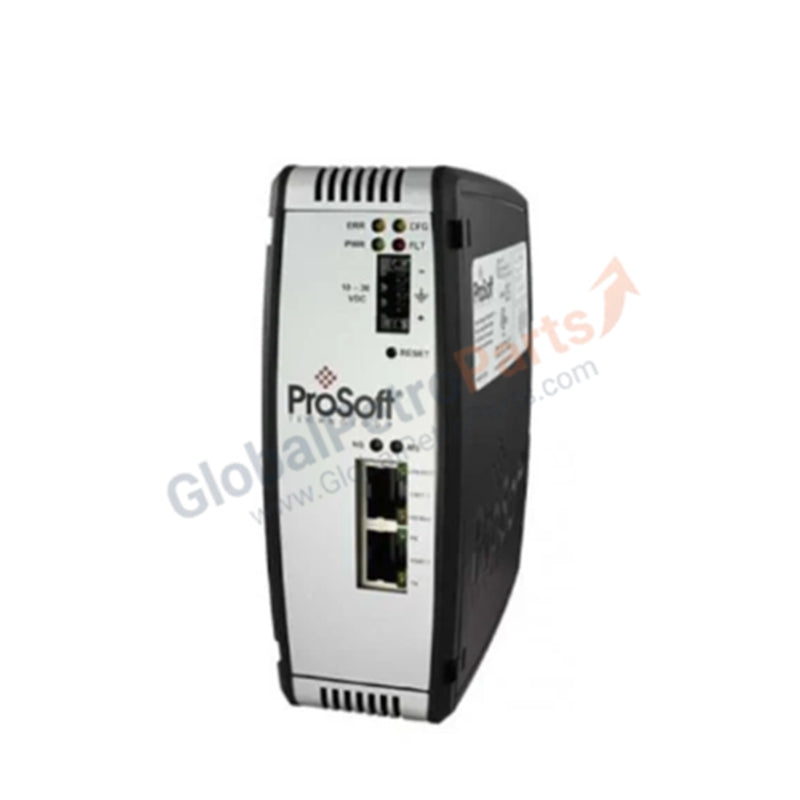

ProSoft | 5201-DFNT-MCM | EtherNet/IP to Modbus Master/Slave Gateway Module

Product Description

The 5201-DFNT-MCM Gateway Module from ProSoft Technology is designed to bridge EtherNet/IP networks with Modbus Master/Slave devices. This interface enables seamless communication between Rockwell Automation controllers and Modbus-compatible equipment, ensuring interoperability across diverse industrial systems. Compact and DIN rail mountable, the module is engineered for reliable operation in demanding environments.

Technical Specifications

• Model Number: 5201-DFNT-MCM

• Manufacturer: ProSoft Technology

• Product Type: EtherNet/IP to Modbus Master/Slave Gateway Module

• Category: PLCs / Machine Control

• Subcategory: PLC Module / Rack

• Weight: 0.97 lbs (approx. 0.44 kg)

• Protocols Supported: EtherNet/IP and Modbus Master/Slave (MCM)

• Ethernet Port: 1 × 10Base-T half-duplex RJ45 with link/activity LEDs

• Serial Ports: 2 × DB9 female connectors (RS-232/RS-422/RS-485)

• Data Transfer Rate: 110–115 kbps

• Electrical Isolation:

• 1500 Vrms (Ethernet port)

• 2500 Vrms (Modbus port)

• Minimum isolation between port-to-ground and port-to-logic

• Power Requirements: 18–32 VDC via screw terminals

• Frequency Rating: 50/60 Hz

• Installation: DIN rail mountable

Key Features

• Provides communication between EtherNet/IP and Modbus networks

• Supports both Modbus master and slave configurations

• Compact design for DIN rail installation

• High isolation levels for reliable operation in industrial environments

• LED indicators for link and activity monitoring
