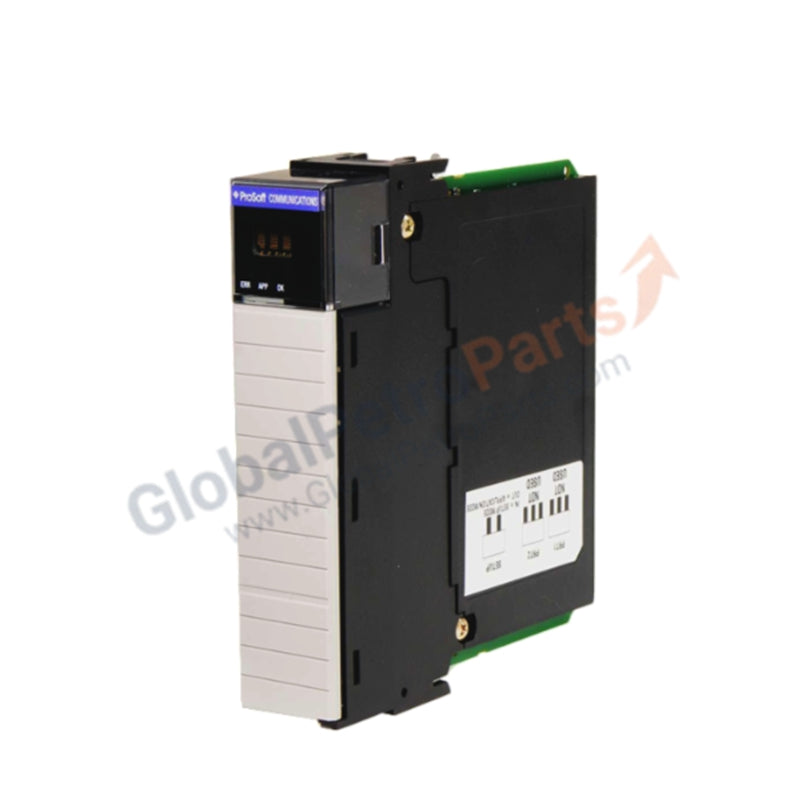

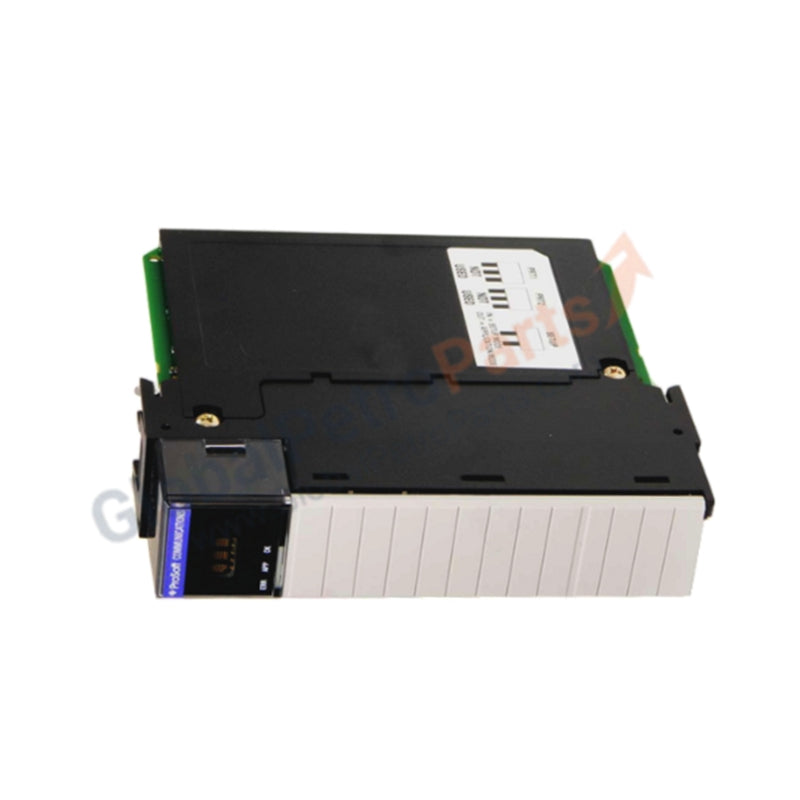

ProSoft | MVI56E-MCMR ControlLogix Enhanced Modbus Master/Slave Communication Module

Product Description

The MVI56E-MCMR Enhanced Modbus Master/Slave Communication Module is designed by ProSoft Technology to provide ControlLogix processors with advanced Modbus protocol support. Backward-compatible with the earlier MVI56-MCM, this single-slot module integrates seamlessly into 1756 ControlLogix backplanes. It features Ethernet connectivity for configuration and diagnostics, user-definable memory mapping, and a scrolling alphanumeric LED display for real-time status and error information.

With support for RIUP (Remove and Insert Under Power), robust shock and vibration resistance, and extended operating temperature ranges in the XT version, the MVI56E-MCMR is engineered for reliable performance in demanding industrial environments.

Technical Specifications

• Model Number: MVI56E-MCMR

• Manufacturer: ProSoft Technology

• Product Type: Modbus Master/Slave Communication Module

• Compatibility: ControlLogix 1756 backplane (single-slot)

• Ethernet Port: 10/100 MB with auto cable crossover detection

• Data Memory Mapping: Up to 10,000 16-bit registers, user-definable

• Diagnostic Display: 4-character scrolling alphanumeric LED (status, IP, port, errors)

• Software Support: ProSoft Discovery Service (PDS) for IP assignment and module detection

• RIUP Support: Remove and Insert Under Power

• Backplane Current Load: 800 mA @ 5 VDC, 3 mA @ 24 VDC

• Operating Temperature:

• Standard: 0°C to 60°C (32°F to 140°F)

• XT Version: -25°C to 70°C (-13°F to 158°F)

• Storage Temperature: -40°C to 85°C (-40°F to 185°F)

• Shock Resistance: 30 g operational, 50 g non-operational

• Vibration Resistance: 5 g from 10 Hz to 150 Hz

• Relative Humidity: 5% to 95% non-condensing

• LED Indicators: ERR (Battery), APP (Application), OK (Module Status)

• Shipping Weight: 2 kg

Key Features

• Backward-compatible with MVI56-MCM legacy modules

• Ethernet-based configuration and diagnostics with auto crossover detection

• Large memory mapping capacity (10,000 registers)

• Real-time diagnostic display in plain English

• RIUP functionality for simplified maintenance

• XT variant available for extended temperature ranges

Application Scenarios

• Integration of ControlLogix controllers with Modbus-compatible devices

• Industrial automation systems requiring master/slave Modbus communication

• SCADA platforms with mixed protocol requirements

• Harsh environment installations supported by XT version
