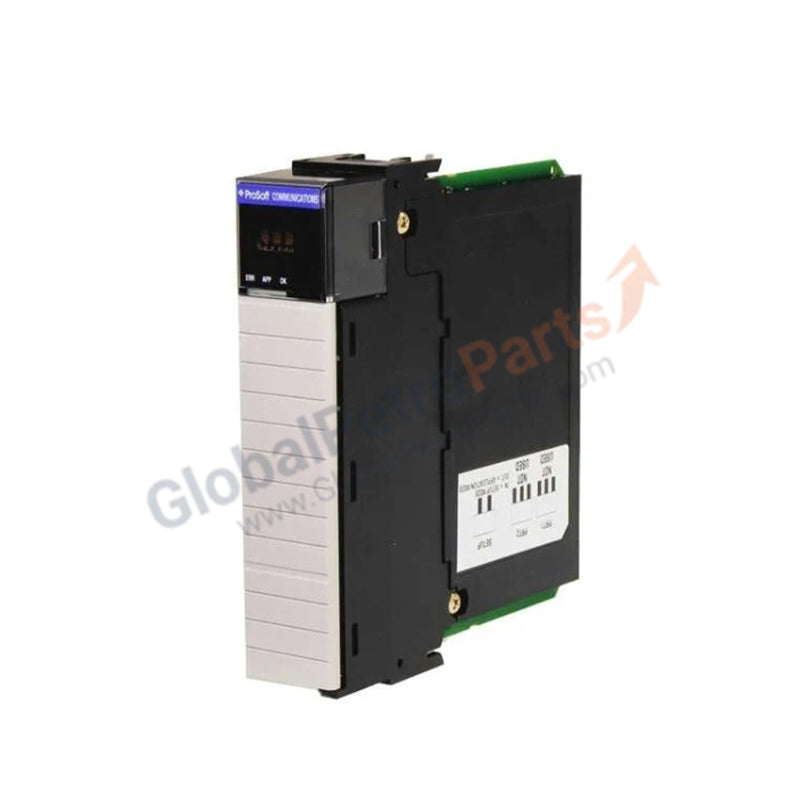

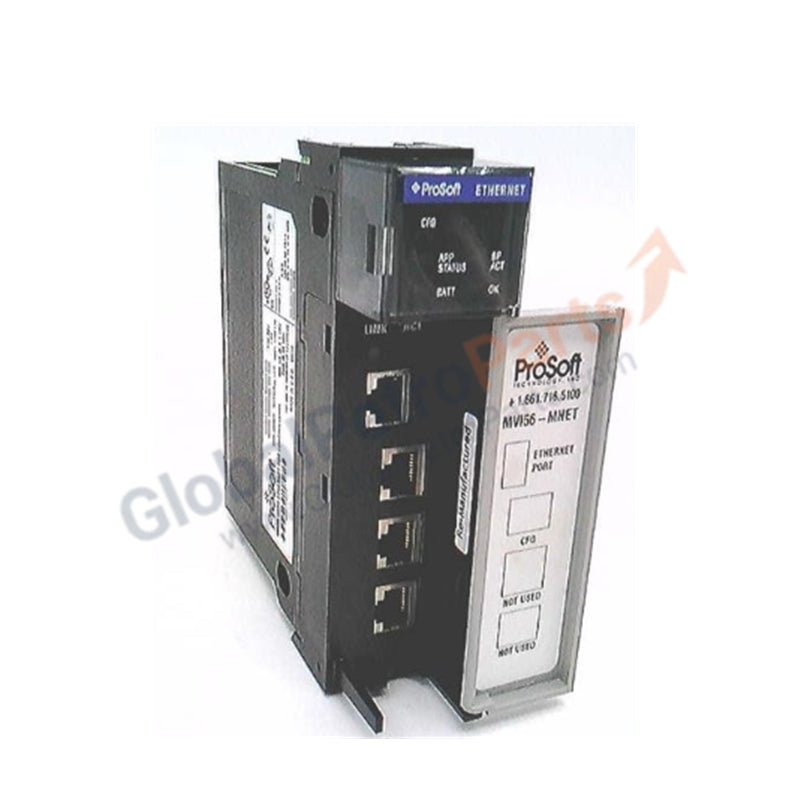

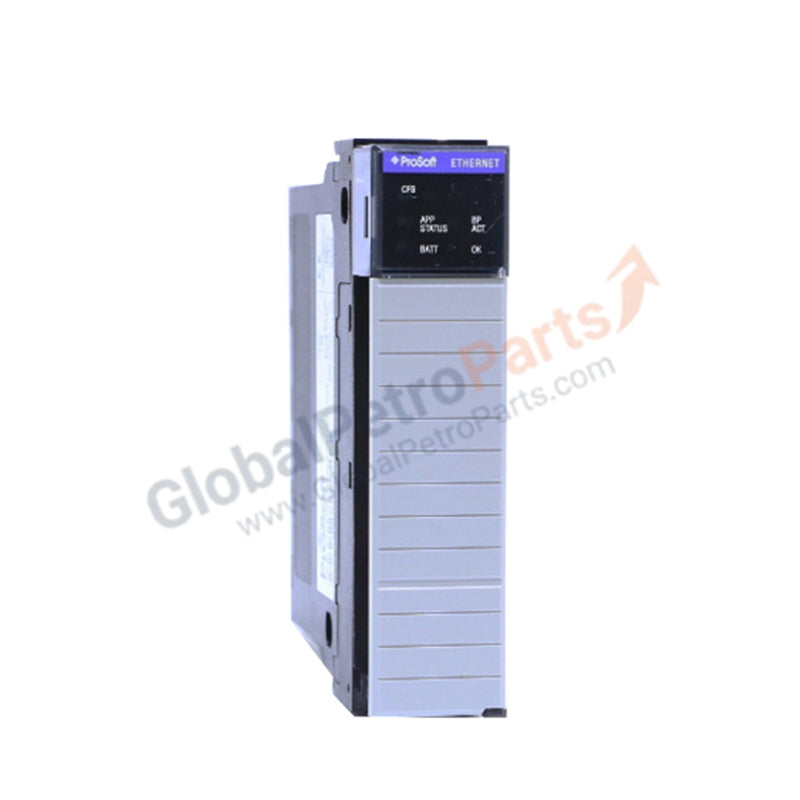

ProSoft MVI56E-MNET ControlLogix Modbus TCP/IP Interface Module

Product Overview

The MVI56E-MNET functions as a powerful Modbus TCP/IP communication bridge within the Allen-Bradley ControlLogix platform. It enables ControlLogix processors to interface seamlessly with Modbus TCP/IP-compatible devices, such as power meters, VFDs, and programmable controllers. By operating as both a Client and a Server, this module centralizes data collection and command distribution across industrial Ethernet networks. We supply this unit as 100% Brand New and original factory equipment, ensuring your automation architecture maintains peak data integrity and compliance.

Technical Specifications

The MVI56E-MNET utilizes the ControlLogix backplane for power while providing dedicated RJ45 ports for high-speed network traffic.

Engineering Advantages

• Dual Mode Functionality: The module supports simultaneous Client and Server applications. This allows a single ControlLogix chassis to pull data from field sensors while simultaneously acting as a data provider for an upper-level SCADA system.

• Simplified Remote Management: Engineers configure and diagnose the module directly through the dedicated Ethernet port. This eliminates the need for specialized serial cables or local physical access, drastically reducing maintenance time in large-scale facilities.

• Real-Time Status Monitoring: An integrated 4-character scrolling LED display provides immediate hardware and network status. Technicians identify IP address conflicts or communication errors at a glance without connecting a laptop.

• Ruggedized Performance: Designed for heavy industrial environments, the module withstands operating shocks up to 30G. This mechanical durability prevents signal loss or hardware failure in high-vibration applications like mining or heavy stamping.

• High-Speed Backplane Sync: By utilizing the ControlLogix backplane, the module achieves high-speed data transfers between the Modbus network and the PLC tags, ensuring minimal latency for time-critical control loops.

FAQs

• Is this MVI56E-MNET unit a newer version of the MVI56-MNET?

  Yes. The "E" stands for Enhanced. The MVI56E-MNET provides superior configuration options, an updated web server, and improved diagnostic tools compared to the legacy non-E version. It serves as a direct functional replacement.

• Does the module require a separate power supply?

  No. The module draws all necessary power directly from the ControlLogix backplane. Ensure your chassis power supply has sufficient overhead for the 800 mA draw at 5V DC.

• What software do I need to configure the Modbus registers?

  ProSoft provides the ProSoft Configuration Builder (PCB) software. This tool allows you to map Modbus registers to ControlLogix tags through a user-friendly interface via the Ethernet port.

• Can I swap this module while the PLC is running?

  While ControlLogix supports RIUP (Removal and Insertion Under Power), we recommend stopping the specific communication tasks in the PLC code before swapping to prevent data corruption in the Modbus registers.
