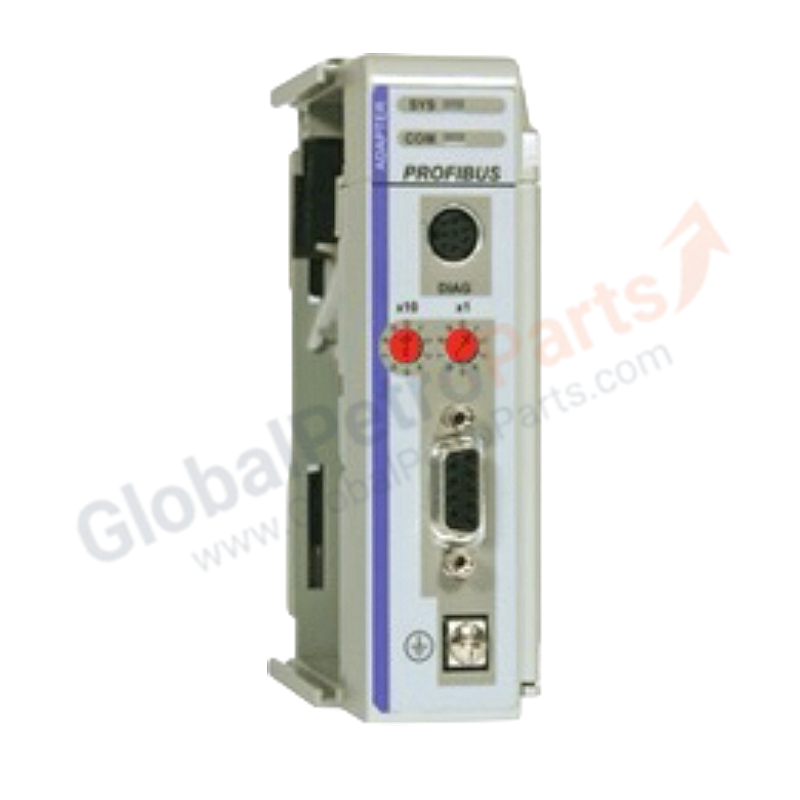

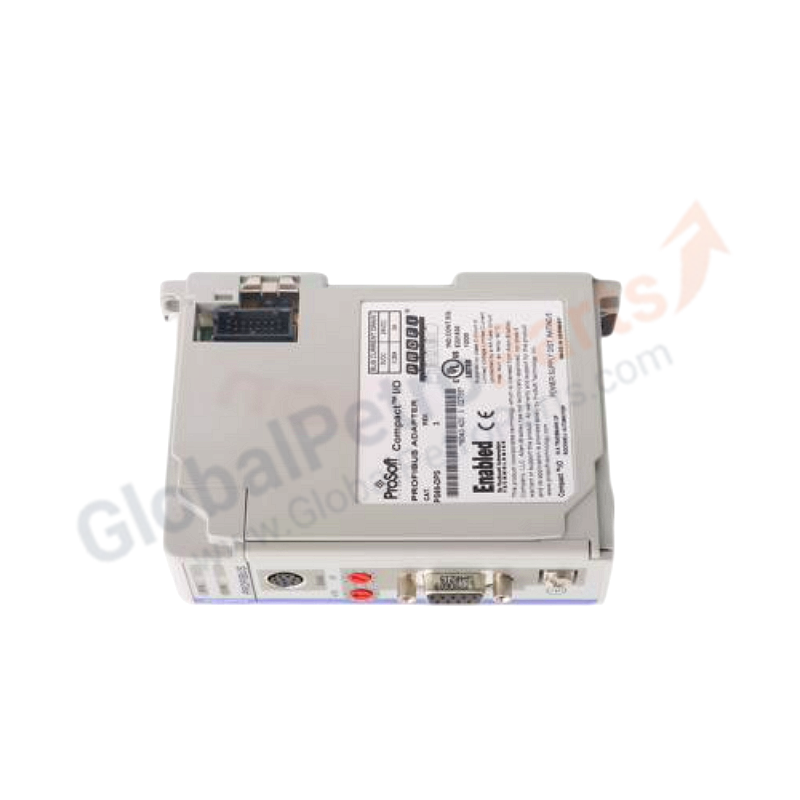

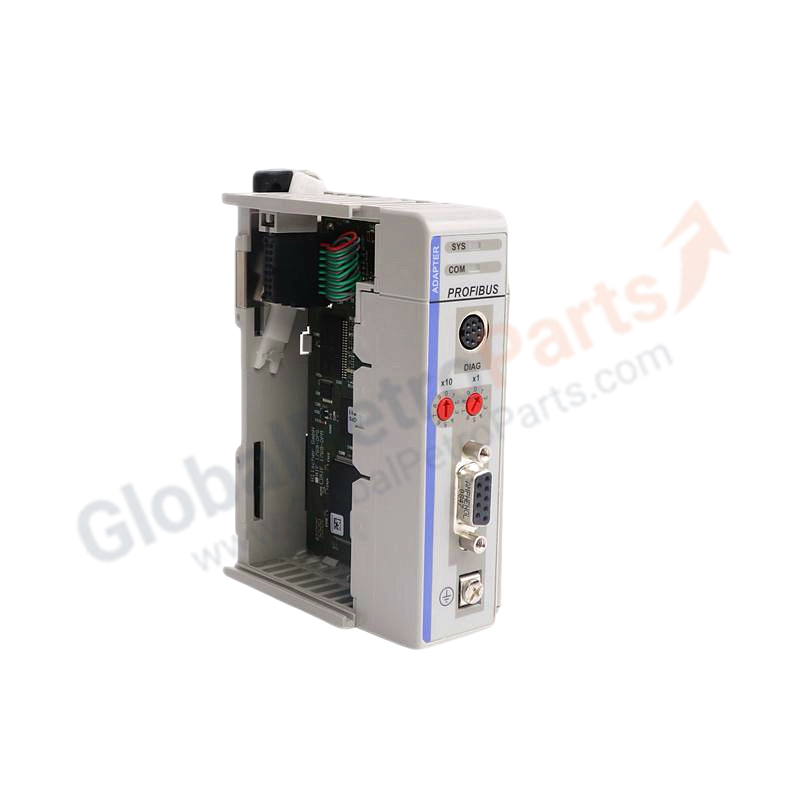

Prosoft PS69-DPS PROFIBUS DP-V1 Slave Communication Module

Product Overview

The ProSoft PS69-DPS is a PROFIBUS DP Slave Communication Module designed for the Schneider Electric Modicon M340 PAC platform. It enables seamless integration of M340 controllers into PROFIBUS DP networks, allowing high-speed cyclic data exchange with PROFIBUS DP master devices such as Siemens S7 PLCs, Rockwell ControlLogix systems, and other automation controllers. With support for up to 244 bytes of input and 244 bytes of output data, this module is ideal for hybrid automation environments requiring cross-brand interoperability.

Key Specifications

• Part Number: PS69-DPS
• Product Type: PROFIBUS DP Slave Communication Module
• Series: ProSoft InRAx for Modicon M340
• Protocol: PROFIBUS DP-V0/V1 Slave
• Data Exchange: Up to 244 bytes input / 244 bytes output
• Baud Rates: 9.6 kbps to 12 Mbps (auto-detect)
• Connector: 9-pin D-Sub female (PROFIBUS DP)
• Backplane Power: 24VDC via M340 rack
• Configuration: ProSoft Configuration Builder (PCB)
• Diagnostics: LED status indicators (RUN, ERR, COM)
• Operating Temperature: 0°C to 60°C
• Storage Temperature: -40°C to 85°C
• Humidity: 5% to 95% RH (non-condensing)

Features & Benefits

• Seamless M340 Integration: Plugs directly into Modicon M340 backplane as a native I/O module
• High Data Throughput: Supports maximum PROFIBUS DP payload for extensive I/O mapping
• Auto-Baud Detection: Automatically synchronizes with master baud rate from 9.6 kbps to 12 Mbps
• DP-V1 Support: Enables acyclic parameter data exchange and extended diagnostics
• Simplified Configuration: PCB software provides graphical network setup and GSD file management
• Compact Design: Single-slot module saves valuable rack space

Applications

• Hybrid manufacturing lines with Siemens and Schneider controllers
• Water treatment SCADA integrating M340 into PROFIBUS networks
• Automotive assembly lines with multi-vendor PLC platforms
• Process control systems requiring cross-brand I/O sharing

Installation Guide

1. Power Down: Turn OFF M340 rack power before module installation
2. Slot Selection: Insert the PS69-DPS into any available I/O slot on the Modicon M340 rack
3. PROFIBUS Connection: Connect the 9-pin D-Sub connector to the PROFIBUS DP network using shielded twisted-pair cable
4. Termination: Ensure proper PROFIBUS termination resistors are installed at both ends of the bus
5. GSD File: Import the ProSoft GSD file into your PROFIBUS master configuration software
6. Configuration: Use ProSoft Configuration Builder to define input/output data lengths and module parameters
7. Address Setting: Set the PROFIBUS station address via rotary switches or software configuration
8. Power Up & Test: Apply power and verify communication status via diagnostic LEDs and master software

FAQ

Q: Is the PS69-DPS compatible with Modicon M580?
A: The PS69-DPS is specifically designed for Modicon M340 racks. For M580 systems, consult ProSoft for compatibility or consider alternative communication solutions.

Q: What is the maximum number of PS69-DPS modules per M340 rack?
A: The number depends on available rack slots and power budget. Each module consumes one slot and standard backplane current.

Q: Can this module act as a PROFIBUS master?
A: No, the PS69-DPS operates as a PROFIBUS DP slave only. For master functionality, consider ProSoft PTQ-PDPMV1 or MVI69-PDPMV1 modules.

Q: Does it support PROFIBUS PA devices?
A: The PS69-DPS supports standard PROFIBUS DP. For PA devices, a DP/PA coupler or link is required.

Selection Tips

• Verify your M340 rack has available slots and sufficient power capacity before ordering
• Confirm your PROFIBUS master supports the GSD file revision provided with the module
• Use shielded PROFIBUS cable (Type A) for reliable communication at high baud rates
• For redundant PROFIBUS networks, plan for dual-cable infrastructure and redundant masters
• Consider the PS69-DPS-XT extended temperature variant for harsh environments
