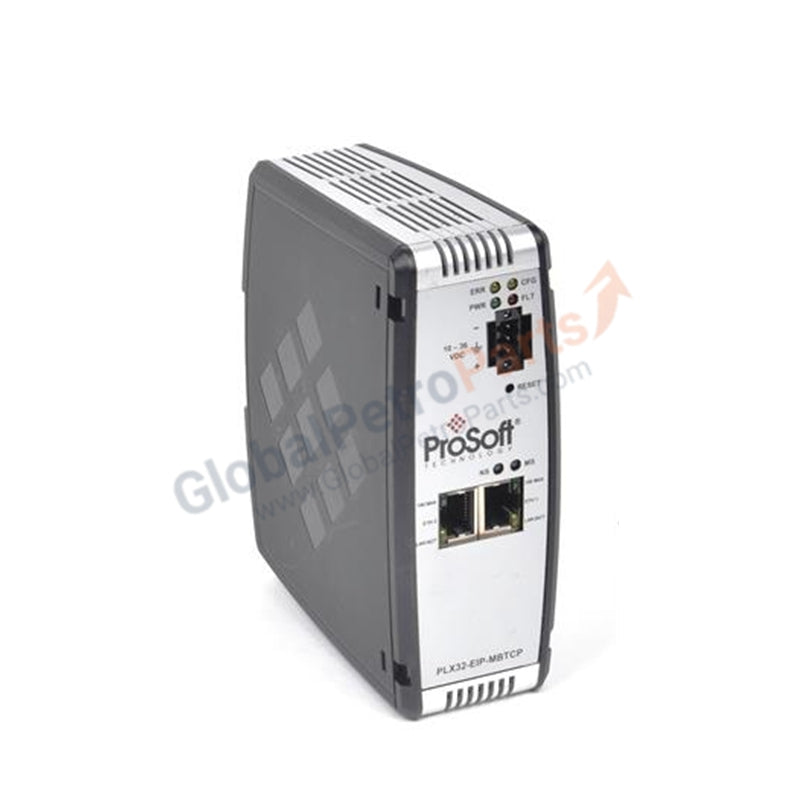

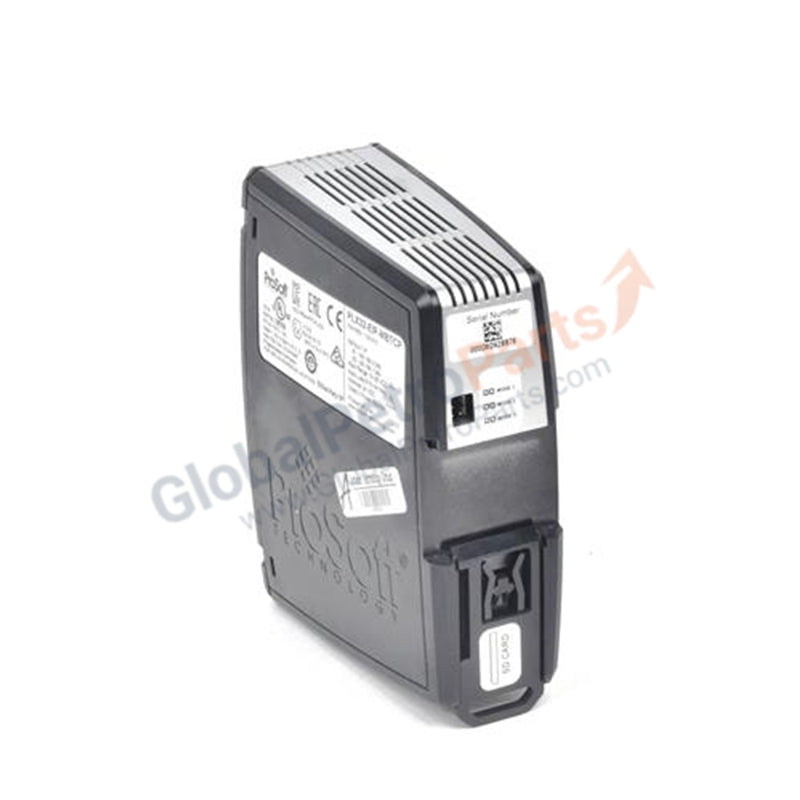

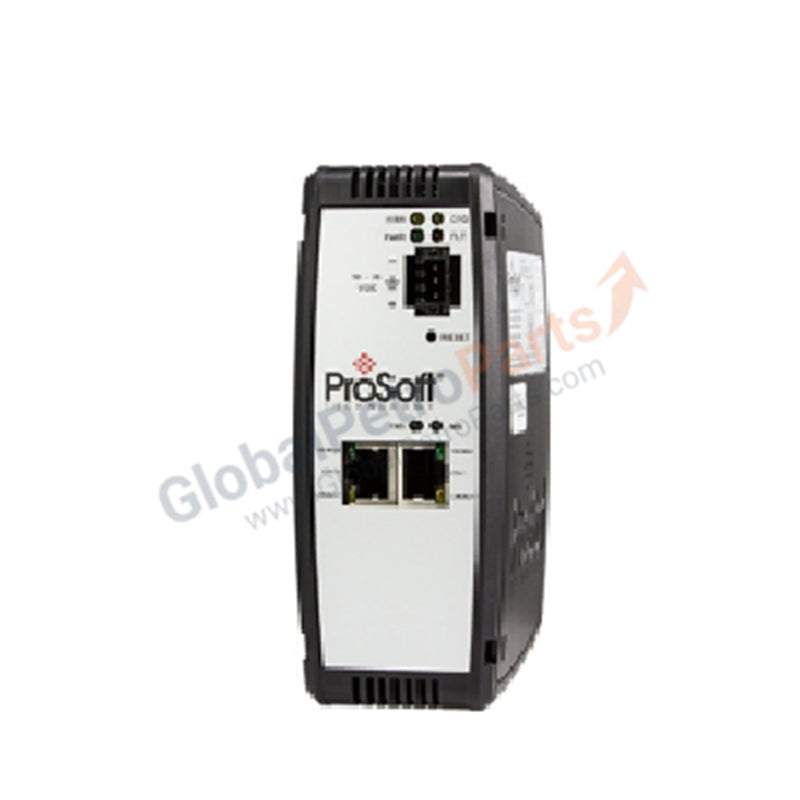

ProSoft Technology | PLX32-EIP-MBTCP | EtherNet/IP to Modbus TCP/IP Gateway

Product Description

The PLX32-EIP-MBTCP Gateway Module from ProSoft Technology is engineered to connect EtherNet/IP and Modbus TCP/IP networks seamlessly. With dual Ethernet ports, the gateway allows EtherNet/IP and Modbus TCP/IP traffic to operate on separate subnets while maintaining simultaneous access to shared process data. It also supports OPC UA, enabling three protocols to run independently without interference.

This gateway prioritizes data flow with multiple EtherNet/IP I/O connections, allowing different Requested Packet Intervals (RPIs) for status and control data. Integration is simplified through an embedded EDS Add-On Profile, reducing commissioning time. For disaster recovery, the PLX32-EIP-MBTCP includes an SD card slot for configuration file storage.

Technical Specifications

• Model Number: PLX32-EIP-MBTCP

• Manufacturer: ProSoft Technology

• Product Type: EtherNet/IP to Modbus TCP/IP Gateway

• Ethernet Ports: Two independent ports (supports subnet separation)

• Protocols Supported: EtherNet/IP, Modbus TCP/IP, OPC UA

• Data Prioritization: Multiple EtherNet/IP I/O connections with configurable RPIs

• Integration Support: Embedded EDS Add-On Profile

• Configuration Storage: SD card slot (SD card optional)

• Mounting: DIN rail compatible

• Weight: Approx. 2.0 lbs (0.9 kg)

Key Features

• Dual Ethernet ports for subnet separation

• Simultaneous operation of EtherNet/IP, Modbus TCP/IP, and OPC UA

• Data prioritization for optimized control and monitoring

• Simplified commissioning with embedded Add-On Profile

• SD card slot for disaster recovery and configuration backup

Application Scenarios

• Integration of EtherNet/IP controllers with Modbus TCP/IP devices

• SCADA platforms requiring multi-protocol communication

• Industrial automation systems with mixed protocol requirements

• Disaster recovery planning with configuration file backup
