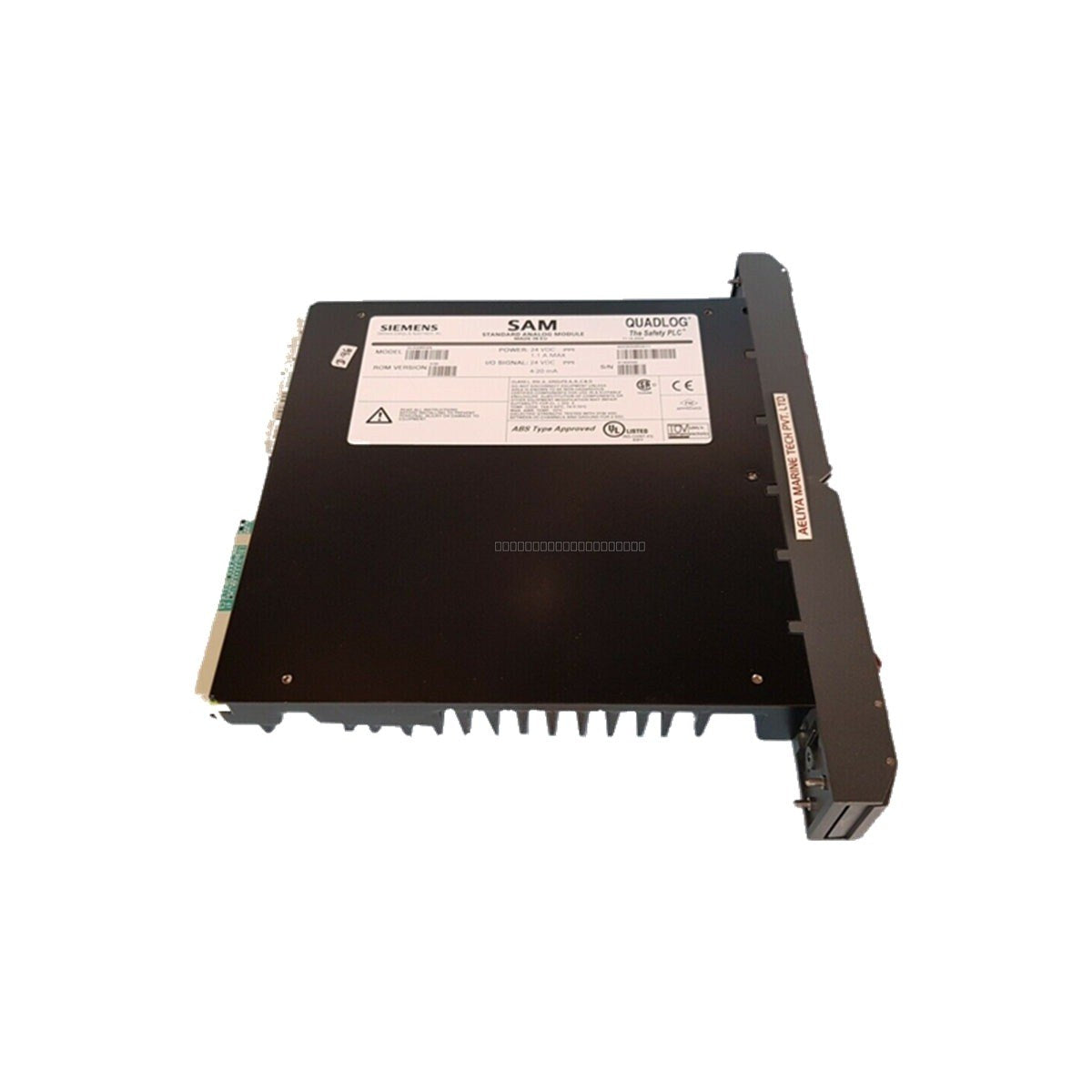

Siemens QLSAMBAN QUADLOG Standard Analog I/O Module

Description

The Siemens QLSAMBAN is a safety-critical Standard Analog Module (SAM) designed for the QUADLOG safety instrumented system (SIS). This module provides high-integrity signal processing for 24 VDC industrial loops, supporting a rated current of 1.1 A. It is engineered for deployment in high-risk environments, including petrochemical refineries, offshore drilling platforms, and thermal power plants, where functional safety and fault tolerance are essential. The module integrates advanced self-diagnostics and redundant internal paths to ensure continuous monitoring of process variables, mitigating hazardous events and reducing unplanned downtime through localized fail-safe logic.

Features

• High-integrity analog signal processing for safety-critical applications.
• Integrated overcurrent protection and galvanic isolation between field-side signals and the internal system bus.
• Supports high-density analog point processing with 24 VDC power distribution.
• Continuous cross-checking of input data against safety thresholds.
• Designed for hot-swapping within QUADLOG racks with real-time diagnostic reporting.

Applications

The QLSAMBAN is utilized in safety-instrumented systems (SIS) requiring high availability and fault tolerance. Typical applications include emergency shutdown systems (ESD), fire and gas monitoring, burner management systems, and critical process control loops in heavy industrial facilities.

Technical Specifications

Installation Guidelines

• Ensure the system power is disconnected before installing or removing the module from the QUADLOG rack.
• Handle the module using ESD-safe practices to prevent damage to internal sensitive components.
• Verify that the backplane connector is properly aligned before seating the module to prevent pin damage.
• Route field wiring away from high-EMI sources to maintain signal integrity.
• Ensure adequate ventilation in the cabinet to maintain operating temperatures within the 0-60 deg C range.
• Check that all field-side connections are secure and properly grounded according to site safety standards.

FAQ

Is the QLSAMBAN hot-swappable?
Yes, the module is designed to support hot-swapping within the QUADLOG rack environment, allowing for maintenance without requiring a full system shutdown.

What is the primary function of the SAM architecture?
The Standard Analog Module (SAM) architecture provides high-density, high-integrity analog I/O processing with built-in diagnostics and redundancy to meet functional safety requirements.
