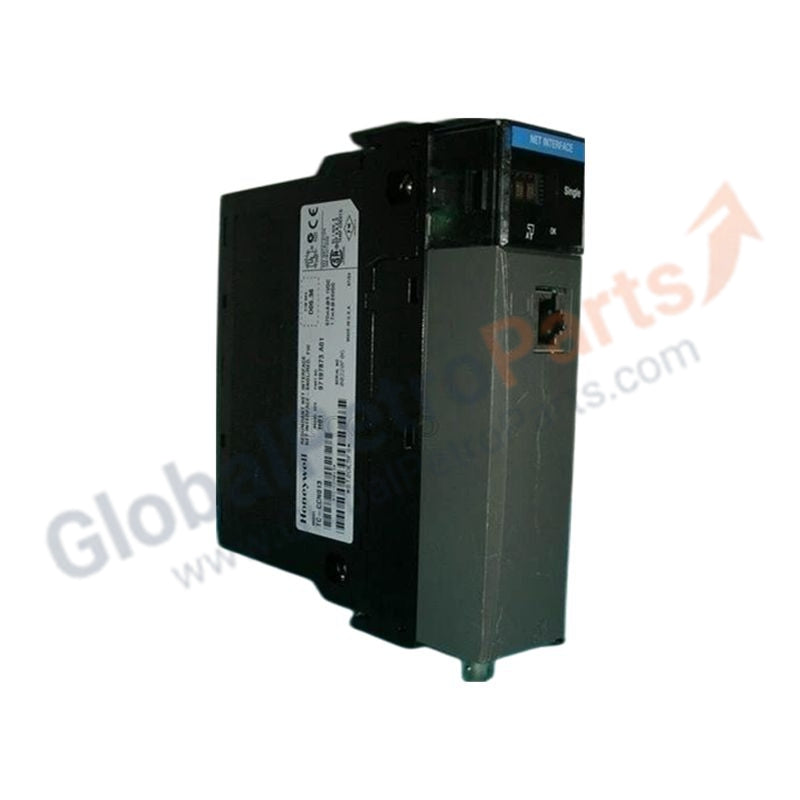

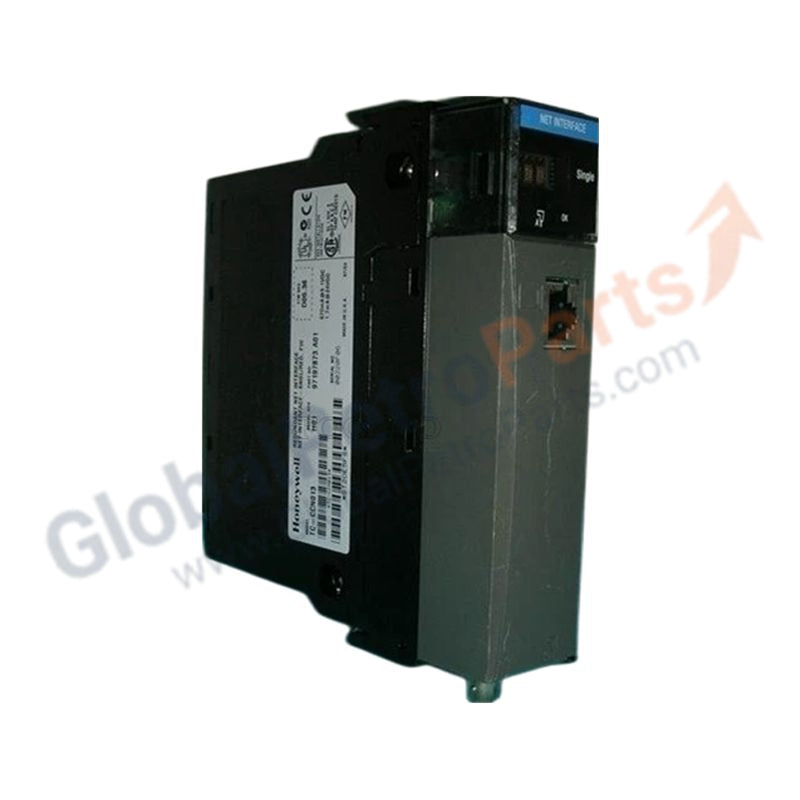

Redundant Network Interface Module TC-CCN013 Honeywell

Product Overview
The TC-CCN013 (Part Number: TC-CCN013) is a specialized network interface module designed for the ControlLogix architecture. Serving as a critical gateway, it enables redundant data exchange between controllers and distributed I/O devices over a ControlNet network. By supporting redundant configurations, the TC-CCN013 ensures communication remains active even in the event of a media or port failure, preserving the integrity of industrial control processes.

Equipped with advanced diagnostic capabilities, this module allows engineers to monitor network health in real-time. It is engineered for the deterministic, repeatable timing required for high-speed discrete and process applications, guaranteeing that mission-critical data is delivered without jitter or delay.

Technical Specifications

Application Scenarios

• Implementing redundant network paths for critical safety systems

• Interfacing ControlLogix processors with remote Series A or Series C I/O

• Supporting high-availability manufacturing lines where communication downtime is costly

Frequently Asked Questions (FAQ)

Q: How does the TC-CCN013 handle network failures?
A: The module supports redundant cabling and configuration, allowing automatic switching of communication paths if the primary line fails, without interrupting control logic.

Q: Is this module compatible with both Standard and Enhanced ControlNet?
A: Yes. The TC-CCN013 operates seamlessly across both Standard and Enhanced ControlNet network specifications for maximum flexibility.
