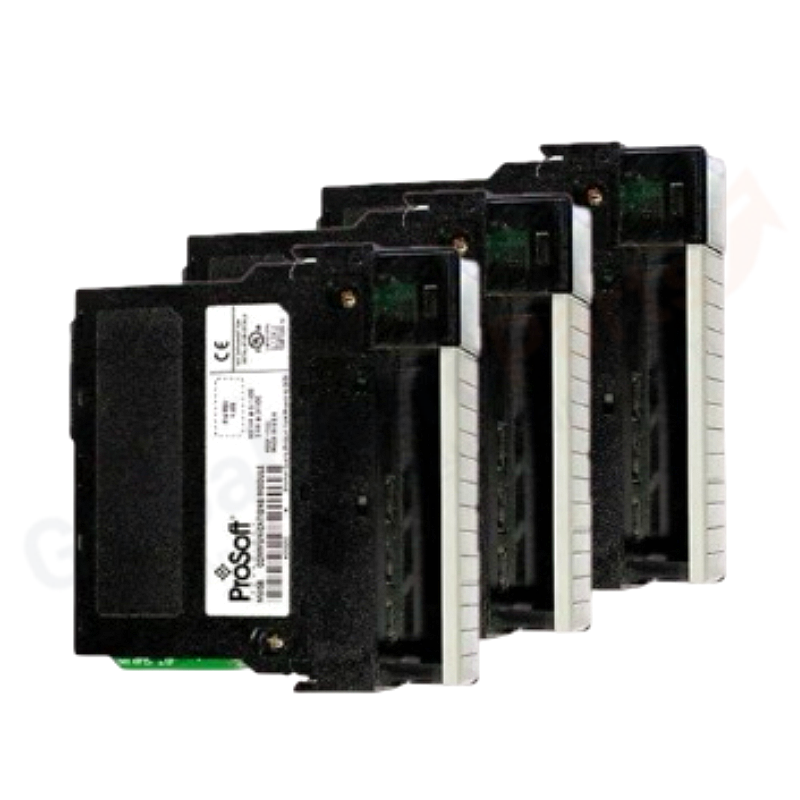

Rockwell ProSoft MVI56-DFCM DF1 Half/Full Duplex Master/Slave Communication Module

Product Overview

The ProSoft MVI56-DFCM is a DF1 Master/Slave Communication Module for the Allen-Bradley ControlLogix platform. It provides two powerful and fully configurable DF1 ports allowing SCADA and field devices supporting the DF1 protocol to be integrated into the ControlLogix platform. Each port is user-configurable to act as a Master or Slave, supporting both DF1 Half-Duplex and DF1 Full-Duplex modes.

Key Technical Specifications

• Product Type: DF1 Master/Slave Communication Module
• Series: ProSoft MVI56
• Platform: Allen-Bradley ControlLogix
• Communication Ports: 2 × fully configurable DF1 ports
• Protocol Support: DF1 Half-Duplex, DF1 Full-Duplex
• Port Configuration: Each port configurable as Master or Slave
• Communication Speed: Up to 115.2 kbaud
• Data Types: 16-bit integer, floating point
• Max Data Words: 10,000 words
• Supported Protocols: Enron, Daniel®
• Operating Temperature: 0°C to +60°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: Up to 95% (non-condensing)
• Vibration: 5 m/s² max, 10 to 150 Hz
• Certifications: ATEX, CE, C-CSA-US, CSA, GOST-R, KC (KCC), RoHS, C-UL-US
• Origin: USA

Key Features

• Dual DF1 Ports: Two independent DF1 communication ports
• Master/Slave Flexibility: Each port configurable as Master or Slave
• Half/Full Duplex: Supports both DF1 Half-Duplex and Full-Duplex modes
• High Speed: Up to 115.2 kbaud communication speed
• Large Data Area: 10,000-word database
• SCADA Integration: Connect DF1-based SCADA systems to ControlLogix
• Rockwell PLC Compatibility: Communicate with other Allen-Bradley PLCs

Applications

• DF1 SCADA system integration
• Allen-Bradley PLC-to-PLC communication
• Power monitoring equipment integration
• Legacy DF1 device connectivity
• Third-party DF1 device integration

Installation Guide

1. Install in 1756 ControlLogix slot
2. Connect DF1 serial cables to both ports
3. Configure each port as Master or Slave via PCB
4. Set DF1 mode (Half-Duplex or Full-Duplex)
5. Configure baud rate and data format
6. Map data to ControlLogix tags

FAQ

Q: What devices support DF1 protocol?
A: Rockwell Automation PLCs (SLC 500, MicroLogix, PLC-5), power monitoring equipment, and various third-party devices.

Q: Can both ports be configured as Master?
A: Yes, each port is independently configurable as Master or Slave.

Model Selection Tips

• MVI56-DFCM = DF1 Master/Slave for ControlLogix
• For DF1 on CompactLogix, consider MVI69-DFNT
• For multi-protocol (DF1 + Modbus), consider MVI56E-MNETCR
• Verify DF1 device baud rate and mode compatibility
