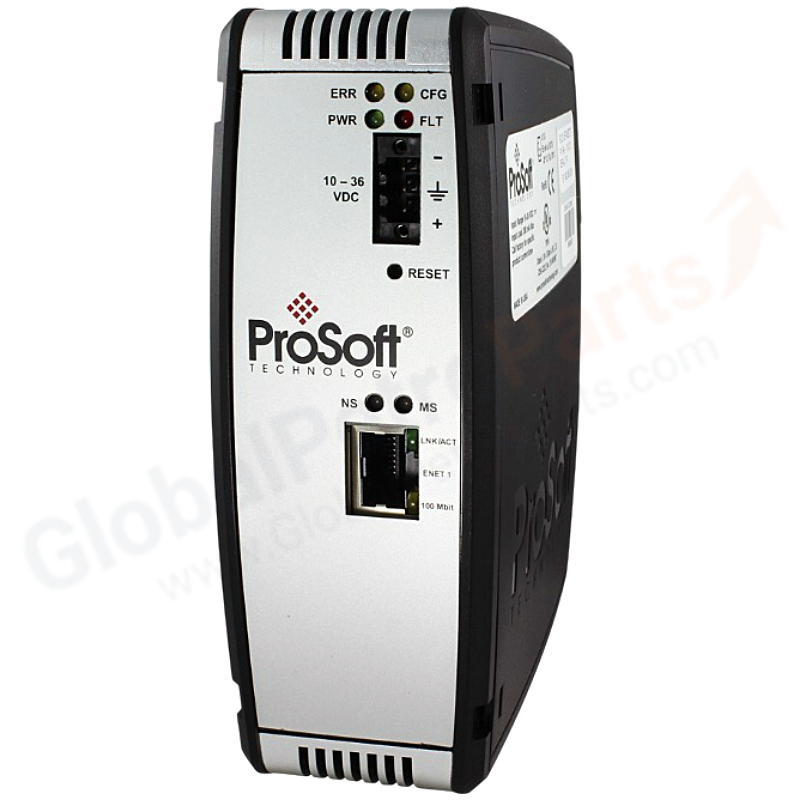

Rockwell ProSoft PLX82-EIP-PNC Communication Converter

Product Overview

The ProSoft PLX82-EIP-PNC is an EtherNet/IP to PROFINET Controller Gateway designed to enable seamless communication between Rockwell Automation EtherNet/IP networks and Siemens PROFINET IO-Controller devices. It acts as a protocol translator, allowing ControlLogix and CompactLogix processors to control and monitor PROFINET devices without additional programming or complex configuration.

Key Technical Specifications

• Product Type: EtherNet/IP to PROFINET Controller Gateway
• Series: ProSoft PLX82
• EtherNet/IP Interface: 1 × 10/100 Mbps RJ45
• PROFINET Interface: 1 × 10/100 Mbps RJ45
• EtherNet/IP Mode: Adapter (Slave)
• PROFINET Mode: IO-Controller (Master)
• Max PROFINET Devices: Up to 32 PROFINET IO-Devices
• Data Exchange: Cyclic I/O data exchange
• Configuration Software: ProSoft Configuration Builder (PCB)
• Web Server: Built-in for diagnostics and configuration
• Power Supply: 24 VDC ±10%
• Operating Temperature: -40°C to +70°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing)
• Mounting: DIN rail
• Certifications: CE, UL, cUL, ATEX, IECEx
• Origin: USA

Key Features

• Protocol Translation: Transparent EtherNet/IP to PROFINET conversion
• Dual Ethernet Ports: Separate ports for EtherNet/IP and PROFINET networks
• PROFINET Controller: Controls up to 32 PROFINET IO-Devices
• EtherNet/IP Adapter: Appears as I/O module to ControlLogix/CompactLogix
• No Programming Required: Configuration via PCB, no ladder logic needed
• Web Diagnostics: Built-in web server for monitoring and troubleshooting
• Wide Temperature: -40°C to +70°C for harsh environments

Applications

• ControlLogix to Siemens PROFINET device integration
• Mixed Rockwell/Siemens automation systems
• PROFINET IO-Device control from EtherNet/IP networks
• Legacy system integration without reprogramming
• Multi-vendor process control systems

Installation Guide

1. Mount on DIN rail in control cabinet
2. Connect EtherNet/IP network to Port 1
3. Connect PROFINET network to Port 2
4. Power with 24 VDC supply
5. Configure gateway via PCB or web interface
6. Discover and configure PROFINET IO-Devices
7. Map I/O data between networks
8. Verify data exchange via web diagnostics

FAQ

Q: How many PROFINET devices can it control?
A: Up to 32 PROFINET IO-Devices.

Q> Does it require ladder logic programming?
A: No, configuration is done via ProSoft Configuration Builder. No ladder logic required.

Q: Can it work with CompactLogix?
A: Yes, it is compatible with both ControlLogix and CompactLogix via EtherNet/IP.

Model Selection Tips

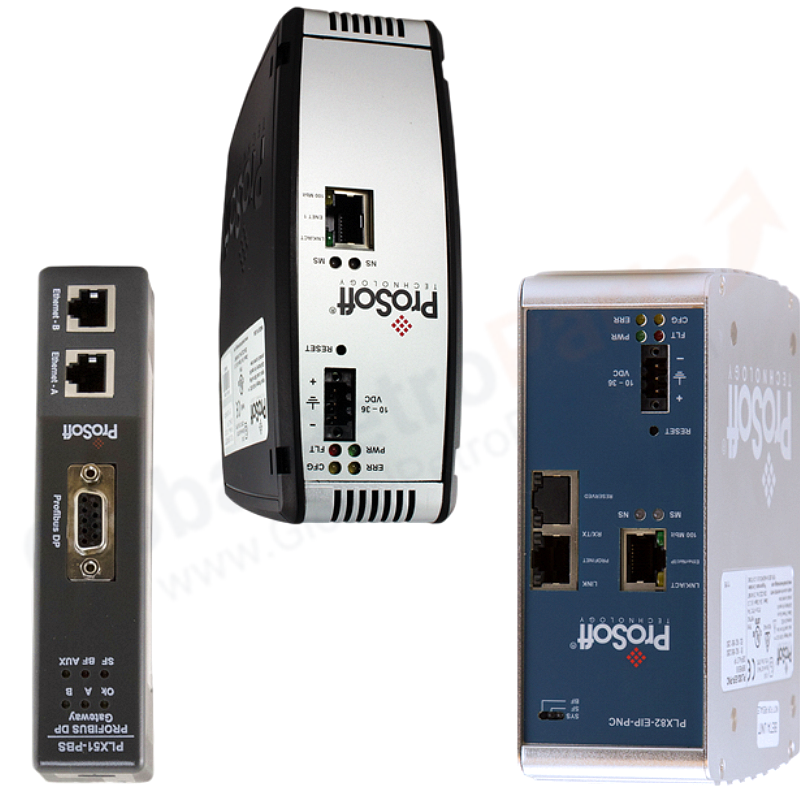

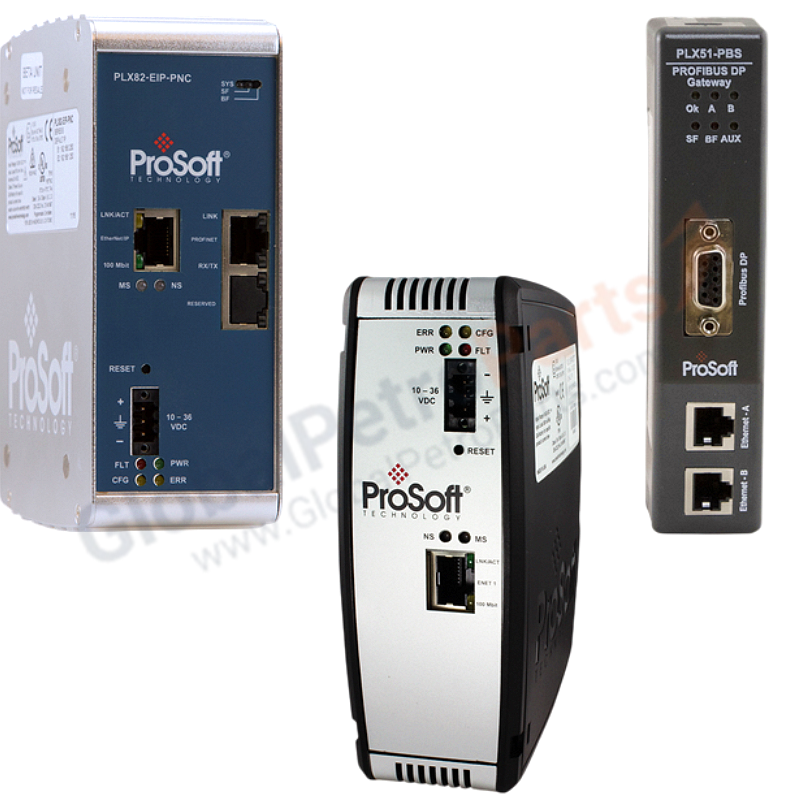

• PLX82-EIP-PNC = EtherNet/IP to PROFINET Controller Gateway
• For EtherNet/IP to PROFIBUS, consider PLX82-EIP-PBS
• For Modbus TCP/IP to PROFINET, consider PLX82-MBTCP-PNC
• Verify PROFINET device GSDML file compatibility
• Ensure separate IP subnets for EtherNet/IP and PROFINET networks
