Product Overview

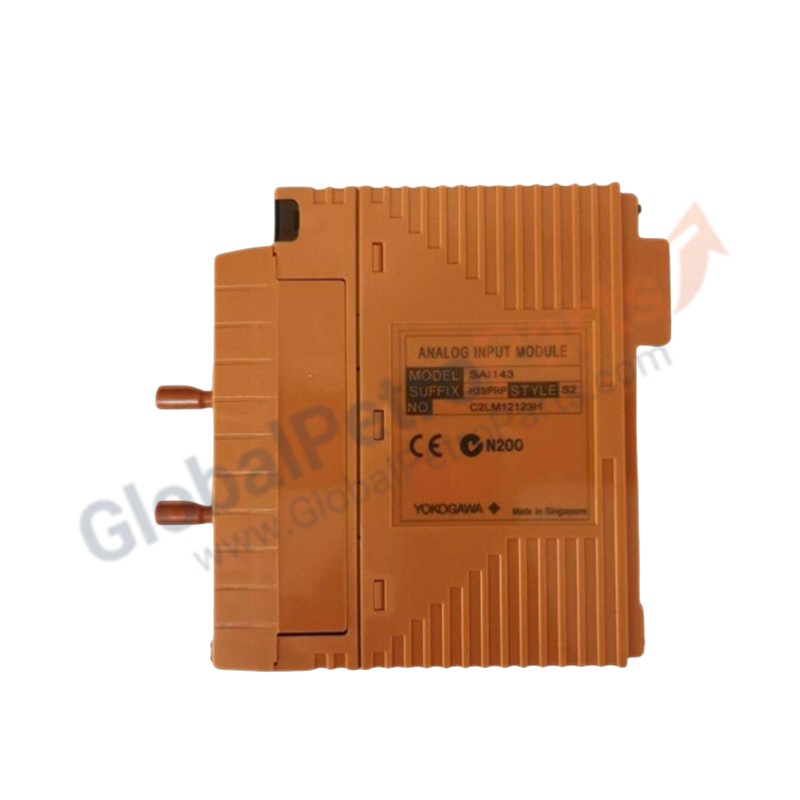

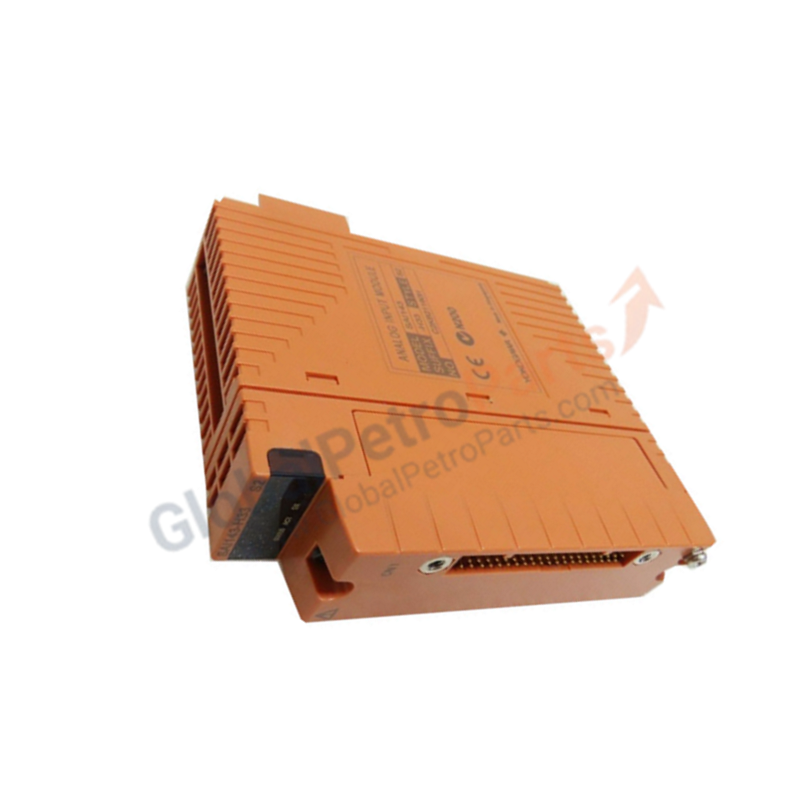

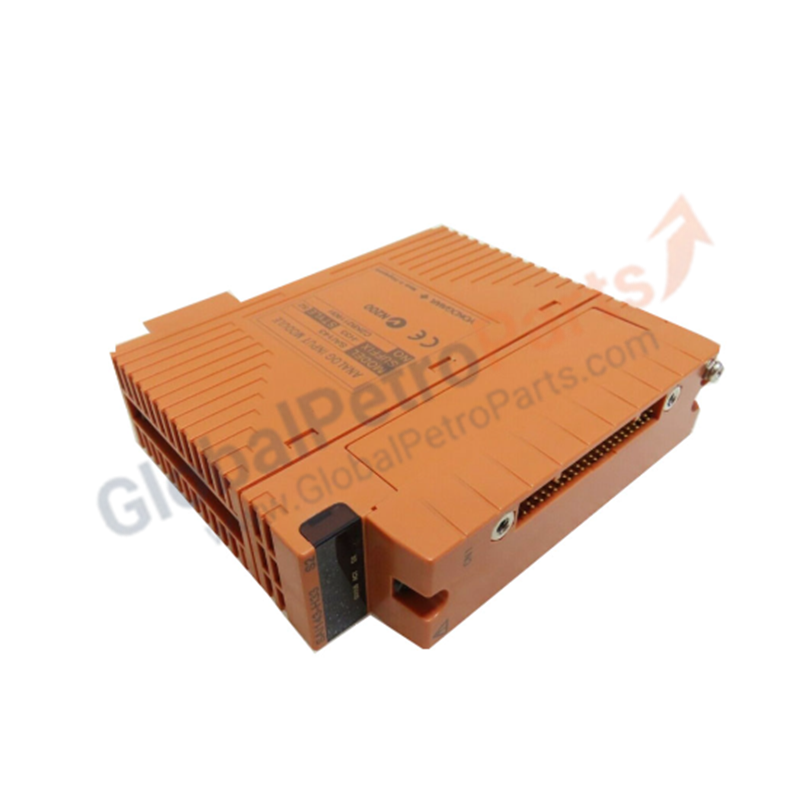

The Yokogawa SAI143-S03 stands as a cornerstone component for the ProSafe-RS Safety Instrumented System (SIS). This 16-channel analog input module interfaces directly with field transmitters to monitor critical process variables via standard 4-20 mA loops. Engineered for high-integrity environments, it provides the precision and isolation required for Safety Integrity Level (SIL) applications. We supply this unit as 100% Brand New and Original, ensuring your safety loops maintain factory-certified reliability from day one.

Part Number Breakdown

Technical Specifications

The SAI143-S03 utilizes high-grade electronic components to achieve superior signal acquisition:

• Input Channels: 16, fully isolated.

• Rated Signal Range: 4 to 20 mA.

• Permissible Signal Range: 0 to 25 mA (Supports over-range detection).

• Input Accuracy: ±16 μA (within the 1-23 mA operating window).

• Transmitter Connection: Supports both 2-wire and 4-wire configurations per channel.

• System Platform: Specifically for Yokogawa ProSafe-RS Safety Systems.

• Update Cycle: Fast data sampling for real-time safety response.

Engineering Advantages

• Solve Ground Loop Interference: Each channel features individual isolation. This architecture prevents electrical noise or ground potential differences from one field loop from affecting adjacent channels, ensuring stable data in electrically "noisy" industrial plants.

• Flexible Field Integration: The module accommodates both 2-wire (loop-powered) and 4-wire (self-powered) transmitters. This flexibility simplifies the marshalling process, as engineers can mix different instrument types on the same module without adding external signal conditioners.

• High-Accuracy Safety Monitoring: With a precision of ±16 μA, the SAI143-S03 detects minute changes in process conditions. This allows the ProSafe-RS controller to execute emergency shutdowns (ESD) or fire and gas (F&G) logic with absolute confidence.

• Extreme Environment Resilience: The "03" suffix indicates enhanced protection against corrosive gases (ISA G3 compliant) and supports a wide temperature range. This makes the module ideal for remote instrument enclosures or facilities near seawater and chemical processing zones.

FAQs

• Can I use the SAI143-S03 in a redundant configuration?

  Yes. For high-availability safety applications, you can install the SAI143-S03 in a redundant pair within the ProSafe-RS nest. This ensures the safety function remains active even if one module requires maintenance.

• Does this module support HART digital communication?

  No. The "S" in SAI143-S03 designates the Standard version. If your application requires HART pass-through for remote diagnostics, please select the SAI143-H series.

• Is any specific software configuration needed for 2-wire vs 4-wire?

  Yes. You must define the wiring type in the ProSafe-RS Engineering Station software to ensure the module correctly manages internal power distribution and signal references.

• How do I verify the authenticity of this module?

  We ship the SAI143-S03 in its original Yokogawa factory packaging with the original serial numbers and factory-sealed anti-static shielding. This guarantees you receive an authentic, unused unit.
