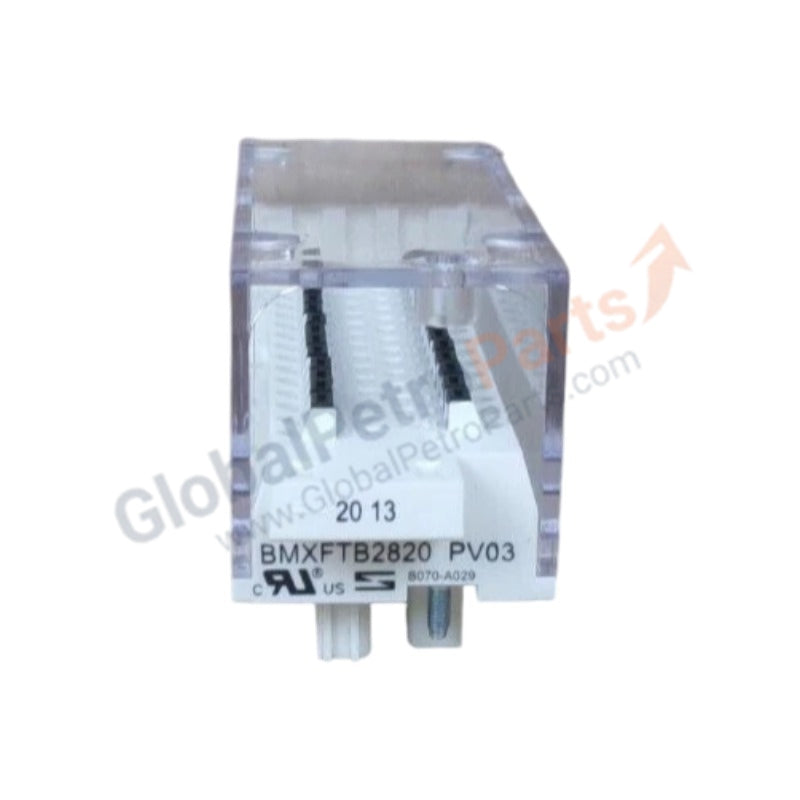

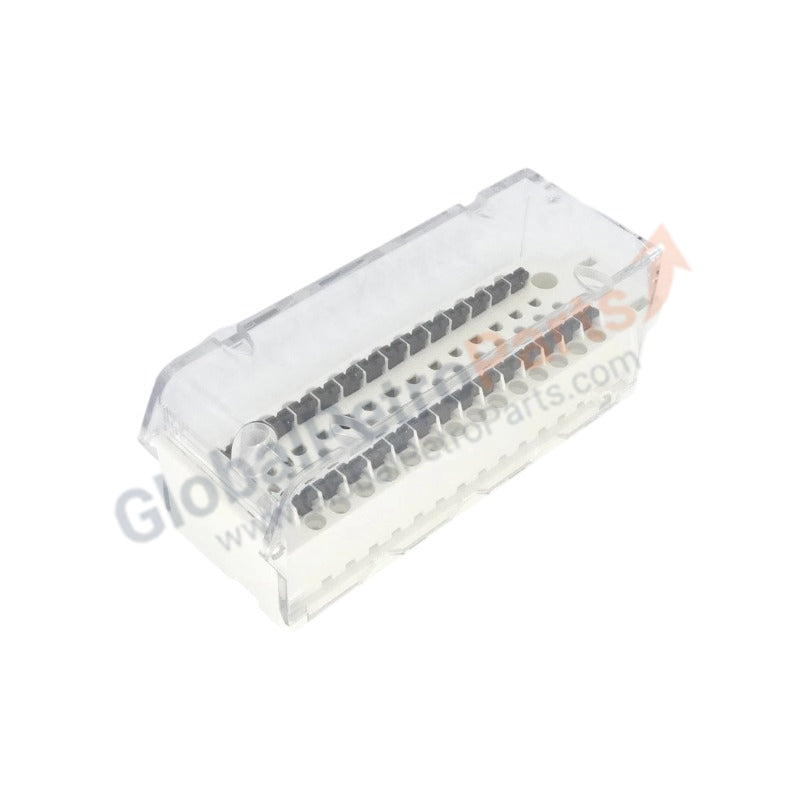

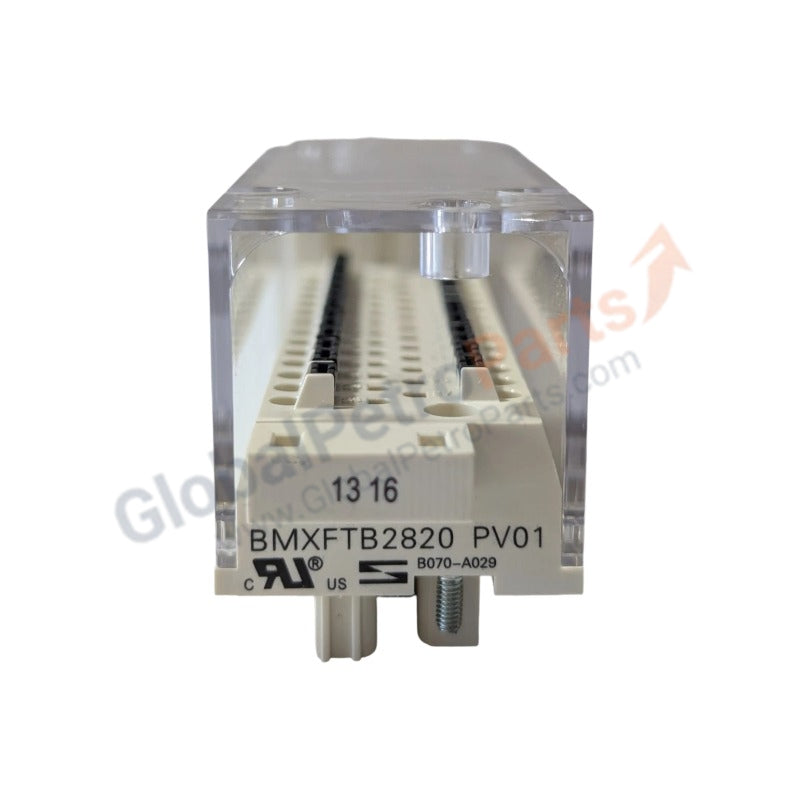

Schneider BMXFTB2820 Modicon Quantum X80 28-Pin Removable Terminal Block

Product Overview

The Schneider Electric BMXFTB2820 serves as the primary wiring interface for high-density Modicon X80 I/O modules. This 28-pin removable terminal block utilizes advanced spring-clamp technology to provide secure, vibration-resistant electrical connections for the M340 and M580 automation platforms. By separating the field wiring from the active electronic module, the BMXFTB2820 simplifies maintenance and enables rapid hardware replacement without disturbing the cabinet cables. We guarantee this unit as 100% Brand New and Original.

Technical Specifications

The BMXFTB2820 optimizes cabinet space while maintaining high electrical integrity for diverse signal types.

Engineering Advantages

• Vibration-Proof Spring Clamping: The internal spring mechanism maintains constant pressure on the wire, preventing signal loss or loosening caused by industrial vibration. This technology eliminates the need for periodic torque checks required by traditional screw terminals.

• Tool-Free Rapid Wiring: The spring-loaded design allows for faster wire insertion compared to screw-type blocks. This efficiency significantly reduces labor hours during large-scale control cabinet assembly and commissioning.

• Hot-Swap Maintenance Support: The removable architecture allows engineers to unplug the entire wired block from a faulty I/O module. You can then insert a new module and reattach the original terminal block in seconds, minimizing process downtime.

• Error-Proof Coding: The block design ensures correct alignment with X80 modules. This mechanical keying prevents incorrect insertion, protecting both the field sensors and the expensive PLC processor from potential wiring mismatch damage.

FAQs

• Q: Does the BMXFTB2820 require ferrules for multi-strand wires?

• A: While the spring terminal accepts bare multi-strand wires, we recommend using $1\text{ mm}^2$ ferrules to ensure the cleanest connection and prevent stray strands from causing short circuits in high-density 28-pin environments.

• Q: Can I use this terminal block with Modicon Premium or Quantum modules?

• A: No. The BMXFTB2820 specifically fits the Modicon X80 platform (used by M340 and M580). Premium and Quantum platforms use different physical form factors and connector pinouts.

• Q: How do I release a wire once it is clamped?

• A: Insert a small flat-head screwdriver into the release slot adjacent to the wire entry point. This action compresses the internal spring, allowing you to pull the wire out smoothly without damaging the conductor.

• Q: Is this the same as the BMXFTB2020?

• A: No. The BMXFTB2820 features 28 pins for high-density modules, whereas the BMXFTB2020 only provides 20 pins. Always check the pin count requirement of your specific X80 I/O module before installation.
