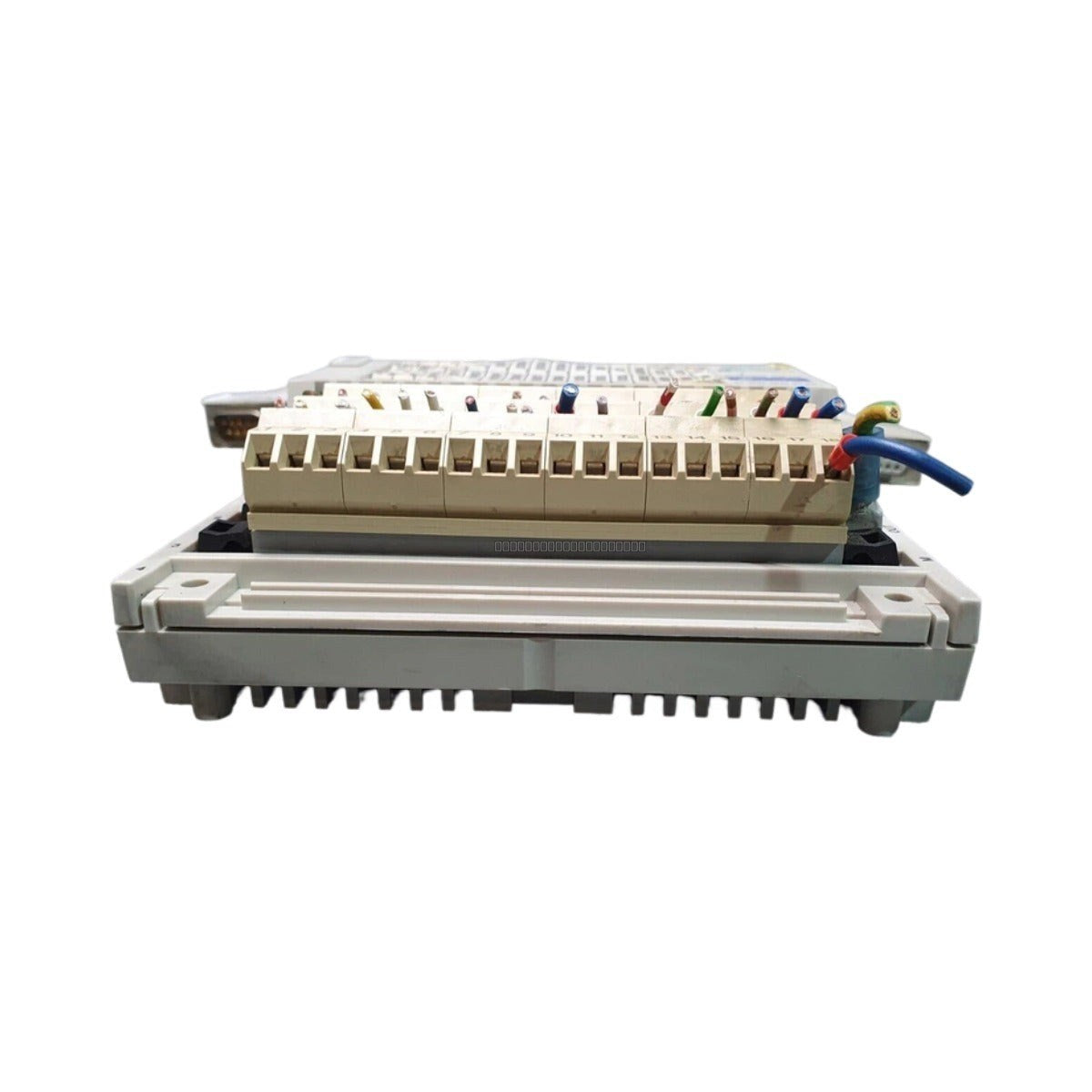

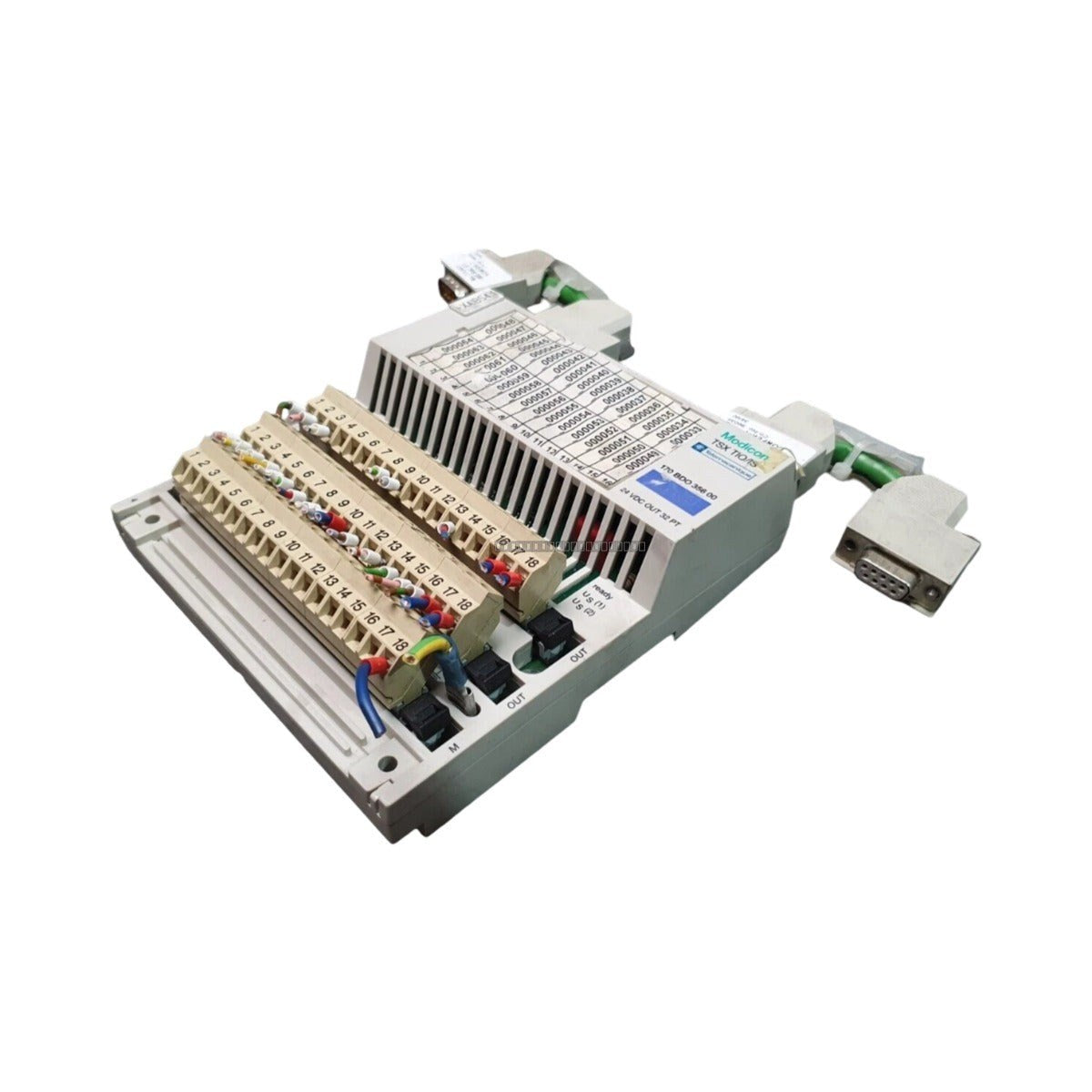

Schneider Electric ASB351001 Modicon Discrete Output Module

Description

The Schneider Electric ASB351001 (AS-B351-001) is a high-density discrete output module designed for the Modicon automation family. This module provides 32 isolated solid-state sourcing output channels, engineered to switch 24 VDC electrical loads based on commands from the system processor. It is widely utilized in demanding industrial environments, including petroleum refining, power generation, and mining, to manage signaling relays, indicator lamps, and pneumatic valves. The module features integrated short-circuit protection and optoelectronic isolation to protect the backplane logic from field-side voltage spikes and electrical noise.

Features

• 32-channel discrete output configuration
• Sourcing output type for 24 VDC loads
• Integrated optoelectronic isolation (1500 VAC channel-to-bus)
• Built-in short-circuit protection for enhanced reliability
• Low power consumption from the backplane (1.5 W)
• Designed for high-density wiring applications

Applications

This module is suitable for various industrial automation tasks requiring reliable discrete signal control, such as:

• Automating pneumatic valve manifolds
• Driving status indicator panels and alarm annunciators
• Interfacing with industrial relays and contactors
• Process control loops in heavy industry and manufacturing

Technical Specifications

Installation Guidelines

• Ensure the system power is disconnected before installing or removing the module from the rack.
• Verify that the module is correctly seated in the chassis slot to ensure proper backplane communication.
• Use shielded cabling for field connections to minimize EMI/RFI interference in high-noise environments.
• Maintain adequate ventilation clearance around the module to prevent thermal accumulation.
• Adhere to standard ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.
• Ensure that the external 24 VDC power supply for the field outputs is correctly wired to the module terminals.

FAQ

What is the primary function of the ASB351001 module?

The ASB351001 is a 32-channel discrete output module that switches 24 VDC loads, allowing the Modicon controller to actuate external devices like relays and valves.

Does this module require external power?

Yes, while the module draws minimal power from the backplane for internal logic, the output channels require an external 24 VDC supply to drive the field loads.

Is this module suitable for high-vibration environments?

The module is designed for standard industrial infrastructure; however, ensure it is securely mounted in a vibration-rated enclosure to maintain long-term reliability.
