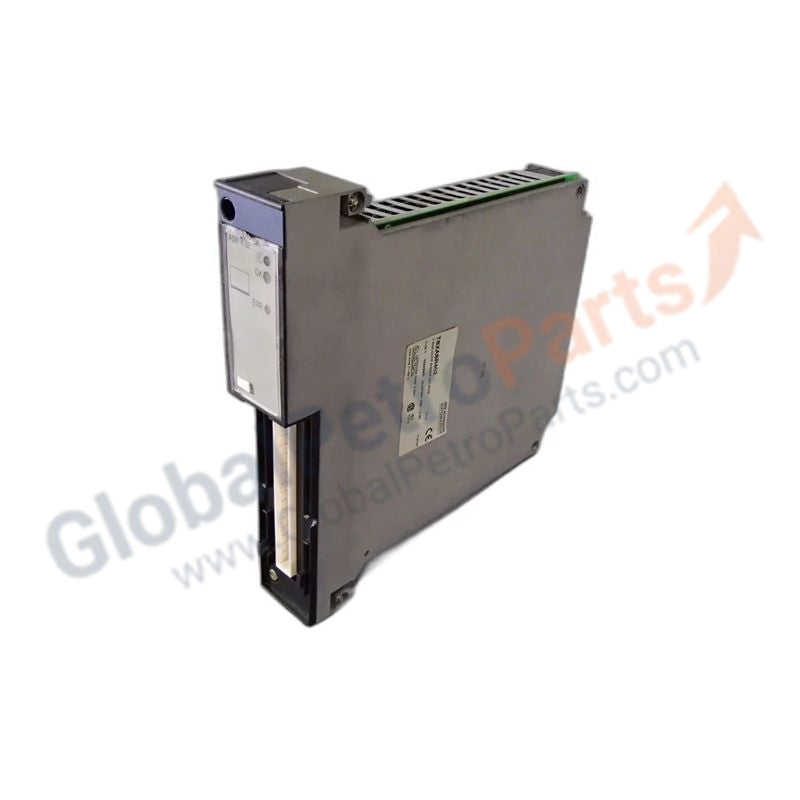

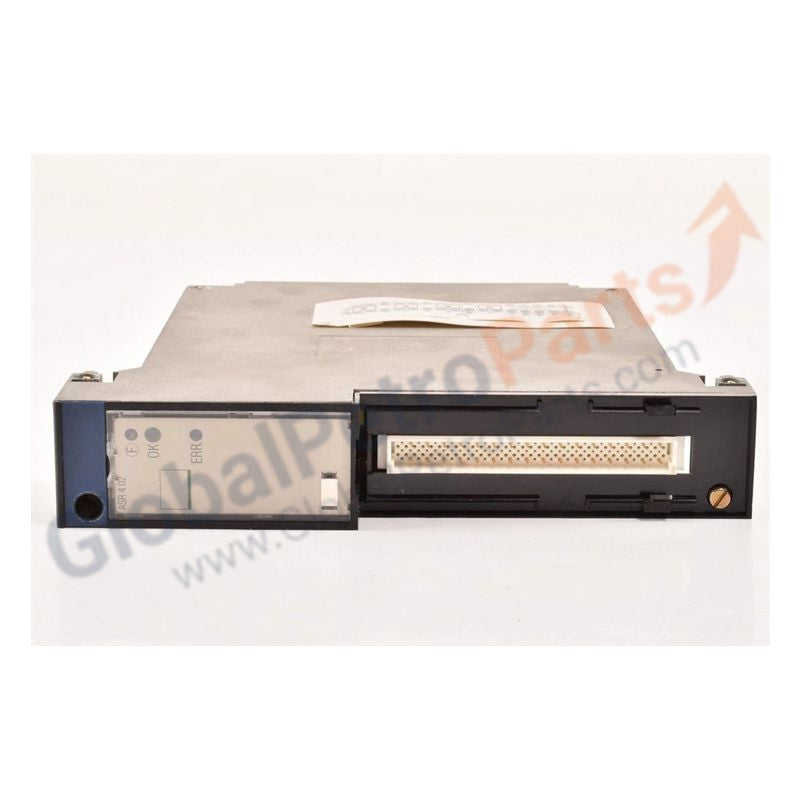

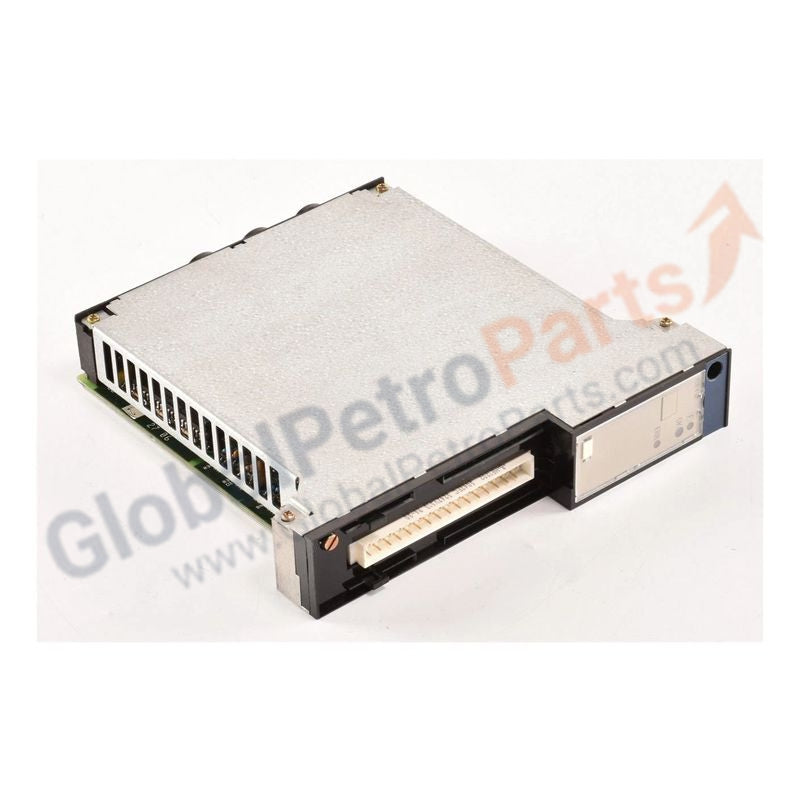

Schneider Electric TSXASR402 Analog Output Module
  • Schneider Electric TSXASR402 Analog Output Module
  • Schneider Electric TSXASR402 Analog Output Module
  • Schneider Electric TSXASR402 Analog Output Module
Schneider Electric TSXASR402 Analog Output Module

Schneider

Schneider Electric TSXASR402 Analog Output Module

10 left

  • Manufacturer: Schneider

  • Product No.: TSXASR402

  • Product Type: Analog Output Module

  • Product Origin: France

  • Payment:T/T, Western Union

  • Weight: 700g

  • Shipping port: Xiamen

  • Warranty: 12 months

Special offer ends!
00 :
00 :
00

Product Description

The TSXASR402 is a 4-channel analog output module for the Schneider Electric TSX Micro (TSX 37) PLC platform. It converts digital logic into high-precision voltage or current signals, providing smooth and accurate control for actuators such as variable speed drives, proportional valves, and analog devices. Its compact, modular design integrates seamlessly into the TSX Micro chassis.

Technical Specifications

Item Specification
Channels 4 Analog Outputs
Output Ranges ±10 V, 0–10 V, 0–20 mA, 4–20 mA
Resolution 11 bits + sign (±10 V), 12 bits (0–10 V / Current)
Conversion Time 5 ms for all channels
Precision ±0.2% of full scale at 25°C
Load Impedance >1000 Ω (Voltage), <600 Ω (Current)
Isolation 1500 Vrms between channels and logic
Connection 1 × HE10 connector (ribbon or Telefast cable)
Current Consumption 140 mA @ 5V DC, 60 mA @ 24V DC

Typical Applications

  • Synchronized speed control for multiple motors

  • Setpoint generation for temperature and pressure regulators

  • Legacy TSX Micro systems in manufacturing, textile, and food processing

Notes

  • Cabling: HE10 connector; compatible with TSX CDP 102/202 cables or Telefast ABE7 sub-base

  • Calibration: Factory-calibrated; fine adjustments via PL7 Junior/Pro or Unity Pro
Return policy

​We aim to provide reliable products and a smooth purchasing experience. If there is a problem with your order, please contact us and we will assist according to our Refund Policy.
Shipping

We provide international shipping options to meet different delivery requirements. Please review details regarding methods and timelines in our Shipping Policy.
Warranty

We provide a 12-month warranty for all products, subject to normal use and proper installation.
