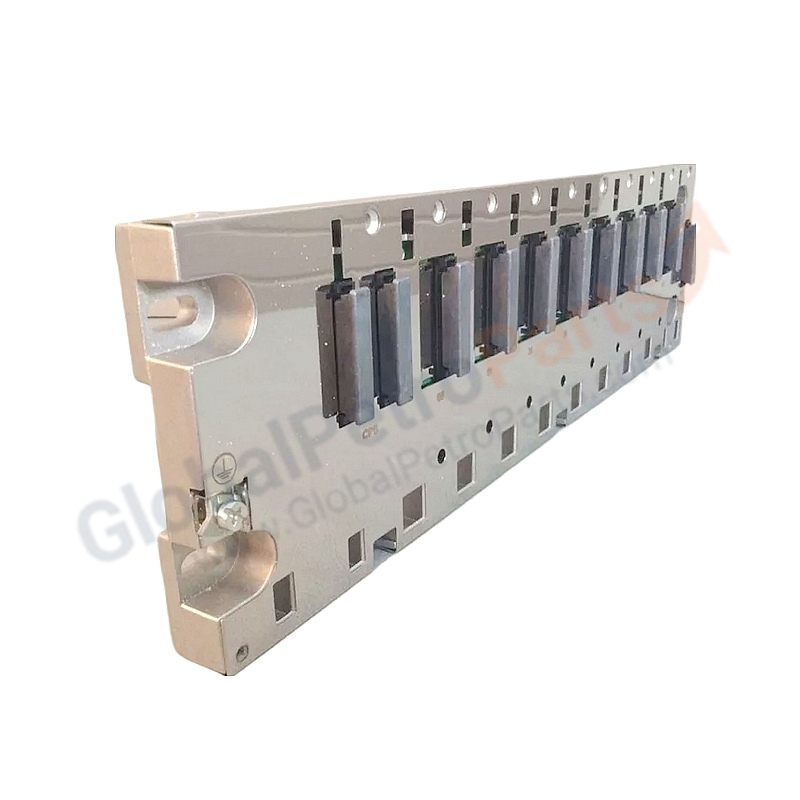

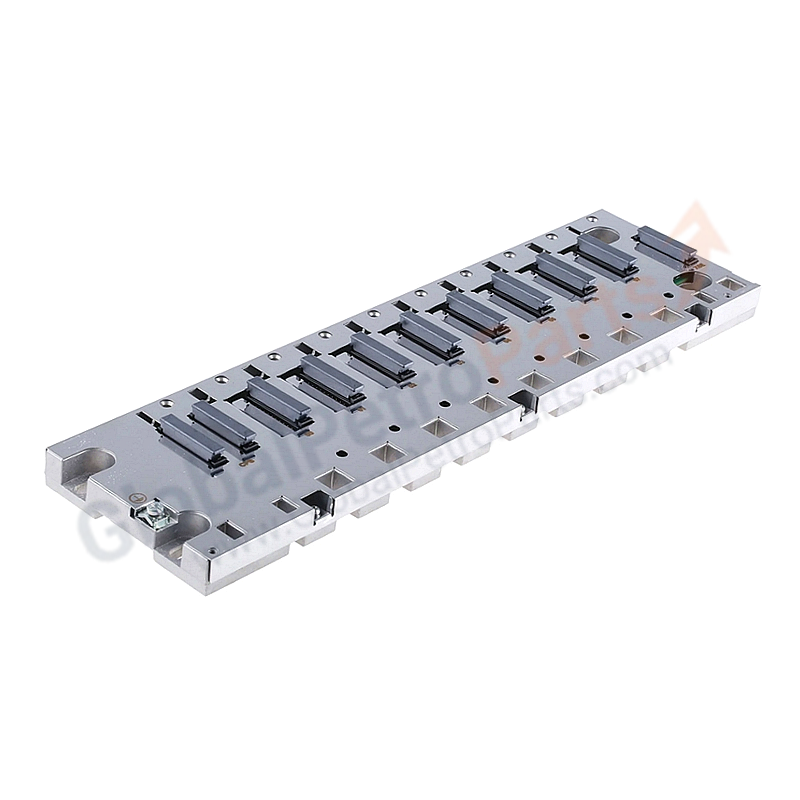

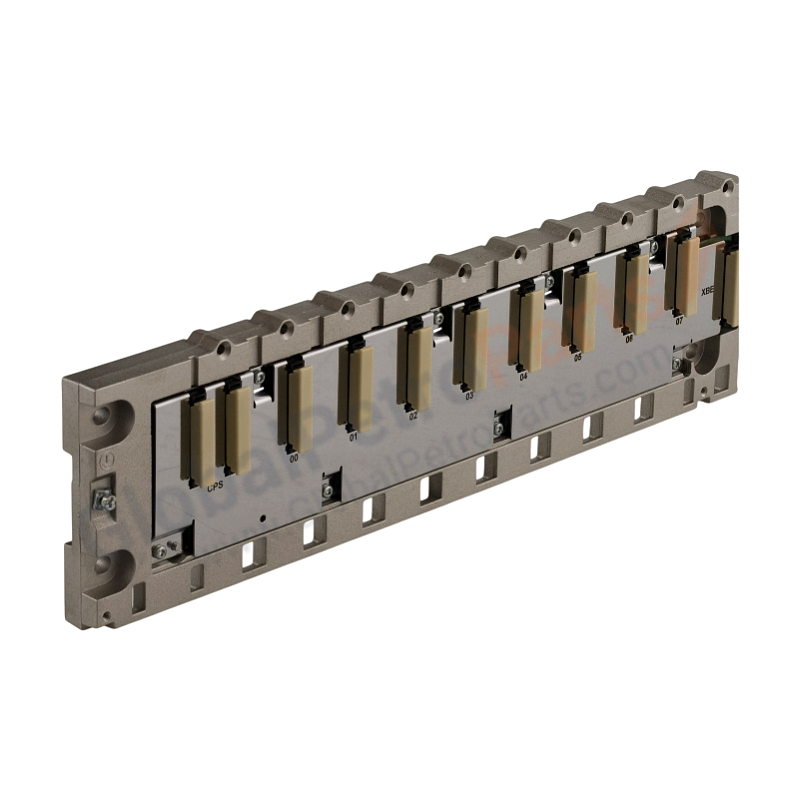

Schneider Modicon BMXXBP0800 8-Slot Backplane

Schneider Electric BMXXBP0800 Modicon X80 8-Slot Backplane — DIN Rail/Panel Mount, X-bus, Green Premium

The BMXXBP0800 is an 8-slot X-bus backplane for Schneider Electric's Modicon X80 I/O platform, compatible with M340, M580, and Quantum PAC/PLC systems. It provides the mechanical mounting and electrical bus connection for up to 8 X80 modules including processors, power supplies, I/O modules, and special application modules. The backplane features a dedicated XBE expansion connector for multi-rack configurations and supports hot-swappable I/O module replacement for reduced maintenance downtime.

Key Specifications

• Manufacturer: Schneider Electric
• Series: Modicon X80 (M340 / M580 / Quantum)
• Type: 8-Slot X-bus Backplane / Rack
• Number of Slots: 8 bus X slots
• Slot Configuration: 1 slot for power supply + 4 slots for single-width modules & CPU + 3 slots for dual-width or additional modules
• Power Consumption: 2 W (2.21 W per some sources)
• Electrical Connection: 1 connector (XBE) for expansion module (multirack configuration)
• Mounting Options:
  • 35 mm symmetrical DIN rail (standard)
  • Panel mount (4 × M4/M5/M6 screws, hole diameter 4.32–6.35 mm)
  • Mounting plate (4 × M6 screws)
• Dimensions: 372.8 × 103.7 × 19 mm (W × H × D) [14.67 × 4.08 × 0.75 in]
• Weight: 0.95 kg (2.09 lb)
• IP Rating: IP20
• Operating Temperature: 0°C to +60°C (32°F to 140°F)
• Storage Temperature: -40°C to +85°C (-40°F to 185°F)
• Relative Humidity: 10–95% non-condensing
• Shock Resistance: 30 gn
• Vibration Resistance: 3 gn
• Protective Treatment: TC (Technical Coating)
• Minimum Clearance: ≥60 mm from casing sides; ≥80 mm from wiring duct or tray
• Product Compatibility: BMXP34 processors, BMXCPS power supplies, I/O modules, specific application modules
• Hot Swappable: Yes — most I/O modules support hot replacement
• Sustainability: Green Premium product
• RoHS Status: Compliant since 0612 (2006 week 12)
• REACh: Reference contains SVHC above threshold — consult CaP for details
• Packaging: Recycled cardboard (minimum 70% recycled content, 50% in US)
• Take-Back Program: Included in Schneider Electric global take-back program
• Warranty: 18 months
• Status: Active / In production

Architecture & Functionality

• X-bus Backplane: Provides high-speed data bus (X-bus) for communication between all installed modules
• Power Distribution: Distributes 5 VDC and 24 VDC from the power supply module to all I/O and processor modules
• Expansion Capability: XBE connector allows connection of BMXXBE1000 backplane expander for multi-rack systems (up to 4 racks total)
• Stable Module Mounting: Robust mechanical design ensures reliable module retention in industrial environments
• Same Backplane for M340/M580: BMXXBP0800 is used by both Modicon M340 and Modicon M580 systems, enabling seamless upgrades
• Environmental Resilience: TC protective treatment, IP20 rating, and wide temperature range ensure reliable operation in harsh industrial conditions

Related Backplane Models

• BMXXBP0400: 4-slot X-bus backplane (M340/M580/Quantum)
• BMXXBP0600: 6-slot X-bus backplane (M340/M580/Quantum)
• BMXXBP0800: 8-slot X-bus backplane (this product)
• BMXXBP1200: 12-slot X-bus backplane (M340/M580/Quantum)
• BMXXBP0400H: 4-slot ruggedized backplane (-25°C to +70°C)
• BMXXBP0600H: 6-slot ruggedized backplane (-25°C to +70°C)
• BMXXBP0800H: 8-slot ruggedized backplane (-25°C to +70°C)
• BMEXBP0800H: 8-slot Ethernet backplane (M580 Ethernet I/O)

Installation Guide

1. Mount the BMXXBP0800 on a 35 mm symmetrical DIN rail or panel using 4 screws (M4/M5/M6, hole diameter 4.32–6.35 mm).
2. Ensure minimum clearance: ≥60 mm from cabinet sides, ≥80 mm from wiring duct or tray.
3. Install the BMXCPS power supply module in the leftmost dedicated power supply slot.
4. Install the BMXP34 processor module in the adjacent CPU slot.
5. Install I/O modules and special application modules in the remaining slots.
6. For multi-rack systems, connect BMXXBE1000 backplane expander to the XBE connector on the rightmost side of the rack.
7. Verify all modules are fully seated and secured with captive screws.
8. Power on and verify module status via Unity Pro or EcoStruxure Control Expert diagnostics.

FAQ

Q: Is BMXXBP0800 a digital output module?
A: No. Some third-party sources incorrectly describe it as an 8-channel 24VDC transistor output module. The BMXXBP0800 is an 8-slot X-bus backplane — it provides mechanical mounting and electrical bus connections for X80 modules, not I/O signal processing.

Q: What is the difference between BMXXBP0800 and BMXXBP0800H?
A: BMXXBP0800 is the standard version (0°C to +60°C). BMXXBP0800H is the ruggedized version with extended temperature range (-25°C to +70°C) and enhanced environmental resistance.

Q: Is BMXXBP0800 compatible with M580?
A: Yes. The BMXXBP0800 is the same backplane used by both Modicon M340 and Modicon M580 systems. This enables seamless upgrades from M340 to M580 without changing the rack infrastructure.

Q: How many racks can I connect with BMXXBP0800?
A: Up to 4 racks total using BMXXBE1000 backplane expanders connected via the XBE connector on each rack.

Q: Does the power supply occupy an I/O slot?
A: No. The BMXXBP0800 has a dedicated power supply slot that does not consume any of the 8 standard I/O slots, maximizing rack utilization.

Q: What is the maximum number of I/O modules?
A: The backplane has 8 slots. After accounting for the power supply and CPU, up to 6 I/O or application modules can be installed (depending on module width — some modules occupy 2 slots).

Selection Tips

• X80, 4-slot backplane: BMXXBP0400 / BMXXBP0400H (ruggedized)
• X80, 6-slot backplane: BMXXBP0600 / BMXXBP0600H (ruggedized)
• X80, 8-slot backplane: BMXXBP0800 / BMXXBP0800H (ruggedized)
• X80, 12-slot backplane: BMXXBP1200
• M580 Ethernet I/O: BMEXBP0800H (Ethernet backplane)
• Always verify: Number of required modules, temperature range, and multi-rack expansion needs before ordering
• Order compatible power supply: BMXCPS2000/2010/3500/3540 depending on power requirements
• Order expansion kit for multi-rack: BMXXBE2005 (includes 2×BMXXBE1000 + 1×BMXXBC008K + terminators)
