Schneider Modicon Quantum 140CPU65160 Unity Processor

Product Overview

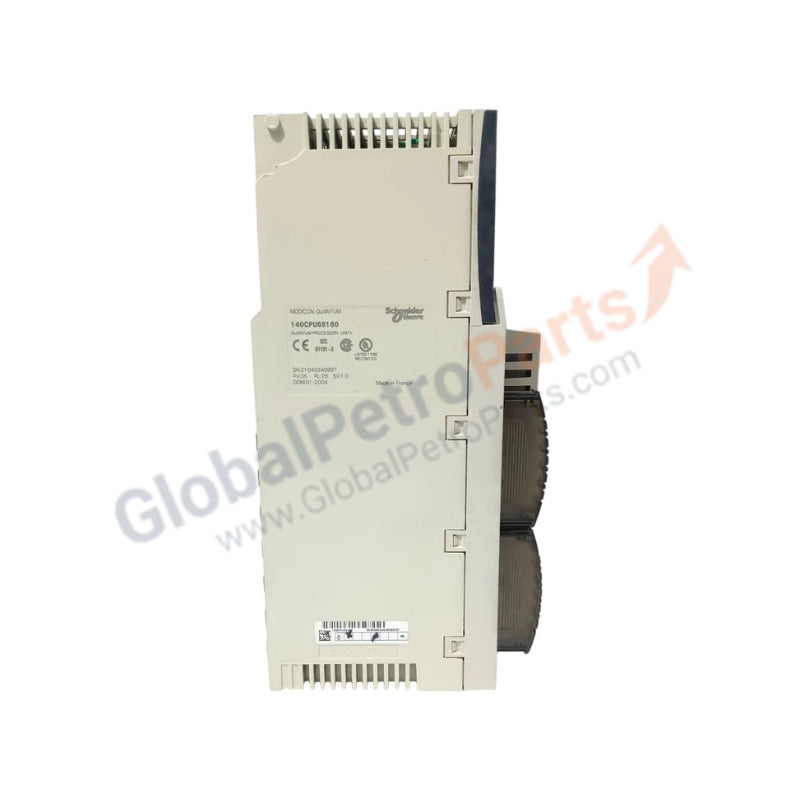

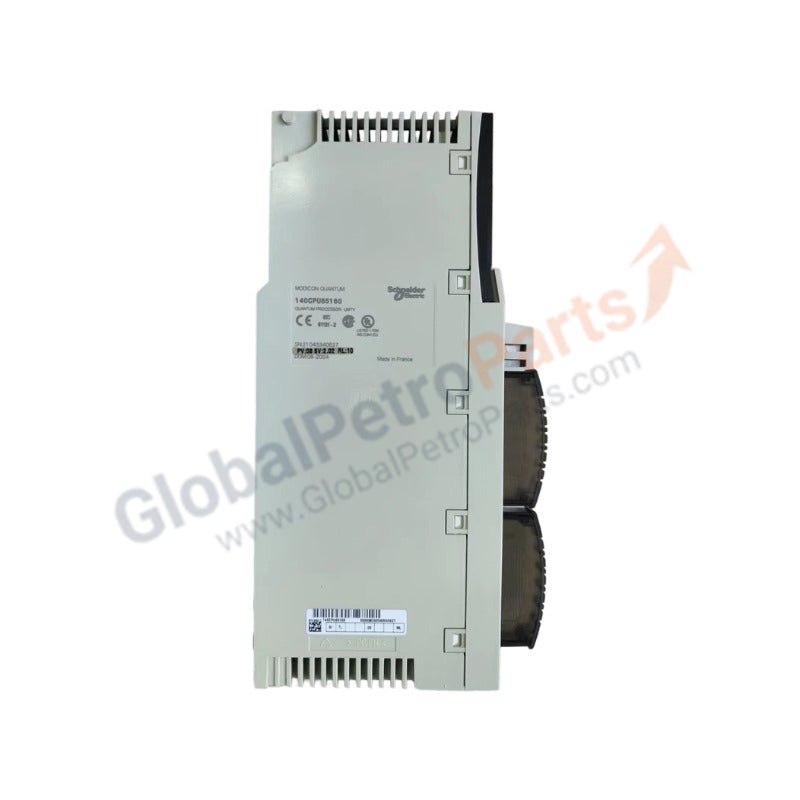

The Schneider Electric 140CPU65160 serves as a high-tier Unity processor for the Modicon Quantum automation platform. Operating at a 266 MHz clock frequency with 1024 KB of internal RAM, this CPU executes complex control algorithms and manages high-density I/O configurations with superior speed. It supports diverse networking protocols including Modbus Plus, Ethernet TCP/IP, and Modbus RS232/485, making it a versatile powerhouse for large-scale industrial integration. We provide this unit as 100% Brand New and Original, ensuring your facility utilizes the latest hardware revisions for maximum uptime and system security.

Technical Specifications

The 140CPU65160 offers massive I/O capacity and high-speed logic execution:

• Clock Frequency: 266 MHz

• Internal RAM: 1024 KB

• Expandable Memory: Up to 7168 kB (Program) and 8 MB (File Storage) via PCMCIA card

• Discrete I/O Capacity: 31,744 Remote Inputs / 31,744 Remote Outputs

• Analogue I/O Capacity: Unlimited local (26 slots max); 1,984 S908 RIO Inputs/Outputs

• Execution Speed: 10.28 Kinst/ms (100% Boolean)

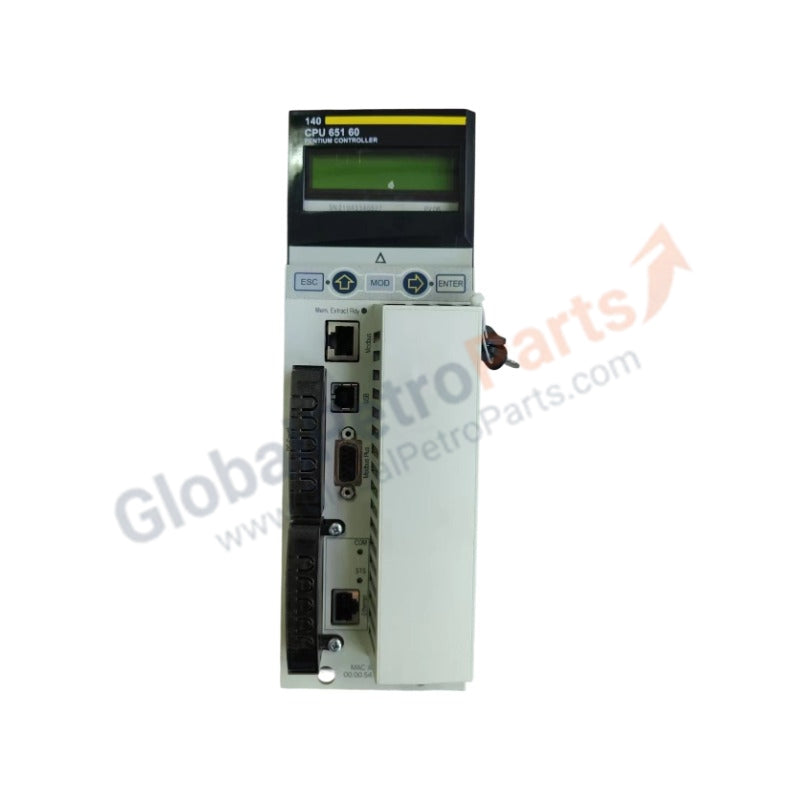

• Integrated Ports: 1 x Ethernet RJ45, 1 x Modbus Plus (SUB-D 9), 1 x Modbus (RS232/485), 1 x USB

• I/O Stations: Supports up to 63 Distributed I/O stations and 31 Remote I/O drops

• Bus Current Requirement: 2760 mA

• Application Structure: Supports 1 Master Task, 1 Fast Task, and 128 Interrupt Tasks

Engineering Advantages

The 140CPU65160 facilitates advanced control over sprawling industrial networks through several key design features:

• High-Speed Processing for Complex Logic: The 266 MHz clock allows the CPU to process over 10,000 instructions per millisecond. This reduces system overhead (0.2 ms for fast tasks), enabling precise control over high-speed packaging, turbine control, or sophisticated process loops.

• Multi-Protocol Communication Hub: By integrating Ethernet, Modbus Plus, and USB ports directly on the front panel, this processor acts as an Ethernet router. It eliminates the need for external gateways when bridging data between the plant floor and ERP systems.

• Vast Scalability for Distributed I/O: The processor manages up to 3 Modbus Plus networks and 31 Ethernet RIO drops. This allows engineers to expand control across multiple racks and buildings without sacrificing signal integrity or scan time.

• Mission-Critical Reliability: A physical key switch controls the memory port, preventing unauthorized or accidental program changes. Additionally, HazLoc and Marine certifications ensure stable operation in explosive atmospheres or onboard offshore vessels.

• Advanced Diagnostic Array: Dedicated LEDs for Ethernet activity (COM) and collision detection provide instant visual feedback. This allows maintenance teams to distinguish between network congestion and hardware faults without opening a laptop.

FAQs

• Can I expand the memory beyond the internal 1024 KB? Yes. You can install a PCMCIA card to expand program memory up to 7168 kB and file storage up to 8 MB, allowing for extensive data logging and large application recipes.

• Which programming software does this processor require? The 140CPU65160 is a Unity processor. It requires Schneider Electric’s Unity Pro software (now EcoStruxure Control Expert) for configuration, programming, and diagnostics.

• Is this module compatible with X80 I/O? Yes. This CPU supports up to 16 Ethernet X80 remote I/O stations (2 racks per station), enabling seamless integration between Quantum and newer X80 hardware.

• What is the warranty and condition of the unit? We guarantee this processor is 100% Brand New in its original factory package. It includes our standard 18-month contractual warranty against defects in materials or workmanship.
