Schneider Modicon Quantum 140CRA31200 Ethernet RIO Drop Adaptor

Product Overview

The Schneider Electric 140CRA31200 functions as a high-performance Ethernet Remote I/O (RIO) drop adaptor for the Modicon Quantum automation platform. This module synchronizes distributed I/O racks with the central processor, facilitating real-time data exchange across expansive industrial architectures. It collects input data from local drops and publishes it to the remote I/O head adaptor while simultaneously updating local output modules with incoming network commands. We provide this unit as 100% Brand New and Original, ensuring your critical control loops maintain maximum availability.

Technical Specifications

The 140CRA31200 integrates dual-protocol support and robust mechanical housing to handle high-traffic automation environments:

Engineering Advantages

The 140CRA31200 simplifies the implementation of complex, distributed control systems through its advanced hardware architecture:

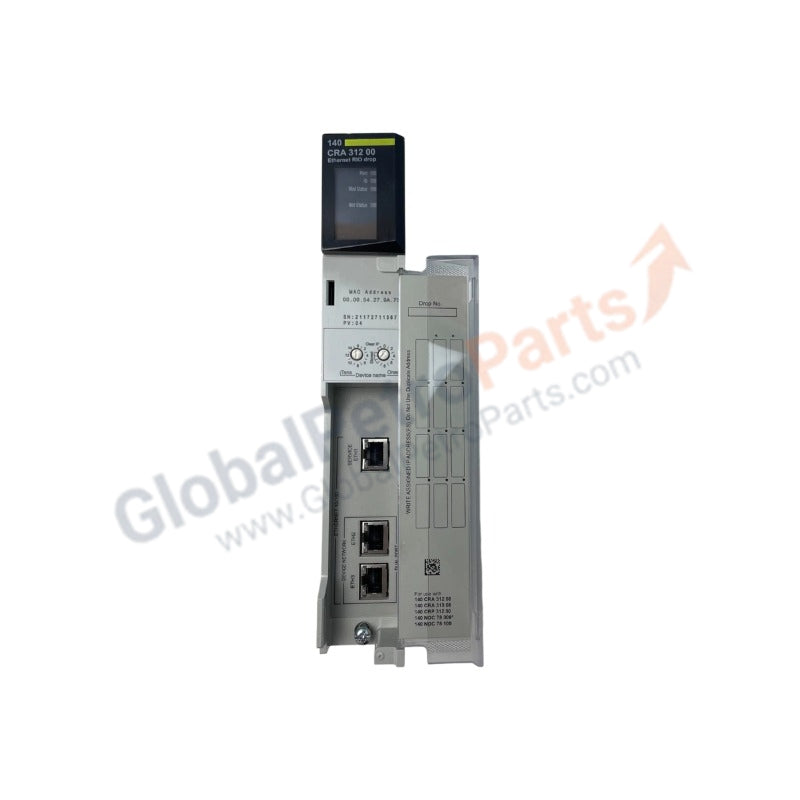

• Daisy Chain Loop Resilience: The integrated three-port design supports a daisy chain loop topology. This configuration provides a redundant path for data, ensuring that the I/O drop remains operational even if a single cable segment suffers damage or disconnection.

• Dedicated Service Port: A specialized Ethernet port allows engineers to connect diagnostic tools or HMI panels directly to the drop without interrupting primary control traffic. This prevents accidental network congestion during troubleshooting or commissioning.

• High-Speed Input/Output Synchronization: The module prioritizes the deterministic publication of input data to the head adaptor. This minimizes latency in high-speed process applications where timing between remote sensors and central logic is critical.

• Harsh Environment Readiness: Compliant with Class I Division 2 hazardous location standards and IEC 61000-4-16 immunity requirements, this adaptor survives the electrical noise and environmental volatility typical of petrochemical or heavy manufacturing sites.

• Clear Visual Diagnostics: Four dedicated LEDs provide instant status updates for the module (Mod Status), network communication (Net Status), CPU activity (RUN), and I/O faults. This allows maintenance teams to identify system bottlenecks at a glance.

FAQs

• Does the 140CRA31200 require a specific head module? Yes. This drop adaptor works specifically in conjunction with the 140CRP31200 head adaptor to form a complete Ethernet RIO network.

• Can I use this module for both EtherNet/IP and Modbus TCP simultaneously? The 140CRA31200 supports both communication protocols, allowing for flexible integration into various Schneider Electric and third-party industrial network environments.

• What is the benefit of the Daisy Chain Loop topology? It provides a simple form of cable redundancy. If the network breaks at one point, the data automatically routes through the other side of the loop, preventing a total loss of communication with that I/O rack.

• What is the condition of this unit? We guarantee this module is 100% Brand New in its original factory packaging, complete with all original documentation and Schneider Electric seals.
