Schneider Modicon Quantum 140DAO85300 Discrete Output Module

Product Overview

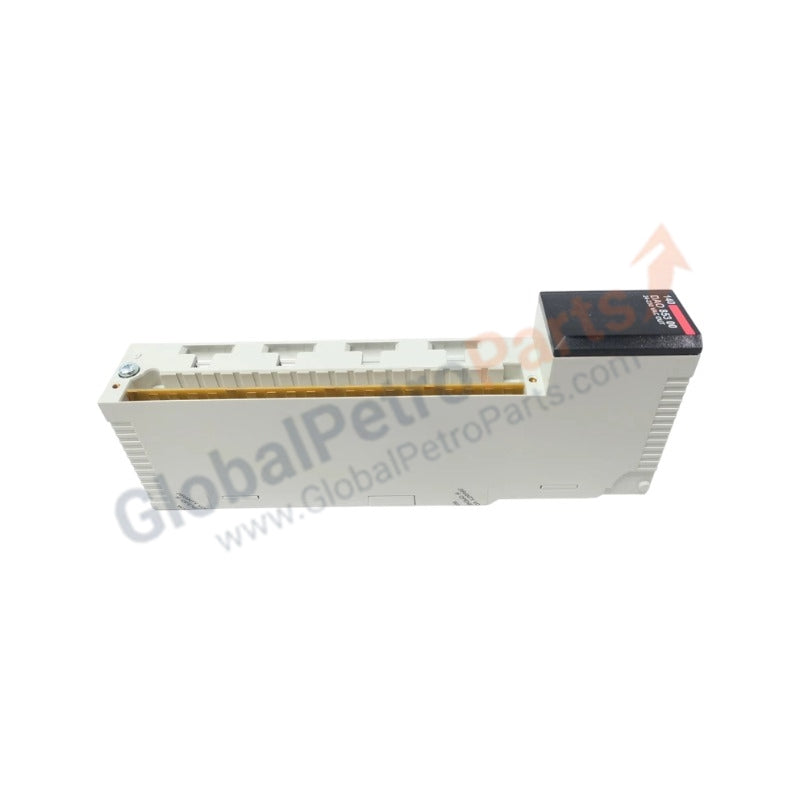

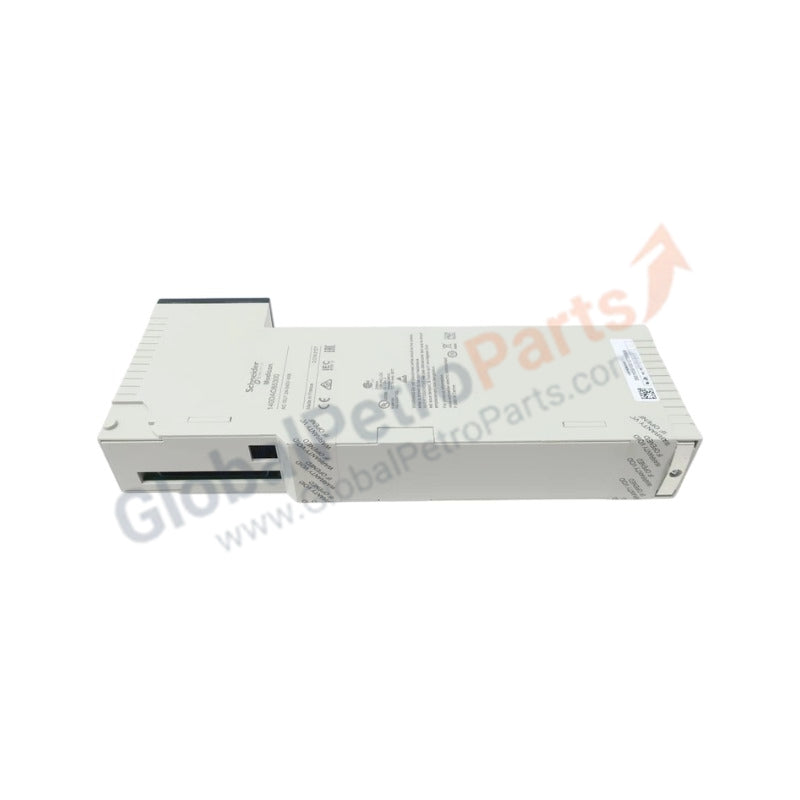

The Schneider Electric 140DAO85300 serves as a high-density discrete output solution for the Modicon Quantum automation platform. This module provides 32 independent AC output channels, organized into four groups of eight, allowing users to control a wide variety of AC-powered actuators, contactors, and solenoids. Operating across a broad voltage range of 20 to 253 V AC, it functions as a primary interface between the PLC logic and field-level power devices in complex industrial architectures.

Condition: 100% Brand New, Original Factory Sealed.

Technical Specifications

The 140DAO85300 features robust electrical characteristics designed for continuous heavy-duty industrial switching.

Engineering Advantages

• High-Density Control: This module packs 32 output points into a standard Quantum slot, significantly reducing rack space requirements and lowering the overall cost per point in large-scale installations.

• Rapid Fault Diagnosis: The front panel features 32 green status LEDs for immediate visual confirmation of output states. Additionally, a dedicated red "F" LED alerts technicians to external detected faults, while a green "Active" LED confirms healthy bus communication, drastically reducing troubleshooting time.

• Exceptional Surge Handling: The circuitry manages high inrush currents, supporting surges up to 15 A for two cycles. This capability allows the module to drive inductive loads like large motor starters and solenoids without premature failure.

• Integrated Protection Circuitry: Each group of eight channels features internal RC filters and a 4 A fuse. This design protects the internal electronics from voltage spikes (DV/Dt of 400 V/ms) and ensures that a localized wiring short does not compromise the entire module or the PLC backplane.

• Wide Environmental Versatility: Certified for FM Class 1 Division 2 hazardous locations and operational up to 5000 meters, this module performs reliably in extreme environments, from high-altitude mining sites to oil and gas processing facilities.

FAQs

• How does the module handle output protection?

  The 140DAO85300 utilizes internal RC filters to suppress electrical noise and transient spikes. Furthermore, each group of eight channels includes an internal 4 A fuse to protect against overcurrent and short-circuit conditions at the field level.

• What are the addressing requirements for this module?

  The module requires 2 output words within the Quantum controller's memory configuration to map all 32 discrete points. Ensure your software configuration reflects this addressing to maintain proper logic execution.

• Can I mix different AC voltages across the channels?

  While the module supports a wide range (20...253 V AC), the channels are divided into 4 groups of 8. Each group shares a common power return; therefore, you can use different voltages between groups, but all 8 channels within a single group must share the same voltage supply.

• What is the significance of the "Active" LED?

  The green "Active" LED indicates that the module is correctly seated in the backplane and is actively communicating with the Quantum CPU. If this LED is off, the module is not being scanned by the controller, pointing to a configuration error or hardware seating issue.
