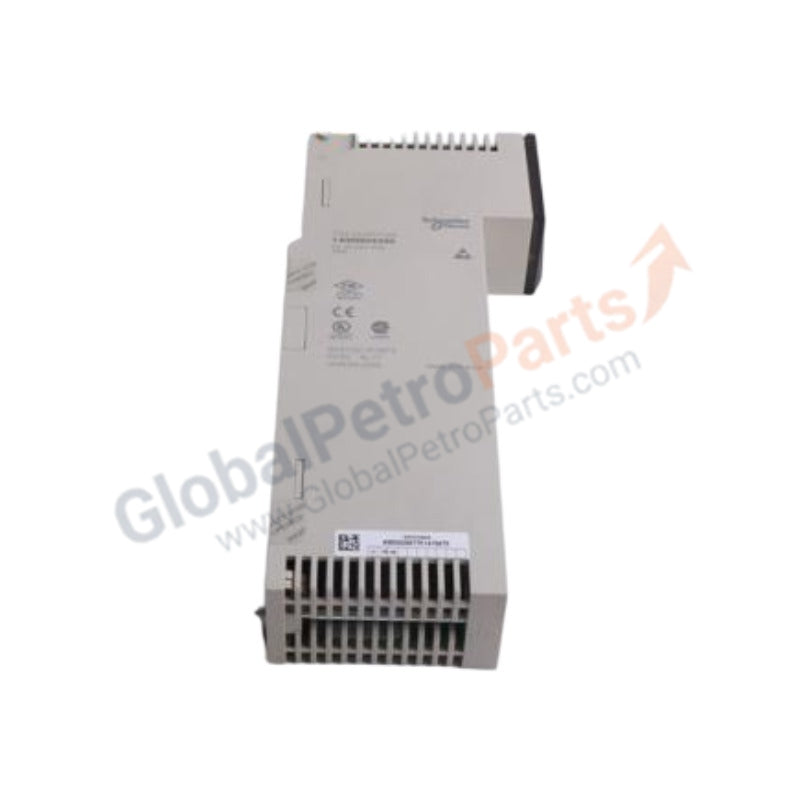

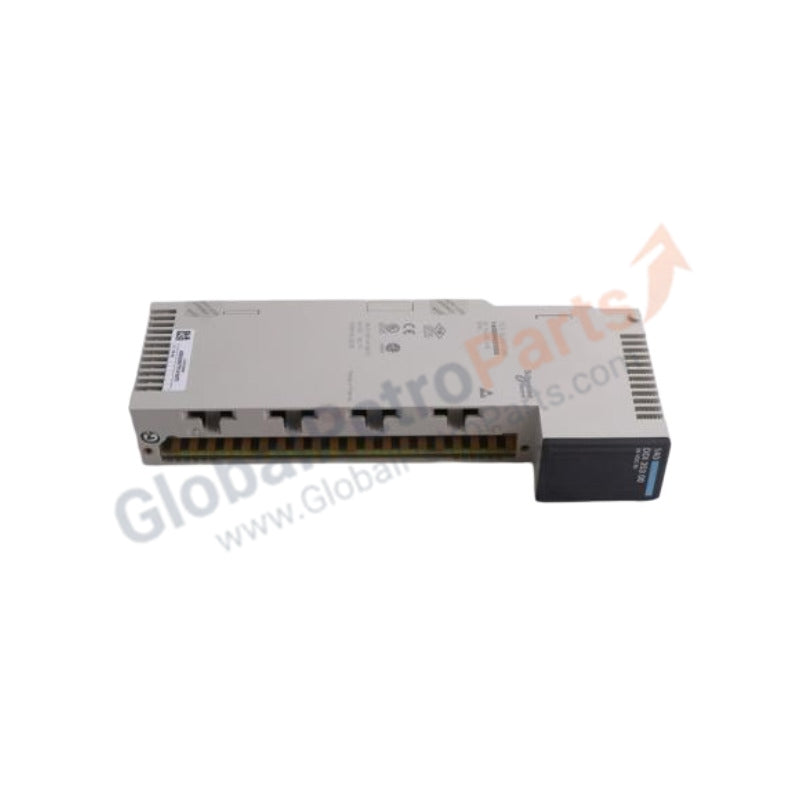

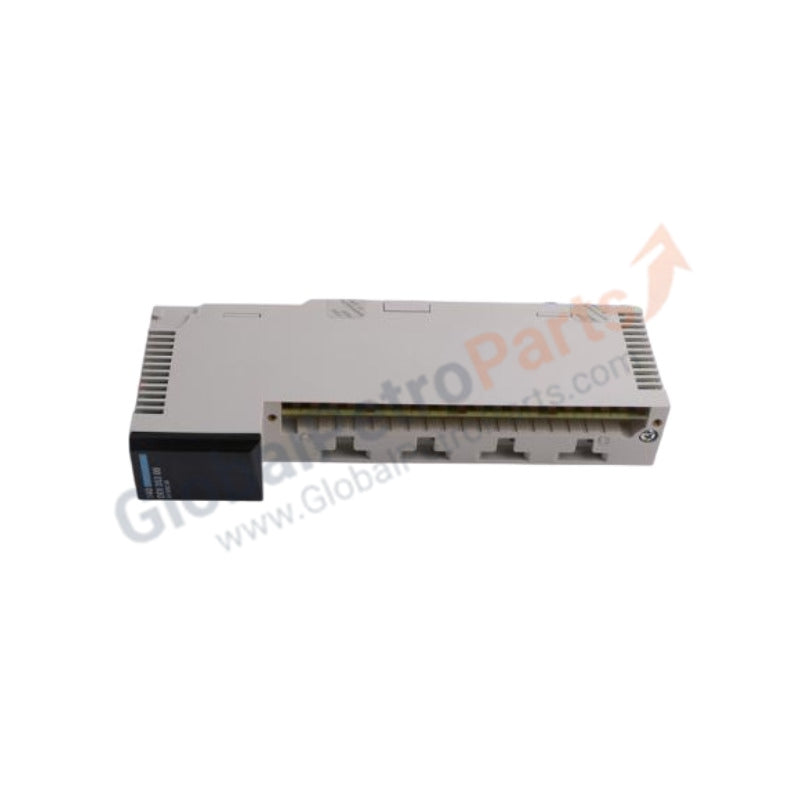

Schneider Modicon Quantum 140DDI35310 32-Channel 24V DC Discrete Input Module

Product Overview

The Schneider Electric 140DDI35310 provides high-density digital signal processing for the Modicon Quantum automation platform. Featuring 32 discrete input points, this module specifically utilizes Negative (Source) logic, making it compatible with field devices that switch the negative side of the 24V DC loop. It organizes inputs into four isolated groups of eight, ensuring electrical separation and high-speed data acquisition for complex control architectures. We supply this module as 100% Brand New and Original, ensuring peak diagnostic precision and bus communication stability for your mission-critical systems.

Technical Specifications

The 140DDI35310 integrates ultra-fast response times with high-voltage isolation to protect the central processing unit from field disturbances.

Engineering Advantages

• Optimized for Source Logic: Unlike standard sink modules, the 140DDI35310 handles negative logic inputs. This eliminates the need for external polarity conversion components when interfacing with specific European-style or specialized 24V DC field sensors.

• Rapid Signal Capture: The $\le$ 1 ms response time facilitates high-speed monitoring of limit switches and proximity sensors. This speed allows the PLC to react instantly to mechanical state changes, which is critical for high-speed packaging or sorting lines.

• High-Density Chassis Efficiency: Packing 32 channels into a standard Quantum slot reduces the overall rack footprint. This saves valuable space in control cabinets and lowers the total cost per I/O point.

• Extreme Electrical Protection: The module withstands 50V transient pulses and provides 1780 Vrms isolation to the backplane bus. This prevents field-side electrical spikes or ground loops from damaging the expensive CPU or communication modules.

• Visual Diagnostic Suite: 32 dedicated LEDs provide instant visual confirmation of input states. A separate "Active" LED confirms healthy bus communication, while the "F" LED flags external faults, allowing maintenance crews to pinpoint wiring issues without opening a laptop.

FAQs

• What is the difference between the 140DDI35300 and the 140DDI35310?

  The 140DDI35300 uses Positive (Sink) logic, while the 140DDI35310 uses Negative (Source) logic. You must match the module logic to your field device wiring to ensure correct signal detection.

• Can I wire different voltages to the four groups?

  Yes. Each of the four groups is isolated by 500 Vrms. However, all inputs within a single group of eight must share the same common reference.

• Does this module require a specific terminal block?

  Yes. Every brand-new 140DDI35310 requires a 40-pin screw terminal block (model 140XTS00200) to terminate the field wiring.

• Is this module suitable for high-altitude environments?

  Yes. The 140DDI35310 carries a rating for operation at altitudes up to 5000 meters, making it ideal for specialized mining and utility applications at high elevations.
