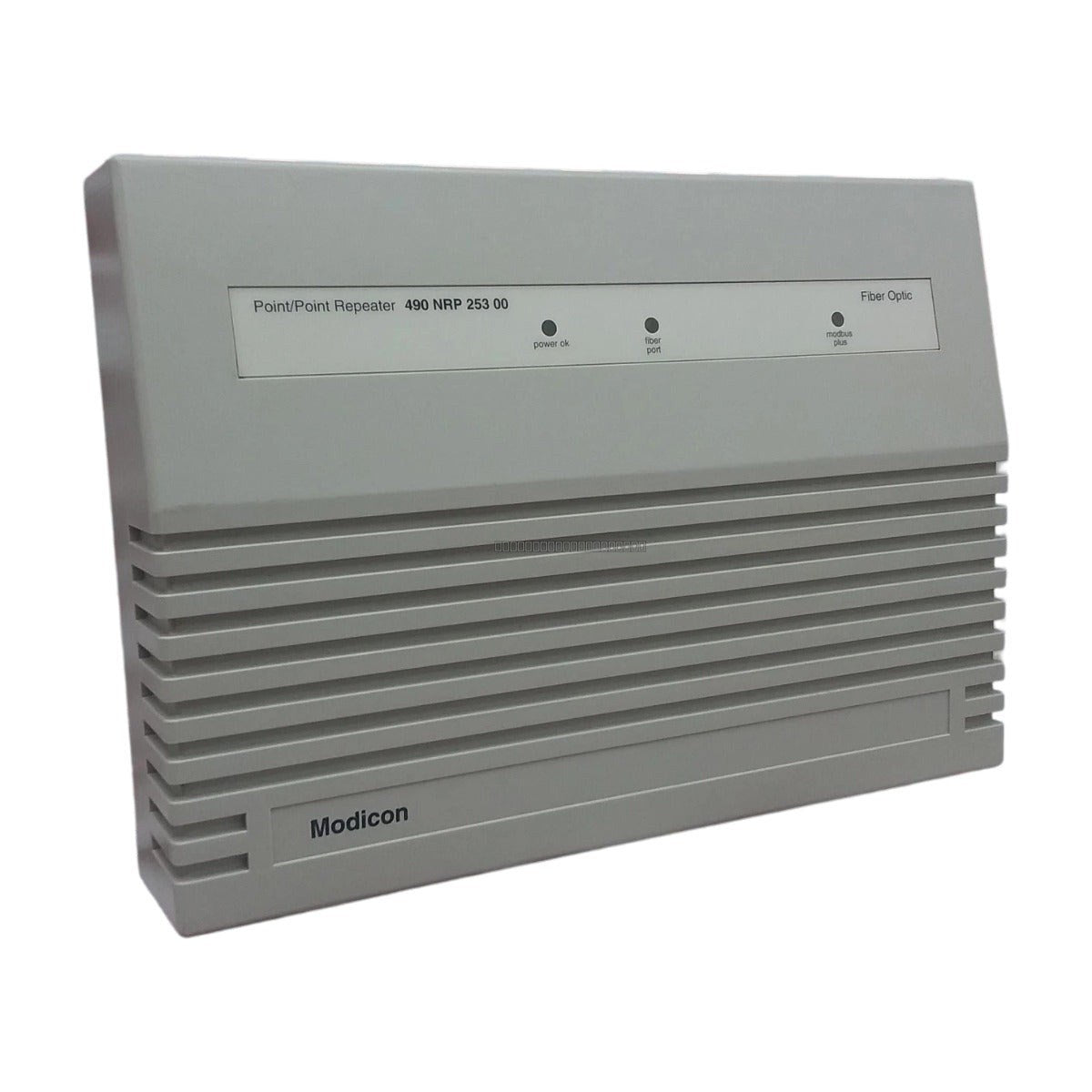

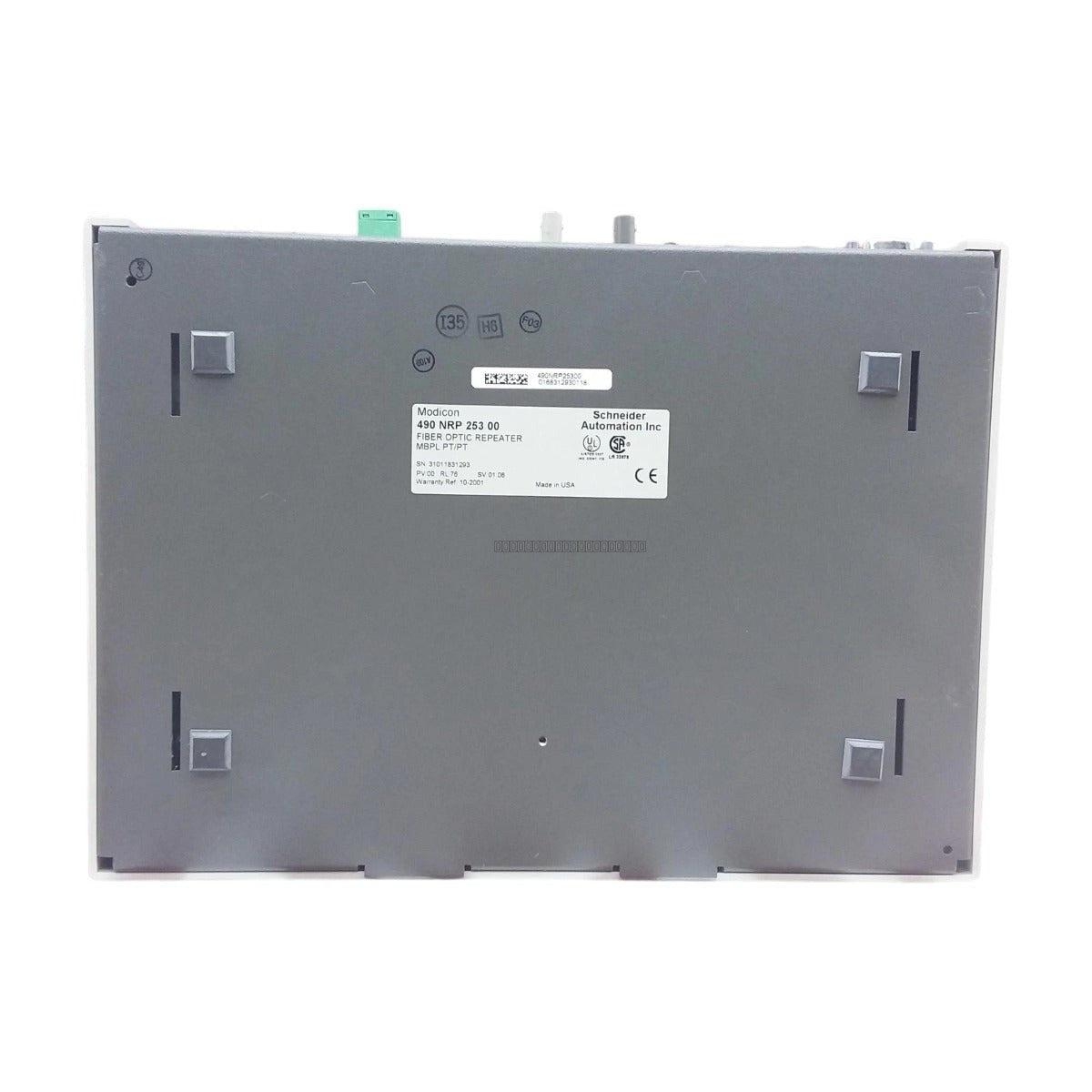

Schneider Modicon 490NRP25300 Modbus Plus Fiber Optic Repeater

Description

The 490NRP25300 is a specialized fiber optic repeater designed for the Modicon Quantum and Modicon Premium automation platforms. This module provides a robust interface for converting Modbus Plus (MB+) copper signals into fiber optic signals, enabling long-distance data transmission while ensuring total galvanic isolation. Engineered for large-scale industrial deployments, the 490NRP25300 effectively eliminates ground loop issues and electromagnetic interference (EMI). By extending network reach and protecting the communication bus from electrical surges, this repeater plays a critical role in maintaining network stability and reducing unscheduled downtime in harsh industrial environments.

Features

• Supports point-to-point or star network topologies.

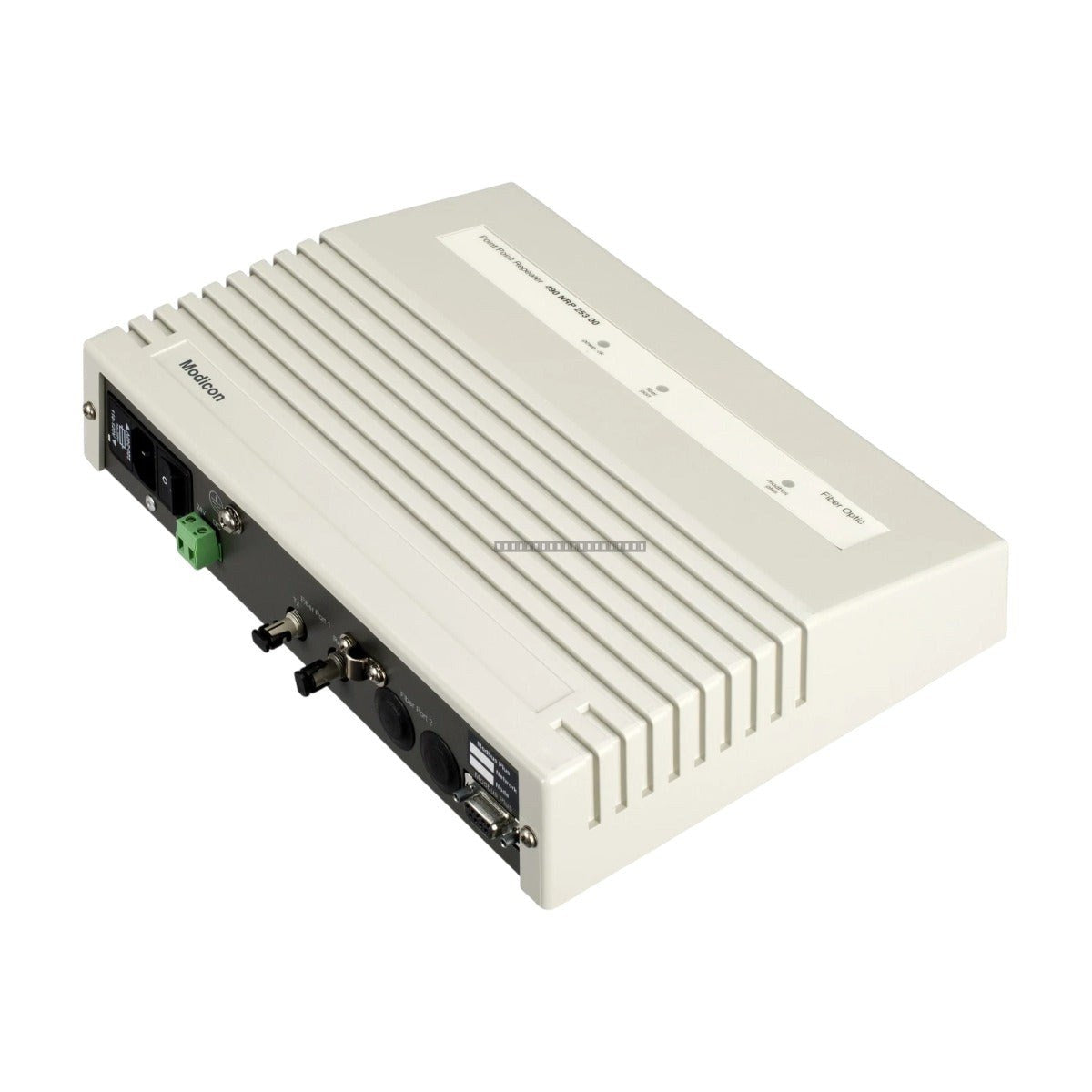

• Features one Modbus Plus copper port (RS-485) and two fiber optic ports (TX/RX) with ST connectors.
• Transparent signal conversion with minimal propagation delay.
• Regenerates data packets to maintain signal integrity over long distances.
• Integrated diagnostic LEDs for power, copper link activity, and fiber signal detection.
• High immunity to electrical noise and surge protection.

Applications

The 490NRP25300 is ideal for industrial environments requiring extended communication distances, such as offshore oil platforms, mining complexes, and high-voltage power substations. It is specifically designed to bridge Modbus Plus networks where copper cabling is susceptible to EMI or ground potential differences.

Technical Specifications

Installation Guidelines

• Ensure the device is installed in a clean, dry environment within an industrial enclosure.
• Verify that the 24 VDC power supply is within the specified 19.2 to 30 VDC range before connection.
• Use appropriate fiber optic cleaning procedures for ST connectors to ensure signal quality.
• Maintain proper cable routing to prevent sharp bends in fiber optic cables.
• Ensure the module is properly grounded to the enclosure chassis to mitigate EMI.
• Power down the system before inserting or removing the module or connecting communication cables.

Compliance and Certifications

The 490NRP25300 meets various international standards, including UL, CSA, CE, and FM Class I Div 2, making it suitable for hazardous location applications where applicable.

FAQ

What is the primary function of the 490NRP25300?

The 490NRP25300 acts as a bridge between Modbus Plus copper networks and fiber optic media, allowing for extended transmission distances and providing galvanic isolation between network segments.

Can this module be used with both 50/125 and 62.5/125 fiber?

Yes, the module is compatible with both standard multimode fiber types (50/125 um and 62.5/125 um) using ST-style connectors.
