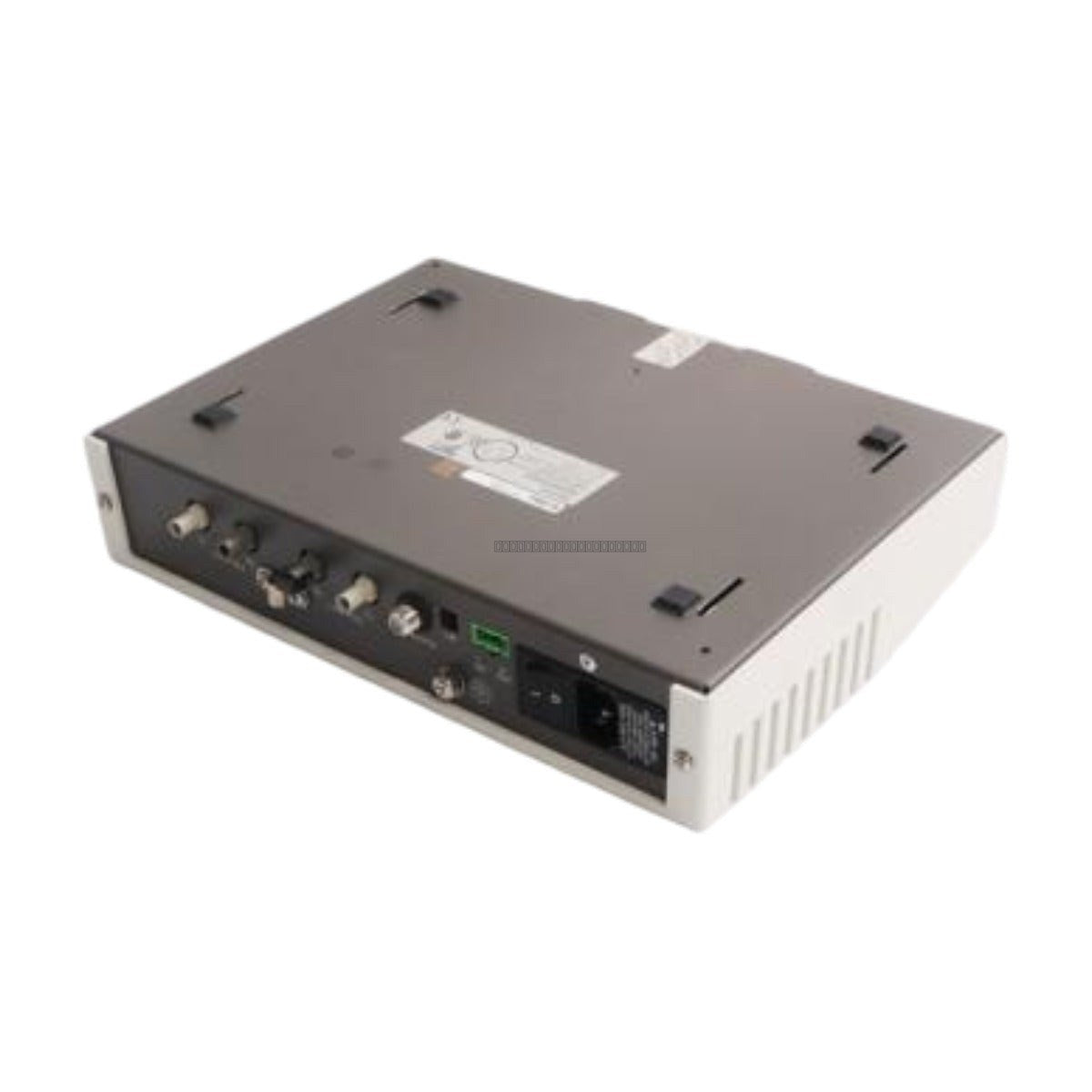

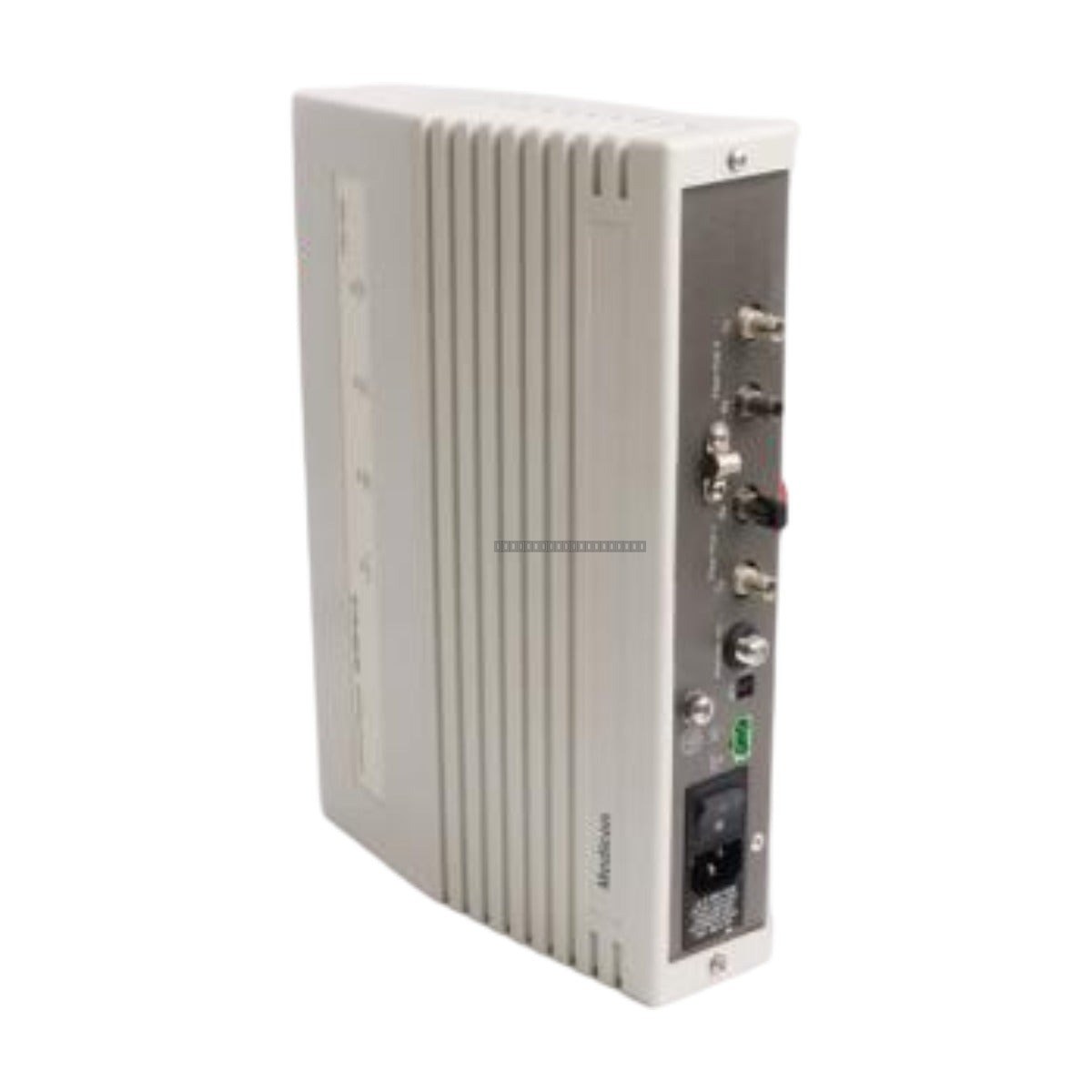

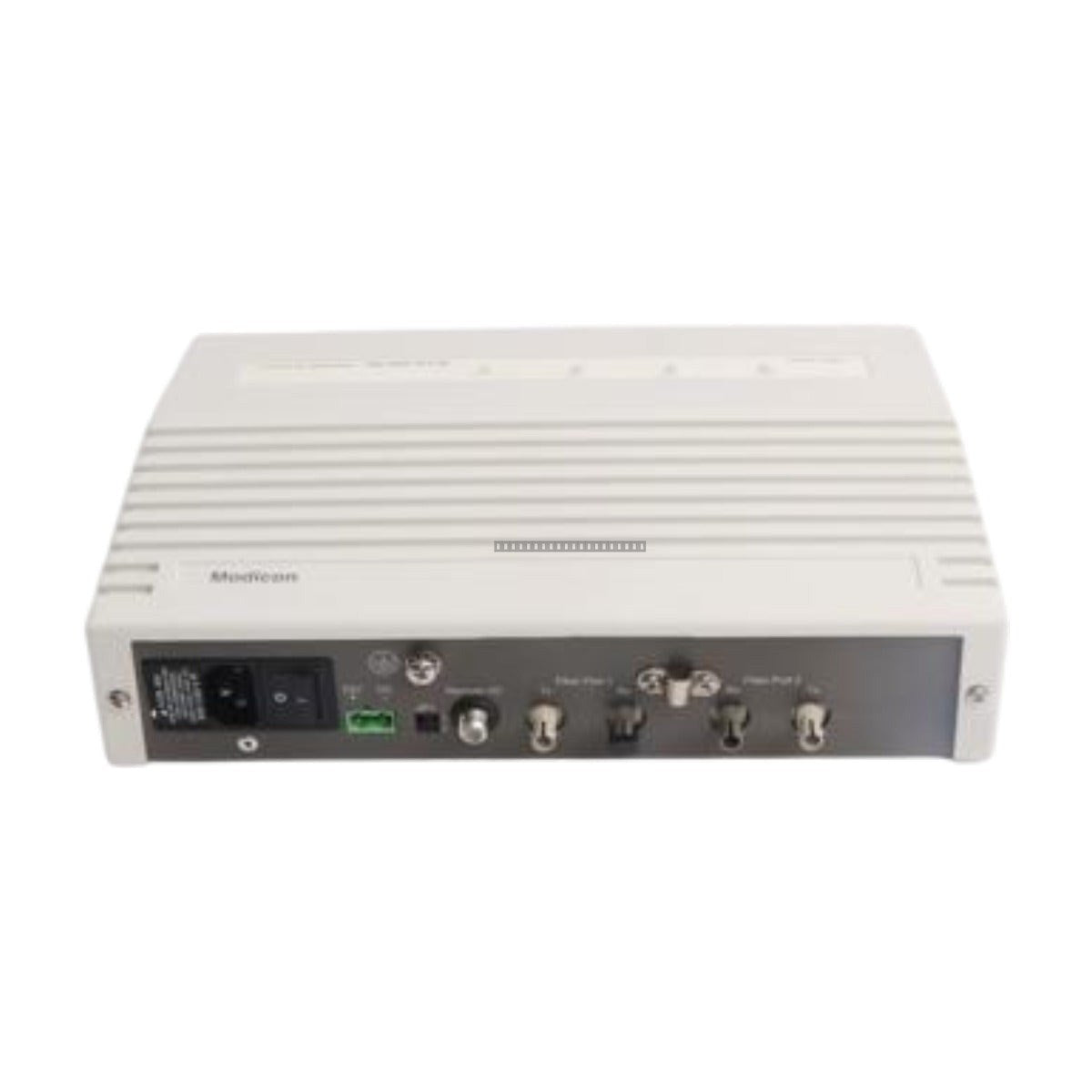

Schneider Modicon Quantum 490NRP25400 Fiber Optic Repeater

Description

The Schneider 490NRP25400 is a high-performance fiber optic repeater module designed for the Modicon Quantum automation platform. This module extends the distance and reliability of Remote I/O (RIO) and Control Networks by converting electrical signals into optical pulses. It provides critical galvanic isolation, effectively eliminating ground loops and electromagnetic interference (EMI) that often affect copper-based communication in large-scale industrial sites such as power plants, mining operations, and petrochemical refineries. By facilitating a robust optical backbone, the 490NRP25400 ensures deterministic data transmission over long distances, reducing system downtime caused by signal degradation or electrical surges.

Features

• Supports Modbus Plus and Remote I/O (RIO) communication protocols.
• Utilizes multi-mode fiber optic cabling (62.5/125 or 50/125 micrometers).
• Features dual optical ports for flexible network topologies, including point-to-point and star configurations.
• Provides 500 VDC galvanic isolation between the network and ground.
• Integrated diagnostic LEDs for real-time link status and signal power monitoring.
• Operates transparently within the network layer without requiring software configuration.

Applications

This module is ideal for distributed control systems requiring long-range communication between Quantum card racks. It is frequently deployed in environments with high EMI, such as power generation facilities, water treatment plants, and heavy manufacturing sites where electrical noise would otherwise compromise copper-based data integrity.

Technical Specifications

Installation Guidelines

• The module occupies a single slot on a standard Modicon Quantum backplane.
• Ensure the rack power supply is switched off before inserting or removing the module.
• Verify that fiber optic cables are routed with a bend radius that adheres to the manufacturer's specifications to prevent signal loss at the ST connector interface.
• Maintain a clean environment for optical connectors; use protective caps when cables are disconnected to prevent dust contamination.
• Ensure proper grounding of the Quantum rack to maintain the effectiveness of the module's galvanic isolation.

FAQ

Does this module require software configuration?

No, the 490NRP25400 operates transparently at the physical layer and does not require any software configuration or addressing.

Can this module be used with single-mode fiber?

No, this specific model is designed for multi-mode fiber optic cables (62.5/125 or 50/125 micrometers) with an 820 nm wavelength.
