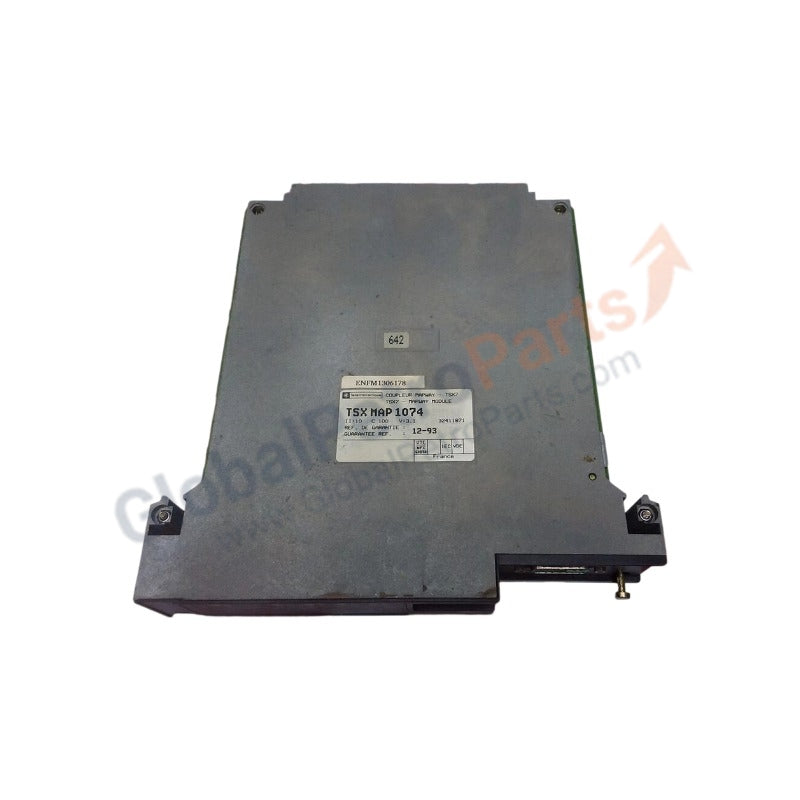

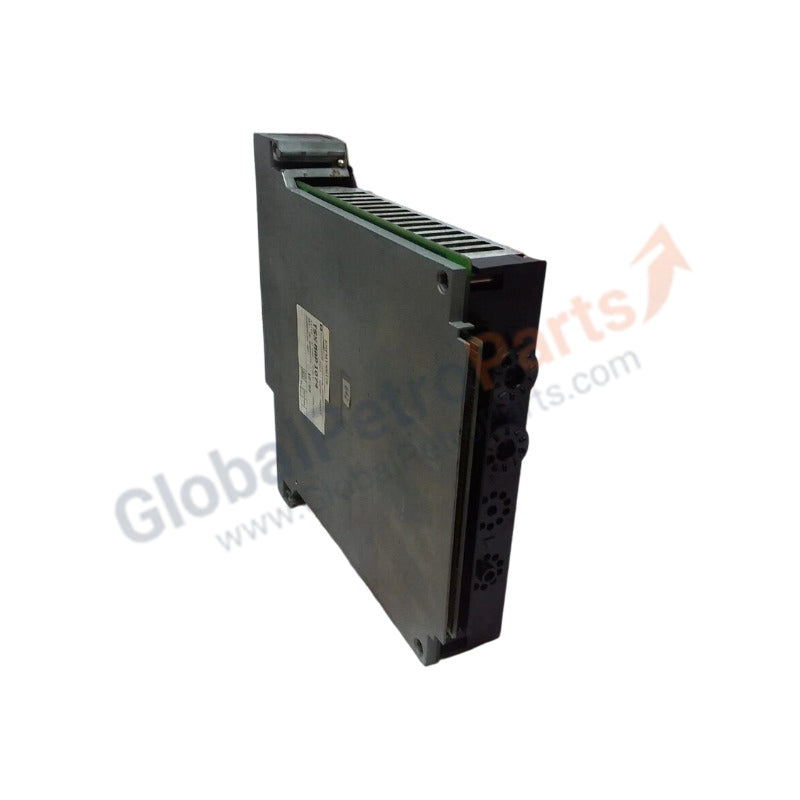

Schneider Modicon Quantum TSXMAP1074 MAP Network Interface Module

Product Overview

The Schneider Electric TSXMAP1074 functions as a high-performance Manufacturing Automation Protocol (MAP) interface module for the Modicon Quantum automation platform. This module facilitates seamless communication between Quantum controllers and MAP networks, ensuring high-speed data exchange in multi-vendor industrial environments. By integrating this module, engineers establish robust connectivity for complex manufacturing cells that require standardized OSI-compliant networking. We offer this product as 100% Brand New and Original, providing the highest level of system integrity for your facility.

Technical Specifications

The TSXMAP1074 utilizes advanced internal circuitry to manage high-traffic industrial data. Key technical parameters include:

• Platform Compatibility: Modicon Quantum Automation Platform

• Protocol Support: MAP (Manufacturing Automation Protocol) 3.0

• Module Type: Communication Interface

• Data Rates: High-speed deterministic transmission

• Backplane Current Draw: Optimized for standard Quantum racks

• Operating Temperature: 0°C to +60°C (32°F to 140°F)

• Storage Temperature: -40°C to +85°C (-40°F to 185°F)

• Humidity: 5% to 95% non-condensing

• Certifications: UL, CSA, CE, and Marine-certified components

Engineering Advantages

The TSXMAP1074 solves critical networking challenges in legacy and modern hybrid automation systems:

• Interoperability in Multi-Vendor Cells: This module eliminates communication silos by allowing Modicon Quantum PLCs to talk directly to other MAP-compliant devices, regardless of the manufacturer. It simplifies integration in large-scale automotive or aerospace production lines.

• Deterministic Data Delivery: Unlike standard non-industrial networks, the TSXMAP1074 ensures that critical control signals arrive within precise time windows. This prevents synchronization errors in high-speed assembly tasks.

• Simplified Rack Integration: The module occupies a single slot in any standard Quantum backplane. Its "hot-swap" capability allows maintenance teams to replace units without powering down the entire system, significantly reducing operational downtime.

• Superior Noise Immunity: Designed for the factory floor, the module features advanced shielding that protects data packets from the heavy electromagnetic interference (EMI) generated by motors, drives, and welding equipment.

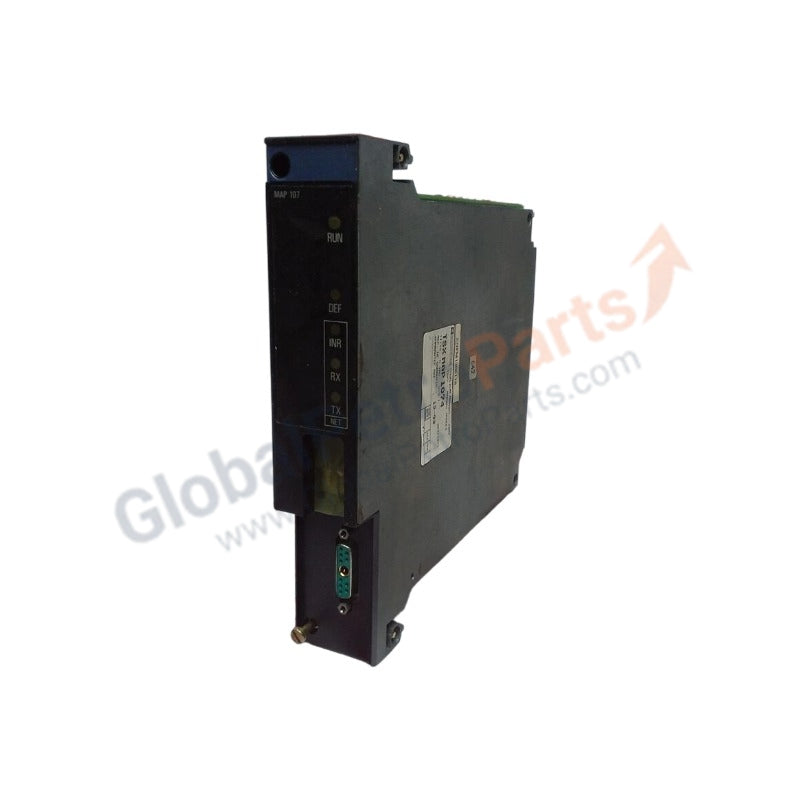

• Diagnostic Transparency: Integrated status LEDs provide immediate visual feedback regarding network health and module status, allowing technicians to pinpoint connectivity issues without specialized diagnostic tools.

FAQs

• Can the TSXMAP1074 replace older TSX series MAP modules? Yes, this module is the designated upgrade path for legacy MAP interfaces within the Quantum family. However, always verify that your current processor's executive firmware supports the TSXMAP1074 hardware revision.

• Is this module compatible with Unity Pro software? While the Quantum platform supports Unity Pro, communication modules like the TSXMAP1074 may require specific configuration extensions or FDT/DTM drivers depending on your network topology.

• Does the unit require an external power supply? No, the TSXMAP1074 draws its required operating power directly from the Quantum backplane. Ensure your rack power supply module has sufficient current headroom for the added communication load.

• What is the condition of this unit? We guarantee this unit is 100% Brand New in its original factory packaging, complete with all original documentation and seals intact.
