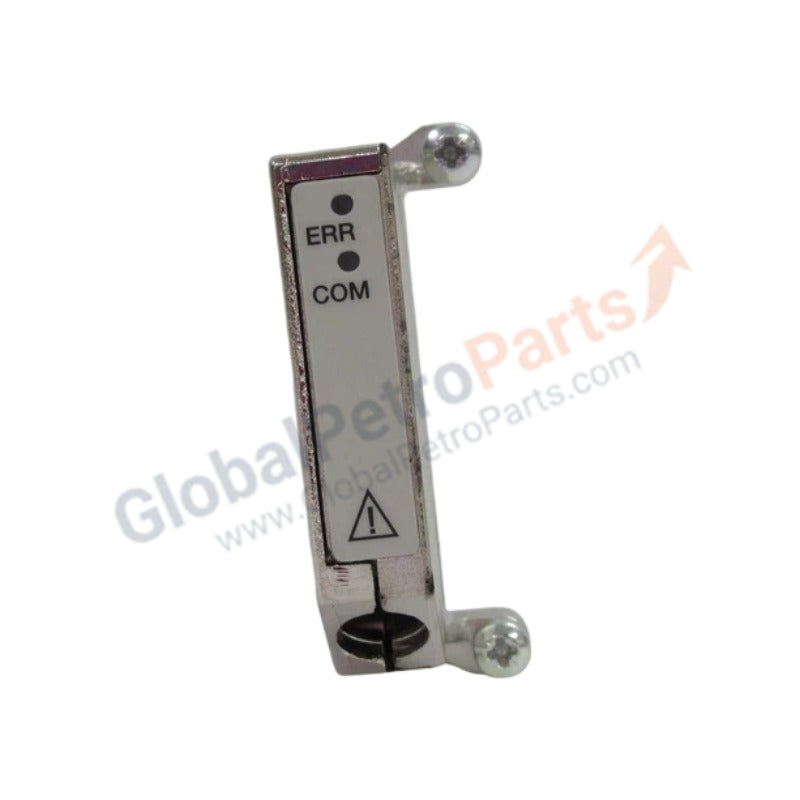

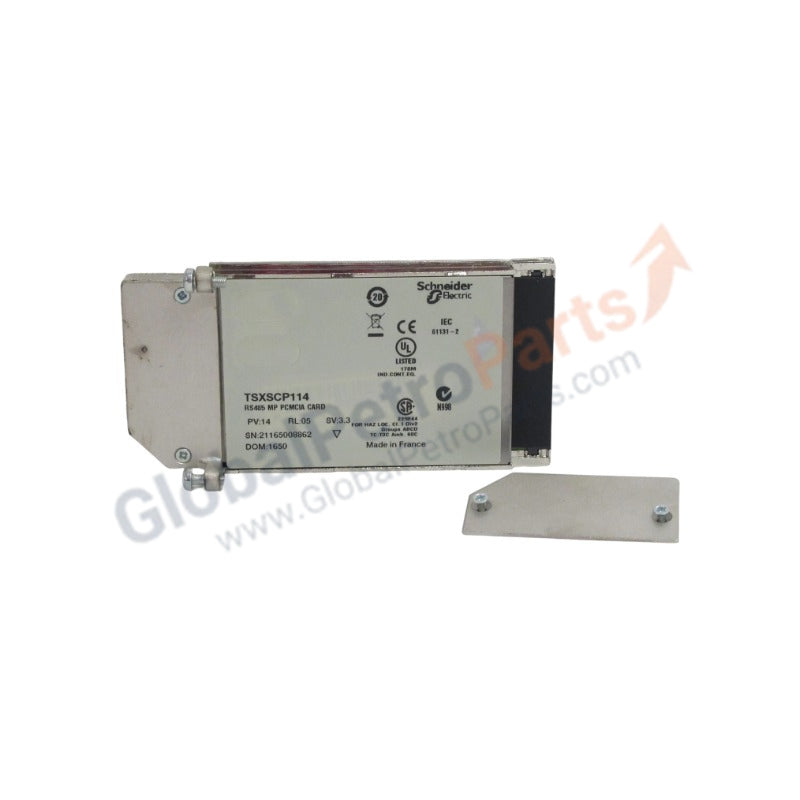

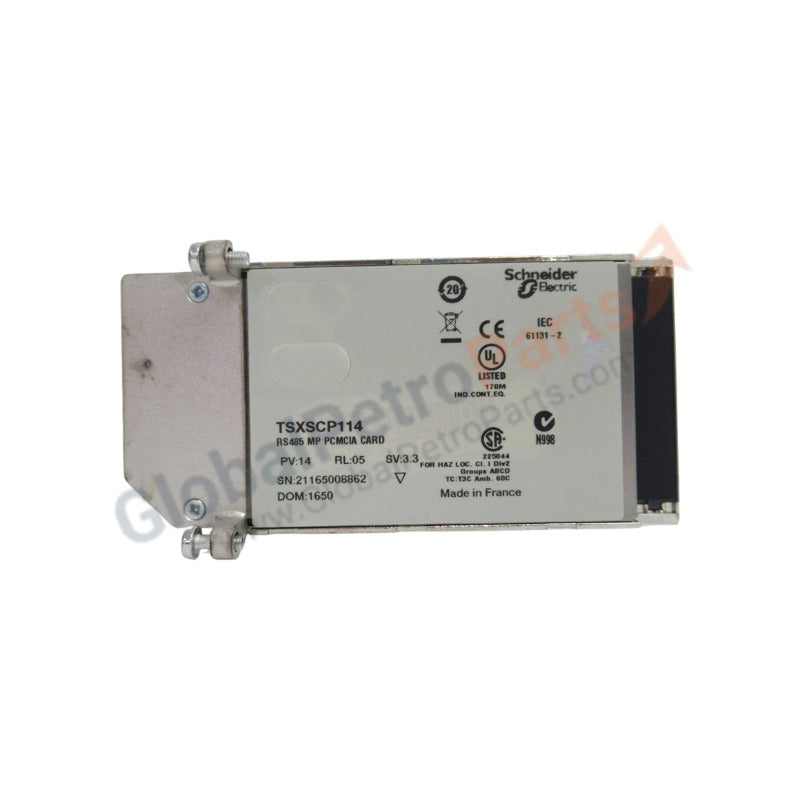

Schneider Modicon Quantum TSXSCP114 PCMCIA Communication Card

Product Overview

The Schneider Electric TSXSCP114 functions as a specialized PCMCIA Type III communication card for the Modicon Premium automation platform. This accessory expands the networking capabilities of Premium processors and Atrium co-processors by providing a dedicated RS485 physical interface. It supports multiple industry-standard protocols, including Modbus, Uni-Telway, and Character Mode, enabling seamless data exchange with varied field devices and HMI systems. We supply this unit as 100% Brand New and original factory sealed, ensuring full hardware compatibility and long-term signal stability.

Technical Specifications

The TSXSCP114 provides a robust serial link in a compact, slot-in format.

Engineering Advantages

• Instant Protocol Expansion: The TSXSCP114 adds a secondary or tertiary communication port to your PLC without requiring additional rack space. By sliding directly into the processor's PCMCIA slot, it upgrades the system's connectivity while maintaining a compact footprint.

• Multi-Protocol Versatility: This card handles diverse communication requirements. Whether you need to integrate legacy Uni-Telway devices, standard Modbus RTU slaves, or custom Character Mode ASCII streams, the TSXSCP114 manages these tasks through a single physical port.

• Simplified Field Integration: The RS485 interface supports multi-drop topologies, allowing a single TSXSCP114 card to communicate with multiple devices over long distances. This reduces the need for expensive point-to-point wiring and simplifies the overall network architecture.

• Low Power Footprint: Drawing only 150 mA from the internal 5V bus, this card minimizes the thermal load on the processor chassis. This efficiency ensures that adding communication capabilities does not compromise the power budget of the existing PLC rack.

FAQs

• Q: Which Modicon series can use the TSXSCP114 card?

• A: This card specifically fits Modicon Premium processors and Atrium co-processors. It also maintains compatibility with TSX37-21/22 Micro PLCs and the TSXSCY21601 communication module.

• Q: Does this card require an external power supply for RS485 communication?

• A: No. The TSXSCP114 draws all necessary power (150mA at 5V DC) directly from the PCMCIA slot of the host processor or communication module.

• Q: Can I use the TSXSCP114 for simple ASCII string exchange with a barcode scanner?

• A: Yes. The card supports "Character Mode," which allows for the transmission and reception of raw ASCII data, making it ideal for interfacing with third-party serial devices like scanners, printers, and weight scales.

• Q: How do I ensure a secure physical connection to the RS485 network?

• A: The card requires a specific Schneider Electric tap junction or cable (such as the TSXSCP100 series cables) to transition from the PCMCIA edge connector to standard RS485 wiring. Always use shielded twisted-pair cables to ensure maximum noise immunity.
