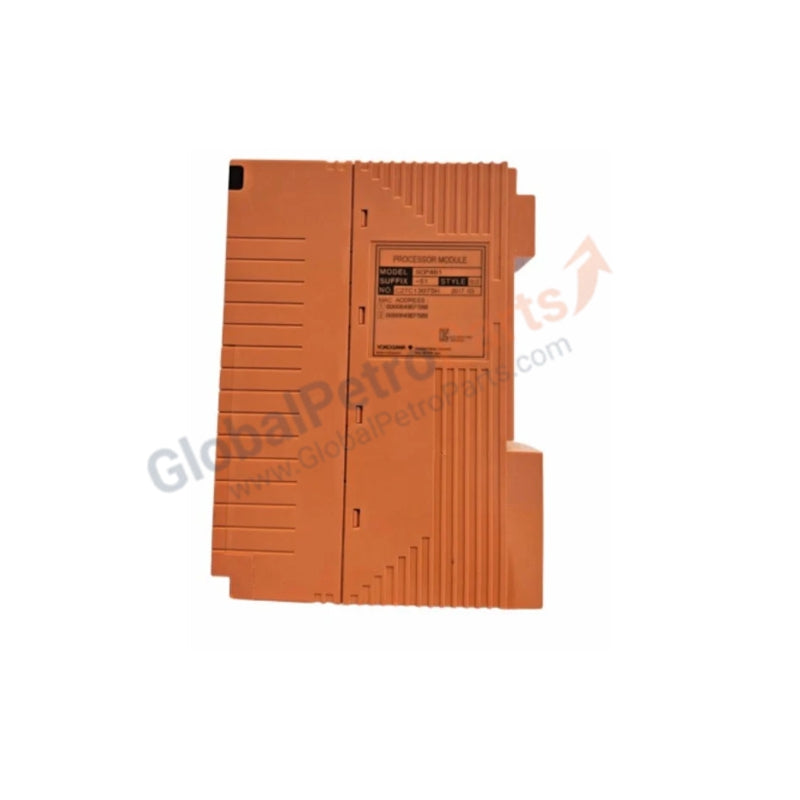

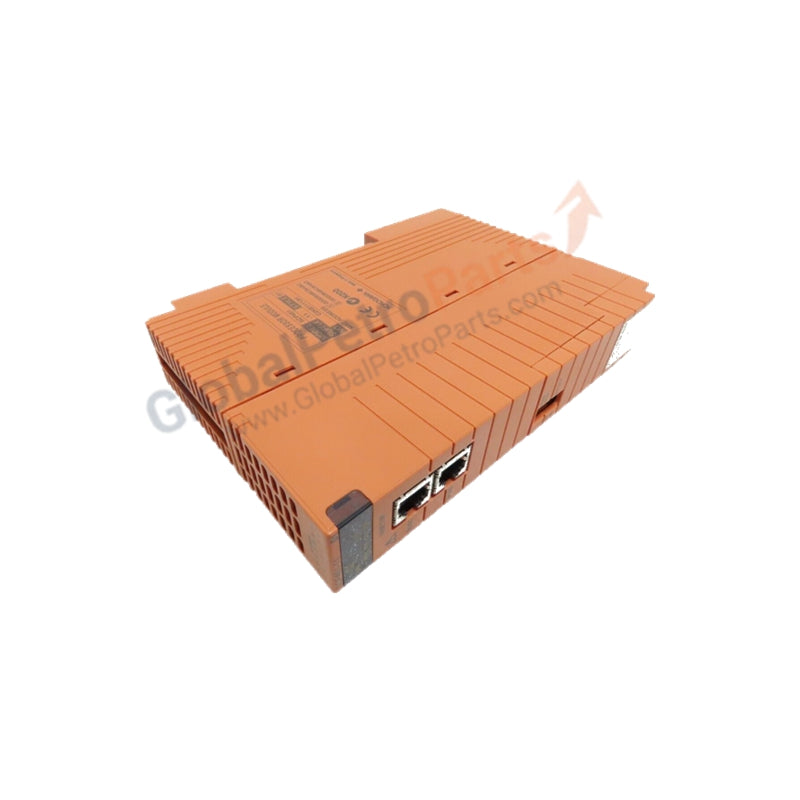

SCP461-51 S1 | Yokogawa CENTUM VP Sequence Card | Japan New

Yokogawa SCP461-51 S1 CENTUM CS 3000 Sequence Control Processor

The SCP461-51 S1 (Model: SCP461-51) is a high-performance Sequence Control Processor (SCP) specifically engineered for the Yokogawa CENTUM CS 3000 and CENTUM VP Distributed Control Systems (DCS). Unlike standard control processors that focus on continuous PID loops, the SCP461-51 S1 (Part Number: SCP461-51) is optimized for executing complex sequential logic, batch control recipes, and safety interlock management.

This module acts as the logical core for field control stations requiring deterministic execution of state-based transitions. The S1 hardware revision features optimized internal circuitry for enhanced reliability in mission-critical environments. To ensure maximum system availability, it supports a dual-redundant configuration where the primary and backup modules synchronize in real-time. This prevents process disruption during hardware maintenance or unforeseen failures, making it a standard choice for power plant turbine sequencing and pharmaceutical batch processing.

Operational Logic and Redundancy

The SCP461-51 S1 (Model: SCP461-51) handles high-speed scanning of digital states and interlock tables. In industrial plants, this processor manages the critical "Permissives" and "Interlocks" that allow equipment like high-pressure pumps or turbines to start safely.

In a redundant setup, the active SCP461-51 S1 mirrors its internal "Step" status and variable data to the standby module across the Vnet/IP bus. If a hardware fault is detected, the system performs a "bumpless" transfer, meaning the sequence continues exactly from its current step without resetting timers or clearing latch states. This level of fault tolerance is essential for avoiding costly process trips in chemical reactors and power boilers.

Detailed Technical Specifications

The SCP461-51 S1 (Model: SCP461-51) integrates advanced CPU technology with specialized memory management for sequential automation.
