ABB

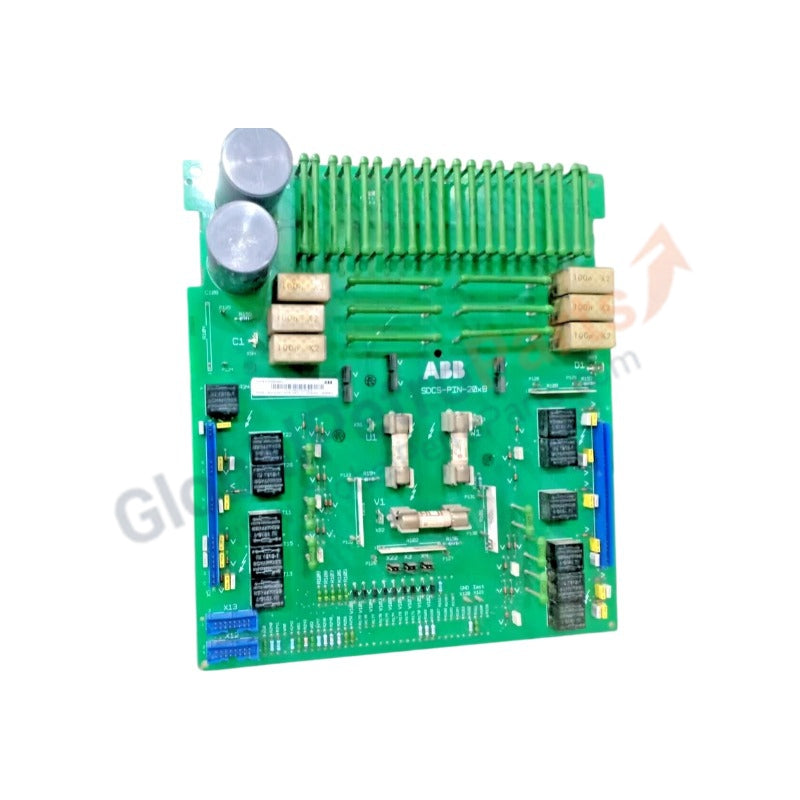

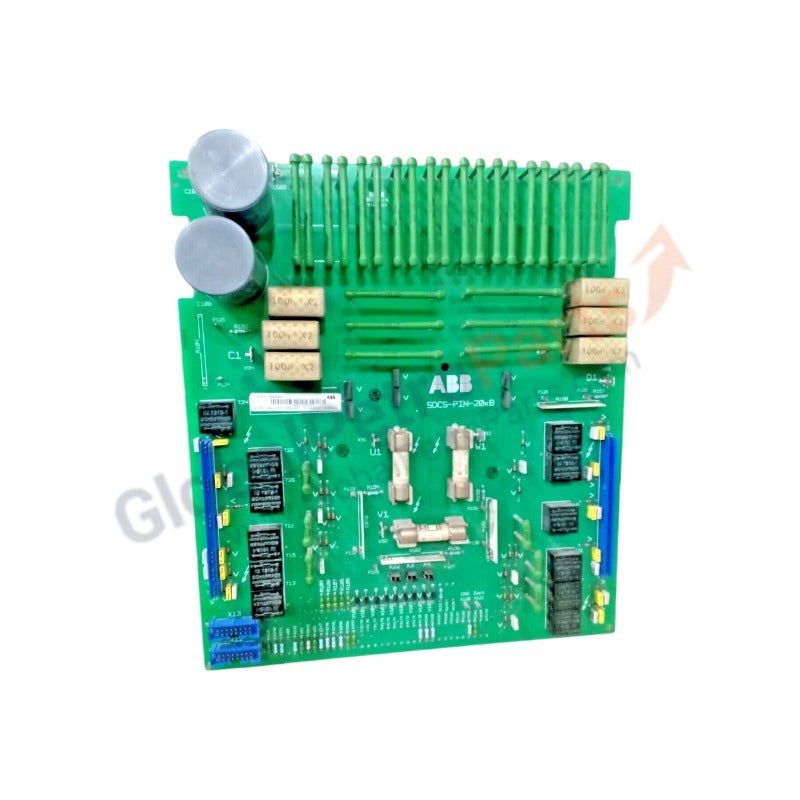

SDCS-PIN-205B Measuring Boards ABB DCS Drives
Manufacturer: ABB
Product No.: SDCS-PIN-205B
Product Type: Measuring Boards
Product Origin: USA
Payment:T/T, Western Union
Weight: 110g
Shipping port: Xiamen
Warranty: 12 months
The ABB SDCS-PIN-205B, also cataloged as the SDCS-PIN-205B Measuring Board, operates as a dedicated hardware component for localized voltage scaling and gate pulses monitoring within DCS Drives network platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | SDCS-PIN-205B (3ADT312500R0002) |
| Brand | ABB |
| Origin | Finland |
| Weight | 0.65 kg |
| Dimensions | 260 mm x 150 mm x 35 mm |
| Operating Temp | 0 to 55 deg C |
| Power Consumption | 4.5 W |
| Application Target | DCS500 / DCS600 Series Drives |
| Measuring Isolation | Optocoupler galvanic decoupling |
Profinet / EtherNet/IP Deterministic Networks and Driver Integration
The circuit board topology integrates directly into industrial architecture over Profinet / EtherNet/IP deterministic networks via the main drive controller unit. It provides raw instrumentation metrics from the power semiconductor block, converting high-voltage inputs into low-voltage signals mapped directly onto the driver interface layer. This setup ensures firmware flash compatibility with base control boards while preventing transmission jitter during structural diagnostic routines.
Frequently Asked Questions
Q: Is this card hot-swappable during live converter operation? A: No. Removing or inserting the board while the drive system intermediate circuit is energized will cause critical damage to the measurement circuits and pose severe electrical shock hazards.
Q: How is structural measurement alignment managed between parallel drive channels? A: The board relies on high-accuracy onboard voltage divider networks that maintain pre-calibrated resistance tolerances, ensuring uniform channel signaling layout across modular hardware matrices.
Field Installation Guidelines
- Isolate all AC and DC power links supplying the converter cube before physical assembly to confirm zero electrical energy states.
- Align the mounting holes to the non-conductive standoffs inside the module frame and secure using standard M4 screws.
- Ensure all flat ribbon cables are locked completely in their respective headers to prevent trace signaling breaks during active runtime.
- Route all diagnostic terminal wiring strictly within designated shielded wire ways away from high-current three-phase motor lines.
