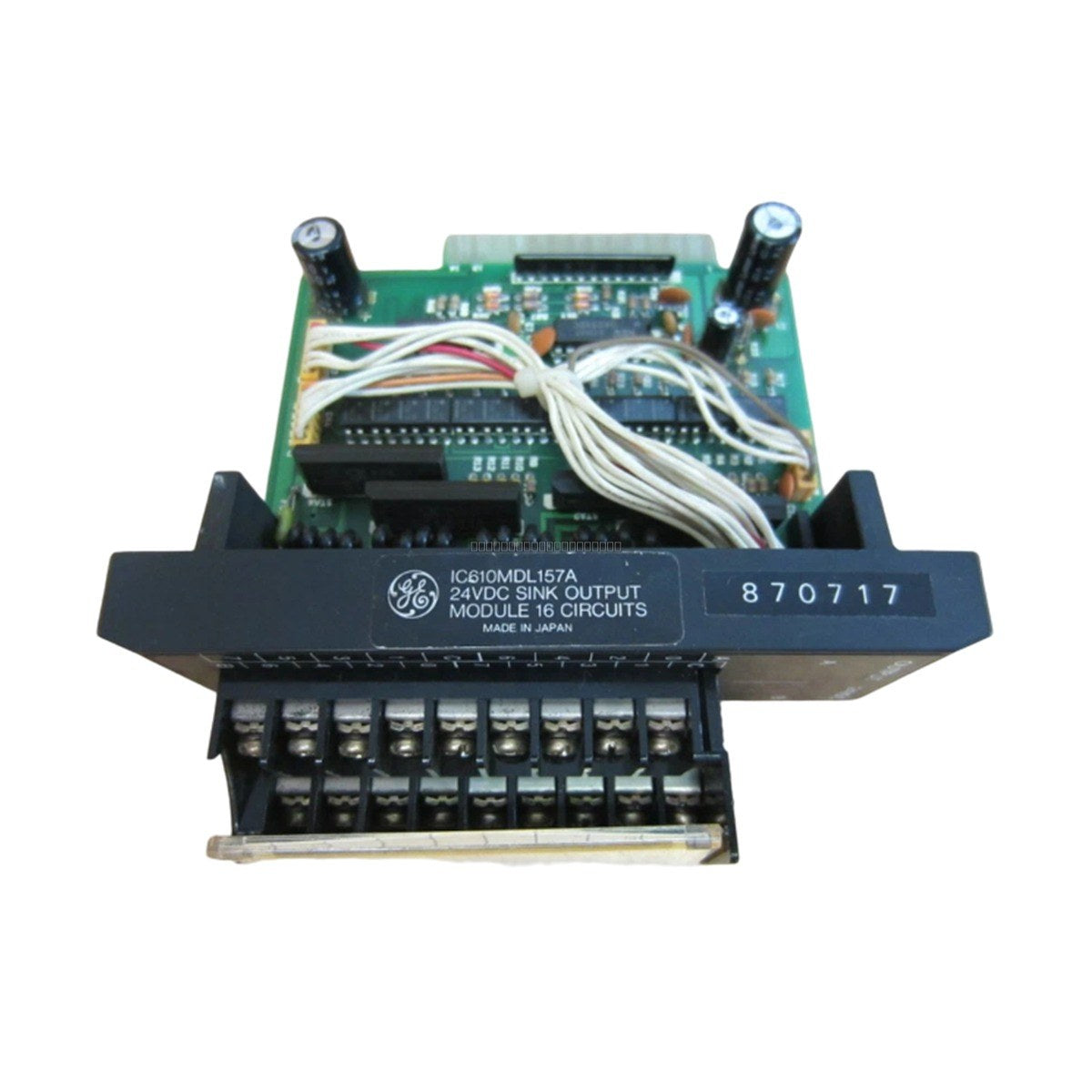

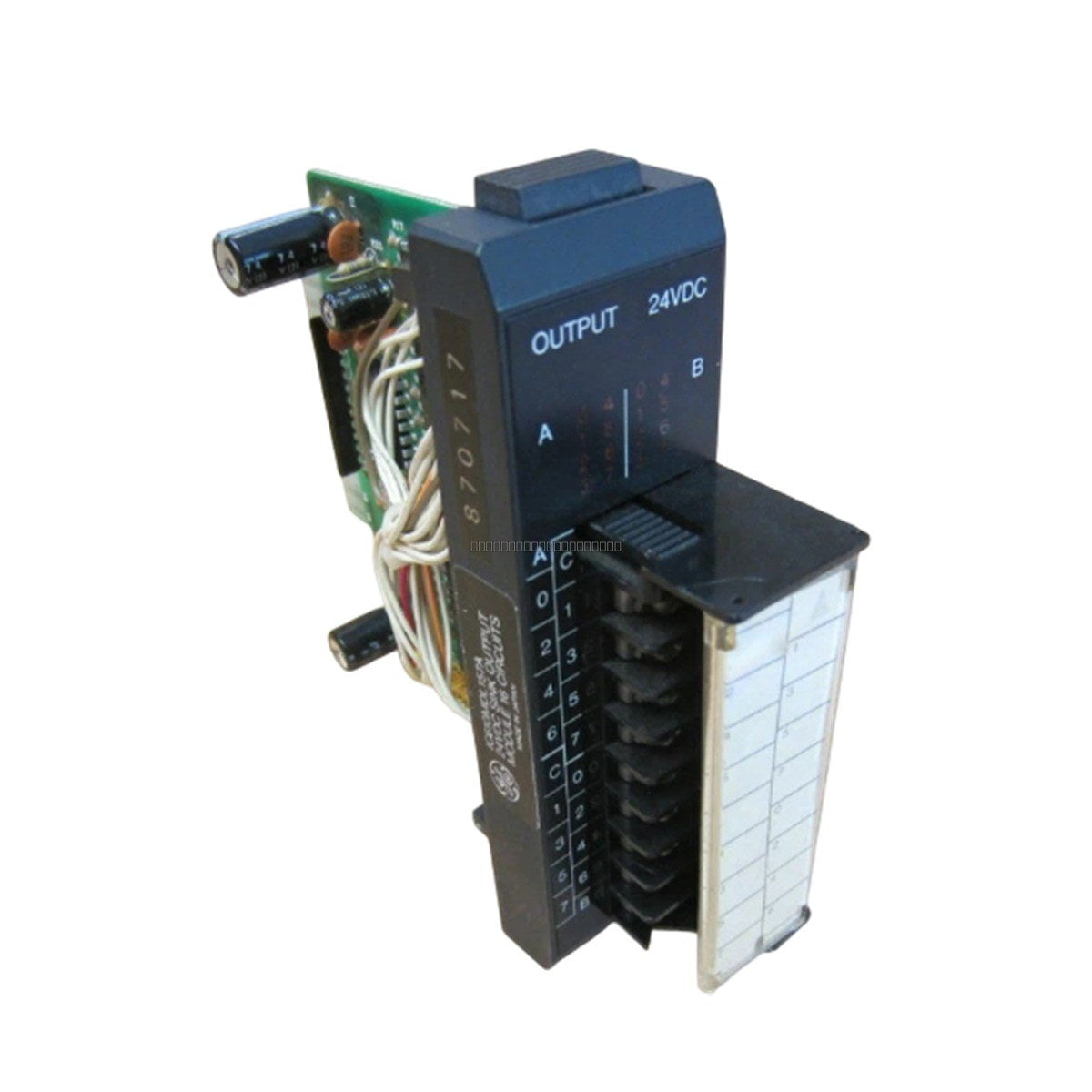

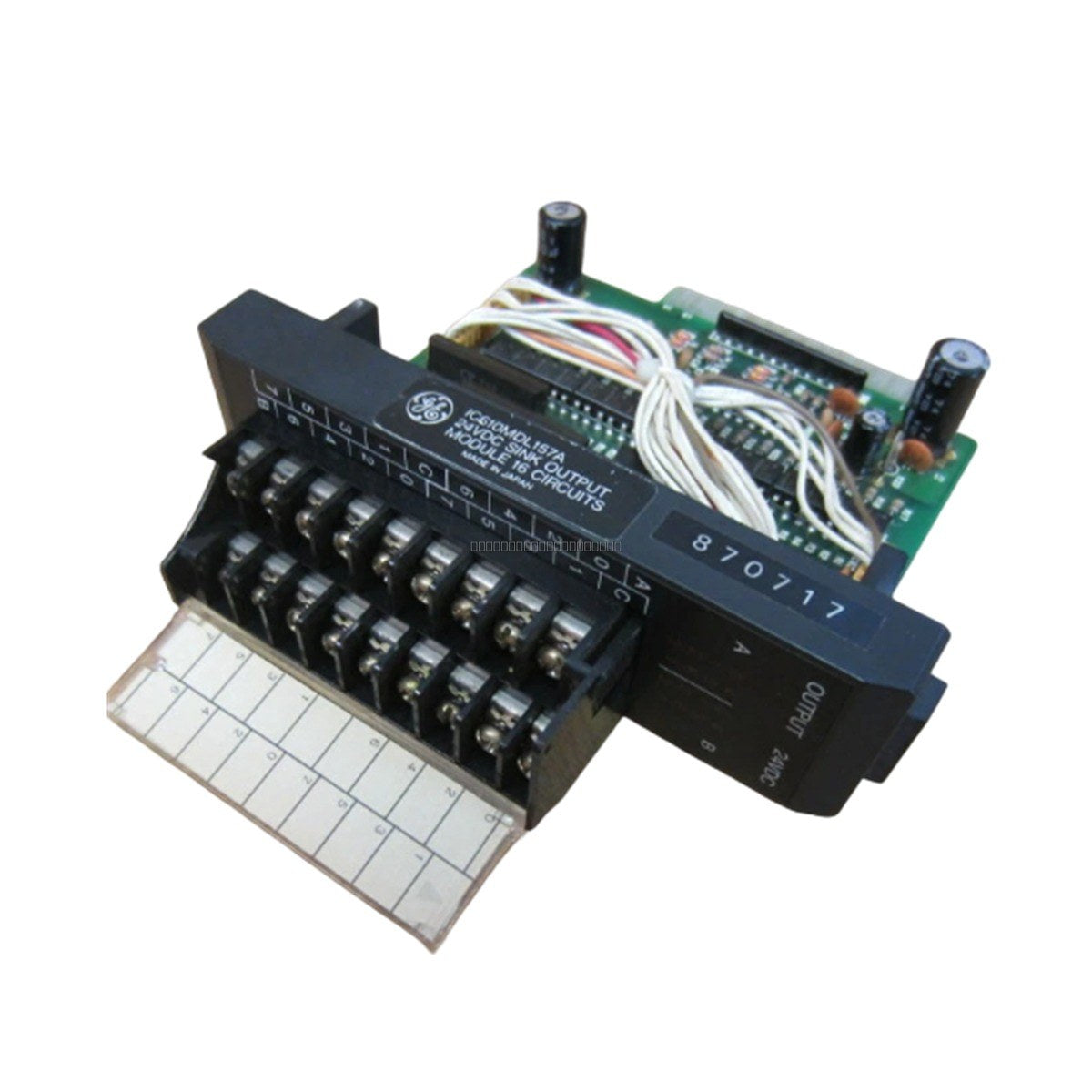

GE Fanuc IC610MDL157 Series One 16-Channel Sink Output Module

Description

The GE Fanuc IC610MDL157 is a 16-channel sink output module engineered for the Series One controller architecture. This module provides reliable discrete control for industrial automation applications, operating on a 24 VDC nominal voltage platform. It is designed to manage field-side actuators, relays, and indicators with high efficiency, featuring a low-loss semiconductor design that minimizes internal thermal accumulation. The module supports rapid response times and includes robust transient protection, making it suitable for demanding environments such as power generation and mining.

Features

• 16 independent solid-state sink output circuits.
• Supports a wide operating voltage range of 5 to 24 VDC.
• High inrush current tolerance: 3 Amps for 20 ms or 1 Amp for 100 ms.
• Minimal on-state voltage drop (1V typical) to reduce heat dissipation.
• Low leakage current profile of 0.11 mA at 40 VDC to prevent false activation.
• Front-facing, removable terminal block for simplified maintenance and field wiring management.

Applications

This module is typically deployed in Series One PLC systems for the control of discrete industrial loads. Common applications include the operation of solenoid valves, contactors, pilot lights, and other 24 VDC field devices in manufacturing, oil and gas, and utility automation systems.

Technical Specifications

Installation Guidelines

• Ensure the Series One controller power is disconnected before installing or removing the module from the rack.
• Use appropriate ESD protection when handling the module to prevent damage to internal logic components.
• Ensure field wiring is properly secured in the removable terminal block; verify that no loose strands are present to prevent short circuits.
• Maintain adequate ventilation within the control cabinet to ensure the ambient temperature remains within the 0 to 60 deg C range.
• Route signal cables away from high-voltage AC lines and high-EMI sources to maintain signal integrity.

FAQ

Is this module compatible with other Series One components?

Yes, the IC610MDL157 is designed specifically for integration with the GE Fanuc Series One controller architecture.

Does this module require external power for the outputs?

Yes, the module requires a 24 VDC supply to power the sinking output circuits for field devices.

Can I replace the module without rewiring?

Yes, the module features a removable terminal block assembly, allowing you to swap the module without disconnecting individual field wires.
