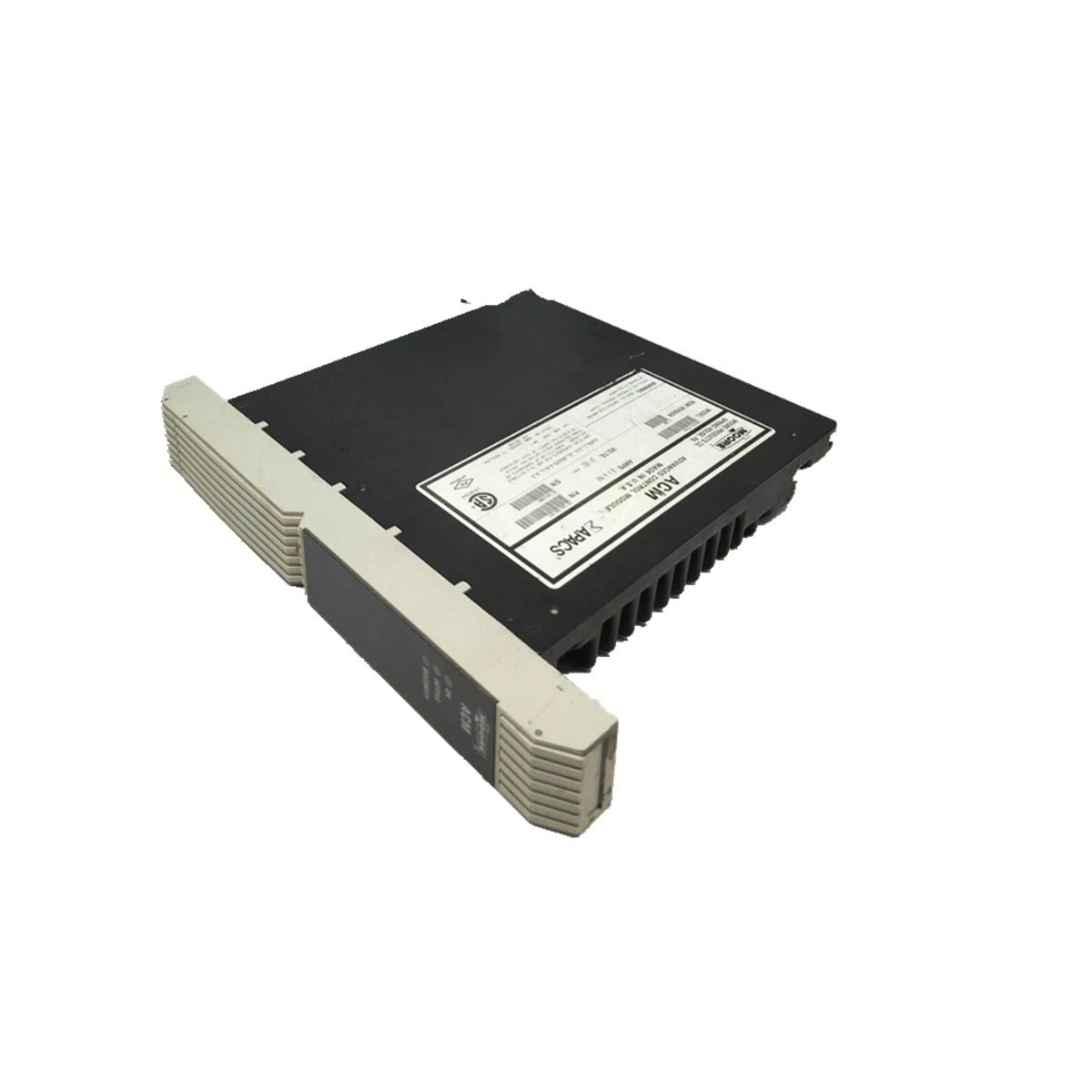

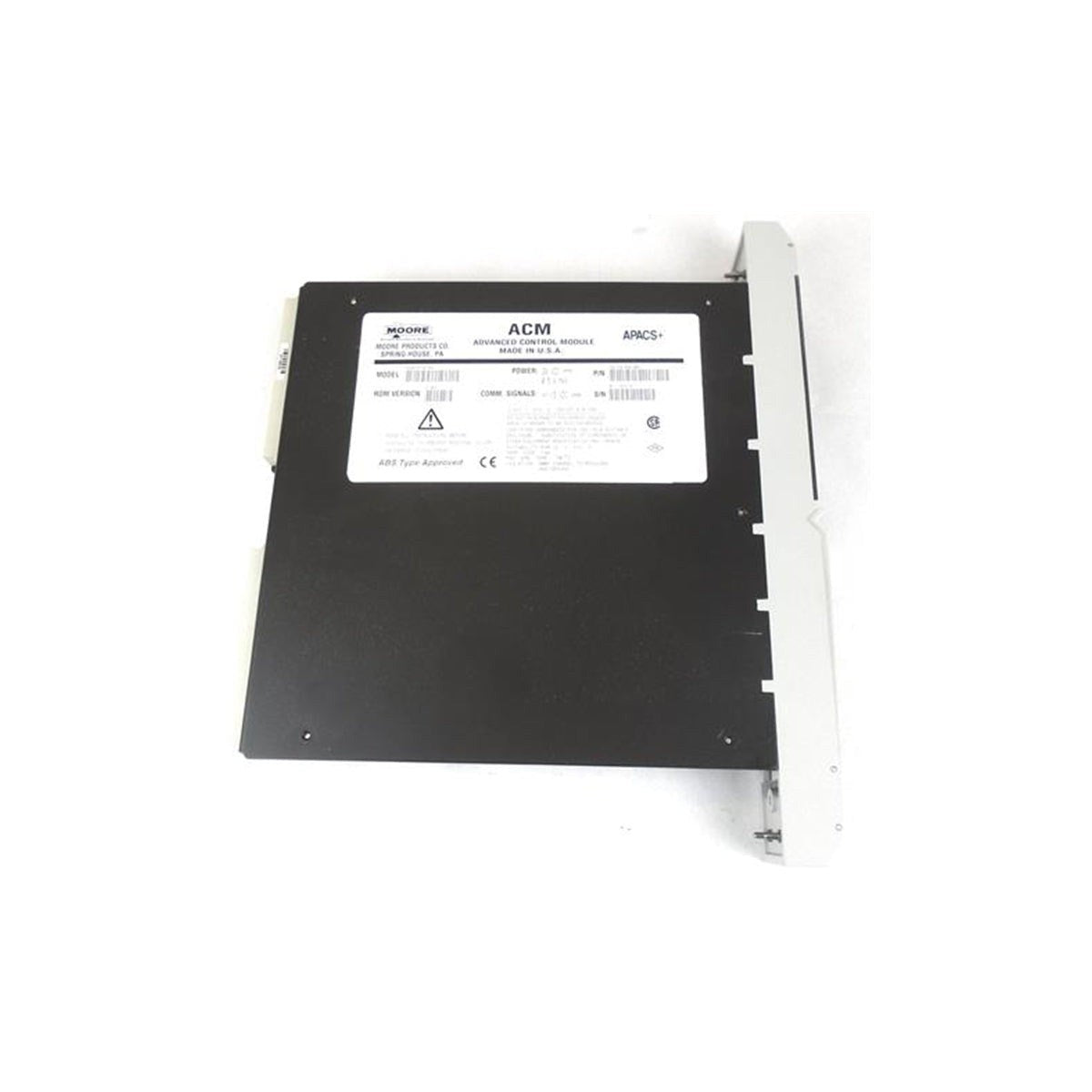

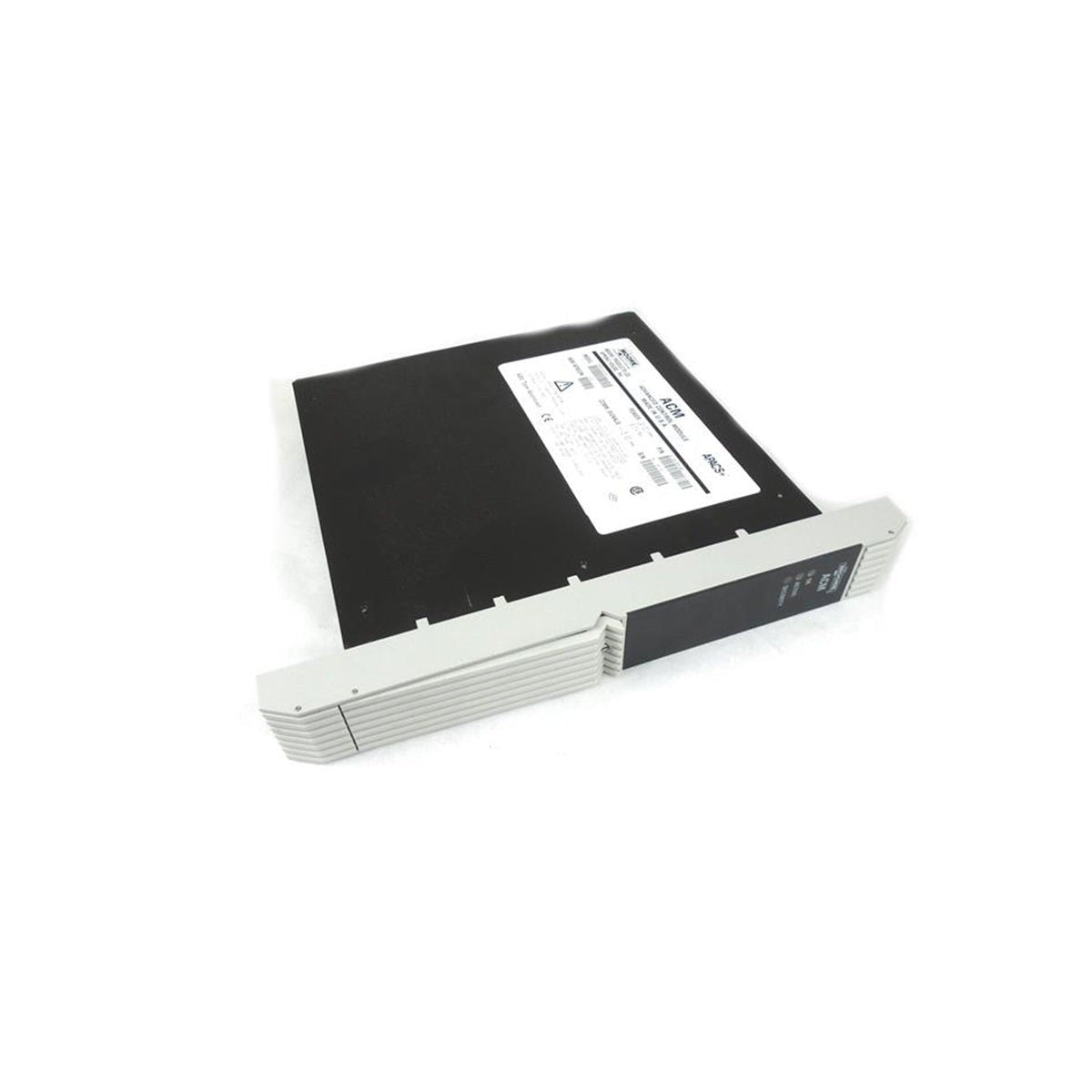

Siemens 39ACM14CAN Advanced Control Module (ACM)

Description

The Siemens 39ACM14CAN is an Advanced Control Module (ACM) designed for use within the Siemens Moore process control ecosystem. This module serves as a critical component for managing complex control strategies, providing the computational power and logic handling required for industrial automation tasks. As a legacy component, it is frequently utilized in maintenance and support scenarios for existing Moore-based control architectures.

Features

• Advanced control logic processing capabilities.
• Optimized for integration with Siemens Moore control systems.
• Operating voltage: 24VDC.
• Current rating: 0.5A maximum.
• Compact design suitable for standard control rack mounting.

Applications

This module is primarily deployed in process industries requiring precise control loop management, such as chemical processing, power generation, and water treatment facilities that utilize the Siemens Moore product line.

Technical Specifications

Installation Guidelines

• Ensure the system power is completely disconnected before attempting to install or remove the module to prevent electrical damage.
• Verify that the slot in the control rack is clean and free of debris before seating the module.
• Handle the module using proper ESD (Electrostatic Discharge) precautions to protect sensitive internal circuitry.
• Ensure the module is fully seated and secured in the rack to maintain proper electrical contact and mechanical stability.
• Route signal and power cables away from high-EMI sources, such as large motors or high-voltage lines, to minimize signal interference.

FAQ

Is the 39ACM14CAN still in production?

No, this module has been discontinued by the manufacturer. It is typically sourced through surplus or refurbished channels for the maintenance of legacy systems.

What is the primary function of this module?

The 39ACM14CAN functions as an Advanced Control Module (ACM) within the Siemens Moore control architecture, executing control logic and managing process parameters.
