Siemens 6DD1600-0AF0 Simadyn D PM16 Processor Module

Description

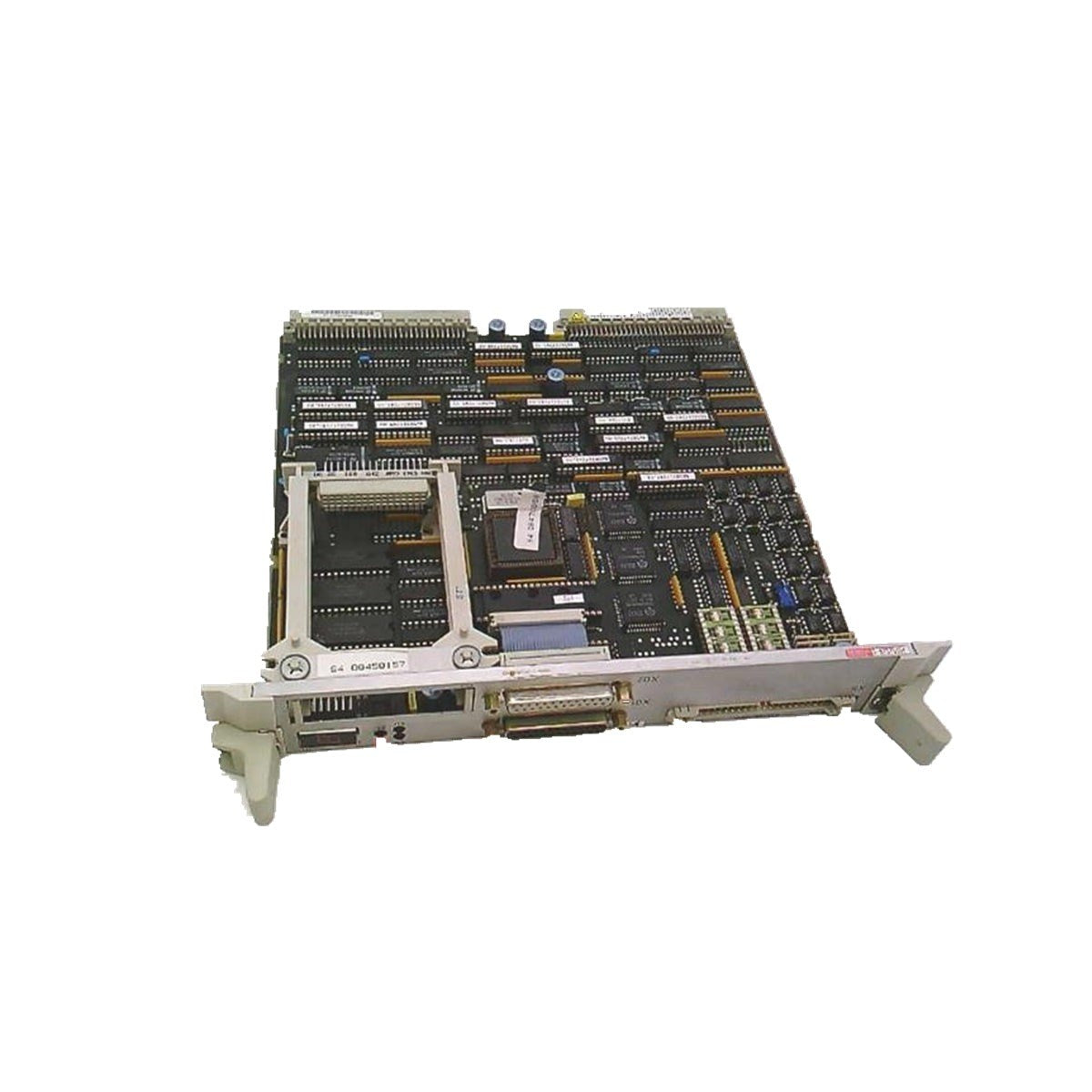

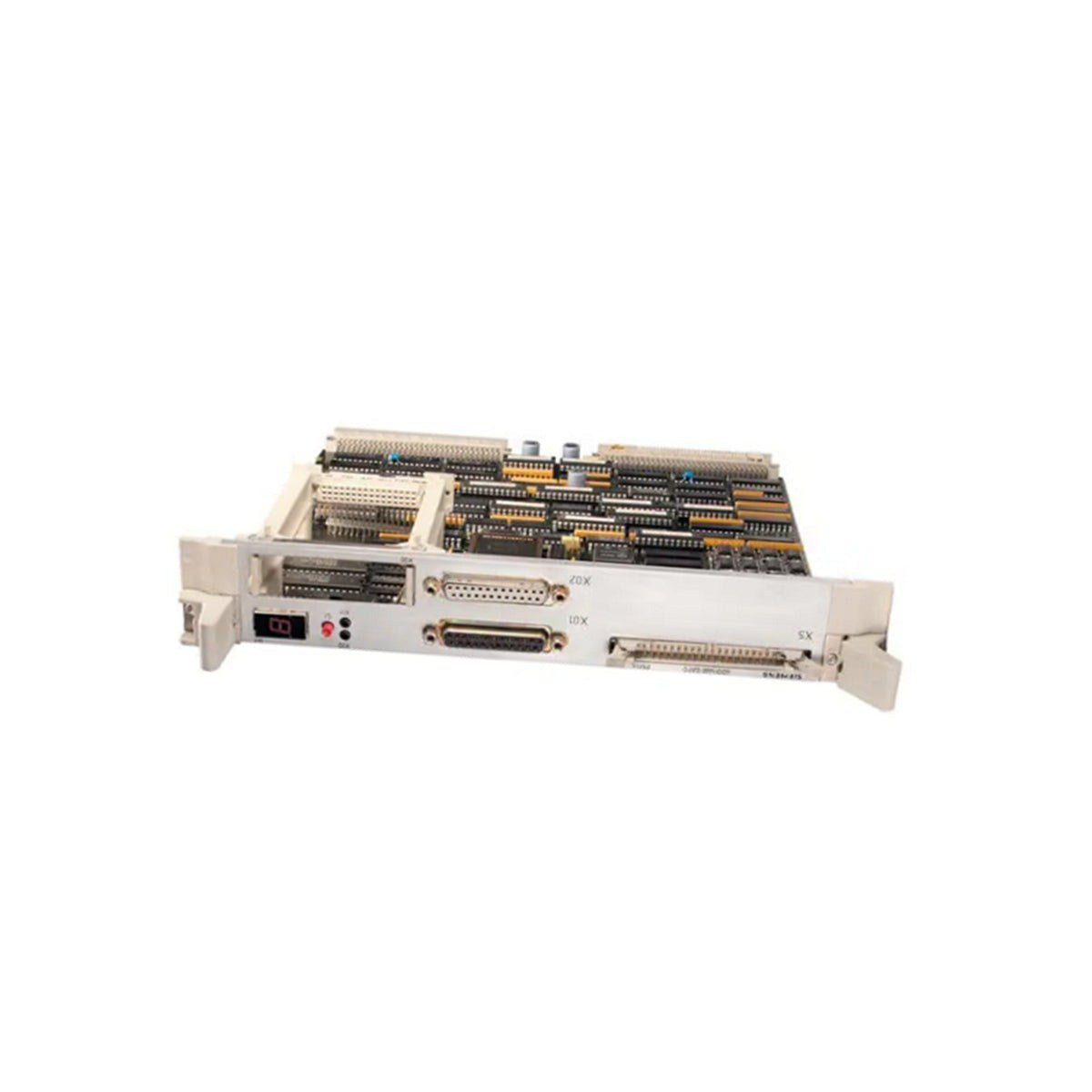

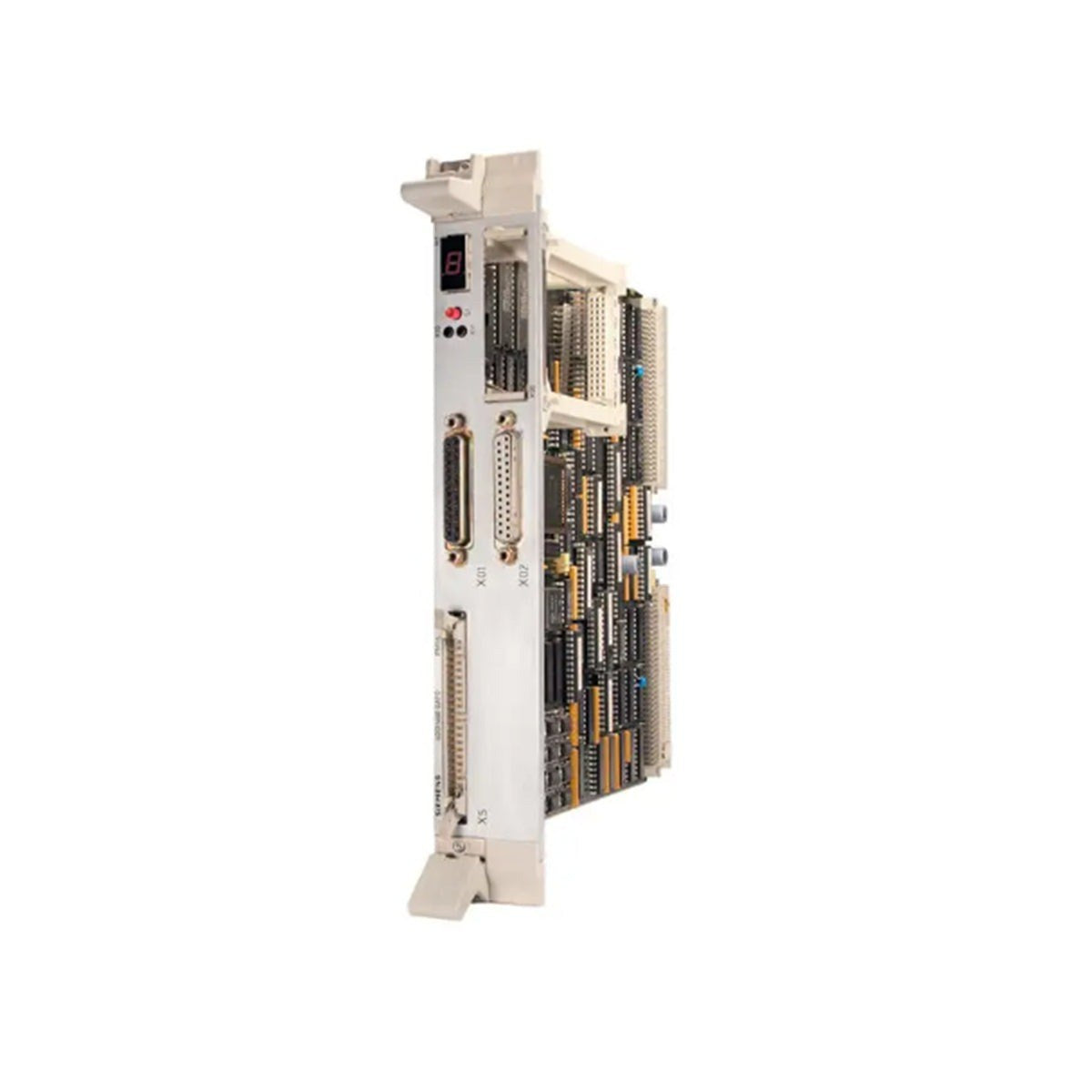

The Siemens 6DD1600-0AF0, also known as the PM16, is a high-performance processor module designed for the Simadyn D control system. This module serves as a central processing unit (CPU) controller, providing the computational power and logic execution required for complex industrial automation tasks. As a core component of the Simadyn D platform, the PM16 is engineered for demanding applications requiring high-speed processing and reliable control.

Features

• Central Processing Unit (CPU) for Simadyn D systems.
• Integrated LED display for status monitoring and diagnostics.
• Equipped with two 94-pin connectors for robust interface connectivity.
• Designed for integration into rack-based Simadyn D configurations.
• Discontinued by the manufacturer, making it a critical spare for legacy system maintenance.

Applications

The PM16 processor module is typically utilized in large-scale industrial control environments, including:

• Metal rolling mills and processing lines.
• Large-scale drive control systems.
• High-speed power generation and distribution control.
• Complex process automation requiring deterministic performance.

Technical Specifications

Installation Guidelines

• Power Down: Always ensure the rack power is disconnected before inserting or removing the module to prevent electrical damage.
• Handling: This module contains sensitive electronic components. Use proper ESD (electrostatic discharge) protection during handling and installation.
• Seating: Ensure the module is fully seated in the rack slot and that the 94-pin connectors are properly aligned before locking the module into place.
• Environment: Ensure the control cabinet provides adequate ventilation to prevent overheating during operation.
• Wiring: Route signal cables away from high-voltage power lines to minimize electromagnetic interference (EMI).

FAQ

Is the 6DD1600-0AF0 still in production?

No, this module has been discontinued by Siemens. It is primarily sourced as a spare part for maintaining existing legacy Simadyn D installations.

What does the PM16 designation mean?

PM16 refers to the specific hardware revision/model type of the Simadyn D processor module, identifying its functional capabilities within the Simadyn D architecture.
