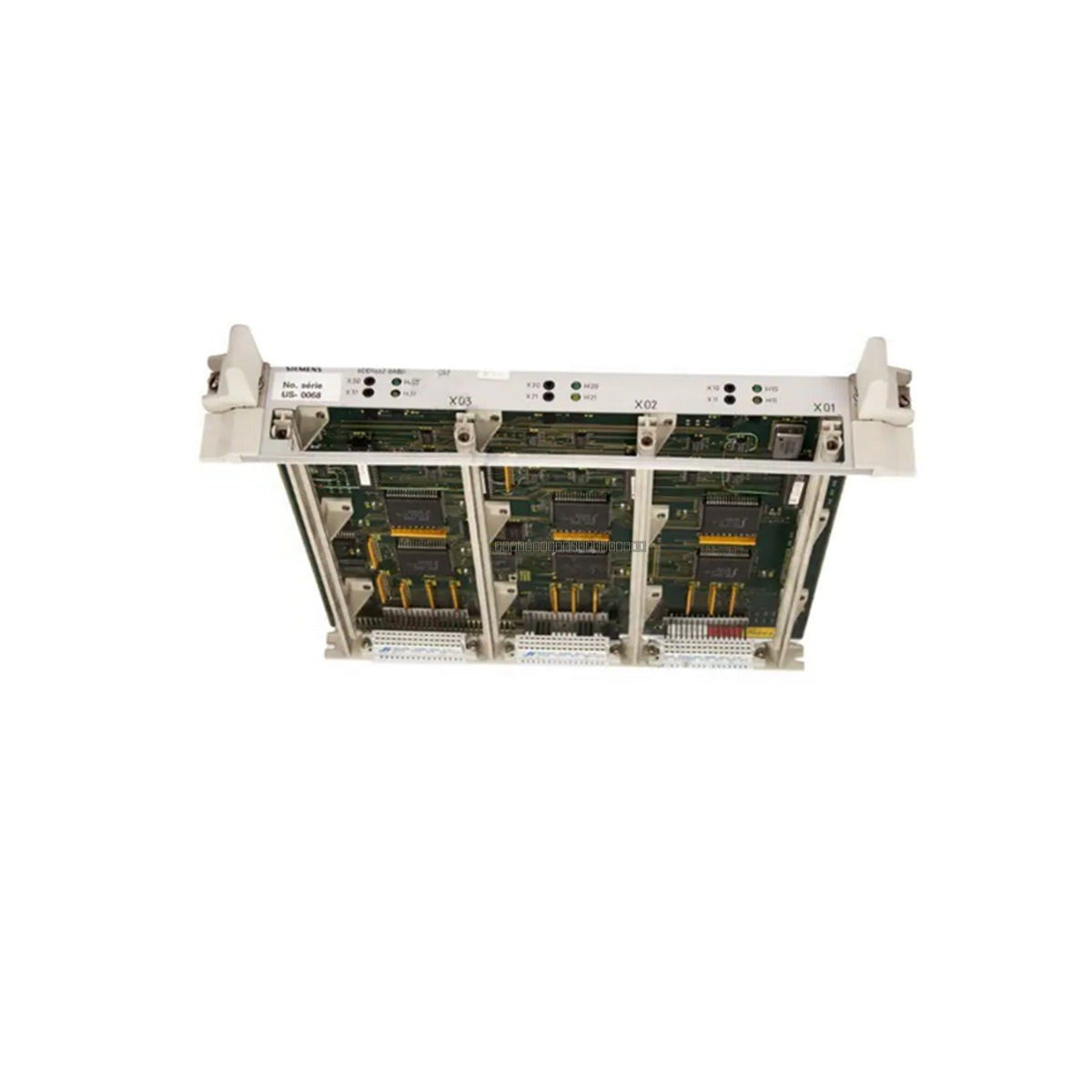

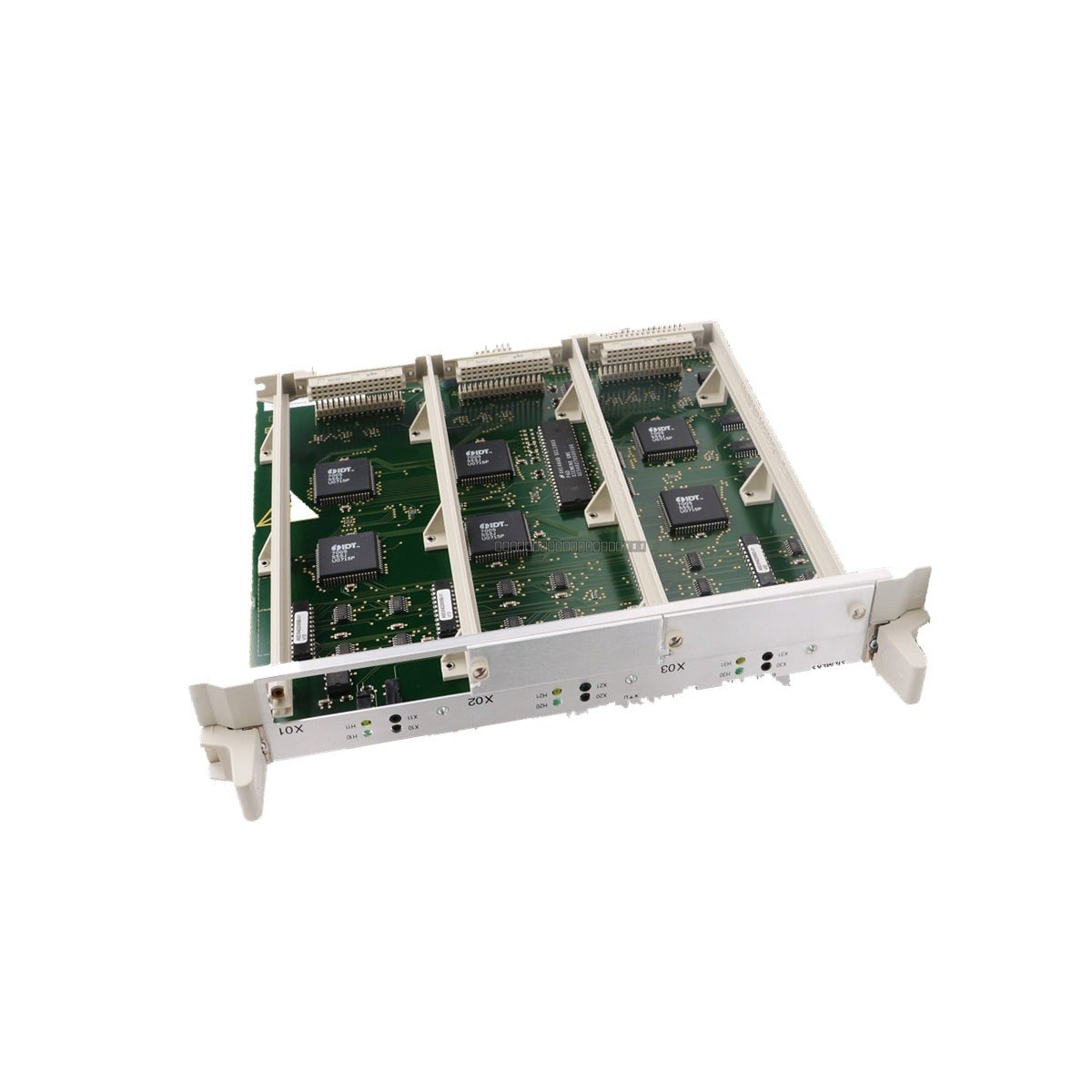

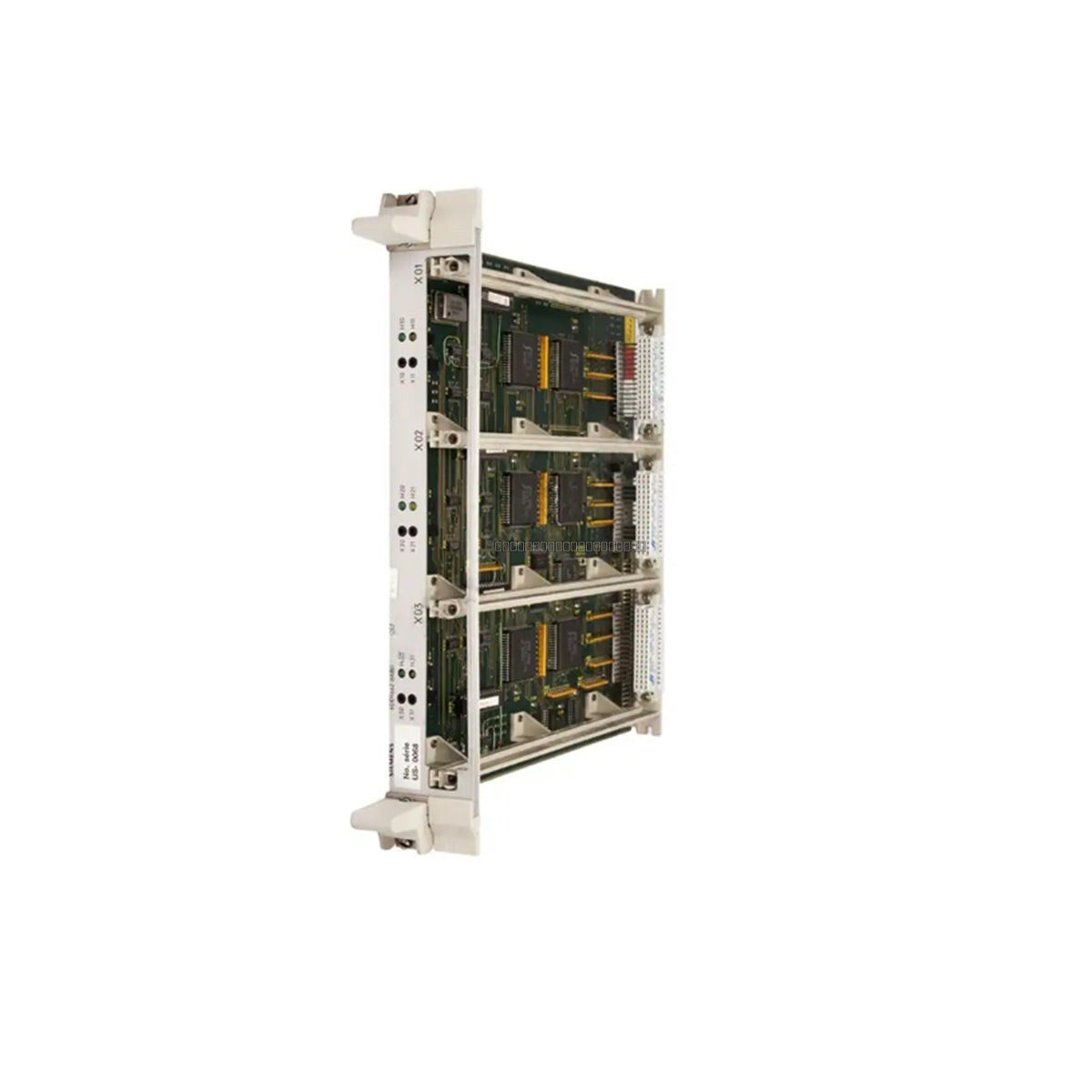

Siemens 6DD1662-0AB0 SIMADYN D CS7 Communication Carrier Module

Description

The Siemens 6DD1662-0AB0 is a high-performance CS7 carrier module engineered for the SIMADYN D control system. This specialized communication support module provides the physical and logical infrastructure to house up to 3 submodules, enabling multi-protocol industrial networking. Designed for high-speed control applications in steel rolling mills, large-scale power plants, and complex paper manufacturing lines, this module facilitates real-time data exchange across critical system nodes. By allowing modular expansion of communication interfaces within a single slot, the 6DD1662-0AB0 reduces hardware overhead and simplifies the maintenance of legacy control architectures.

Features

• Modular Design: Supports up to 3 communication submodules for flexible interface configuration.
• System Integration: Acts as a dedicated carrier for the SIMADYN D rack bus, offloading protocol management from the main processor.
• High-Speed Communication: Supports data transfer rates up to 1.5 Mbps.
• Robust Architecture: Engineered for high-noise industrial environments with high EMI resistance and signal integrity.
• Deterministic Performance: Ensures consistent data routing for closed-loop control tasks.

Applications

The 6DD1662-0AB0 is primarily utilized in heavy industrial sectors where high-speed, reliable data communication is critical. Typical applications include:

• Steel and metal rolling mills.
• Large-scale power generation and distribution plants.
• Complex paper and pulp manufacturing lines.
• Legacy SIMADYN D control system upgrades and maintenance.

Technical Specifications

Installation Guidelines

• ESD Protection: Always handle the module using proper electrostatic discharge (ESD) grounding procedures to prevent damage to sensitive internal components.
• Power Status: Ensure the SIMADYN D rack is powered down before inserting or removing the communication module to prevent electrical arcing or system faults.
• Mounting: Ensure the module is fully seated in the designated rack slot and that the locking mechanisms are engaged to maintain a secure connection to the backplane bus.
• Environment: Install in an environment free from excessive dust, corrosive gases, and extreme vibrations. Ensure adequate airflow for cooling within the cabinet.
• Cabling: Use shielded cabling for RS-485 connections to maintain signal integrity and minimize EMI interference. Route communication cables away from high-voltage power lines.

FAQ

What is the primary function of the 6DD1662-0AB0?

This module acts as a carrier for communication submodules within the SIMADYN D system, allowing you to expand the networking capabilities of your control rack by hosting up to three submodules in a single slot.

Is this module compatible with other SIMADYN systems?

The 6DD1662-0AB0 is specifically designed for the SIMADYN D series. Please verify your system rack configuration to ensure compatibility with the CS7 carrier architecture.

What is the maximum data rate supported?

The module supports data transfer rates up to 1.5 Mbps, depending on the specific submodules installed and the network topology used.
