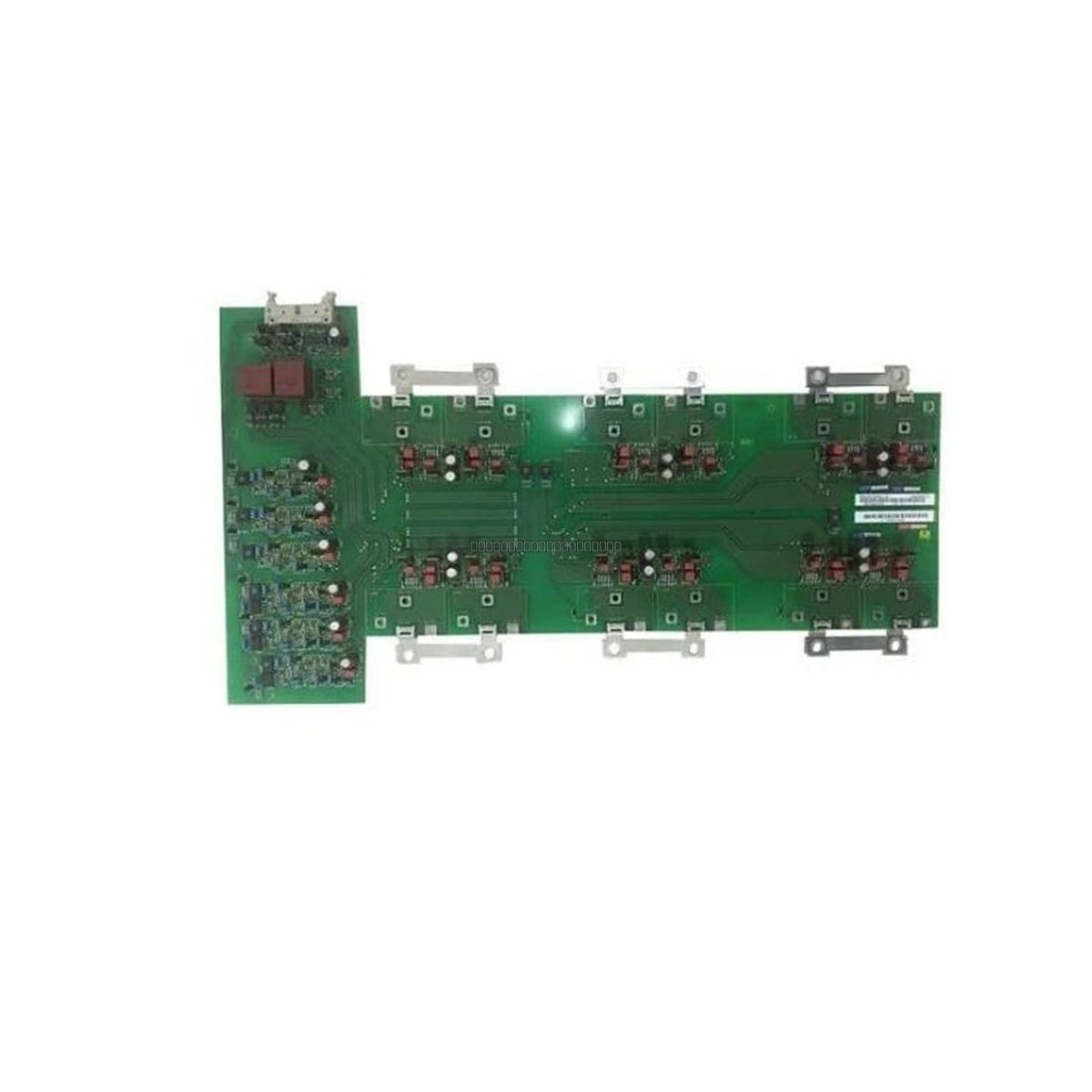

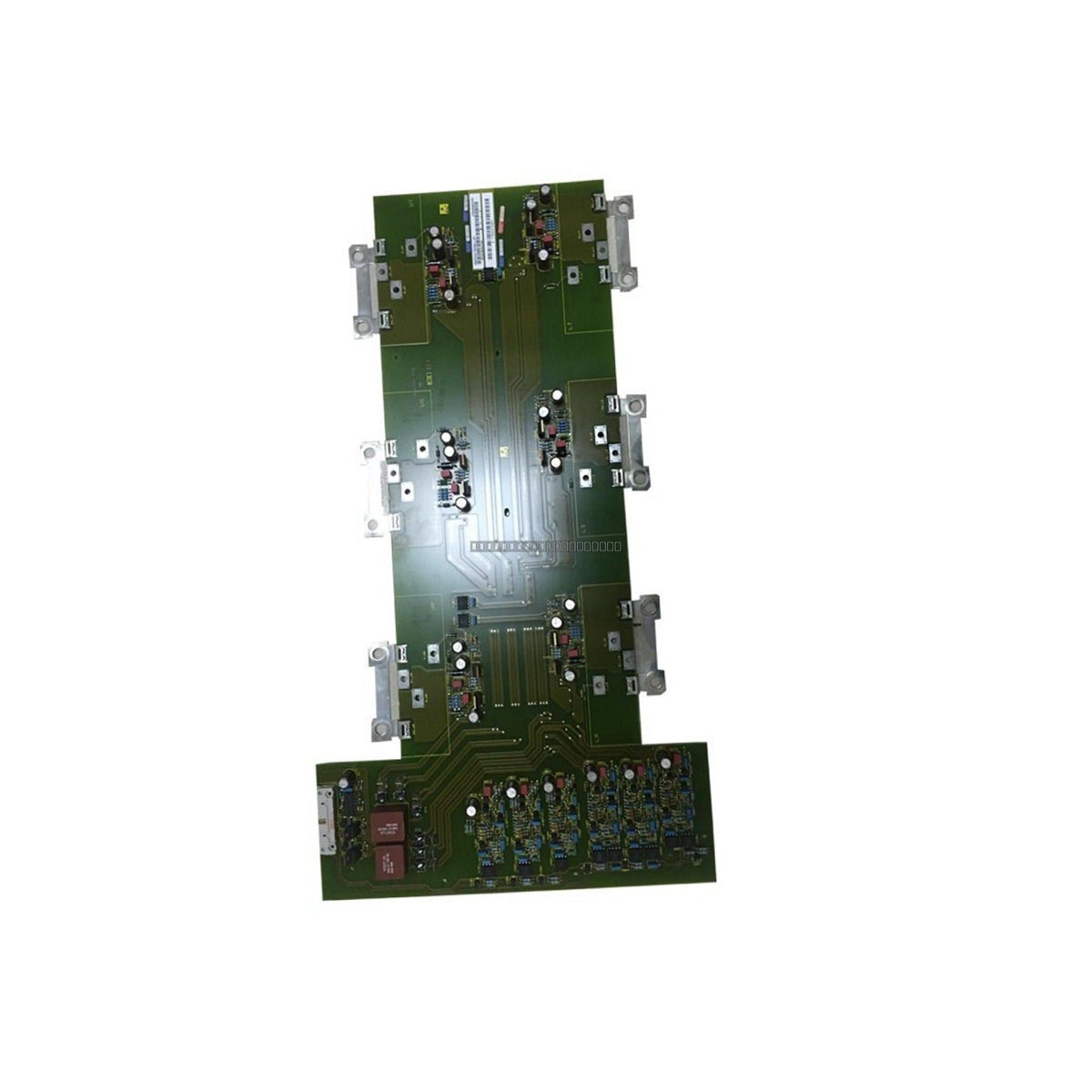

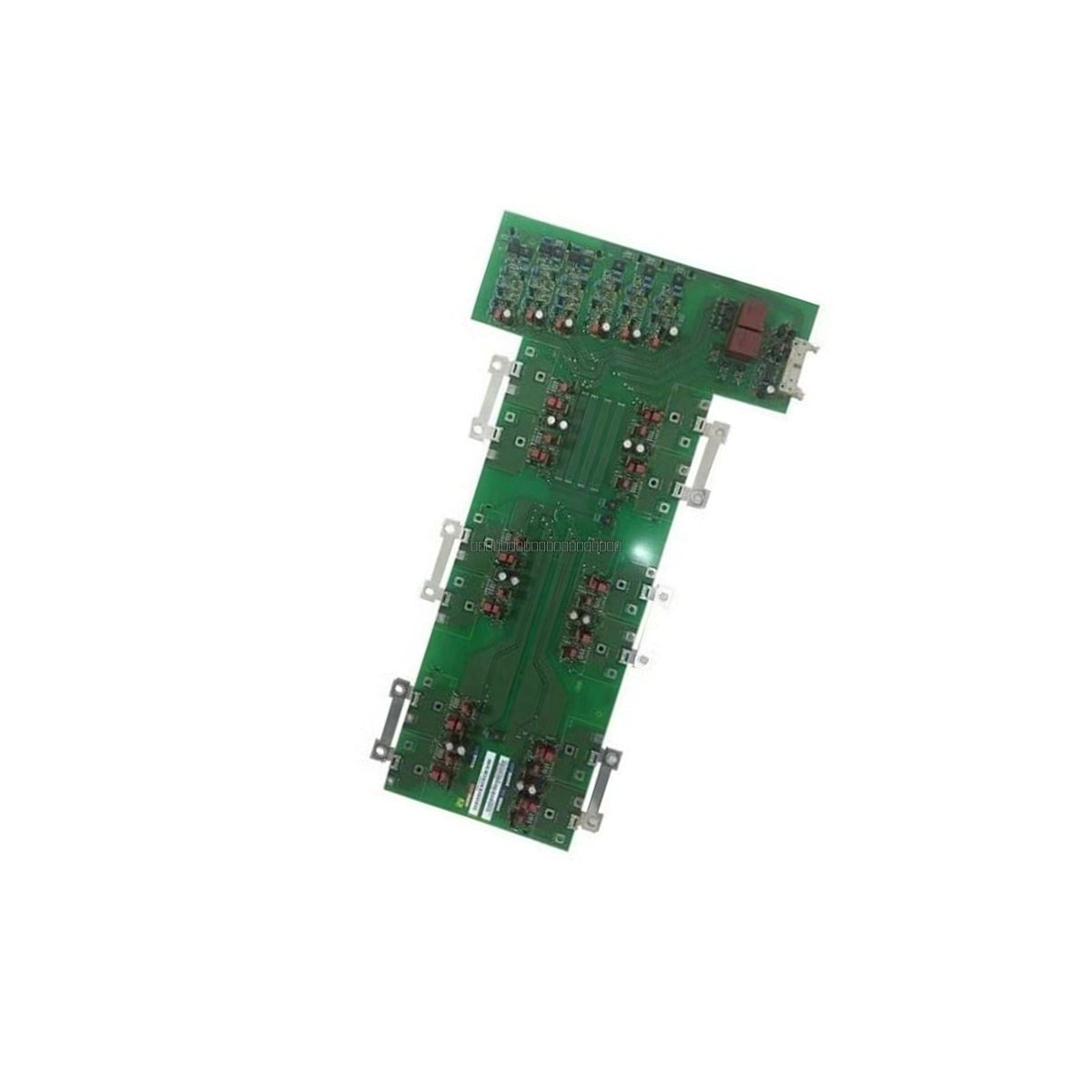

Siemens 6SE7033-7EG84-1JF1 Inverter Control Module

Description

The Siemens 6SE7033-7EG84-1JF1 is an Inverter Control Module designed for use within the SIMOVERT MASTERDRIVES series. This component, specifically identified as an IGD4 (Insulated Gate Driver) module, serves as a critical interface for power regulation and control in high-performance industrial drive applications. It is engineered to manage power conversion processes for 3-phase AC systems operating within the 380-460V range, or DC systems within the 510-620V range, supporting current ratings up to 370A.

Features

• Designed for integration with Siemens SIMOVERT MASTERDRIVES systems.
• IGD4 control architecture for precise power semiconductor gate driving.
• Supports wide input voltage ranges for both AC and DC power configurations.
• Robust construction suitable for demanding industrial environments.
• Optimized for high-current applications up to 370A.

Applications

This control module is primarily utilized in industrial automation environments where variable speed control and precise motor management are required. Typical applications include heavy-duty conveyor systems, large-scale pump and fan control, and industrial manufacturing machinery where the SIMOVERT MASTERDRIVES platform is deployed.

Technical Specifications

Installation Guidelines

• Ensure the drive system is fully powered down and capacitors are discharged before attempting to install or remove the control module.
• Handle the module using ESD-safe practices to prevent damage to sensitive electronic components.
• Verify that the module is firmly seated in the designated slot to ensure proper electrical contact with the backplane.
• Ensure adequate ventilation around the drive enclosure to maintain operating temperatures within the manufacturer's specified limits.
• Check all cable connections for secure fitment and ensure that control wiring is routed away from high-power cables to minimize electromagnetic interference (EMI).

FAQ

Is this module compatible with all MASTERDRIVES units?

This module is specific to the 6SE70 series. Please verify your drive's order code and hardware revision to ensure compatibility with the IGD4 control module.

What should I do if the module displays a fault code?

If a fault occurs, consult the SIMOVERT MASTERDRIVES technical manual for your specific drive frame size. Fault codes associated with the IGD module often indicate issues with gate signal feedback or power stage synchronization.
