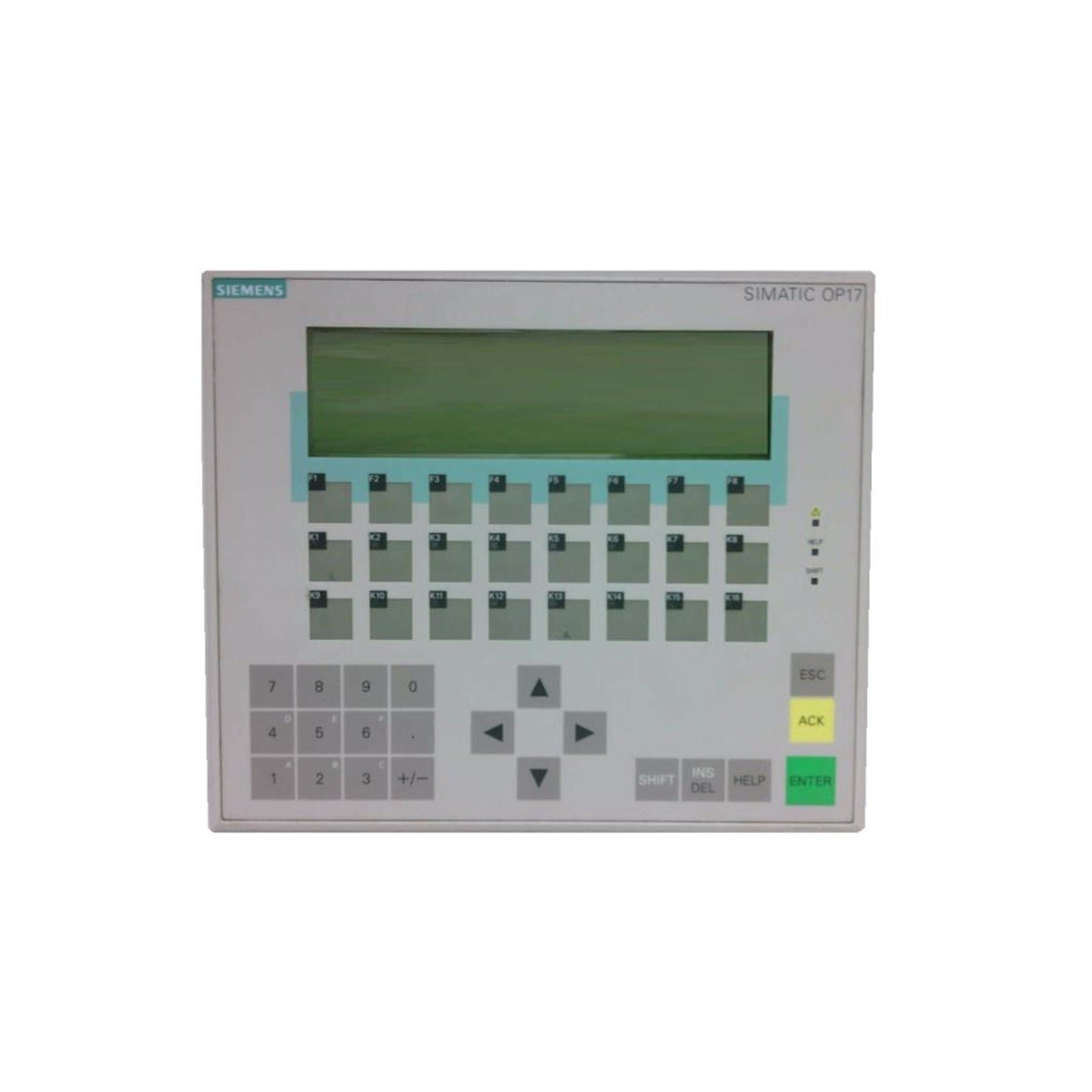

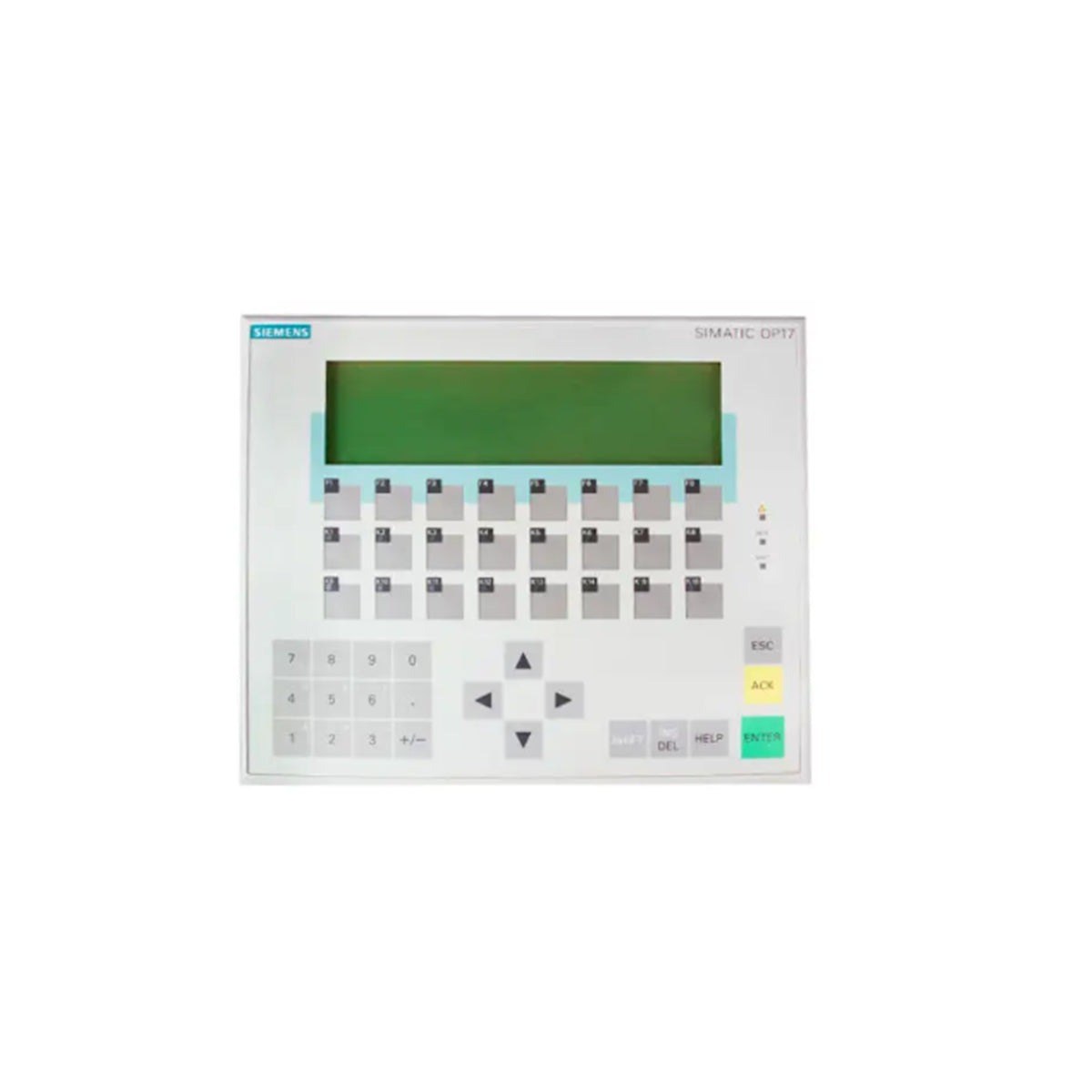

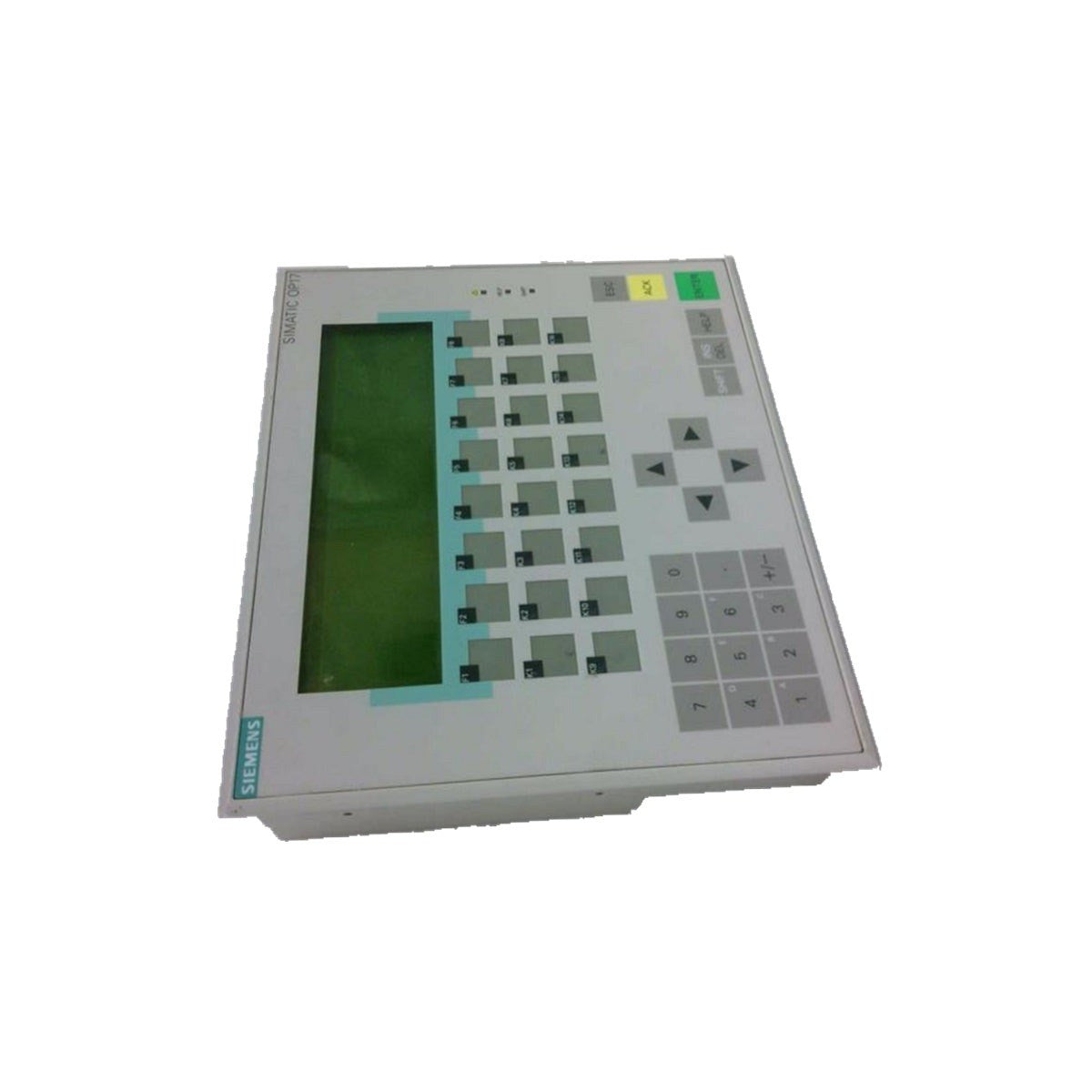

Siemens 6AV3617-1JC00-0AX0 SIMATIC OP 17 Operator Panel

Description

The Siemens 6AV3617-1JC00-0AX0 (OP 17) is a legacy operator panel designed for human-machine interface (HMI) applications within SIMATIC S5 and SIMATIC 505 control systems. This robust unit provides essential diagnostic and visualization capabilities, utilizing a backlit liquid crystal display (LCD) to present operational data in either a 4-line by 20-character or 8-line by 40-character format. It is engineered for demanding industrial environments, including chemical processing, food production, and wastewater treatment, where it enables operators to monitor real-time process variables, adjust setpoints, and acknowledge system alarms.

Features

• Display: Backlit LCD with LED illumination for high visibility in various lighting conditions.
• Input: Durable membrane-style keypad designed for high-cycle operation and resistance to industrial contaminants.
• Compatibility: Native integration with legacy SIMATIC S5 and 505 PLC platforms.
• Enclosure: IP65-rated front panel protection against dust and low-pressure water jets.
• Efficiency: Streamlined interface reduces troubleshooting time and minimizes unplanned downtime by providing direct access to machine states.

Applications

The OP 17 is primarily used in legacy automation systems where reliable, text-based HMI functionality is required. Typical applications include:

• Monitoring and control of SIMATIC S5 PLC-based production lines.
• Diagnostic reporting for wastewater treatment facility controllers.
• Set-point adjustment and alarm management in food and beverage processing.
• Operational status tracking in chemical processing environments.

Technical Specifications

Installation Guidelines

• Mounting: Ensure the panel is mounted in a clean, vibration-free panel cutout according to the specified dimensions. Use the provided mounting hardware to ensure the front gasket maintains an IP65 seal.
• Power: Verify that the supply voltage matches the requirements of the specific PLC system configuration before connection.
• Grounding: Ensure proper chassis grounding to mitigate EMI/RFI interference, especially when using serial communication lines.
• Wiring: Use shielded cables for RS 232/TTY/MPI communication to prevent signal degradation in high-noise industrial environments.
• Maintenance: Power down the device before performing any maintenance or cable adjustments. Clean the membrane keypad only with mild, non-abrasive industrial cleaners.

FAQ

Is the Siemens OP 17 compatible with modern S7 PLCs?

The OP 17 is specifically designed for legacy SIMATIC S5 and 505 systems. While some integration may be possible depending on the specific communication module and firmware, it is not a native HMI for modern S7-1200 or S7-1500 series controllers.

What does the IP65 rating mean for this device?

The IP65 rating applies to the front of the unit when properly installed in a panel. It indicates that the front face is protected against dust ingress and low-pressure water jets, making it suitable for wash-down environments common in food and chemical industries.
