Siemens 6DD1606-4AB0 SIMADYN D IT42 Expansion Submodule

Description

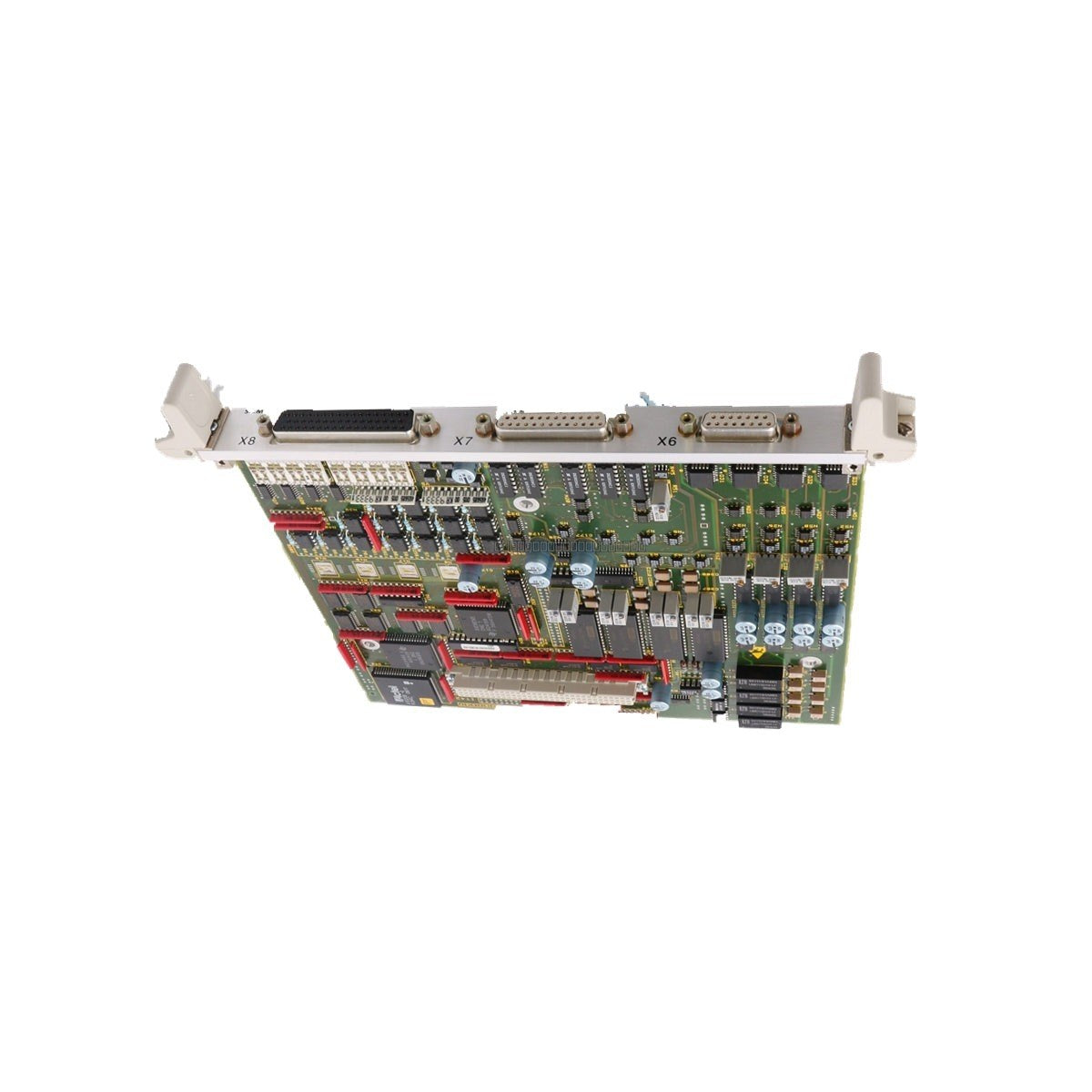

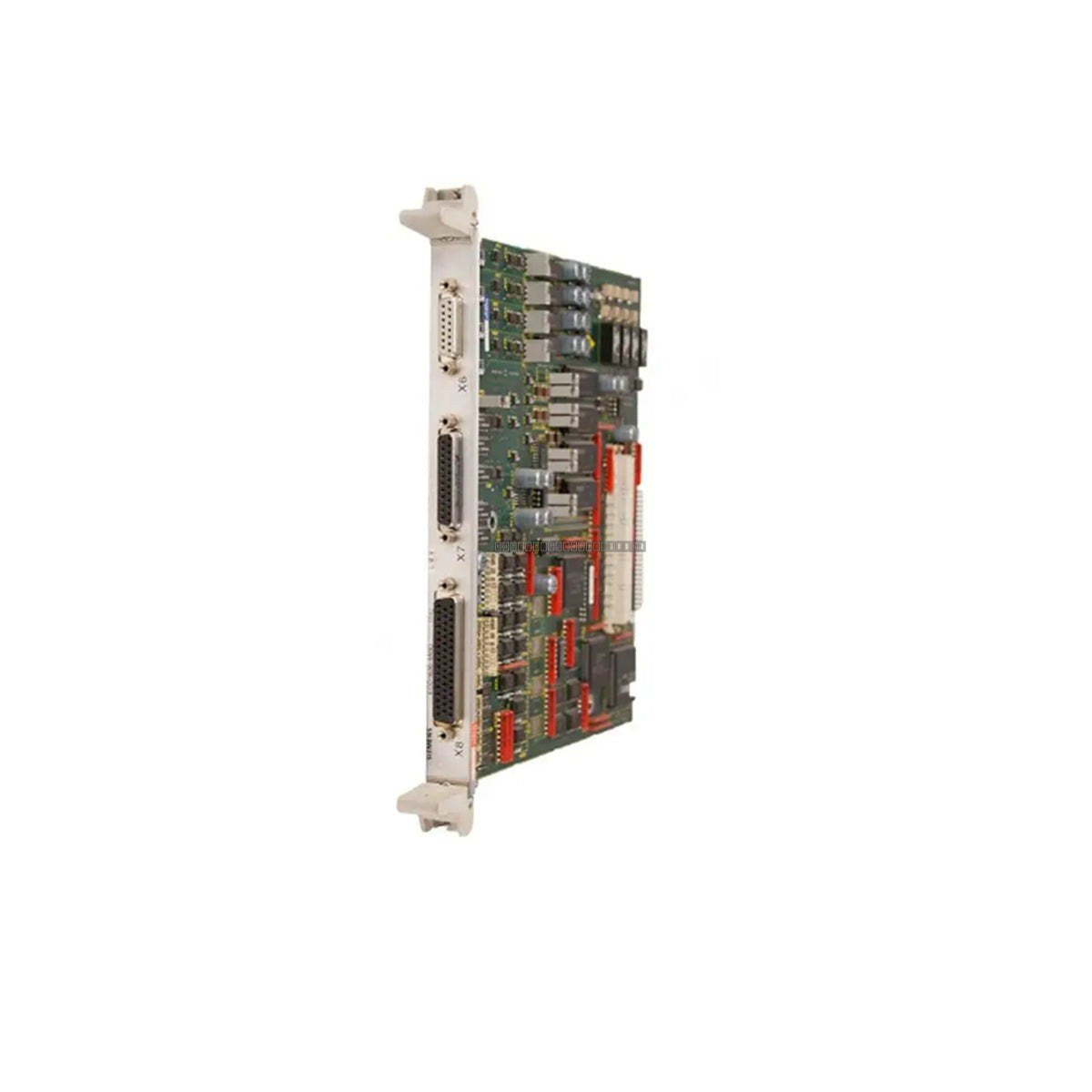

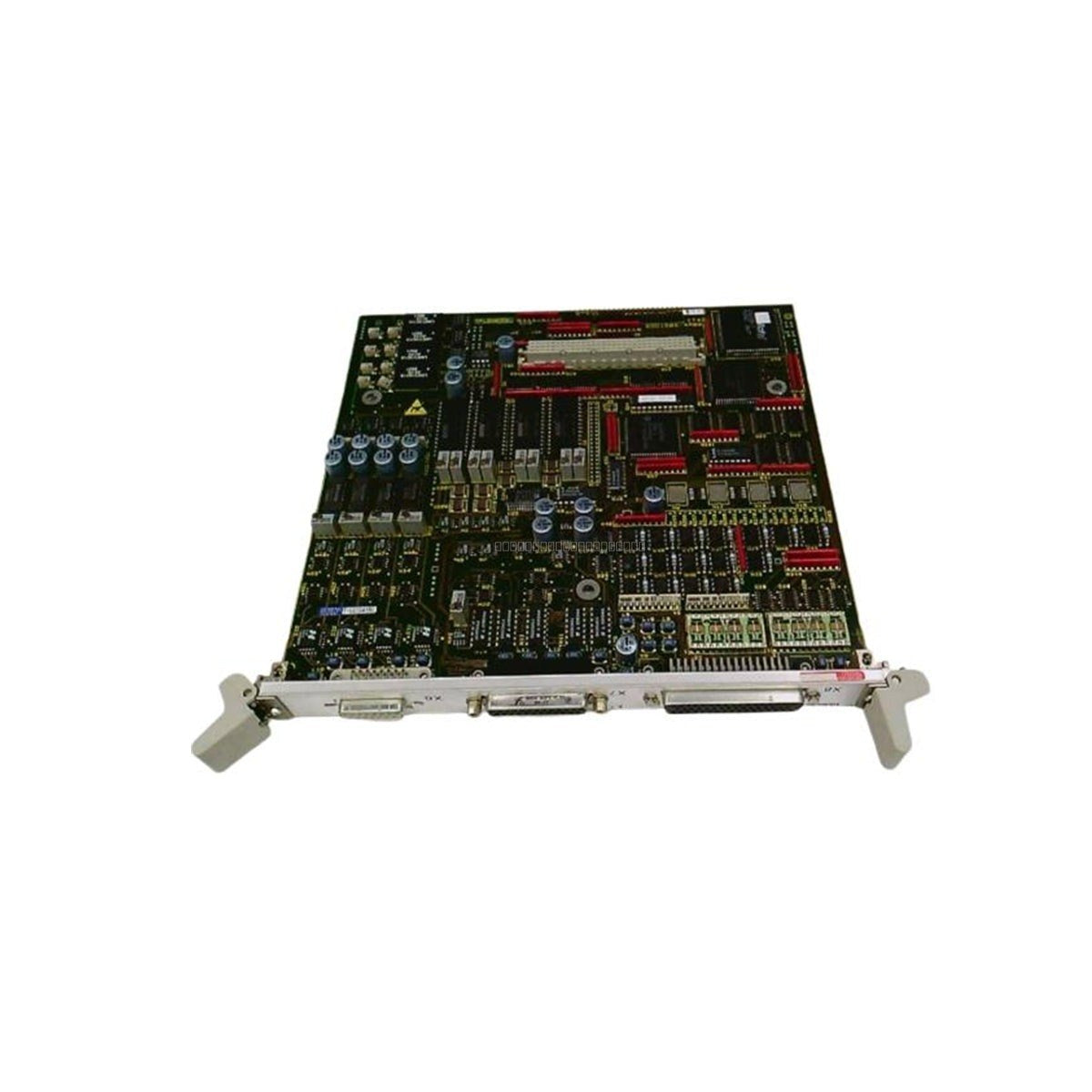

The Siemens 6DD1606-4AB0, also known as the IT42, is a high-performance I/O expansion submodule designed for the SIMADYN D automation system. It is engineered to provide additional signal processing capabilities for PM4, PM5, and PM6 CPU modules. This module facilitates complex drive control and industrial process coordination by offering a robust combination of binary and analog I/O channels.

Features

• Expansion module IT42 for SIMADYN D systems.
• Compatible with PM4, PM5, and PM6 CPU modules.
• 16 binary inputs and 16 binary outputs.
• 4 analog inputs (A/D) and 4 analog inputs (V/F).
• 4 analog outputs with 16-bit resolution.
• High-speed computational performance for demanding industrial tasks.
• Non-volatile memory for configuration data retention.

Applications

• Steel and Metal Rolling Mills: High-speed coordination for thickness and tension control.
• Paper and Printing Plants: Synchronization for rollers and high-speed printing presses.
• Power Plants: HVDC excitation management and energy flow stabilization.
• Chemical Processing: Monitoring of high-speed pressure and temperature fluctuations.
• Automotive Manufacturing: Multi-axis robotic synchronization.
• Water Treatment: High-capacity pump cascading and flow management.

Technical Specifications

Installation Guidelines

• The IT42 module is designed to be mounted directly onto the CPU module (PM4, PM5, or PM6).
• A maximum of two expansion modules can be installed per CPU module.
• Each IT42 module occupies one additional slot alongside the CPU module.
• Ensure the system is powered down before inserting or removing any submodule to prevent electrical damage.
• Binary I/O signals are typically routed via a 40-pin ribbon cable to interface modules, such as the SE3.1.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect sensitive internal circuitry.

FAQs

What is the 6DD1606-4AB0?

It is an IT42 expansion submodule designed for the SIMADYN D system to provide additional analog and binary inputs and outputs for PM4, PM5, or PM6 CPU modules.

Where is it used?

It is primarily used in SIMADYN D automation systems, which are common in high-precision industrial applications such as drive control and power plant management.

Which CPU modules is it compatible with?

The IT42 is specifically designed to be inserted onto PM4, PM5, or PM6 CPU modules.
