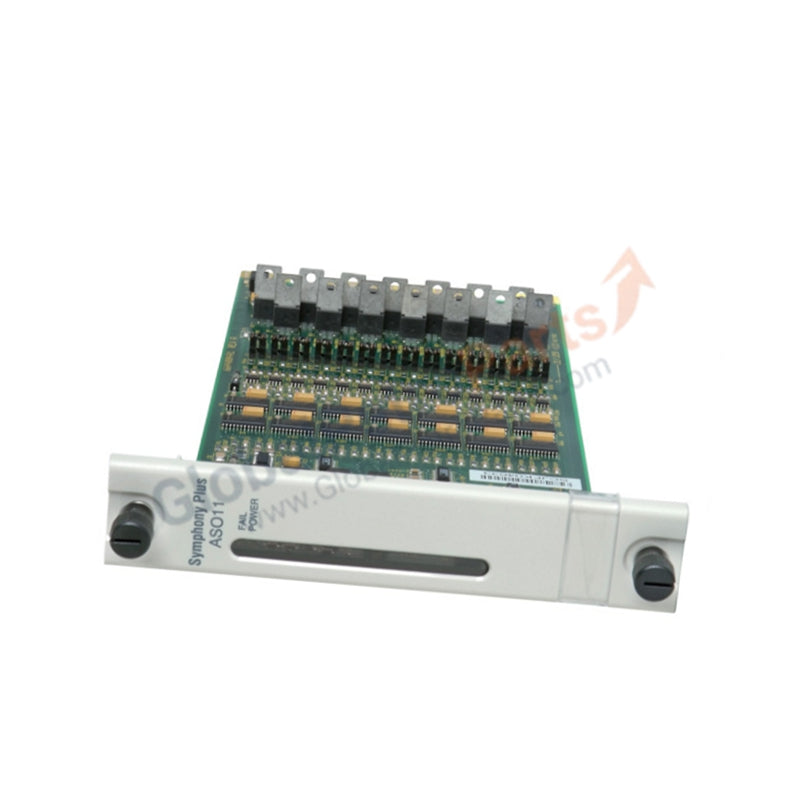

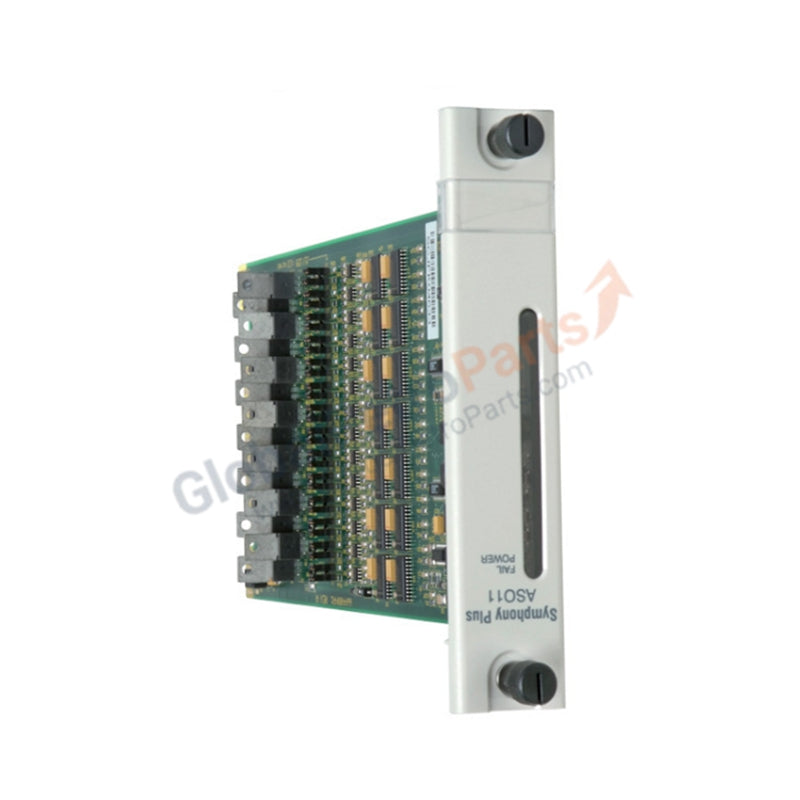

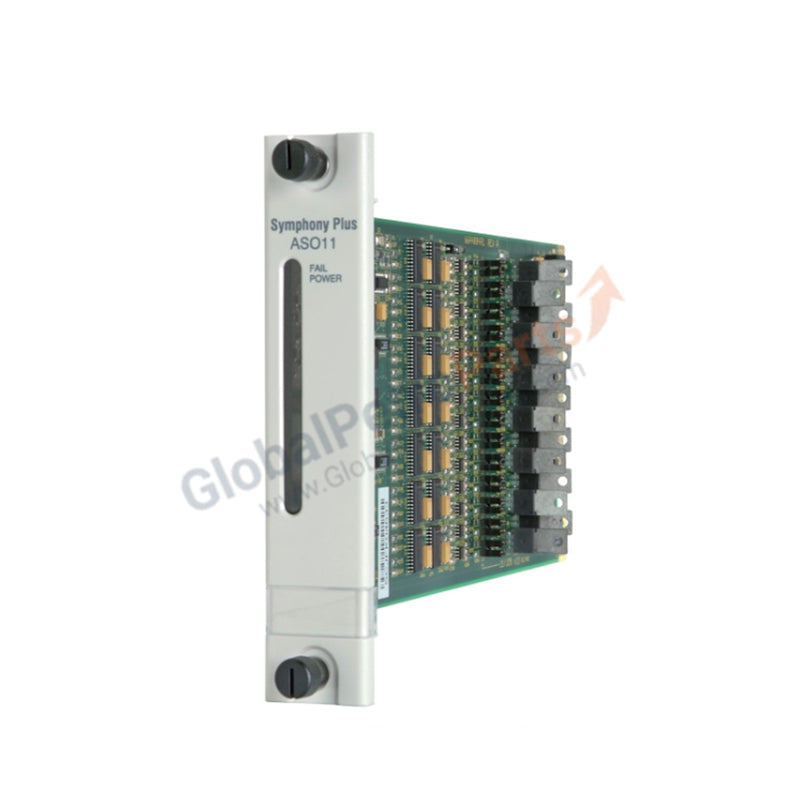

SPASO11 | ABB | Analog Output Module | 14-Channel I/O Hardware

Product Description

The ABB SPASO11 Analog Output Module is a dedicated I/O hardware unit designed for precise signal transmission in distributed control systems. With 14 independent output channels, it provides accurate current and voltage signals to actuators, valves, and other process devices, ensuring stable and reliable control in demanding industrial environments.

Technical Specifications:

• Manufacturer: ABB

• Model Number: SPASO11

• Product Type: Analog Output Module (I/O Module)

• Channel Type: AO (Analog Output)

• Number of Output Channels: 14

• Supported Signal Standards: 4–20 mA current loop, 1–5 V voltage output

• Dimensions (D × H × W): 73.66 mm × 358.14 mm × 271.78 mm

• Weight: Approx. 0.8 kg

• Condition: New, suitable for replacement or repair in ABB systems

• RoHS Compliance: Not RoHS compliant

• WEEE Category: 5 – Small equipment (no external dimension > 50 cm)

• Battery Requirement: None

Key Features:

• Multi-Channel Output: 14 analog outputs for flexible process control.

• Signal Accuracy: Supports industry-standard current and voltage ranges for precise actuation.

• Compact Form Factor: Slim design for efficient cabinet integration.

• Industrial Application: Optimized for turbine control, process automation, and distributed control systems.

• Replacement Ready: Designed as a direct repair/replacement module for ABB platforms.

• Compliance: Classified under WEEE Category 5 for small equipment.

Applications:

• Turbine valve actuation in power generation

• Motor and actuator control in process industries

• Integration into ABB Symphony Plus and Harmony systems

FAQ:

• Q: Can the SPASO11 output both current and voltage signals?  A: Yes, it supports 4–20 mA current loops and 1–5 V voltage outputs.

• Q: Is the module RoHS compliant?  A: No, the SPASO11 is not RoHS compliant but meets WEEE Category 5 classification.

• Q: Can this module be used as a replacement in existing ABB racks?  A: Yes, it is designed for repair and replacement in ABB distributed control systems.

Comparison with Similar Models:

• SPASO09: 8-channel AO module, compact size

• SPASO11: 14-channel AO module, supports both current and voltage outputs

• SPASO13: Extended output range with enhanced diagnostics
