Speedtronic Mark V Uninterruptible Power Supply Board DS200UPSAG1AGD GE

Product Overview

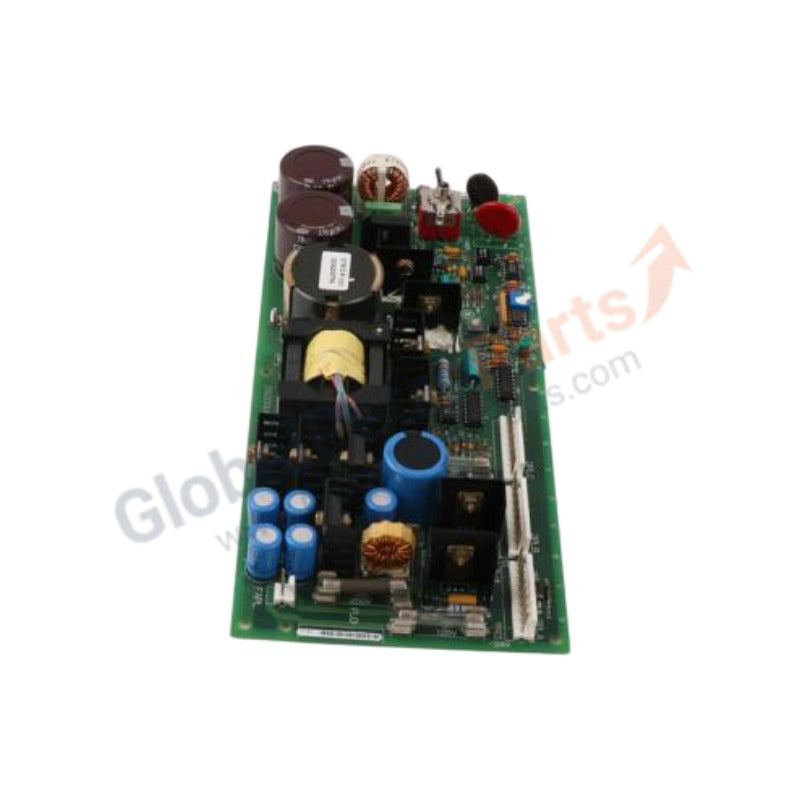

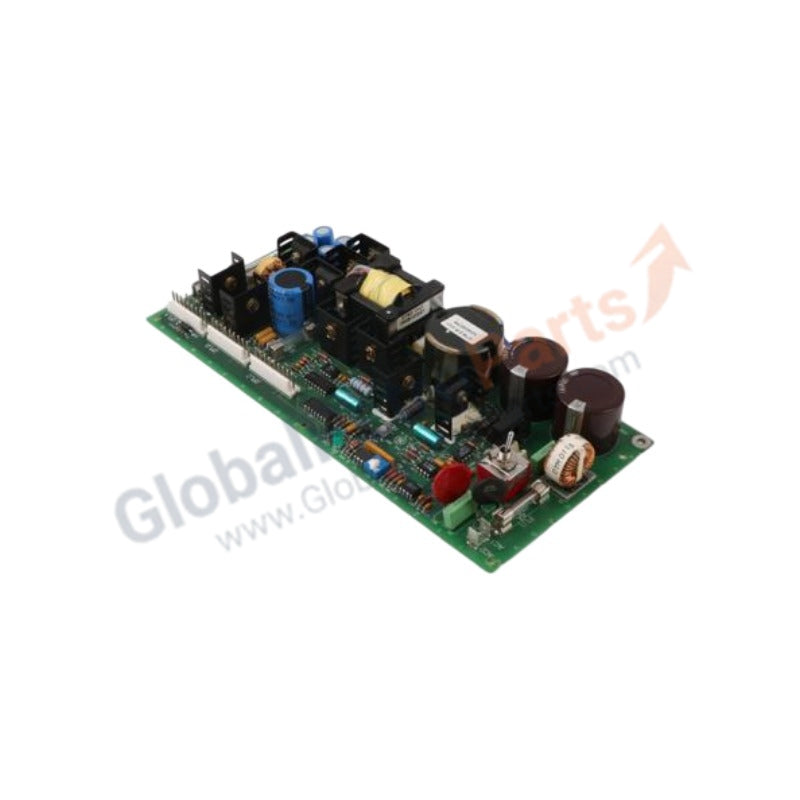

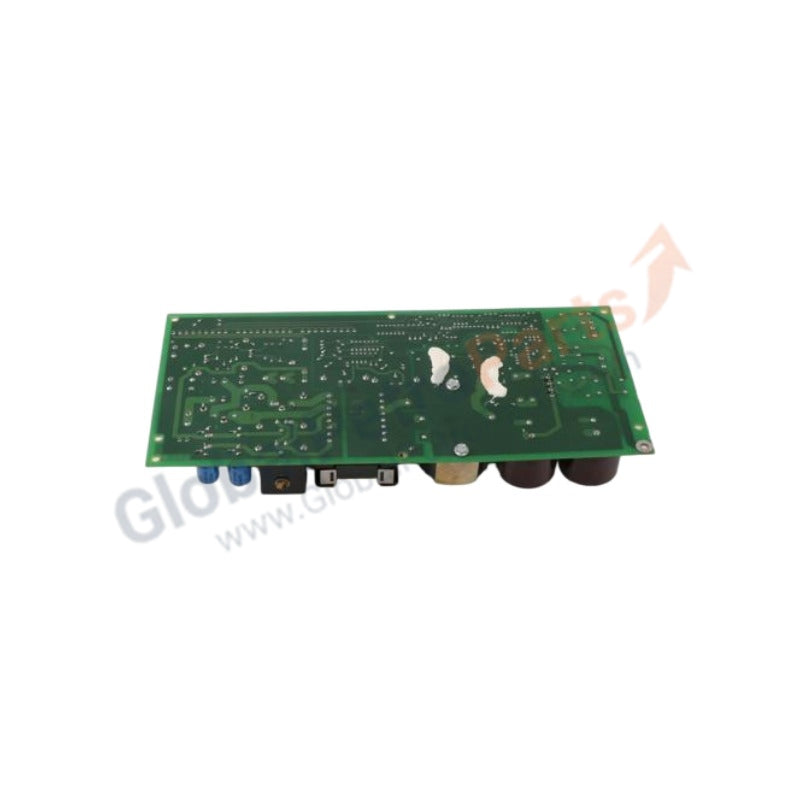

The GE DS200UPSAG1AGD serves as the critical Uninterruptible Power Supply (UPS) interface board within the Speedtronic Mark V turbine control system. This board manages the seamless transition between primary AC/DC power sources and backup battery systems, ensuring the control core remains energized during utility power loss or local grid fluctuations. By regulating the charging and discharging cycles of the backup system, the DS200UPSAG1AGD prevents processor reboots and data loss in the , , and  cores. Utilizing this 100% Brand New original board secures the "Non-Stop" operational integrity required for high-availability gas and steam turbines in power generation and petrochemical facilities.

Technical Specifications

The DS200UPSAG1AGD integrates high-current switching circuits and voltage regulation logic to maintain constant output:

• Model: DS200UPSAG1AGD

• Brand: General Electric (GE)

• Series: Speedtronic Mark V

• Condition: 100% Brand New Original

• Function: UPS Power Management and Battery Interface

• Input Compatibility: Standard Mark V Cabinet DC/AC bus inputs

• Output Rails: Regulated DC power for core backplanes and I/O logic

• Protection Hardware: Onboard high-speed fuses and surge suppression varistors

• Monitoring: Real-time battery voltage and current sensor feedback

• Mounting: Proprietary Mark V "R" core or power distribution rack mounting

• Connectors: High-density ribbon cable headers and heavy-duty screw terminals for power lines

Engineering Advantages

The GE DS200UPSAG1AGD provides targeted technical solutions for power stability and system protection:

• Zero-Switching-Time Transition: The board utilizes high-speed solid-state switching logic to engage backup power instantly. This eliminates voltage dips during a power failure, preventing the turbine control processors from initiating an emergency "False Trip" due to momentary power loss.

• Intelligent Battery Charging Logic: Onboard circuitry monitors the state-of-health and charge levels of the external battery bank. It regulates the charging current to prevent battery over-heating and off-gassing, significantly extending the life of the emergency power storage system.

• Dynamic Fault Forensics: The DS200UPSAG1AGD communicates power status directly to the Mark V diagnostic system. It identifies low battery voltage, fuse failure, or charging circuit malfunctions, allowing maintenance teams to address power issues before they escalate into a full system shutdown.

• Ruggedized EMI Filtering: GE engineers this board with advanced electromagnetic interference (EMI) suppression. This protects the sensitive DC output rails from high-frequency noise generated by nearby generator exciters and high-voltage switchgear, ensuring the CPU receives pure, ripple-free power.

FAQs

• Can the DS200UPSAG1AGD be replaced while the turbine is running?Replacement of the UPS board typically requires a controlled shutdown of the specific core it serves. Because this board handles primary power distribution, removing it will de-energize the associated control logic. Always consult your Mark V maintenance manual for site-specific bypass procedures.

• What is the significance of the "AGD" suffix?The "AGD" suffix denotes the specific hardware revision level. This version includes updated component specifications and improved thermal management over earlier revisions. The DS200UPSAG1AGD remains backward compatible with most Mark V systems requiring an UPSA-style board.

• How do I verify if the charging circuit is functioning correctly?You can measure the battery terminal voltage directly at the board's power terminals. If the voltage remains below the nominal float charge level while the cabinet power is on, the onboard charging transistors or the primary fuse may require inspection.
