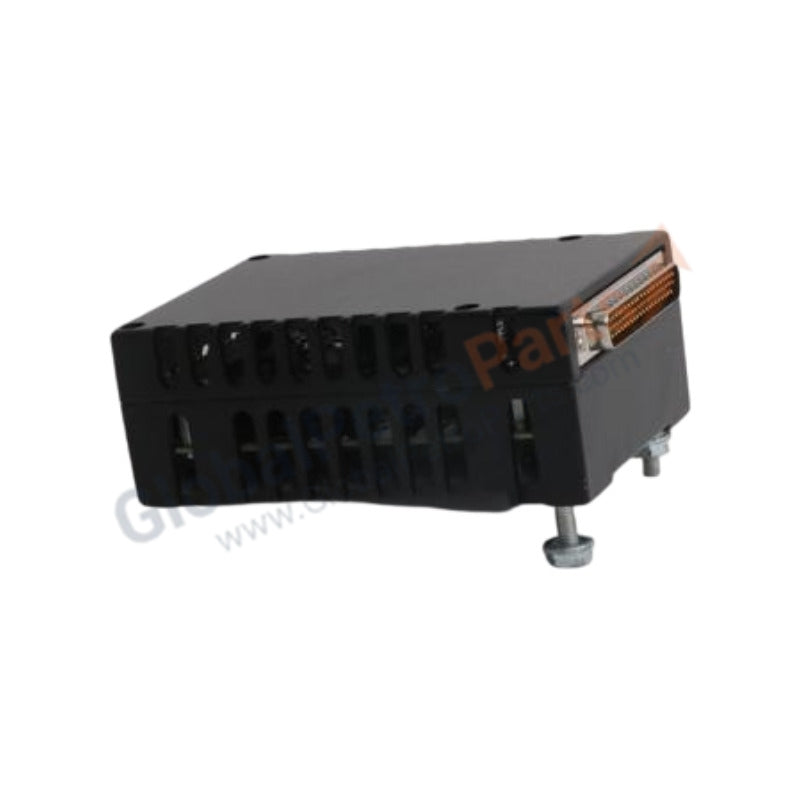

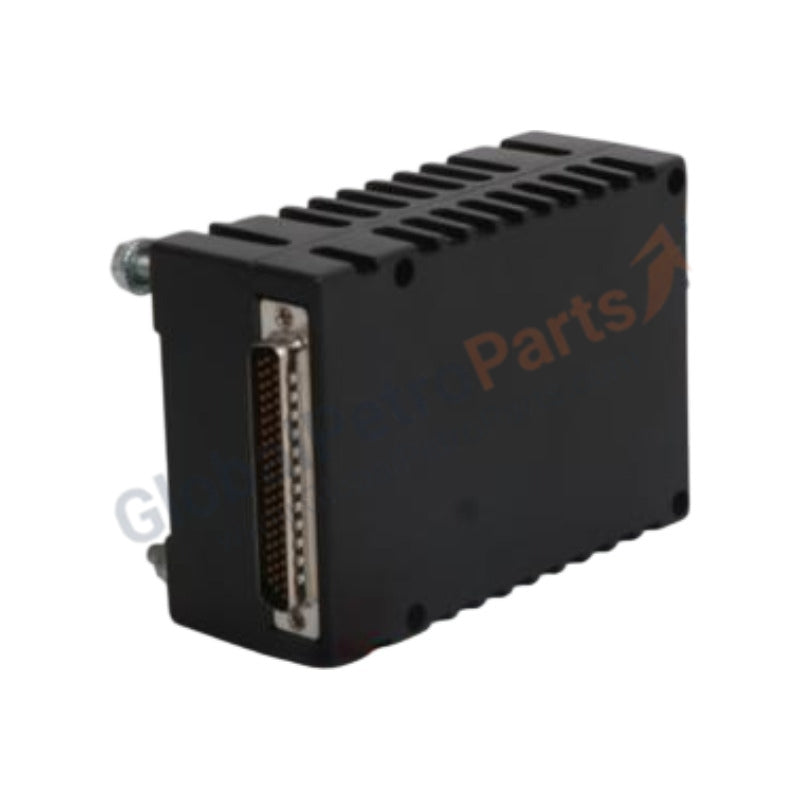

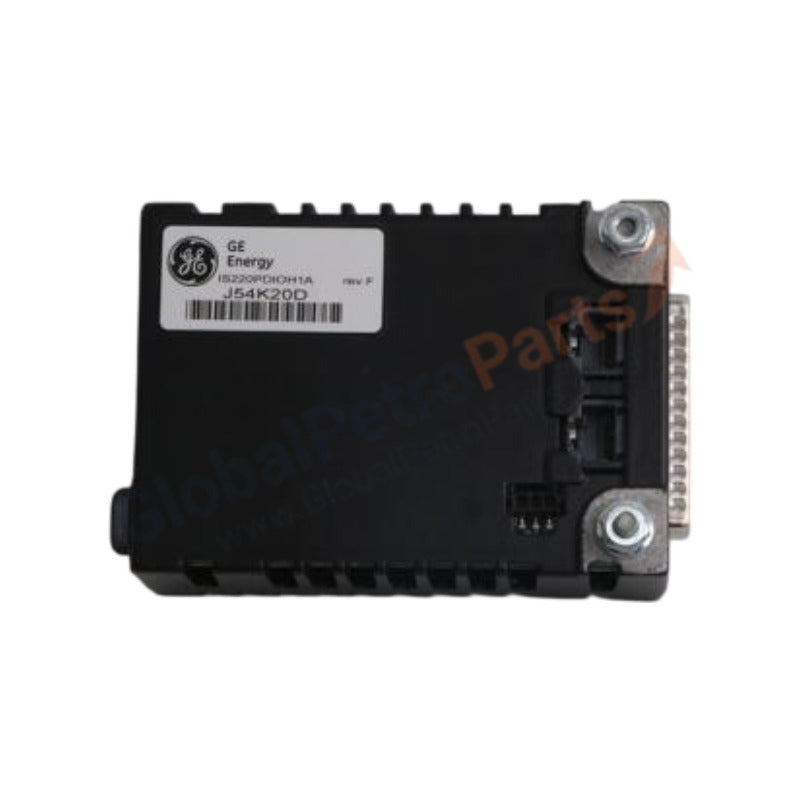

Speedtronic Mark VIe Discrete Input Output I/O Pack Module GE | IS220PDIOH1A

Product Overview

The GE IS220PDIOH1A operates as a high-density Discrete Input Output (PDIO) I/O Pack within the General Electric Speedtronic Mark VIe control platform fabric. This intelligent edge device provides the physical electrical interfacing for discrete digital signals, monitoring dry contact inputs from field switches and driving external control relays simultaneously. It executes local signal conditioning, applies high-resolution time-stamping for Sequence of Events (SOE) diagnostics, and broadcasts clean data strings directly across the distributed IONet system network. Procuring this Brand New, original GE hardware assembly eliminates signal de-synchronization errors and prevents false trip records inside your main distributed management architecture.

Technical Specifications

The table below displays the channel architecture, networking mechanics, and physical operational metrics of the IS220PDIOH1A module:

Engineering Advantages

The IS220PDIOH1A delivers targeted hardware enhancements that resolve common signal routing and environmental challenges found in modern industrial facilities:

• Elimination of Central Processing Latency: An internal 32-bit microprocessor filters and registers discrete state changes locally at the network edge, ensuring millisecond-level response times regardless of host controller processor loads.

• Millisecond Sequence of Events Recording: Integrated fast-capture hardware circuits stamp contact state changes down to a 1 ms resolution, allowing engineers to analyze true fault propagation paths accurately following an emergency system shutdown.

• Optical Isolation Barriers: Industrial-grade optical coupling isolators separate the internal processing chips from field-side electrical noise and high-voltage inductive surges, preventing transient terminal damage.

• Dual-Port IONet Redundancy: Two independent Ethernet paths stream concurrent data lines to the central controller rack, maintaining active communication even if one network cable suffers physical severance on the panel floor.

FAQs

• What specific terminal blocks or base units pair directly with the IS220PDIOH1A pack?

  The IS220PDIOH1A plugs directly into matching Mark VIe discrete terminal boards, such as the TDIOH1A or TDIOH2A, via an integrated high-density connector. The underlying board structure houses the physical barrier screw terminals and distributes the necessary loop wetting voltages out to the field contacts.

• Can technicians hot-swap this I/O pack while the turbine runs online?

  Yes. In configurations utilizing dual or triple redundant terminal boards with multi-pack deployments, technicians can hot-swap a single faulty IS220PDIOH1A pack online without interrupting active machine processes. Ensure you ground your workstation path using an ESD wrist strap before unlocking the securing hardware screws on the active module chassis.

• How should field engineers configure the inputs for 24 VDC vs. 125 VDC wetting voltage levels?

  The underlying terminal board selection establishes the baseline hardware wetting voltage boundaries, while the master ControlST software configuration matrix governs the software thresholds. Technicians manage all debouncing times, inversion settings, and diagnostic trip limits digitally within the central operator workstation, bypassing the need for physical board jumpers.
