Speedtronic Mark VIe Thermocouple Input I/O Pack Module IS220PTCCH1A GE

Product Overview

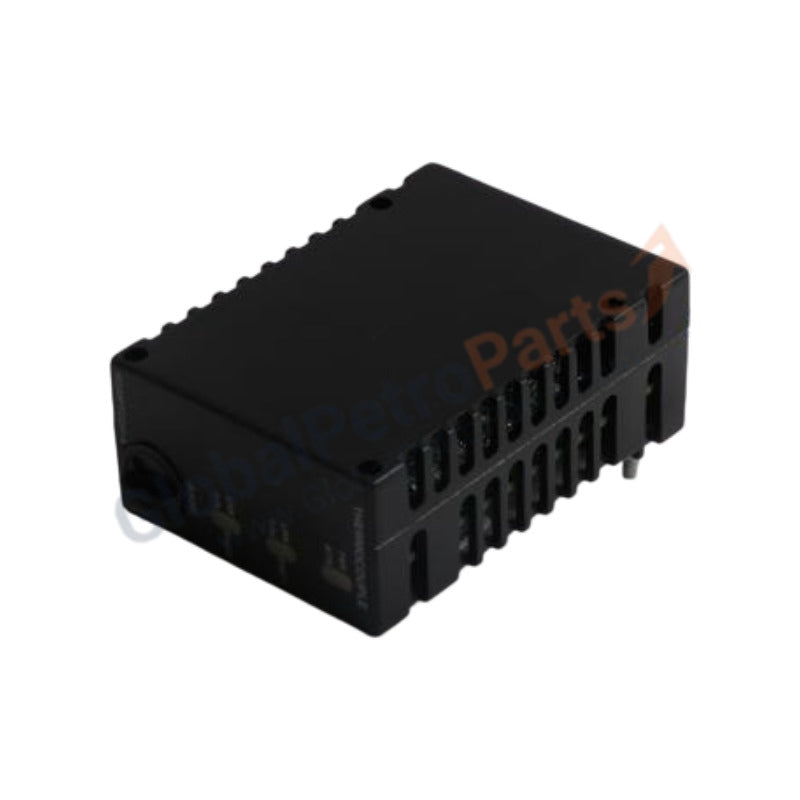

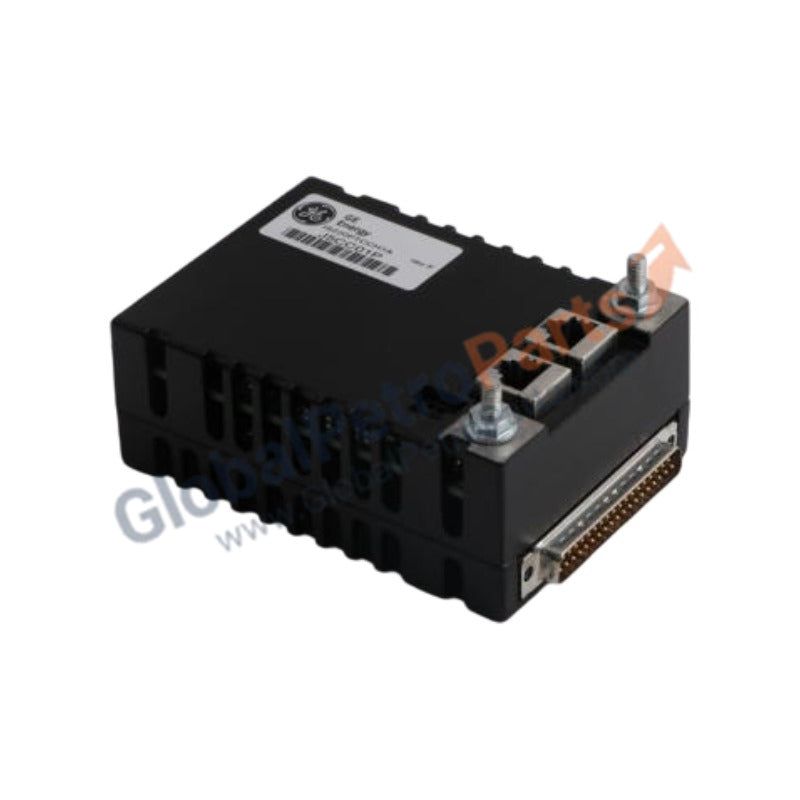

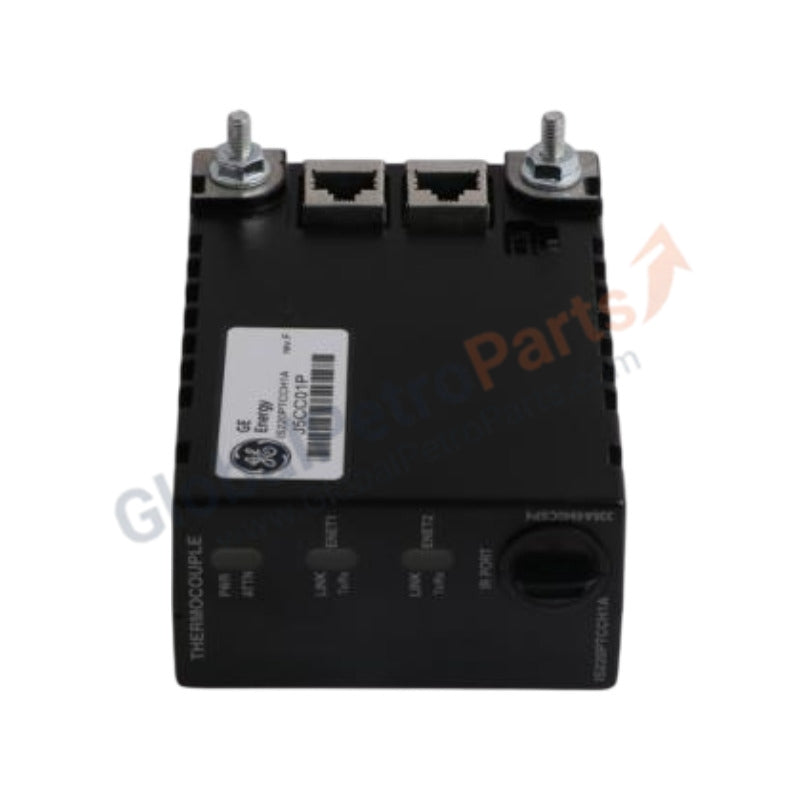

The GE IS220PTCCH1A operates as a high-density, intelligent Thermocouple Input (PTCC) I/O Pack within the General Electric Speedtronic Mark VIe turbine control platform architecture. This rugged edge-processing device digitizes millivolt signals directly from high-temperature field sensors, providing accurate thermal profiles for critical gas and steam turbine monitoring. It handles cold junction compensation, verifies sensor health, and broadcasts real-time temperature strings directly across the distributed dual-redundant 100 Mbps IONet network fabric. Installing this Brand New, original GE hardware assembly eliminates signal drifting, tracks exhaust gas temperature (EGT) spreads with high precision, and prevents false thermal trip faults on the generation deck.

Technical Specifications

The table below displays the electrical parameters, supported sensor geometries, and environmental limits of the IS220PTCCH1A I/O pack:

Engineering Advantages

The IS220PTCCH1A introduces precise hardware filtering and modular processing architecture to resolve common noise and installation challenges in high-vibration power plants:

• Elimination of Common Mode Noise: Integrated high-order hardware filters attenuate 50 Hz and 60 Hz line noise, preventing alternating current (AC) magnetic fields from corrupting low-voltage thermocouple millivolt readings.

• Localized Cold Junction Tracking: The I/O pack queries dual physical thermistors located on the terminal board surface, calculating precise compensation metrics locally to negate ambient temperature changes inside the cabinet.

• Continuous Open-Circuit Detection: Diagnostic current pulses monitor the structural health of each sensor loop line. The module detects a broken wire immediately and flags an open-circuit warning before signal loss destabilizes the control loop.

• Direct Terminal Board Docking: The pack mounts directly onto a matching terminal board (such as the TTCC) via an integrated high-density connector, eliminating inter-board ribbon cables and saving valuable space in shallow marshalling enclosures.

FAQs

• Which specific terminal boards pair directly with the IS220PTCCH1A module?

  The IS220PTCCH1A plugs directly onto the TTCCH1A or TTCCH2A Thermocouple Terminal Boards. The board provides the physical barrier screw terminals for the field wiring and houses the precise cold junction compensation reference sensors that the pack reads to compute exact absolute temperatures.

• Does this module support online hot-swapping if a single channel fails?

  Yes. In dual or triple modular redundant (TMR) architectures utilizing multi-pack setups, field technicians can hot-swap a faulty IS220PTCCH1A pack while the machine operates online. The remaining active I/O packs maintain full tracking visibility over the sensor network, protecting the process from interruption during the exchange. Always wear a grounded static-control wrist strap during the procedure.

• How does the system distinguish between different thermocouple sensor configurations like Type K vs. Type J?

  The hardware handles multiple sensor profiles natively without requiring physical jumpers or calibration pots. Field engineers assign the specific thermocouple type, engineering units, and alarm limits for each individual channel digitally through the central ControlST software suite application interface.
