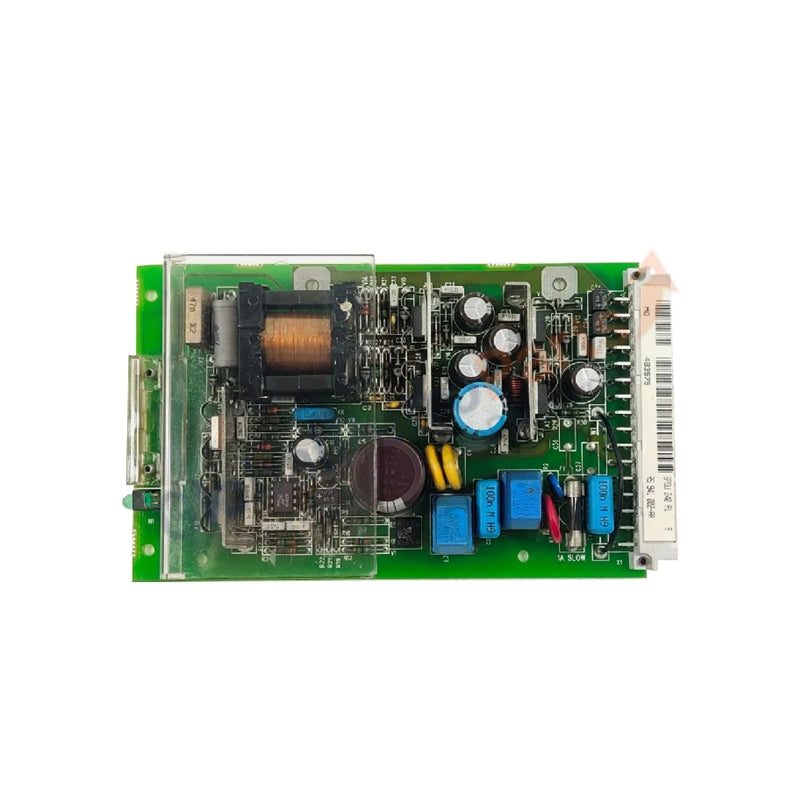

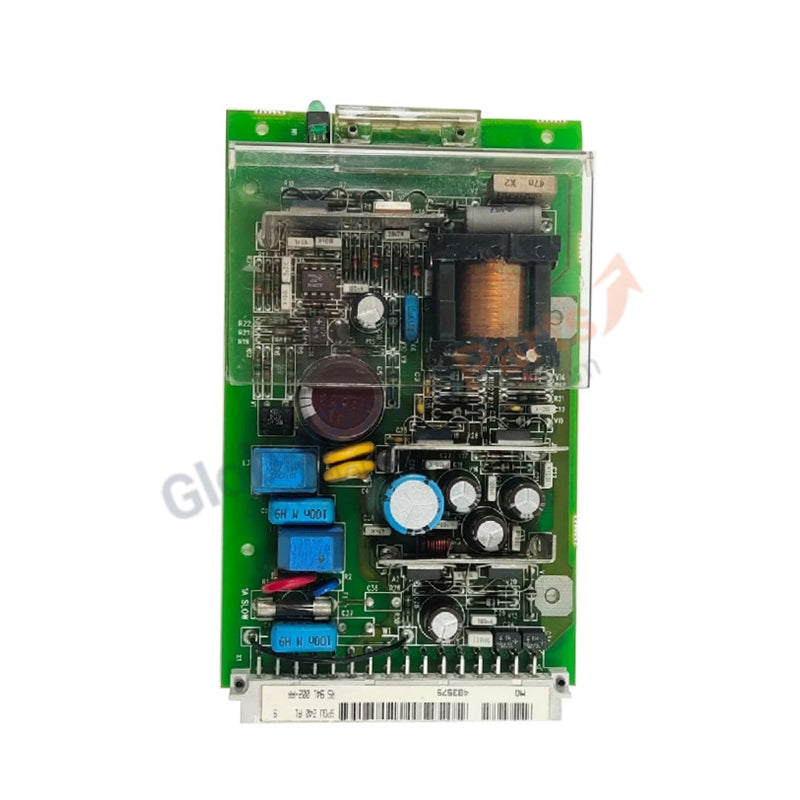

SPGU240A1 | ABB Symphony Plus / Harmony Modular Power Supply Card

Product Description

The ABB SPGU240A1 Power Supply Card is a centralized distribution interface for ABB Modular Power System (MPS). It converts incoming AC power into regulated DC output, ensuring stable energy delivery to sensitive logic circuits. Designed for Harmony rack-based hardware, the SPGU240A1 provides advanced voltage regulation, transient suppression, and onboard monitoring, making it a critical component for maintaining reliability in power generation and heavy industrial plants.

Technical Specifications

• Manufacturer ABB

• Model Number SPGU240A1

• Product Series Symphony Plus / Harmony

• Module Type Power Supply Card / Circuit Board

• Input Voltage 120V / 240V AC nominal

• Output Type Regulated DC system power

• Net Weight 0.85 kg

• Compatibility Harmony rack-based hardware

Key Features

• Advanced Voltage Regulation Provides low-ripple DC power for stable microprocessor operation

• Transient Suppression Protects against voltage spikes and EMI from the main feed

• Industrial Durability Built to withstand thermal and electrical stresses in dense control cabinets

• Simplified Integration Direct installation into ABB mounting units for easy replacement

• Power Health Monitoring Onboard circuitry verifies output status for continuous operation

Application Scenarios

• Power generation facilities requiring stable DC distribution

• Heavy industrial plants with high EMI exposure

• Distributed control systems needing reliable backplane protection

• Harmony rack-based installations requiring modular power supply cards

FAQ

Q: What input voltage does the SPGU240A1 support?  A: It accepts 120V or 240V AC nominal input.

Q: Is the SPGU240A1 compatible with Harmony systems?  A: Yes, it is designed for Harmony rack-based hardware.

Q: How does the module protect against electrical disturbances?  A: It includes transient suppression to shield the system bus from spikes and EMI.
