SPSET01 | ABB | Symphony Plus Sequence of Events Digital Input Module

Product Overview

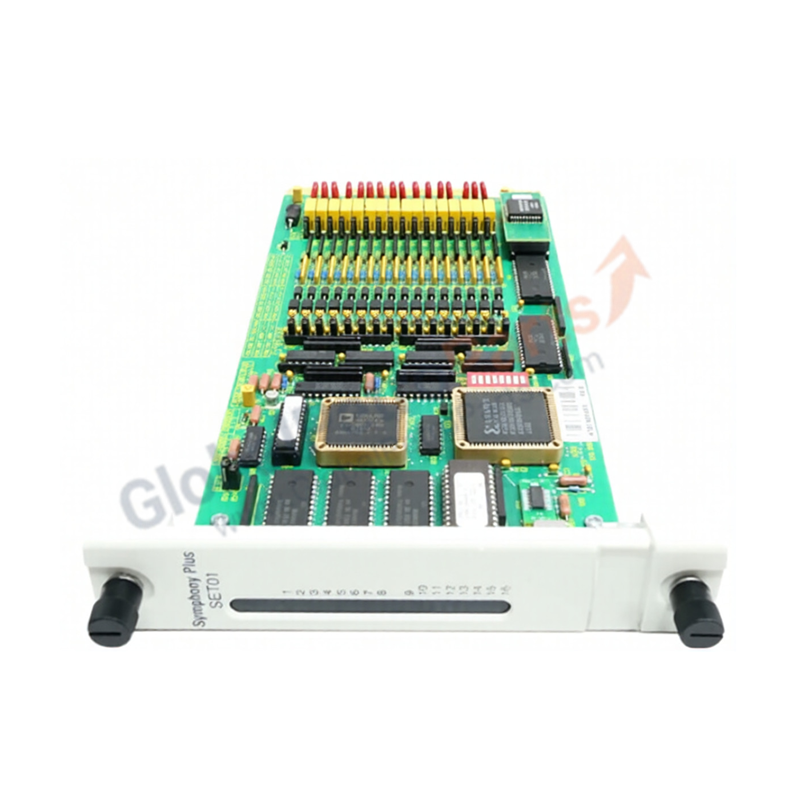

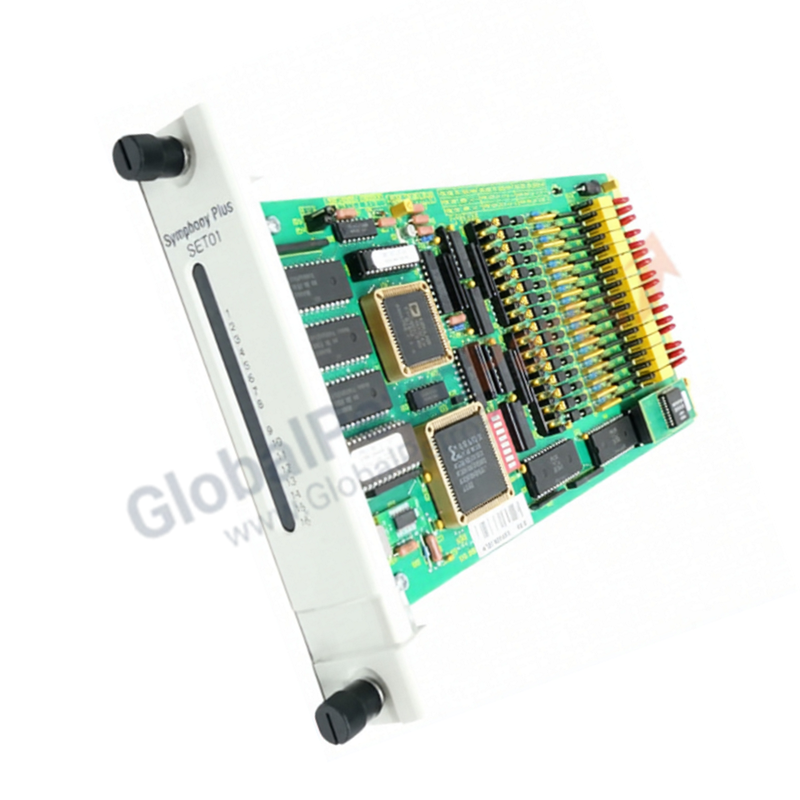

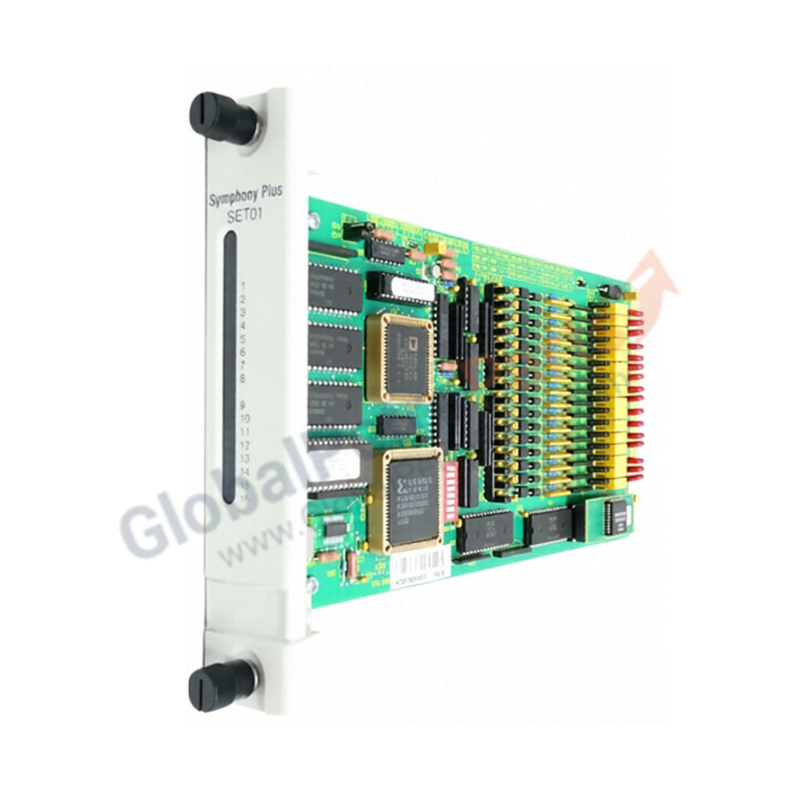

The ABB SPSET01 serves as a high-precision interface module within the Symphony Plus Distributed Control System (DCS). This module captures the first 16 Digital Inputs (DI) and establishes a high-accuracy time synchronization link to a Bridge Controller (BRC). We supply this unit as 100% Brand New and Original, specifically for Sequence of Events (SOE) applications where capturing the exact chronological order of industrial trips and alarms remains a technical necessity.

Technical Specifications

The SPSET01 integrates multi-channel monitoring with specialized timing logic for rack-based automation:

Engineering Advantages

• Precision SOE Time-Stamping: The SPSET01 establishes a direct, high-accuracy time synchronization link with the BRC controller. This hardware-level link bypasses standard network latencies, allowing the system to time-stamp discrete transitions at the source with millisecond resolution.

• Streamlined 16-Channel Monitoring: The module consolidates 16 high-density digital inputs into a single rack slot. This simplifies cabinet wiring for critical trip-loop monitoring, such as turbine stop-valve positions or master fuel trip (MFT) signals.

• Deterministic Event Reconstruction: By offloading the initial 16 inputs to a specialized SOE module, the DCS ensures that rapid-fire events—common during plant-wide outages—never overwhelm the primary controller's scan cycle. This allows for accurate forensic analysis of the "First Out" alarm.

• Robust Data Retention: An integrated 5g Lithium button cell battery supports the module’s volatile memory. This backup mechanism ensures that network configuration and time-sync parameters remain intact during sudden power interruptions, facilitating a rapid return to service.

• Direct BRC Interfacing: The module communicates natively with the Bridge Controller via the backplane. This tight integration eliminates the need for external gateway hardware, reducing the potential points of failure within the control loop.

FAQs

• Does the SPSET01 replace standard digital input modules?

  The SPSET01 specifically handles the first 16 inputs requiring high-accuracy time synchronization for SOE. While it functions as a DI module, its primary purpose involves the time-synch link to the BRC controller for forensic event logging.

• What is the significance of the Lithium button cell if the battery count is listed as zero?

  Standard shipping documentation often lists "0" for bulk battery count, but the technical specifications confirm an internal 5g Lithium button cell. This battery protects the internal memory and IP settings during unpowered states.

• Is this a genuine ABB factory unit or a refurbished alternative?

  We guarantee this SPSET01 is 100% Brand New original hardware. It arrives in the original ABB factory packaging with all security seals, serial numbers, and technical documentation intact.

• How does the module handle signal debounce for SOE tracking?

  The module utilizes advanced hardware filtering to distinguish between mechanical contact bounce and true process state changes. You can configure these debounce timers within the S+ Engineering environment to match your specific field device characteristics.
