Symphony Plus Harmony | ABB | SPBLK01 | Blank Faceplate / Filler Panel

Product Description

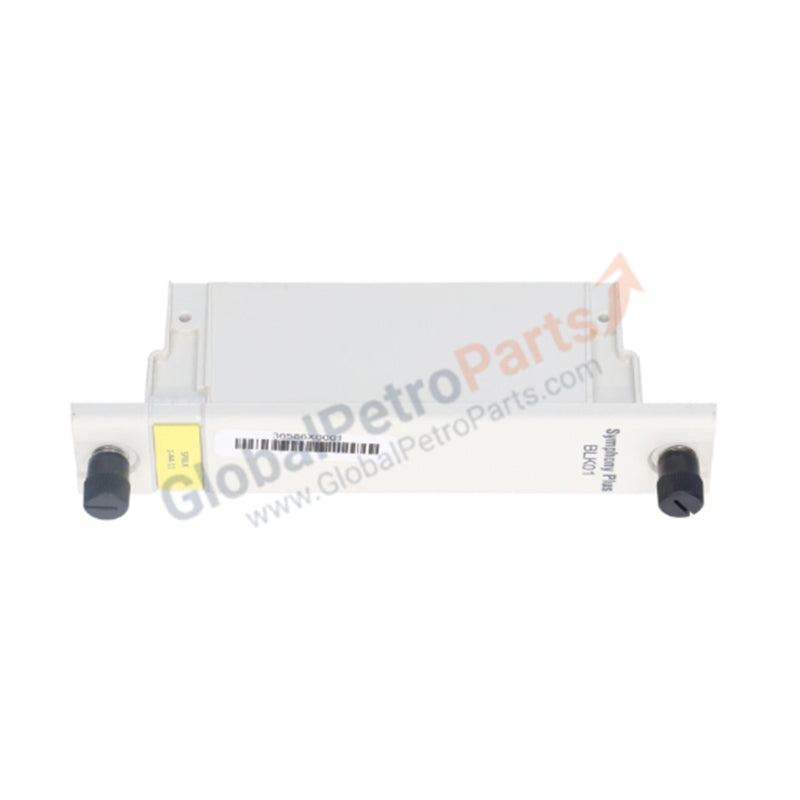

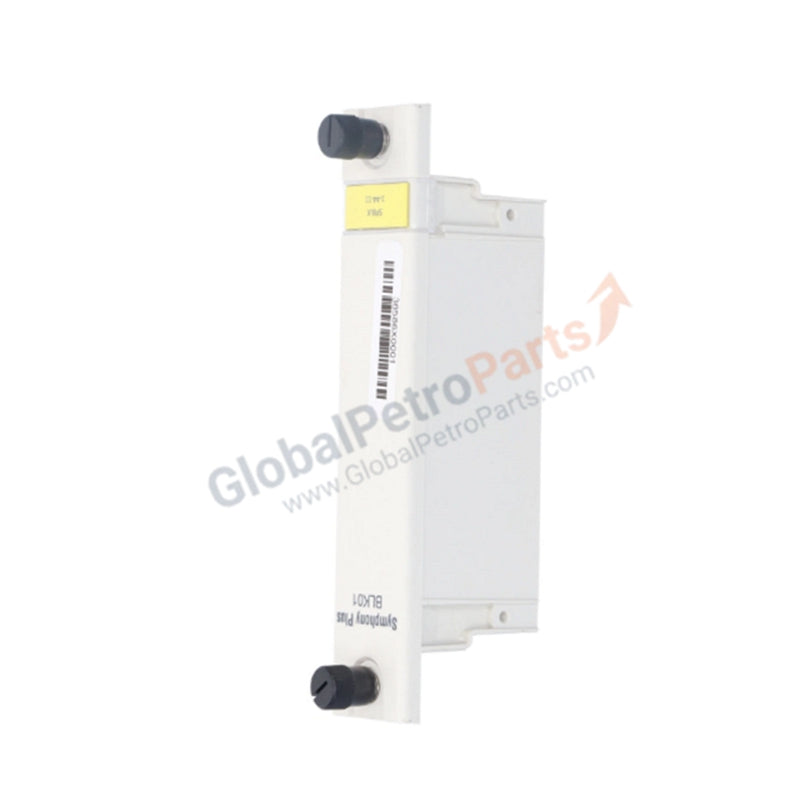

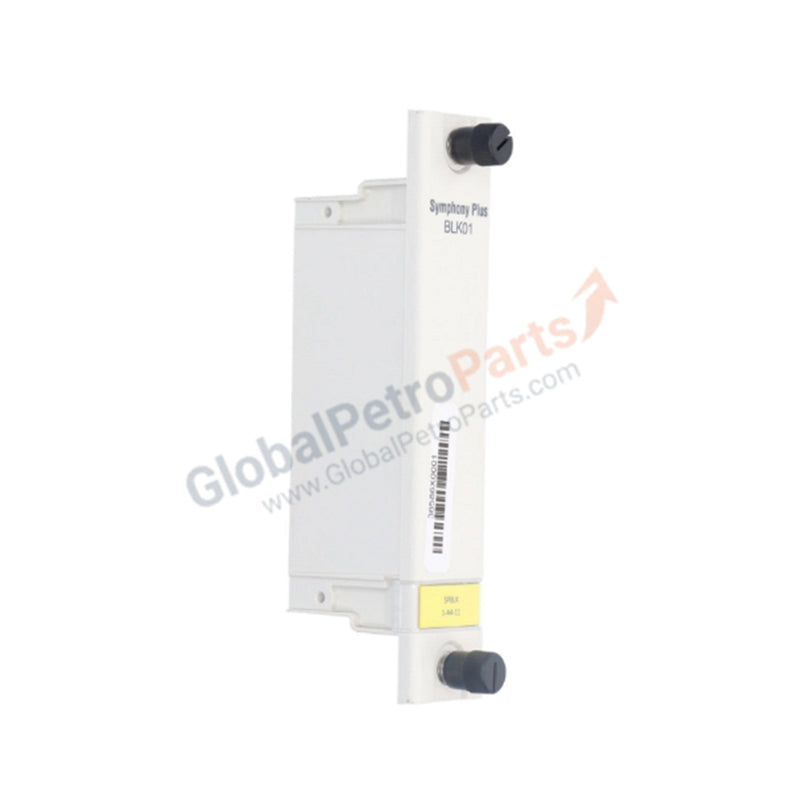

The ABB SPBLK01 Blank Faceplate is a protective filler panel engineered for Symphony Plus and Harmony racks. It secures unused module slots, ensuring proper airflow, shielding sensitive connectors, and maintaining the mechanical and visual integrity of distributed control system (DCS) cabinets.

Technical Specifications:

• Manufacturer: ABB

• Model Number: SPBLK01

• Country of Origin: USA

• Product Series: Symphony Plus / Harmony

• Product Type: Blank Faceplate / Filler Panel

• Material: Industrial-grade metal and polymer composite

• Approximate Weight: 0.12 kg

• Dimensions: Standard Symphony Plus slot height (rack-compatible)

Key Features:

• Thermal Management: Directs cooling airflow through active modules by preventing bypass circulation.

• Environmental Protection: Shields backplane connectors from dust, debris, and other contaminants.

• EMI/RFI Shielding: Enhances electromagnetic compatibility by closing open rack apertures.

• Mechanical Security: Captive screws ensure vibration-resistant installation in high-demand environments.

• Universal Fit: Compatible with all Symphony Plus and Harmony rack-mounted slots.

Applications:

• Power generation plants requiring reliable DCS cabinet protection

• Heavy industrial environments with high dust or vibration exposure

• Symphony Plus and Harmony systems needing slot coverage for unused module positions

FAQ:

• Q: Does the SPBLK01 contribute to system cooling efficiency?  A: Yes, it ensures airflow is directed through active modules, improving cooling performance.

• Q: Can this faceplate be installed without tools?  A: No, it requires captive screws for secure installation.

• Q: Is the SPBLK01 compatible with older ABB Harmony racks?  A: Yes, it is designed for universal fit across Symphony Plus and Harmony systems.

Comparison with Similar Models:

• SPBLK01: Standard blank faceplate for Symphony Plus/Harmony racks

• SPBLK02: Heavy-duty version with reinforced EMI shielding

• SPBLK03: Lightweight polymer-only filler for non-critical applications
