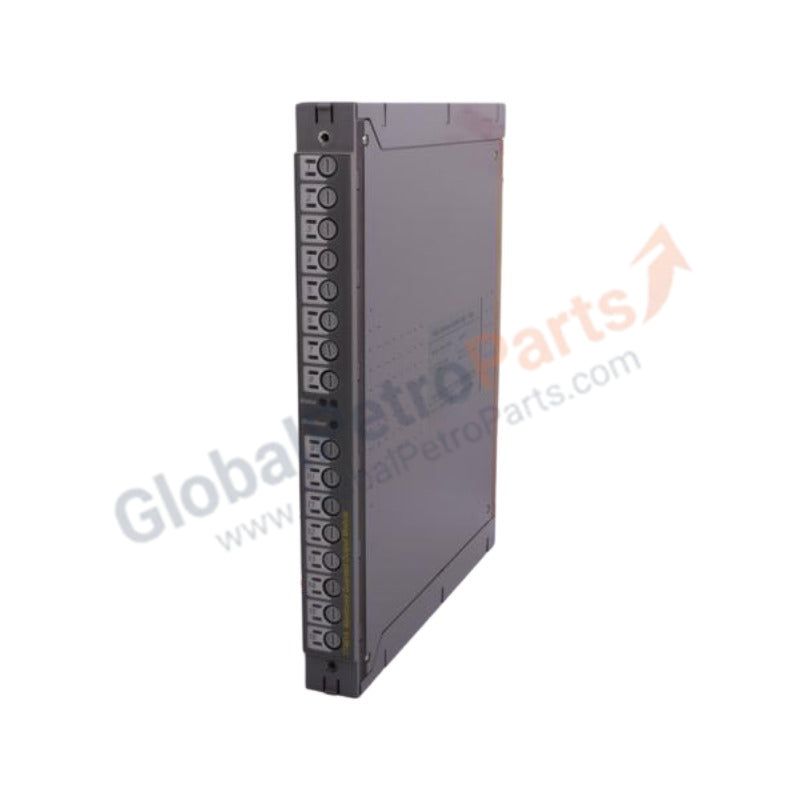

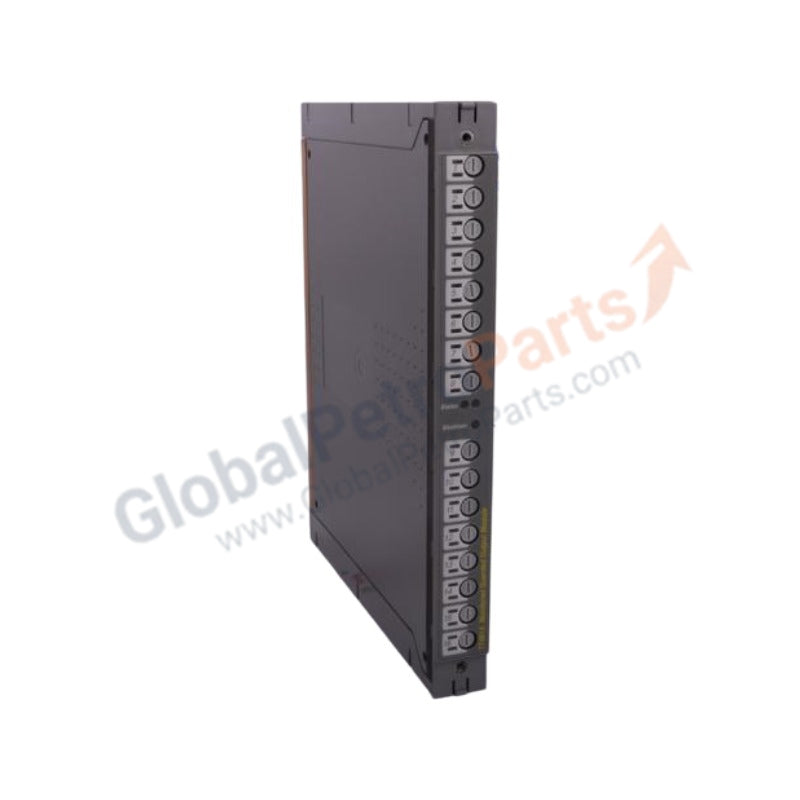

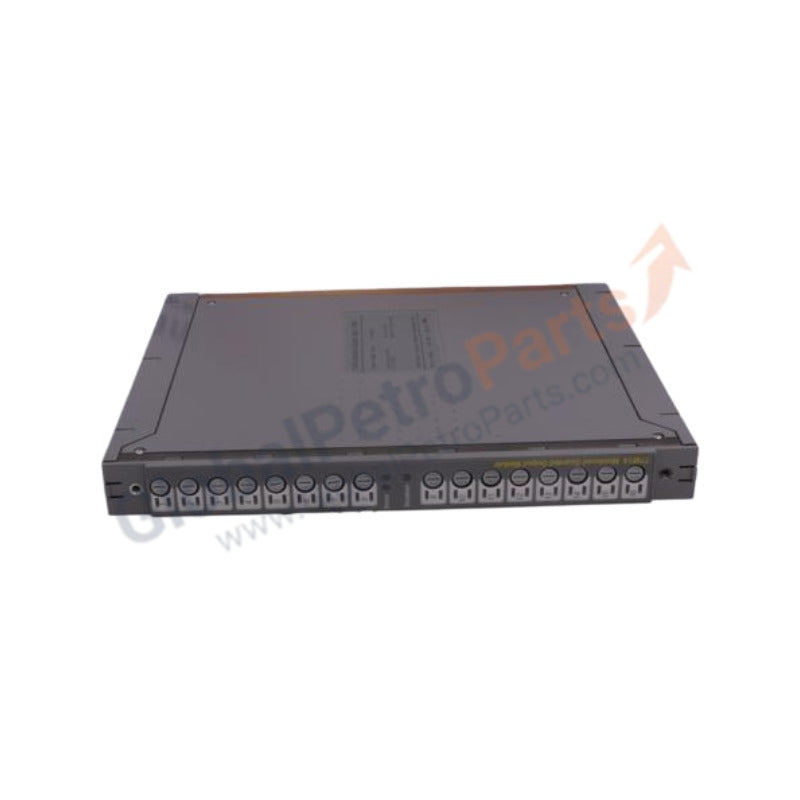

T7481 Trusted TMR Monitored Guarded Digital Output Module ICS Triplex

Product Overview

The ICS Triplex T7481A delivers high-integrity control for critical field actuators within the Trusted™ Triple Modular Redundancy (TMR) architecture. It operates as a Monitored Guarded Digital Output module, providing 8 isolated channels designed specifically for applications where accidental energization poses significant risk. The T7481A enforces a strict "guarded" logic, ensuring that outputs only transition when commanded by the safety processor through validated triplicated paths. We supply this module as 100% brand new and original, ensuring your safety loops maintain their SIL3 rating with factory-fresh hardware.

Technical Specifications

Engineering Advantages

• Execute Fail-Safe Commands: The T7481A utilizes a sophisticated "guarded" architecture. It requires agreement across all three internal processing paths before switching a load. This prevents a single hardware fault from causing an unauthorized "On" or "Off" state, protecting personnel and machinery.

• Detect Latent Field Faults: Continuous loop monitoring allows the module to identify broken wires or failed actuators even when the output is in the "Off" state. This proactive diagnostic capability ensures the safety function remains ready to perform when called upon.

• Master High-Load Actuators: Each channel handles high-current field devices such as solenoid valves and motor starters directly. The internal thermal and over-current protection circuits shield the module from damage during field-side electrical surges.

• Reduce Troubleshooting Time: Front-panel LED arrays provide real-time status for every channel and the overall health of the TMR link. Maintenance teams identify specific fault locations instantly, significantly reducing the Mean Time to Repair (MTTR) in complex safety systems.

FAQs

• What makes a "Guarded" output different from a standard Digital Output?

  A guarded output like the T7481A adds an extra layer of hardware interlocks. It monitors its own internal switching components to ensure they haven't failed in a way that could energize a load unintentionally, which is vital for high-risk ESD (Emergency Shutdown) applications.

• Can the T7481A be hot-swapped while the process is live?

  Yes, the Trusted chassis supports live-insertion for the T7481A. The redundant backplane allows you to replace a module without interrupting the safety functions managed by the remaining system components.

• Does this module support line monitoring for solenoid loads?

  The T7481A provides comprehensive line monitoring. It injects low-level pulses to verify the continuity of the field loop without triggering the actuator, allowing it to detect open or short circuits in real-time.

• How do I verify the "100% Brand New" status of this module?

  We guarantee the T7481A is original, unused, and factory-sealed. Each unit includes a verifiable serial number that matches factory records, ensuring you receive authentic ICS Triplex hardware for your safety system.
