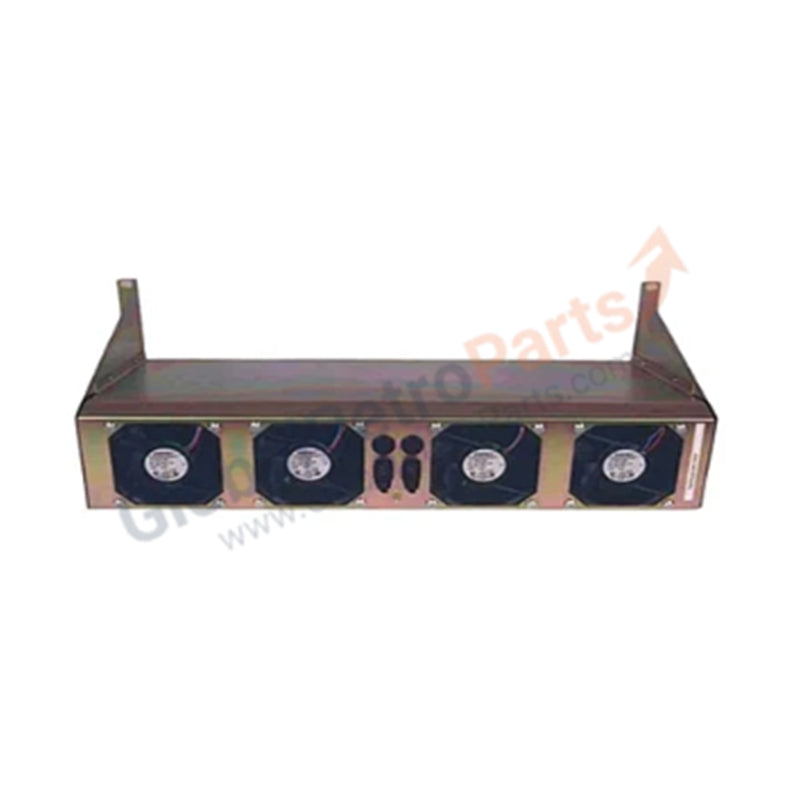

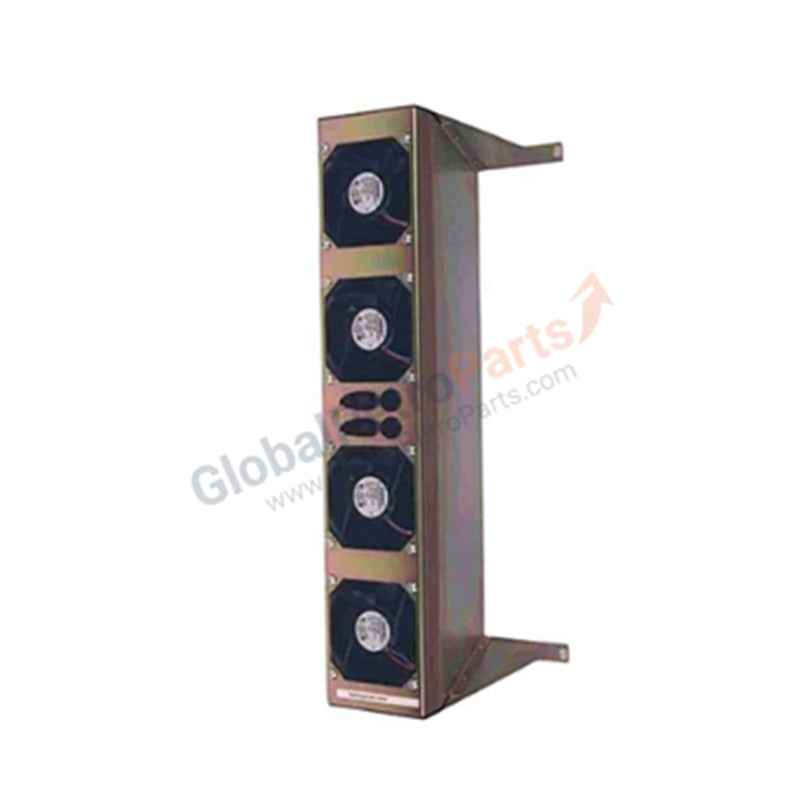

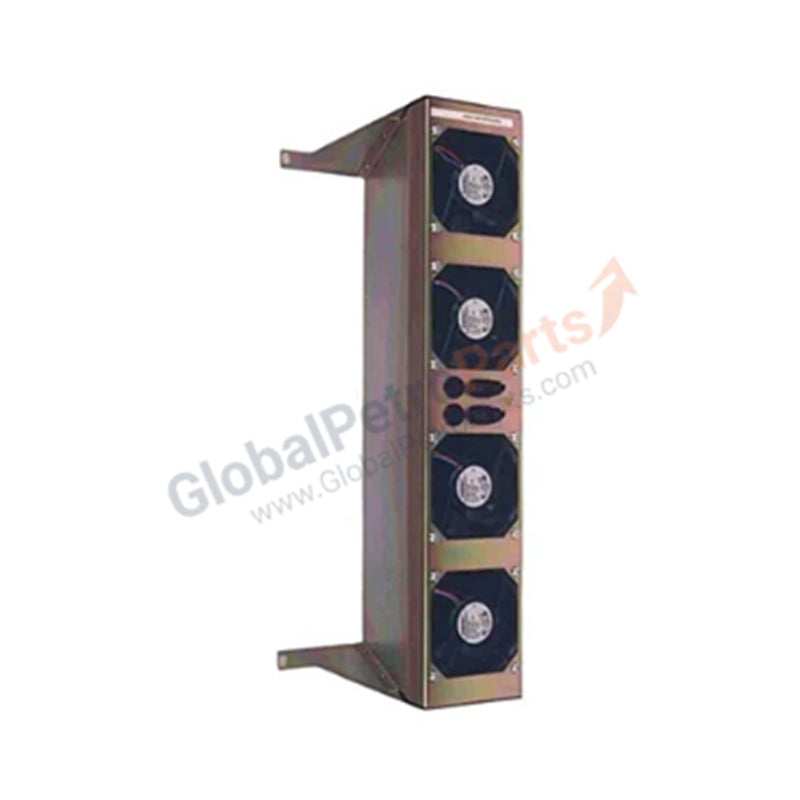

T8270 ICS Triplex Trusted Series 24 VDC Rack-Mounted Fan Assembly

Product Description

The ICS Triplex T8270 Fan Assembly is a rack-mounted cooling solution engineered for Trusted Series systems. Operating at 24 VDC, it incorporates four high-performance Papst 8414NG fans to ensure consistent airflow and thermal management in safety-critical environments. With redundant design features and extended MTBF ratings, the T8270 provides reliable cooling for industrial control applications.

Technical Specifications

• Manufacturer: ICS Triplex

• Model: T8270

• Product Type: Rack-Mounted Fan Assembly

• Voltage Range: 18–28 VDC

• Fans: 4 × Papst Type 8414NG

• Individual Fan MTBF:

• 70,000 hours at 40 °C

• 35,000 hours at 70 °C

• Fusing: Internal 250 mA anti-surge protection

• Power Consumption: 2 × 4 W

• Airflow (3100 rpm): 69 m³/h (40.6 ft³/min)

• Operating Temperature Range: 0 °C to +60 °C (32 °F to 140 °F)

• Non-Operating Temperature Range: –20 °C to +70 °C (–4 °F to 158 °F)

• Relative Humidity (Operating, Storage, Transport): 10%–95%, non-condensing

• Dimensions:

• Height: 88 mm (3.46 in)

• Width: 483 mm (19 in)

• Depth: 267 mm (10.5 in)

• Weight: 1.8 kg (3.97 lbs)

Key Features

• Four high-reliability Papst fans for efficient cooling.

• Extended MTBF ratings for long-term operation.

• Internal anti-surge fusing for protection.

• Compact rack-mounted design for Trusted Series systems.

• Stable airflow performance across wide temperature ranges.

Application Scenarios

• Trusted Series controller racks requiring active cooling.

• Industrial automation systems with high thermal loads.

• Safety-critical environments where redundant cooling is essential.

FAQ

Q: How many fans are included in the T8270 assembly?  A: The unit contains four Papst Type 8414NG fans.

Q: What is the expected service life of the fans?  A: Approximately 70,000 hours at 40 °C and 35,000 hours at 70 °C.

Q: Does the assembly include surge protection?  A: Yes, it features internal 250 mA anti-surge fusing.

Q: Is the fan assembly suitable for high humidity environments?  A: Yes, it supports up to 95% relative humidity, non-condensing.
