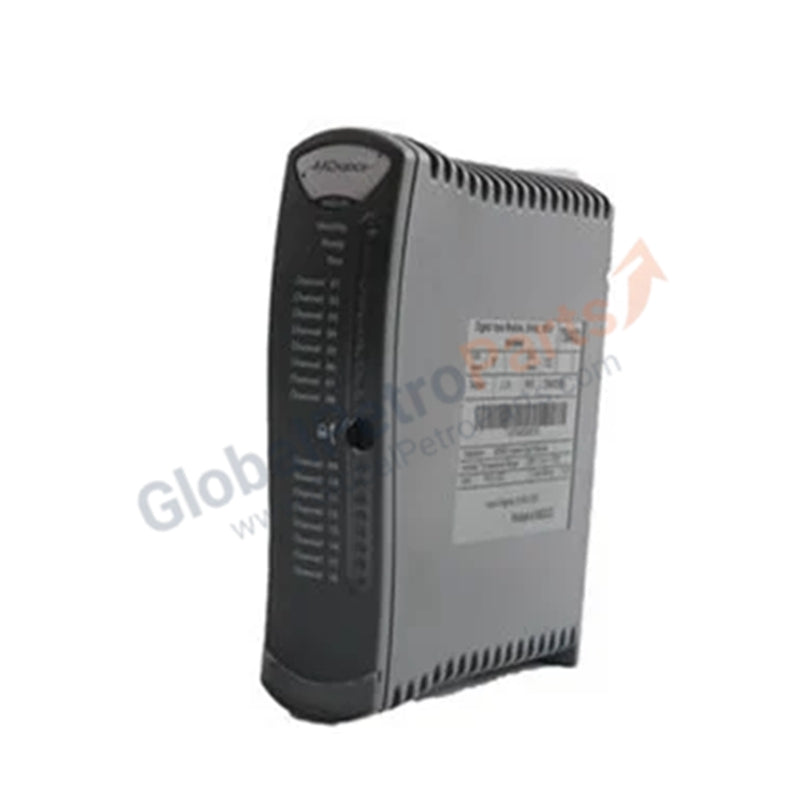

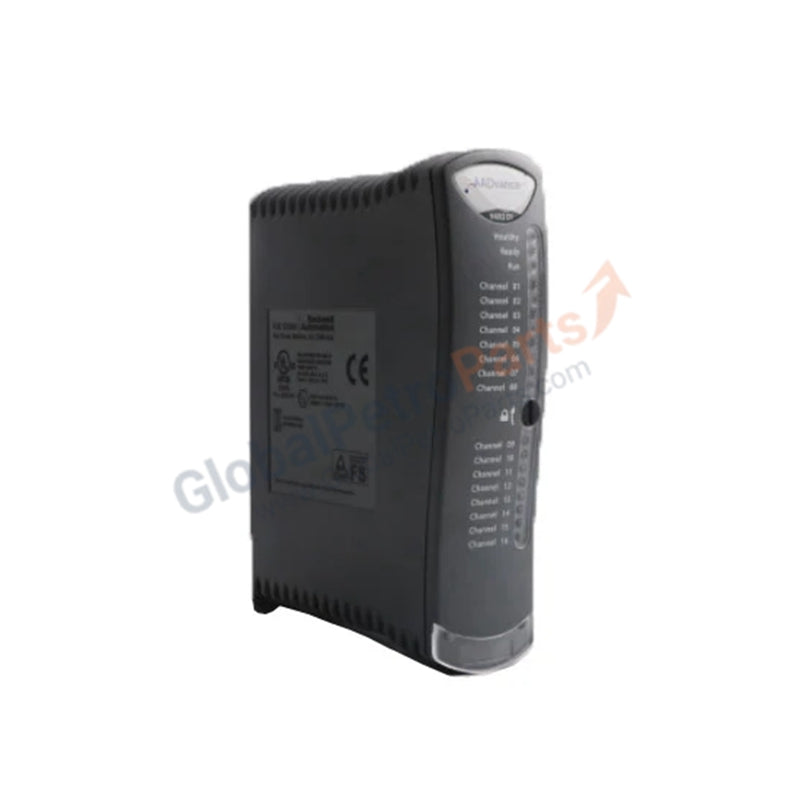

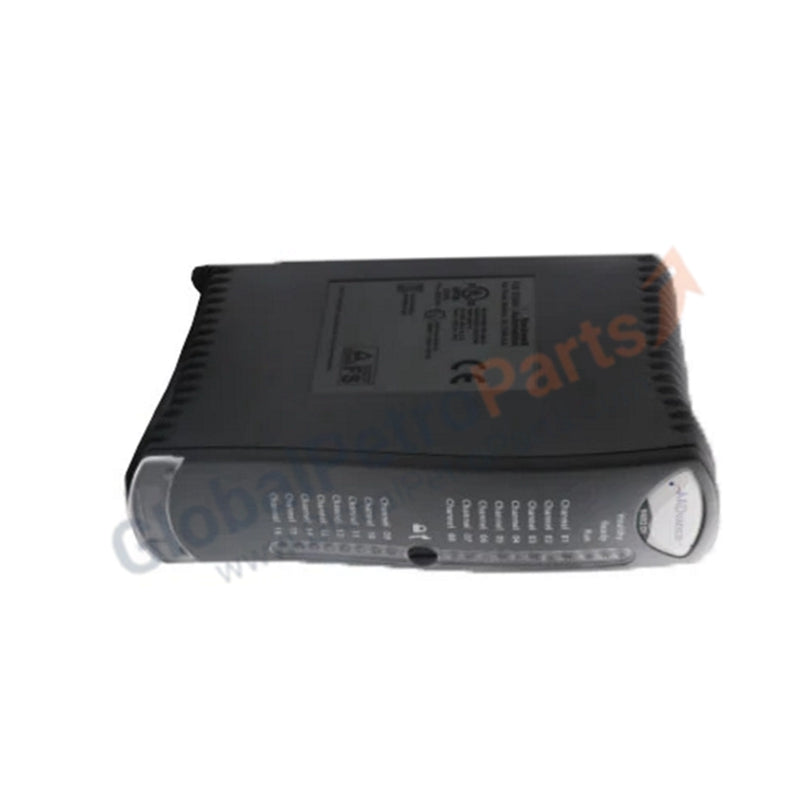

T9451 | ICS Triplex Digital Output Module | 8-Channel Simplex

Product Description

The ICS Triplex T9451 Digital Output Module is a simplex output unit designed to provide reliable signal transmission in safety and control systems. With eight isolated output channels, redundant power feeds, and advanced monitoring features, it ensures dependable operation in demanding industrial environments.

Technical Specifications

• Manufacturer: ICS Triplex

• Model: T9451

• Product Type: Digital Output Module

• Output Channels: 8

• Continuous Output Current: 1 A per channel

• Nominal Output Voltage: 32 VDC

• Input Voltage: 24 VDC supply

• Control Modes: Latching, pulse, and analog

• Protection Features: Reverse current protection, short/open circuit monitoring

• Power Feeds: Dual redundant supply inputs

• Channel Isolation: Independent isolation per output channel

• Operating Temperature Range: –40 °C to +85 °C

• Dimensions: 3.5 in × 19.8 in × 17.1 in

• Weight: ~1.2 lbs

Key Features

• Eight independent digital outputs with continuous monitoring.

• Built-in diagnostics for voltage and load current on each channel.

• Reverse current protection and fault detection for enhanced reliability.

• Dual redundant power feeds to maintain system availability.

• Rugged design suitable for extended temperature ranges.

Application Scenarios

• Safety-critical control systems requiring reliable digital outputs.

• Industrial automation panels with redundant power supply requirements.

• Environments where fault detection and isolation are essential for safe operation.

FAQ

Q: How much current can each channel handle?  A: Each channel supports 1 A continuous output.

Q: Does the T9451 provide fault monitoring?  A: Yes, it includes short and open circuit line monitoring as well as reverse current protection.

Q: Can the module operate in extreme environments?  A: Yes, it functions reliably between –40 °C and +85 °C.

Q: Is redundancy supported?  A: Yes, dual redundant power feeds ensure continuous operation.
