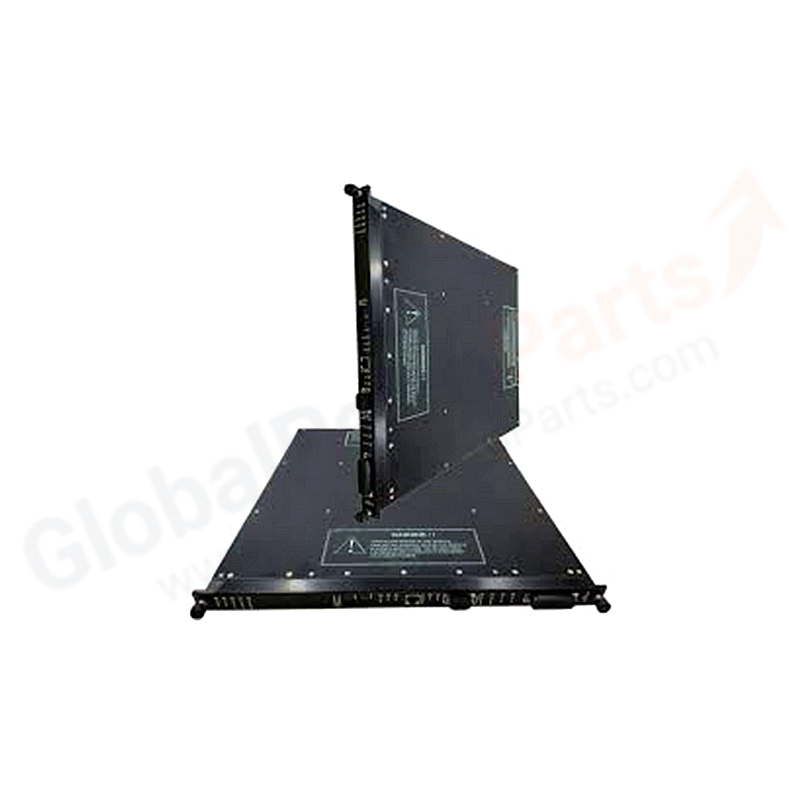

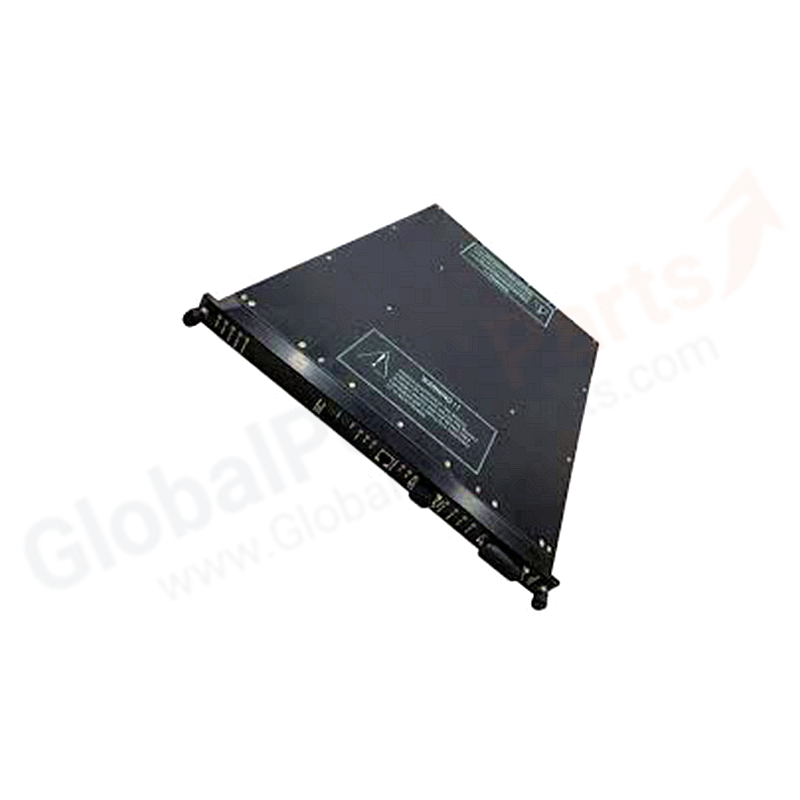

TRICONEX 4353 Tricon Communication Module (TCM) — Copper Ethernet with Embedded OPC

The TRICONEX 4353 is a Tricon Communication Module (TCM) providing copper Ethernet and serial communication for Triconex Tricon safety systems. Featuring dual RJ-45 Ethernet ports and four serial ports, the 4353 enables integration with SCADA, DCS, and HMI systems. It includes an embedded OPC server for seamless data exchange with modern industrial software platforms, and supports redundant network configurations for maximum availability.

• Type: Tricon Communication Module (TCM) — Copper Type
• Copper Ethernet: 2× RJ-45 ports
  • NET 1: 10/100 Mbps auto-negotiating
  • NET 2: 100 Mbps fixed (supports 100 Mbps only)
• Serial Ports: 4× RS-232/RS-485 (DB-9), TriStation-configurable for Modbus master/slave, Trimble GPS, TriStation
• Debug Port: 1× RS-232 (for Triconex use only)
• Port Isolation: 500 VDC
• Protocols: TriStation, Modbus TCP/IP (Master/Slave), Modbus RTU, SNTP, UDP/IP, ICMP, TSAA (IP Multicast), Triconex Peer-to-Peer (UDP/IP and DLC), Triconex Time Synchronization, Trimble GPS, Jet Direct (network printing)
• Embedded OPC Server: Yes (Models 4353 and 4354 only)
• Redundancy: Dual Ethernet ports with automatic failover; redundant time synchronization supported
• Maximum Peer-to-Peer Nodes: Up to 31 nodes
• Input Voltage: 24 VDC, 1.5 A
• Operating Temperature: -40°C to +70°C
• Humidity: 5%–95% RH, non-condensing
• SIL Certification: SIL 3 (IEC 61508)
• Compatibility: Tricon v9.x and v10.x systems
• Dimensions: 49 cm × 45.3 cm × 6.8 cm
• Weight: 3.75–4.0 kg

Installation Guide

1. Install the 4353 into a communication slot in the Tricon chassis.
2. Connect primary and backup Ethernet cables to the two RJ-45 ports. Note that NET 2 supports 100 Mbps only.
3. Configure IP addresses, subnet masks, and protocol settings in TriStation 1131.
4. For Modbus TCP/IP: configure the 4353 as Master or Slave, map holding registers and coil addresses to Tricon internal variables.
5. For OPC: enable the embedded OPC server and configure DCOM security settings for client connections.
6. For redundant time synchronization: configure both TCM modules (left and right slots) if installed in a redundant network.
7. Verify redundant path failover by disconnecting the primary Ethernet cable and confirming automatic switchover.

FAQ

Q: What is the difference between 4353 and 4352B?
A: The 4353 has copper Ethernet only (2× RJ45, NET 2 fixed at 100 Mbps) and includes an embedded OPC server. The 4352B adds dual fiber Ethernet (MT-RJ) but does not include OPC. Choose 4353 for OPC integration over copper; choose 4352B for fiber-optic networks. Note: 4353 and 4352B cannot be mixed
