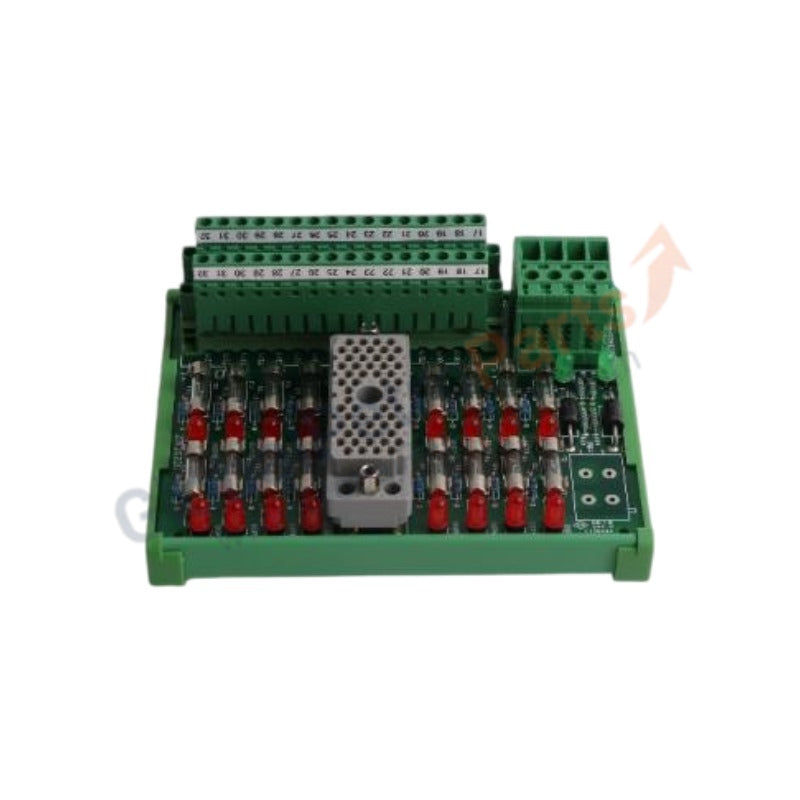

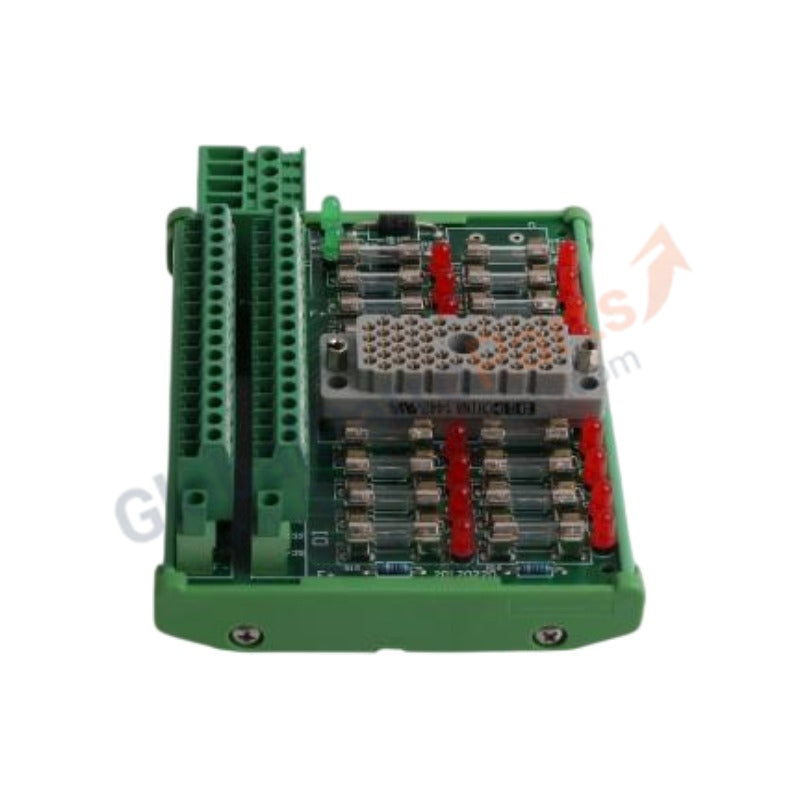

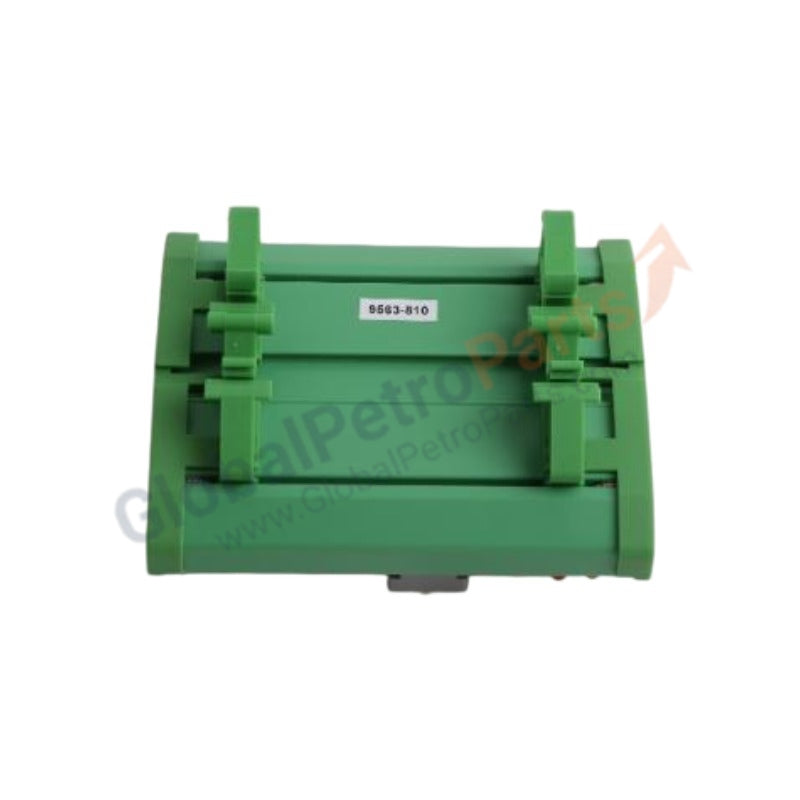

Triconex 9563-810 Digital Input Termination Panel

10 left

Manufacturer: Triconex
Product No.: 9563-810
Product Type: Digital Input Termination Panel
Product Origin: USA
Payment:T/T, Western Union
Weight: 170g
Shipping port: Xiamen
Warranty: 12 months

Special offer ends!

Product Description

The 9563-810 digital input termination panel provides structured signal termination for Triconex safety instrumented systems.
It connects field input devices to digital input modules, ensuring stable and accurate signal transmission.
Moreover, the 9563-810 improves wiring organization, which enhances system reliability and simplifies maintenance tasks.

Technical Specifications

Parameter	Description
Product Model	9563-810
Module Type	Digital Input Termination Panel
Manufacturer	Triconex (Invensys / Schneider Electric)
System Compatibility	Tricon Safety Instrumented System (SIS)
Function	Field wiring termination for digital input signals
Channel Capacity	Multi-channel digital input support
Signal Type	Digital input signals (dry contact / voltage input)
Input Voltage Range	Typical 24 VDC industrial signals
Terminal Type	Industrial screw or clamp terminal connectors
Connection Interface	Direct interface with Tricon digital input modules
Isolation	Electrical isolation for signal protection
Signal Routing	Organized and stable signal distribution
Material Construction	Industrial-grade PCB with reinforced insulation
Power Requirement	Passive panel, no external power required
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity Range	5% to 95% non-condensing
Dimensions	Approx. 200 mm × 120 mm × 40 mm
Weight	Approx. 0.5–1.0 kg
Mounting Type	Panel-mounted inside control cabinet
Compliance	Meets industrial safety and EMC standards
Reliability	Designed for continuous industrial operation

FAQ

Q1: What is the function of the 9563-810 termination panel?
A1: The 9563-810 provides structured wiring and signal termination for digital input signals.

Q2: What types of signals does the 9563-810 support?
A2: The 9563-810 supports digital input signals such as dry contact and 24 VDC inputs.

Q3: Does the 9563-810 require external power?
A3: No, the 9563-810 is a passive panel and does not require power supply.

Q4: Is the 9563-810 easy to install and maintain?
A4: Yes, it features organized terminal layouts that simplify installation and maintenance processes.

Q5: What is your product condition and delivery policy?
A5: The 9563-810 is brand new original, we have stock available, and shipping takes 3 days to 2 weeks depending on order size.

Q6: What logistics and return services do you offer?
A6: We commonly use DHL and similar carriers, and we support returns within 30 days if quality issues occur.

We aim to provide reliable products and a smooth purchasing experience. If there is a problem with your order, please contact us and we will assist according to our Refund Policy.

We provide international shipping options to meet different delivery requirements. Please review details regarding methods and timelines in our Shipping Policy.

We provide a 12-month warranty for all products, subject to normal use and proper installation.
