Trusted TMR 24 Vdc Digital Input 40-Channel Module ICS Triplex T9802

Product Overview

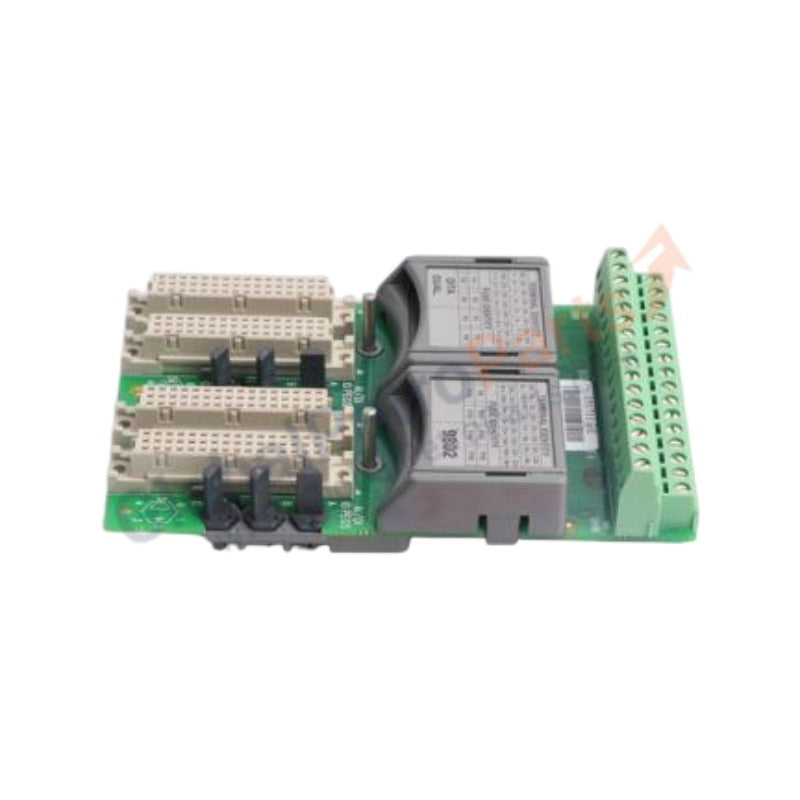

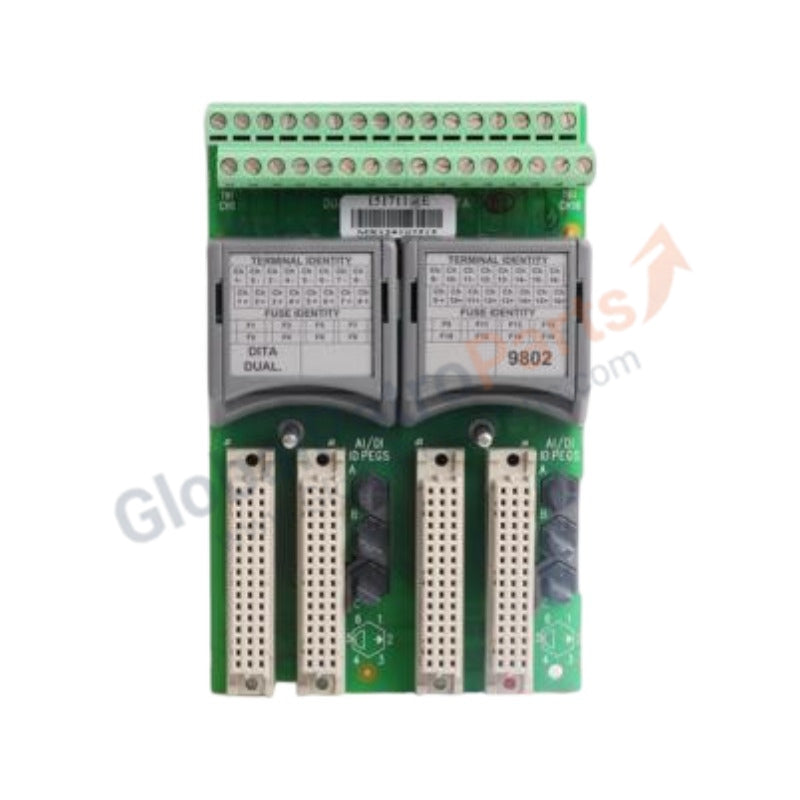

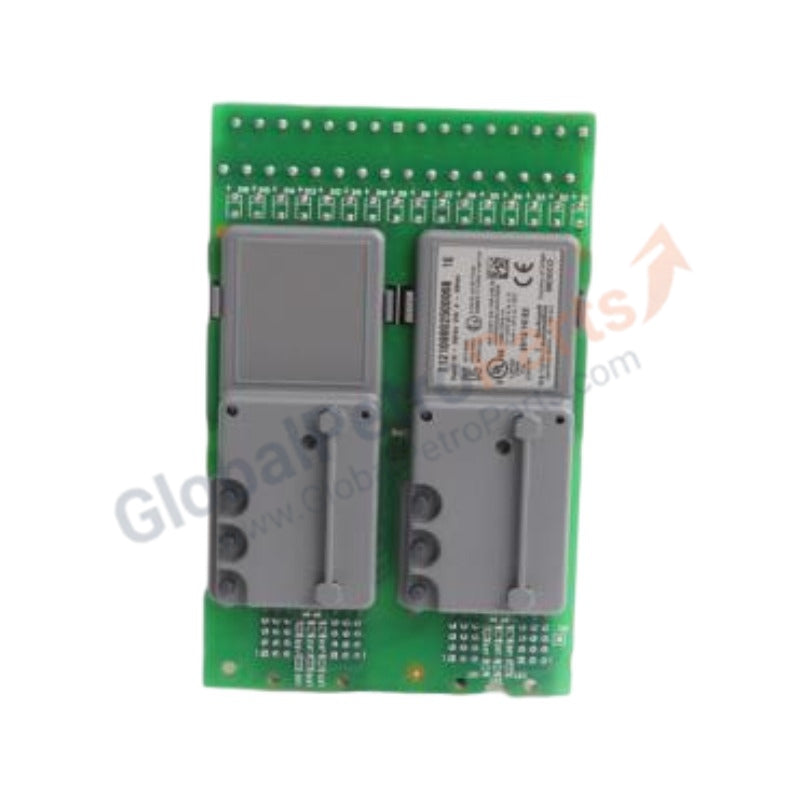

The ICS Triplex T9802 functions as a high-integrity interface for 24 Vdc field inputs within the Trusted™ Triple Modular Redundancy (TMR) environment. It monitors up to 40 discrete channels, converting field signals into triplicated data for the system processors. By utilizing internal 2-out-of-3 (2oo3) voting at the hardware level, the T9802 identifies and isolates signal discrepancies before they affect logic execution. This module is essential for Emergency Shutdown (ESD) and Fire and Gas (F&G) systems requiring SIL3 certification. We supply this unit as 100% brand new and original, ensuring maximum uptime for your critical infrastructure.

Technical Specifications

Engineering Advantages

• Execute High-Density Monitoring: The 40-channel architecture allows engineers to consolidate field wiring into a smaller footprint, significantly reducing cabinet space requirements in offshore platforms or crowded control rooms.

• Detect Hidden Field Faults: Advanced line monitoring capabilities allow the T9802 to distinguish between a "logical off" state and a physical wire break or short circuit. This proactive diagnostic feature prevents "fail-to-safe" trips caused by field wiring degradation.

• Eliminate Transient Interference: Hardware-based digital filtering rejects signal noise and contact bounce. This ensures the processor receives clean, debounced data even in environments with high electromagnetic interference (EMI).

• Simplify Hot-Replacement: The module supports live-insertion. Maintenance personnel replace faulty modules without interrupting the power to the field loops or halting the active safety controller.

FAQs

• Does the T9802 support Sequence of Events (SOE) recording?

  Yes, the T9802 provides 1ms resolution for SOE logging. It time-stamps signal changes at the source, allowing engineers to perform accurate root-cause analysis after a plant trip.

• Can I use the T9802 for non-safety related digital inputs?

  While designed for SIL3 safety loops, the T9802 performs exceptionally well for high-availability control where downtime is costly. Its TMR architecture ensures the input signal remains valid even if a internal component fails.

• What is the difference between the T9802 and the T9401 modules?

  The T9802 specifically handles 24 Vdc digital inputs with 40-channel density and TMR voting, whereas other modules in the series may handle analog signals or different voltage levels. Always verify your rack configuration before installation.

• Is this module supplied with the front connector?

  This listing is for the 100% brand new T9802 module. Field Termination Assemblies (FTAs) and cables are typically sold separately to match your specific wiring requirements.
