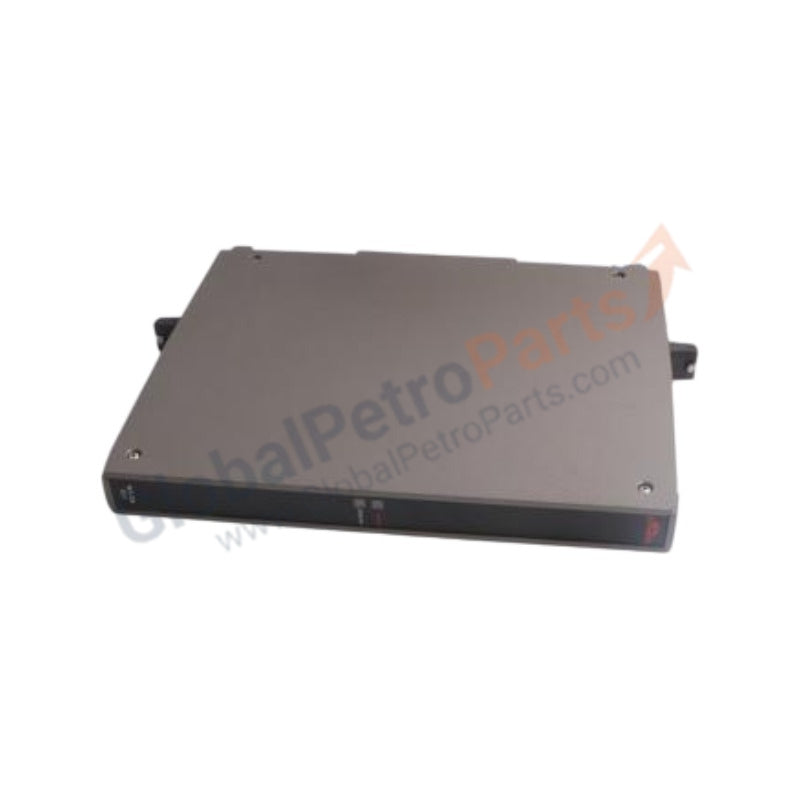

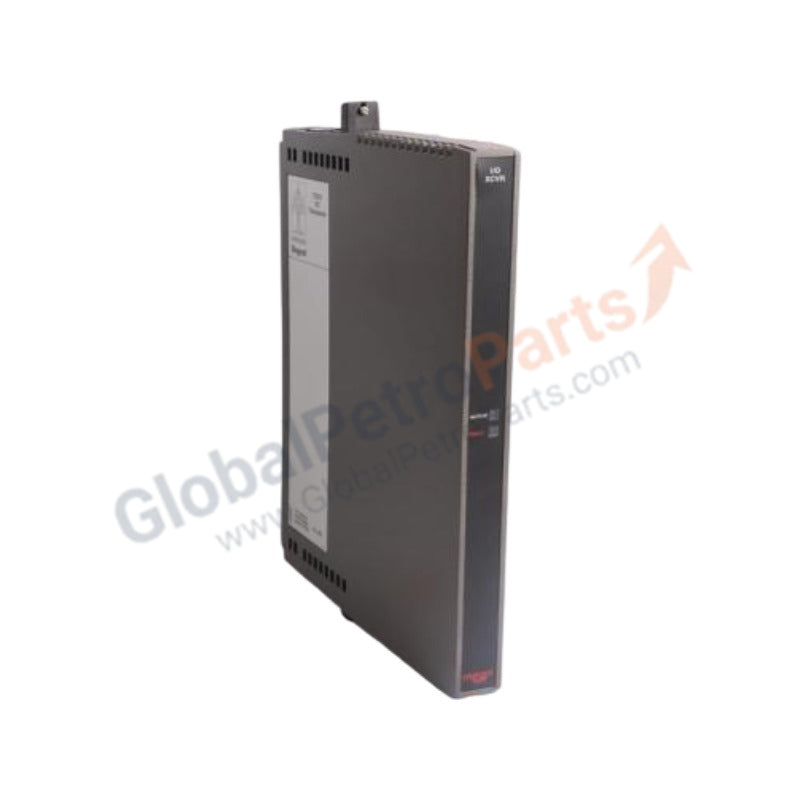

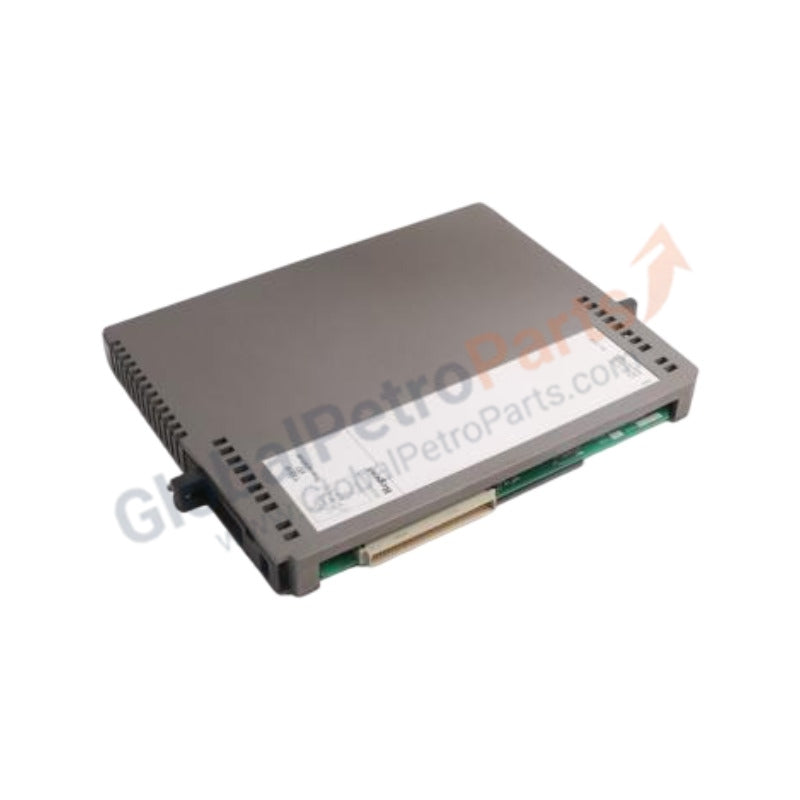

Trusted TMR Analog Input 40-Channel Module T3310 ICS Triplex

Product Overview

The ICS Triplex T3310 serves as the high-integrity analog interface for the Trusted™ Triple Modular Redundancy (TMR) system. It interfaces directly with field sensors, typically processing 4-20mA or voltage-based signals, and converts them into triplicated digital data for the system processors. Designed for safety-critical monitoring, the T3310 employs hardware-based 2-out-of-3 (2oo3) voting to ensure that sensor data remains accurate even in the event of a channel failure. We supply this module as 100% brand new and original, ensuring your plant's Safety Instrumented System (SIS) maintains peak reliability.

Technical Specifications

Engineering Advantages

• Eliminate Common-Mode Noise: The T3310 features robust input filtering and high-grade isolation. These technical safeguards reject electromagnetic interference (EMI) and signal noise common in heavy industrial environments, ensuring the controller receives a clean, stable signal.

• Streamline Field Calibration: The module supports comprehensive software-based calibration. This allows engineers to align field instrument readings within the Trusted Workbench environment without physical potentiometer adjustments, reducing commissioning time.

• Proactive Line Monitoring: The T3310 identifies "Out of Range" signals instantly. By detecting open-loop or short-circuit conditions in the field wiring, it alerts maintenance teams to physical cable damage before the process reaches a critical trip state.

• Maximize System Availability: Through its TMR architecture, the T3310 performs continuous self-testing. If an internal component drifts or fails, the module flags the discrepancy while the remaining two paths maintain safe, uninterrupted control of the process.

FAQs

• Can the T3310 support 2-wire and 3-wire transmitters?

  Yes, the T3310 manages various transmitter configurations through appropriate Field Termination Assemblies (FTAs). It provides the high-precision monitoring required for both loop-powered and externally powered instruments.

• How does the module handle a single channel failure?

  The TMR voting logic identifies the failing channel and isolates it. The system continues to operate using the healthy channels, logging a diagnostic fault to the controller so maintenance can schedule a hot-swap without stopping the plant.

• Is the T3310 compatible with the T3310C version?

  The T3310 is the standard version, while the T3310C features conformal coating. They are functionally identical and fully interchangeable within the Trusted chassis; however, the "C" version provides superior resistance in corrosive environments.

• What is the condition of this unit?

  We guarantee this ICS Triplex T3310 is 100% brand new and original factory stock. It undergoes strict quality inspection and arrives in its original protective packaging with full serial number integrity.
