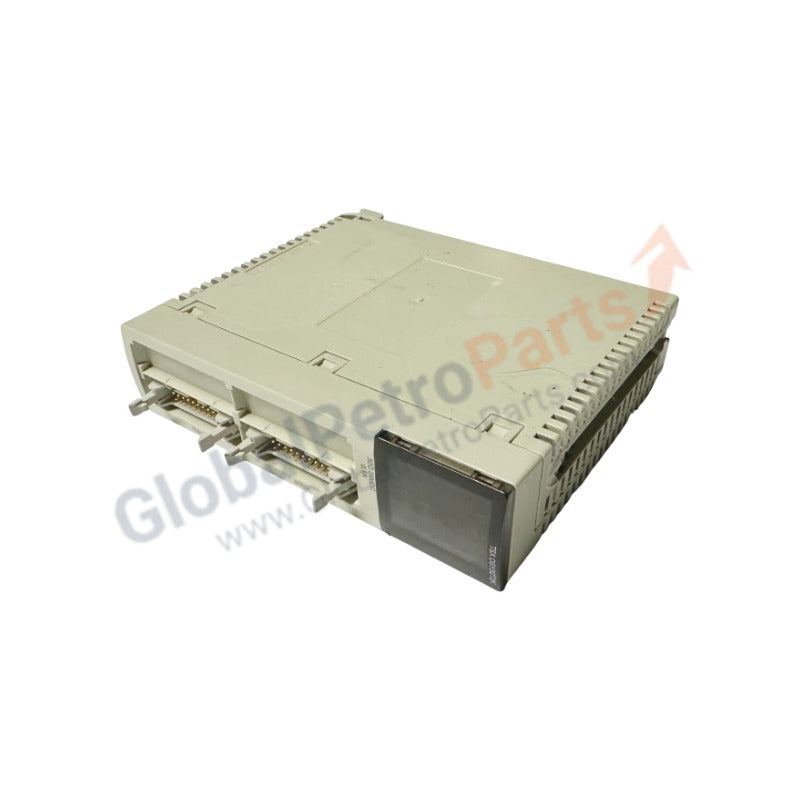

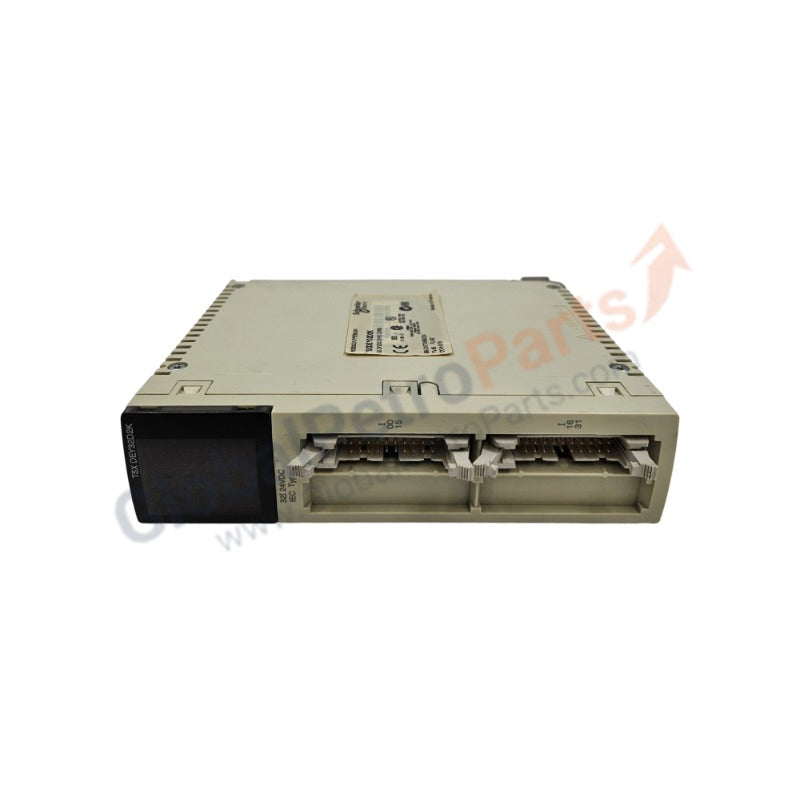

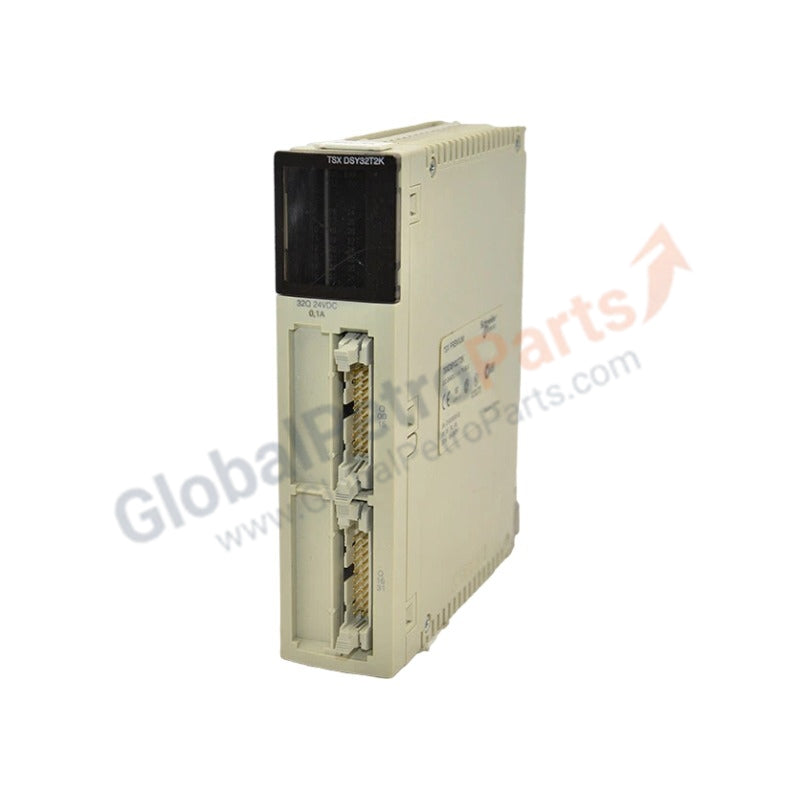

Discrete Output Module TSXDSY32T2K Schneider Modicon Quantum

Product Overview

The Schneider Electric TSXDSY32T2K acts as a high-density digital interface for the Modicon Premium automation platform. This module features 32 solid-state protected outputs, providing precise 24V DC positive logic control for industrial actuators and signaling devices. Designed for longevity and high-speed operation, the semiconductor-based design eliminates the mechanical wear associated with relay modules. We supply this unit as 100% Brand New and original factory sealed, ensuring seamless integration into your existing Premium PLC architecture.

Technical Specifications

The TSXDSY32T2K utilizes high-grade electronic components to maintain signal integrity and hardware safety under full load.

Engineering Advantages

• Advanced Overvoltage Mitigation: The module incorporates Transil diodes to clamp transient voltage spikes. This protection prevents back-EMF from inductive loads, such as solenoids, from damaging the sensitive internal logic circuitry.

• Self-Healing Fault Protection: The TSXDSY32T2K features an automatic trip mechanism for short-circuits and thermal overloads. Once you remove the fault condition, the module restores normal operation, significantly reducing downtime compared to fuse-based modules.

• High-Density Rack Optimization: Packing 32 outputs into a standard single-slot format maximizes rack utilization. This allows engineers to expand system I/O without increasing the physical footprint of the control cabinet.

• Rapid Switching Performance: A response time of 1.2 ms ensures high-speed synchronization for packaging, bottling, and material handling applications where timing accuracy directly influences production yield.

• Environmental Resilience: The TC (Protective treatment) allows the module to operate in humid environments (up to 95% RH) and carry extensive maritime certifications (DNV, GL, LR), making it suitable for both offshore and heavy industrial sites.

FAQs

• Q: How do I handle loads requiring more than 0.1A current?

  • A: This module supports the paralleling of outputs. You can parallel up to 3 maximum outputs to increase the current capacity for a single load while maintaining protection.

• Q: What type of wiring setup is required for the HE-10 connectors?

  • A: The TSXDSY32T2K utilizes two HE-10 connectors. For the most efficient installation, use Schneider Electric Telefast pre-wired cables and sub-bases. This setup converts the high-density HE-10 port into standard screw terminals for easier field wiring.

• Q: Can the module detect reverse polarity in the field wiring?

  • A: Yes. The module contains a reverse-mounted diode that protects the internal semiconductor switches against accidental reverse polarity connection of the power supply.

• Q: Does this module support tungsten filament loads?

  • A: Yes, the TSXDSY32T2K handles tungsten loads up to 1.2 W. The solid-state architecture manages the high inrush currents typical of incandescent lamps without compromising the 1.2 ms response speed.
