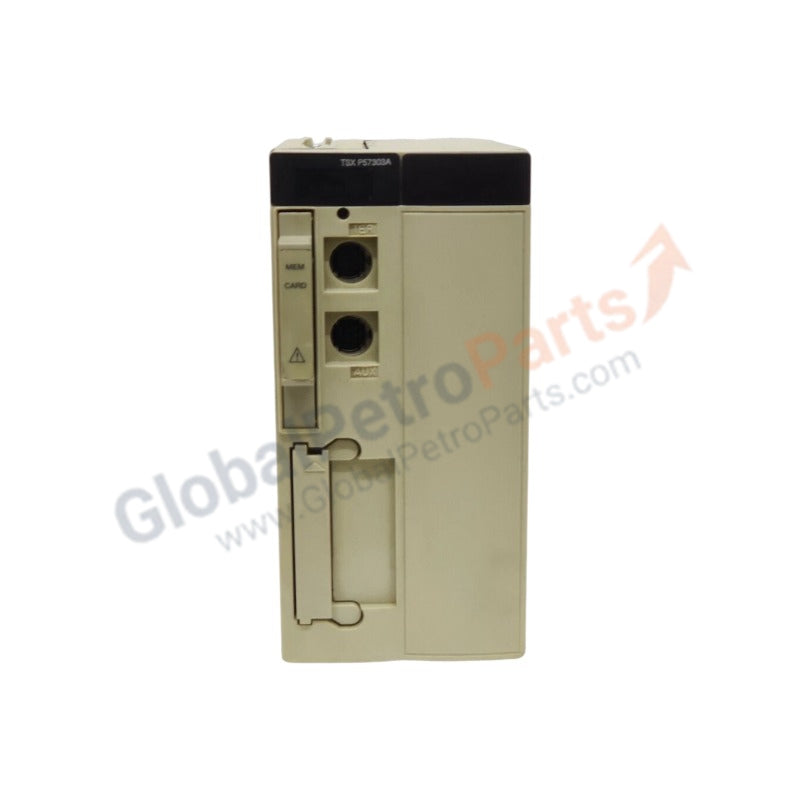

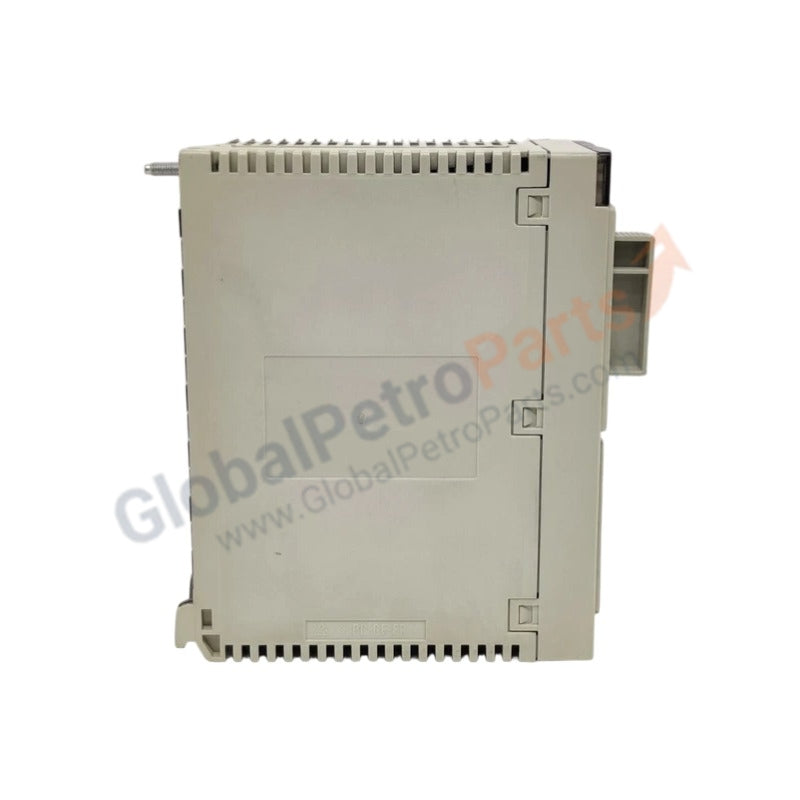

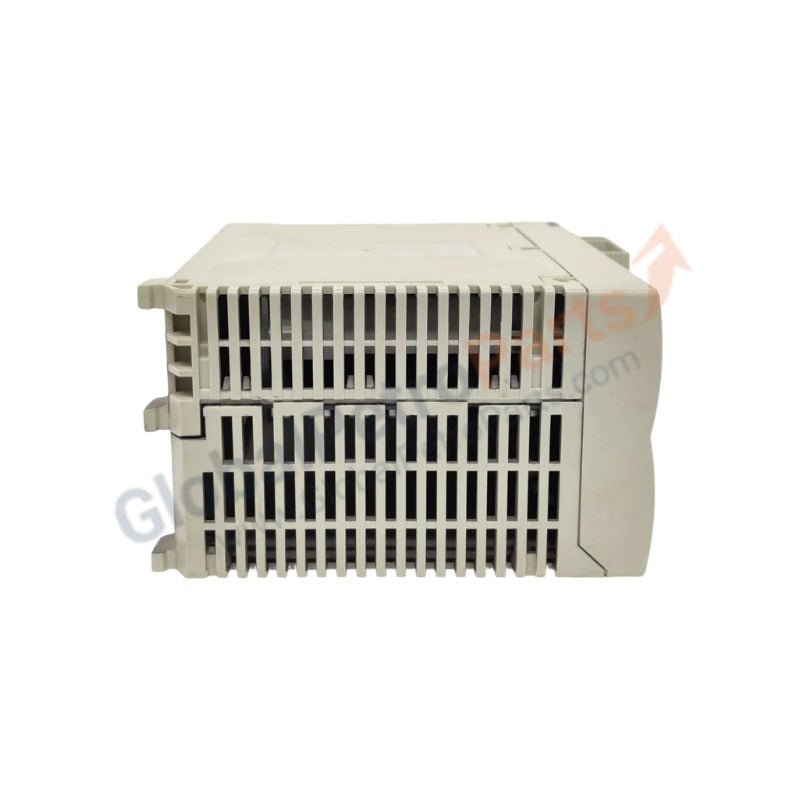

TSXP57303AM Schneider Modicon Quantum Double-Format PL7 Processor

Product Overview

The Schneider Electric TSXP57303AM serves as a high-performance central processing unit for the Modicon Premium automation platform. This double-format processor manages complex industrial architectures by supporting up to 1024 discrete I/O and 128 analog I/O points. It operates using PL7 Junior/Pro software, providing engineers with a robust environment for master tasks, fast tasks, and up to 64 event-triggered processes. We supply this unit as 100% Brand New and Original to ensure maximum lifecycle reliability in your control cabinets.

Technical Specifications

The following table outlines the core performance metrics of the TSXP57303AM:

Engineering Advantages

• High-Speed Logic Execution: The TSXP57303AM processes Boolean instructions in as little as 0.12 µs. This rapid execution minimizes scan times in high-speed packaging or material handling applications where millisecond precision determines throughput.

• Flexible Memory Management: Users can significantly expand data storage using PCMCIA cards. This allows the processor to handle large recipe files or extensive historical logging without upgrading to a larger, more expensive CPU family.

• Multitasking Efficiency: The system architecture allows for 64 event tasks. This prevents the master task from bottlenecking, as the processor handles time-critical interrupts immediately, ensuring stable performance in complex loop control.

• Rugged Marine & Industrial Certification: This module carries ABS, BV, DNV, and GL certifications. It withstands the vibration and electrical noise typical of maritime engine rooms and heavy industrial plants.

FAQs

• Does this unit come with the PL7 software?

  The hardware supports PL7 Junior/Pro software (Version 3.1 or higher). The software license is sold separately, but the processor arrives ready for immediate integration into existing PL7 projects.

• What is the benefit of the "Double-Format" design?

  The double-format width provides the physical space necessary for high-density internal circuitry and heat dissipation. It occupies two slots on the Premium rack, ensuring the processor maintains stable temperatures even when running 45 control loops simultaneously.

• Can I replace a TSXP57302AM with this TSXP57303AM?

  Yes, the TSXP57303AM offers superior memory and channel capacity. However, you should verify your existing rack configuration and software version to ensure seamless program migration.

• How do the diagnostic LEDs assist in troubleshooting?

  The front panel features four distinct LEDs. The TER LED monitors terminal port activity, while the ERR and I/O LEDs provide instant visual confirmation of system faults or configuration mismatches, reducing mean time to repair (MTTR).
