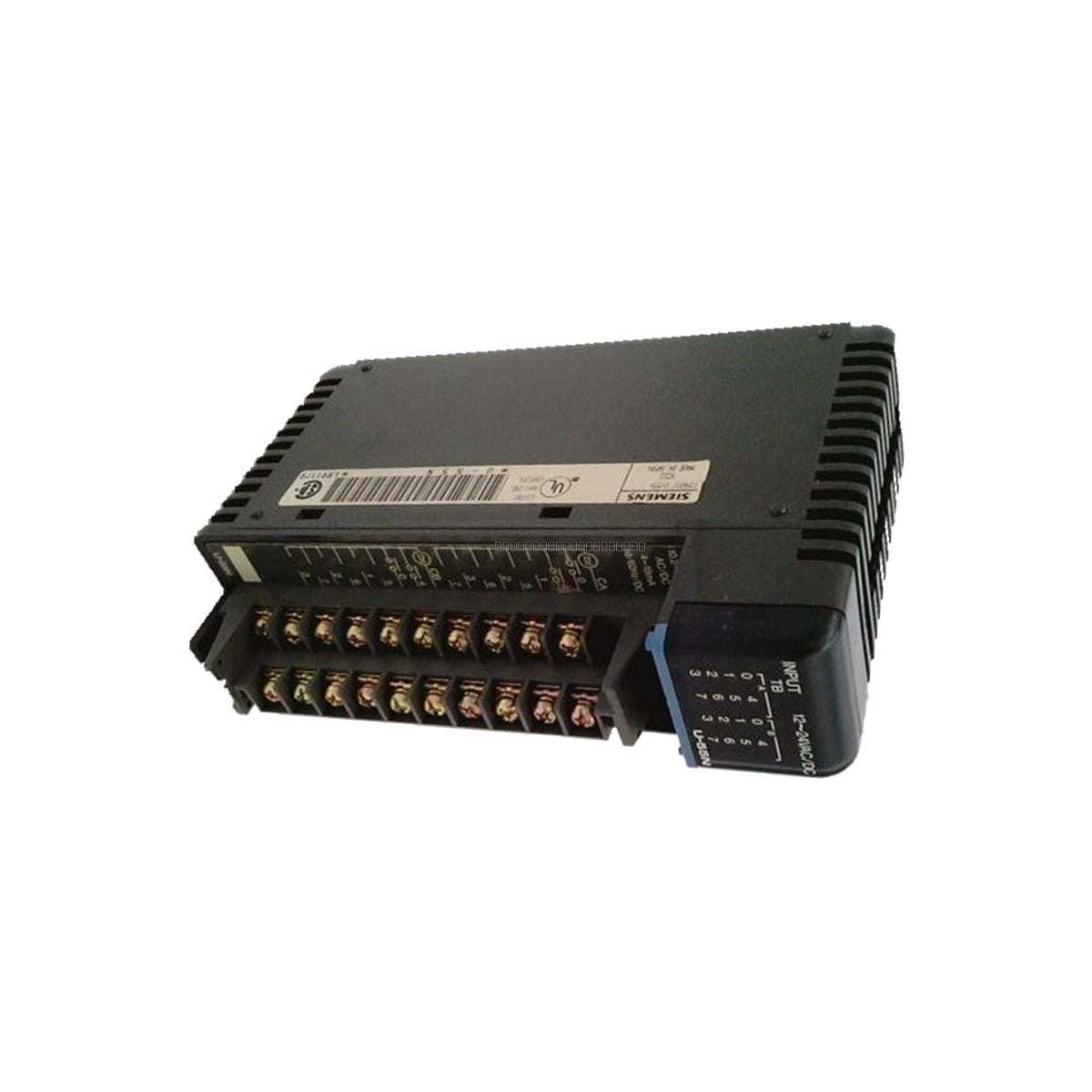

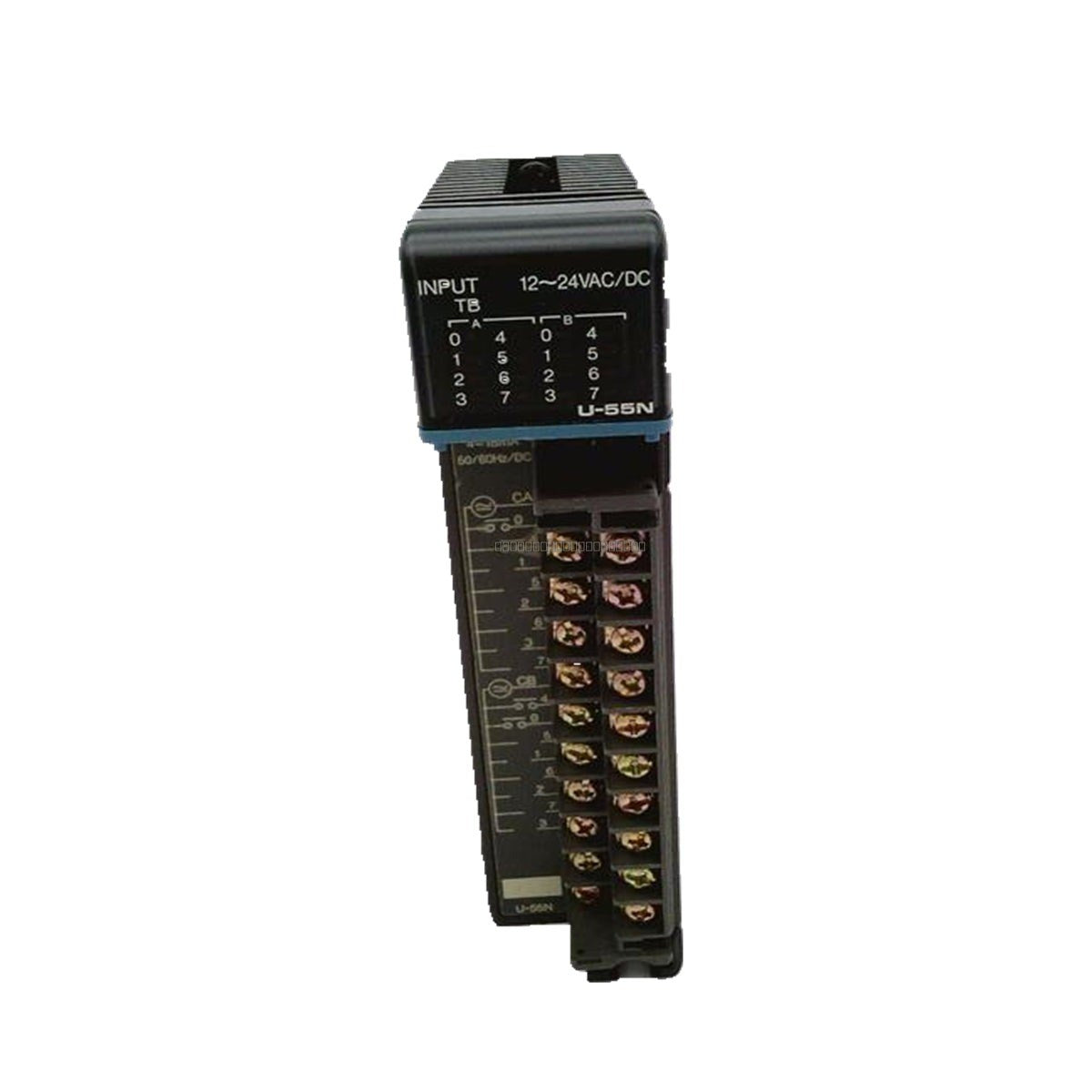

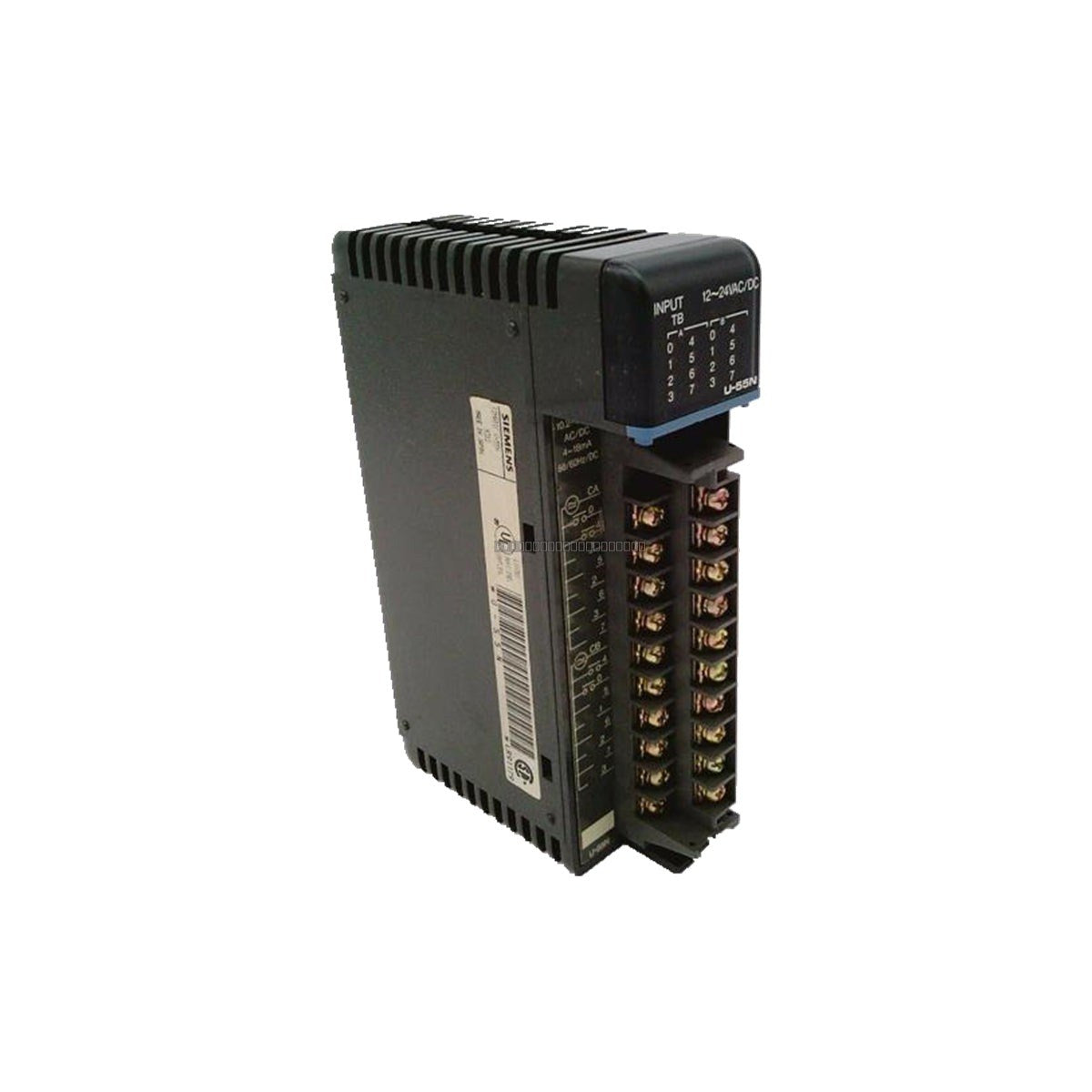

Siemens U-55N SIMATIC 16-Point Digital Input Module

Description

The Siemens U-55N is a high-density discrete input interface module designed for legacy SIMATIC automation platforms. This 16-point module serves as the critical bridge between field-level sensors, switches, and the central processing unit. By supporting a versatile 12/24 VAC/DC voltage range, the U-55N integrates seamlessly into diverse industrial environments, including oil refineries, power generation facilities, and mining operations, where maintaining reliable legacy logic control is essential.

Features

• 16-Point Input Density: Provides 16 independent channels for monitoring industrial states.
• Dual-Current Compatibility: Engineered to handle both 12/24 VAC and VDC signals via internal bridge rectification.
• Opto-Electrical Isolation: Protects the PLC backplane from external voltage spikes and electrical noise, enhancing system stability.
• Localized Diagnostics: Each channel is equipped with a dedicated status LED for immediate visual verification of field wiring and signal state.
• High-Speed Processing: Optimized to capture transient logic transitions accurately within the PLC scan cycle.

Applications

The U-55N is primarily utilized in legacy SIMATIC control architectures to monitor field devices such as limit switches, proximity sensors, and auxiliary contacts. It is ideal for brownfield upgrades or maintenance of existing control systems where high-density input capability is required to minimize downtime and ensure operational continuity.

Technical Specifications

Installation Guidelines

• Power Down: Always disconnect power from the rack and field wiring before inserting or removing the module to prevent electrical damage.
• ESD Precautions: Handle the module using standard electrostatic discharge (ESD) protection measures to avoid damaging sensitive internal components.
• Rack Seating: Ensure the module is fully seated in the SIMATIC rack slot and that the front connector is securely locked to maintain proper electrical contact.
• Wiring: Use shielded cabling for field inputs to minimize EMI interference, especially in high-noise industrial environments.
• Grounding: Ensure the rack system is properly grounded according to site-specific electrical safety standards.

FAQ

Does the U-55N support both AC and DC inputs?

Yes, the module is designed with internal bridge rectification and filtering, allowing it to accept 12/24 VAC or VDC signals.

Can this module be used as a direct replacement for older SIMATIC modules?

The U-55N is designed for specific legacy SIMATIC platforms. Please verify your existing rack configuration and system documentation to ensure compatibility before installation.

What is the purpose of the LEDs on the front of the module?

The status LEDs provide real-time visual feedback for each of the 16 input channels, allowing technicians to quickly diagnose field wiring issues or signal presence.
