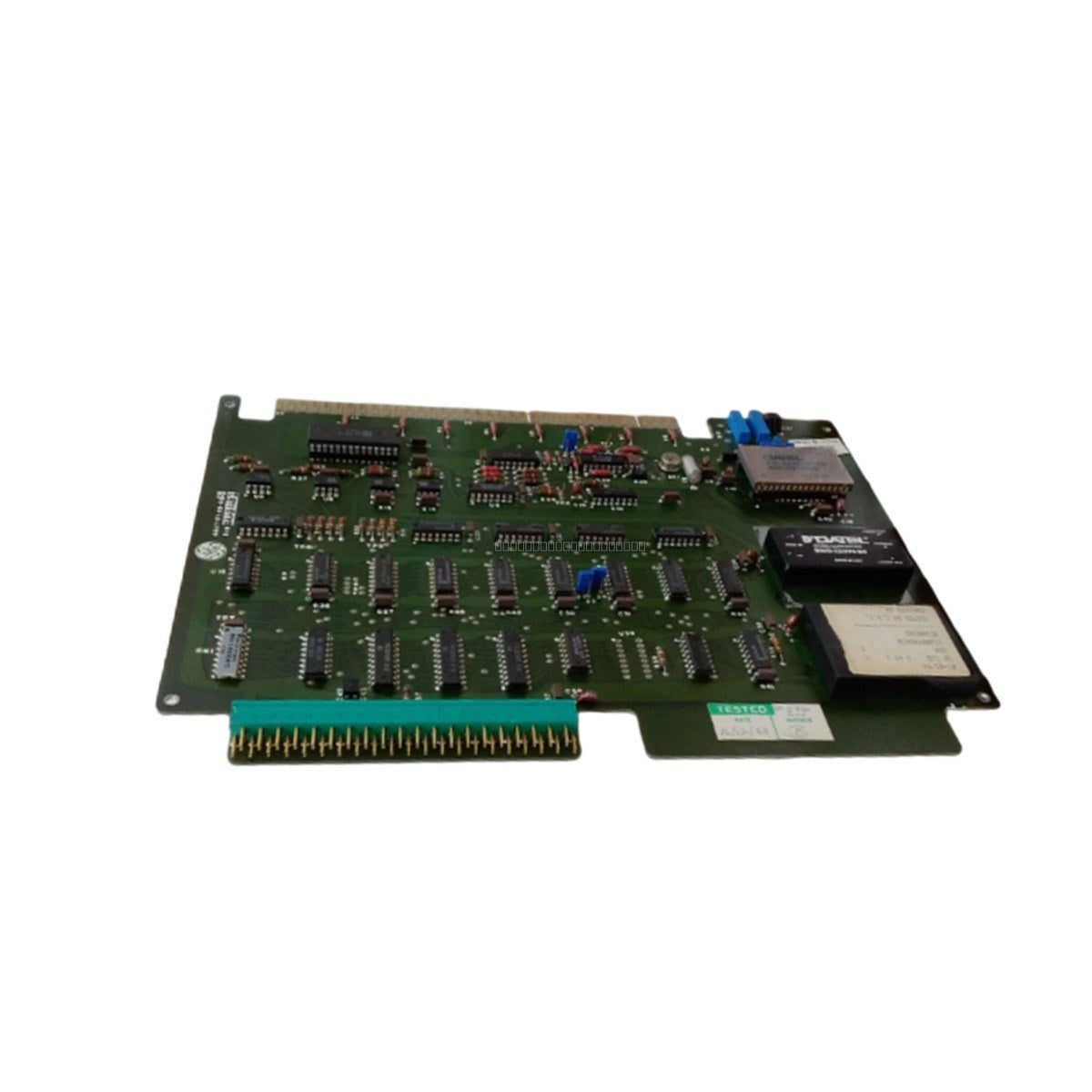

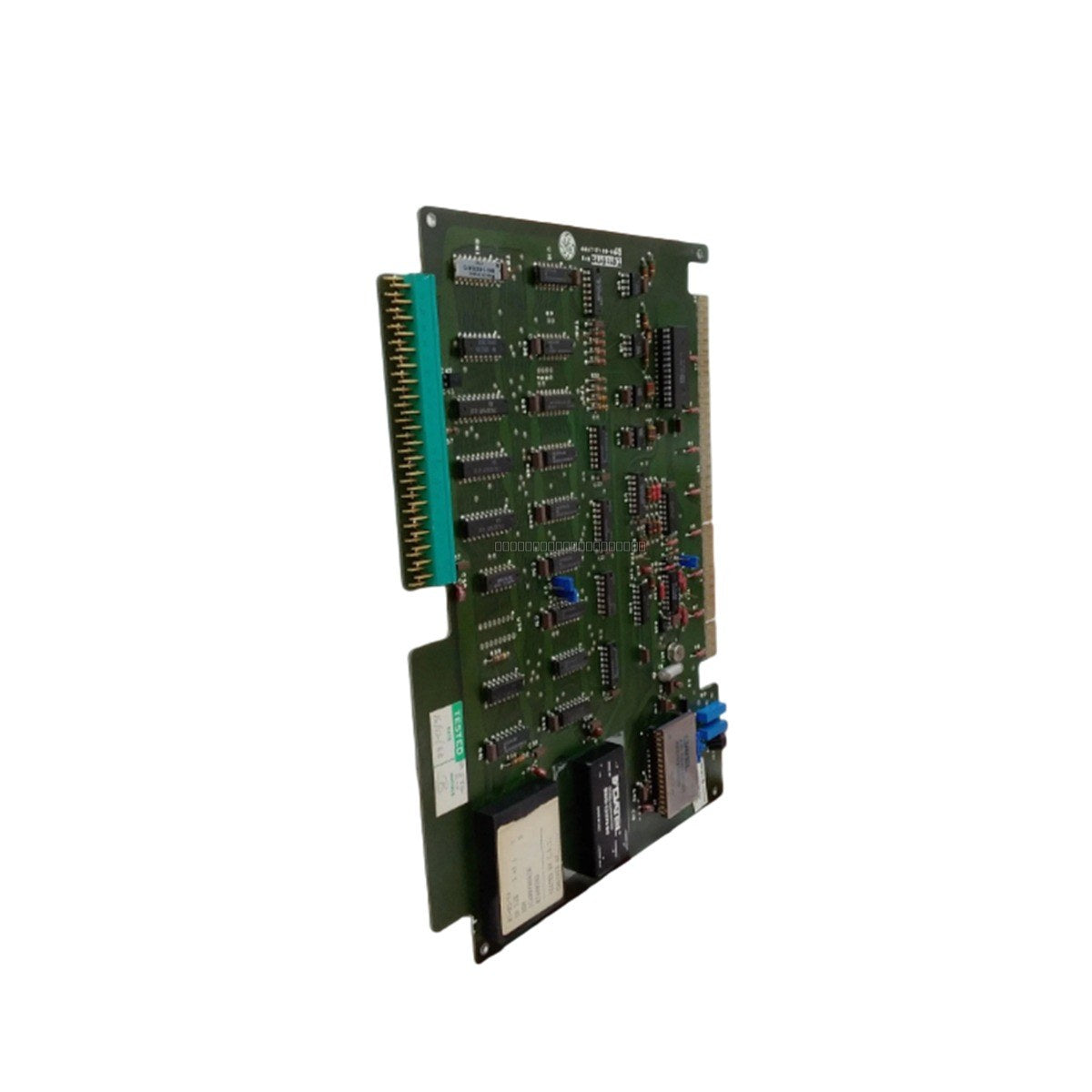

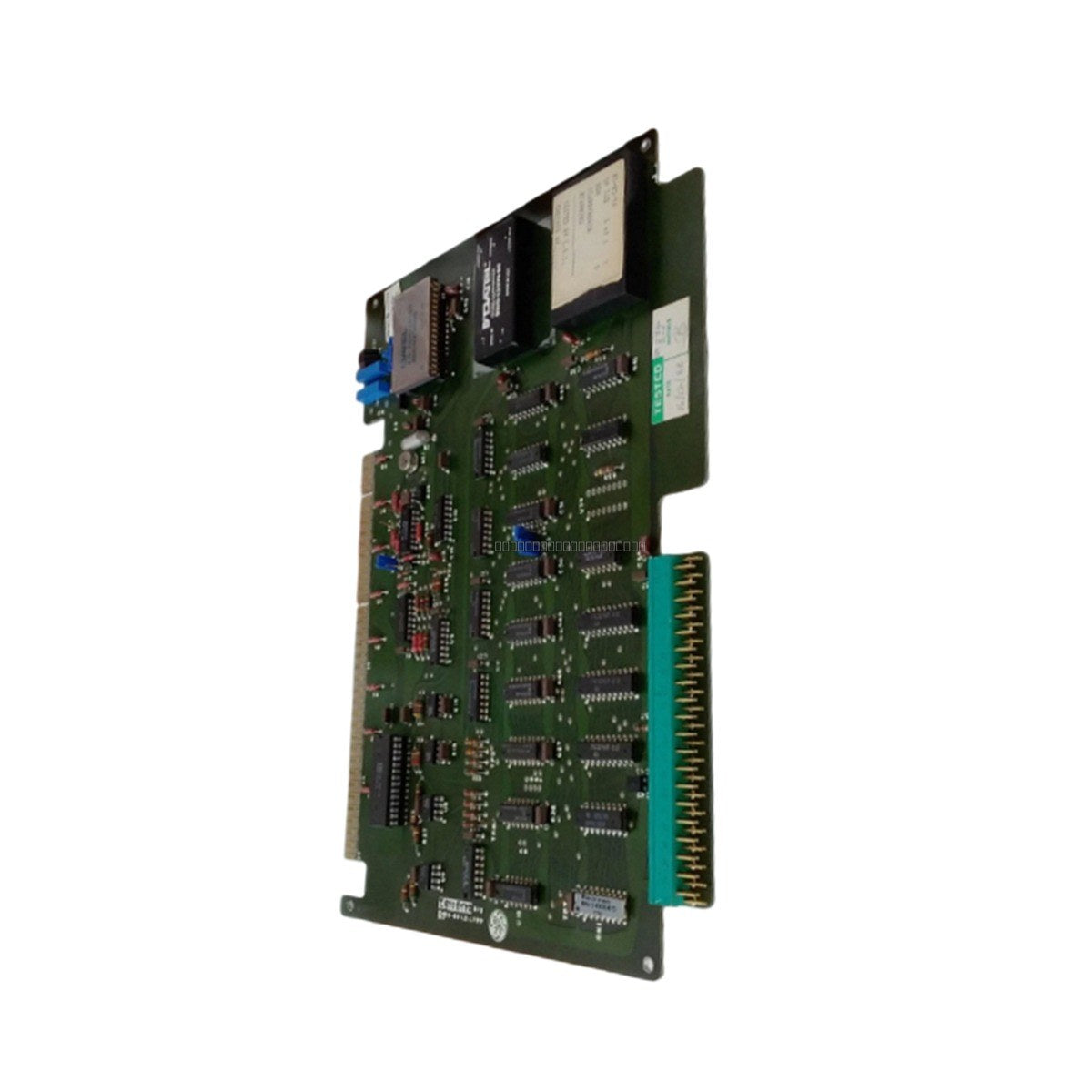

General Electric IC600YB842 Series Six Analog Input Module

Description

The IC600YB842 is an analog input module designed for the General Electric Series Six programmable logic controller (PLC) system. As a component of the Series Six architecture, this module is engineered to process analog signals within industrial automation environments, providing reliable data acquisition for control and monitoring applications.

Features

• Compatible with GE Series Six PLC systems.
• Analog input functionality supporting a signal range of -10VDC to +10VDC.
• Designed for integration into standard Series Six I/O rack configurations.
• Robust construction suitable for industrial control cabinet environments.

Applications

This module is typically utilized in legacy industrial automation systems where precise analog voltage monitoring is required. Common applications include process control, instrumentation feedback, and signal conditioning for machinery managed by the Series Six platform.

Technical Specifications

Installation Guidelines

• Ensure the PLC system is powered down before installing or removing the module from the I/O rack.
• Verify that the module is correctly seated in the backplane connector to ensure proper signal communication.
• Use shielded cabling for analog signal inputs to minimize electromagnetic interference (EMI) and noise.
• Maintain proper ventilation within the control cabinet to prevent overheating of the I/O rack components.
• Handle with care to prevent electrostatic discharge (ESD) damage to the module's internal circuitry.

FAQ

Is the IC600YB842 still in production?
No, this module has been discontinued by the manufacturer. We provide refurbished or surplus units to support legacy system maintenance.

What is the input range for this module?
The IC600YB842 is designed to accept analog voltage signals ranging from -10VDC to +10VDC.
