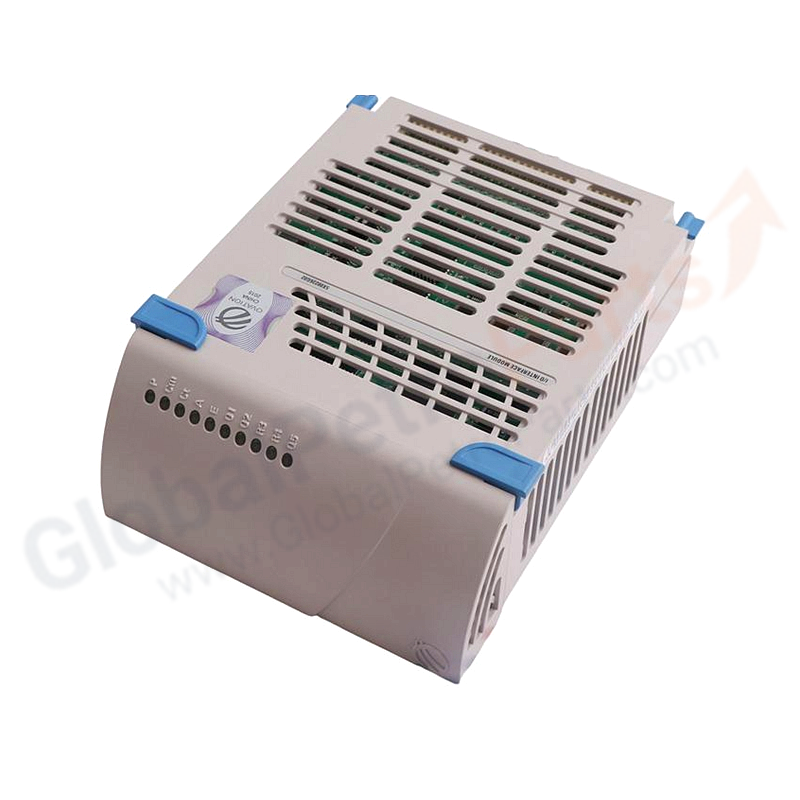

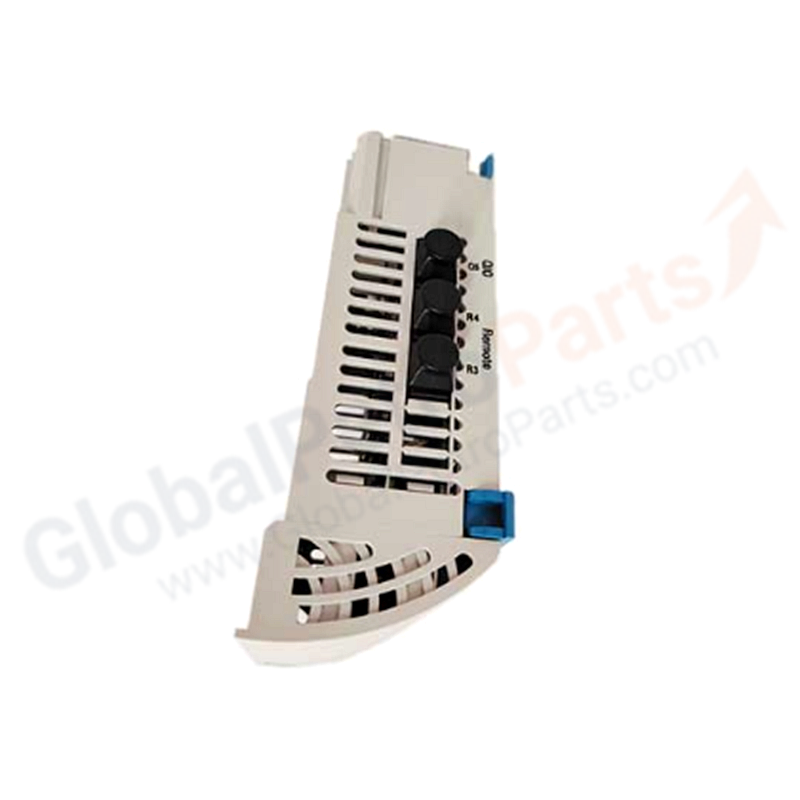

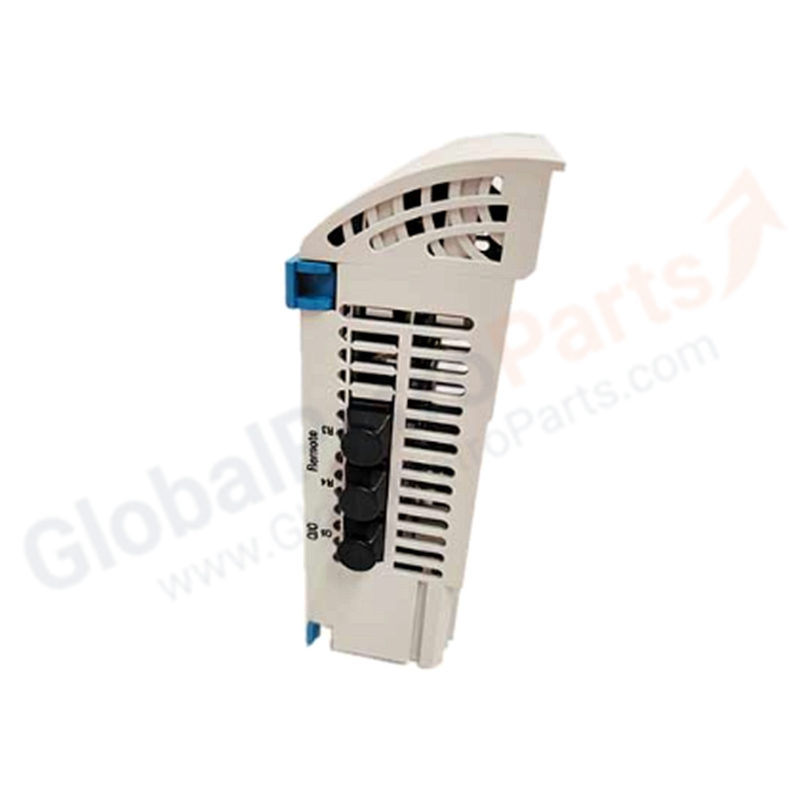

Westinghouse Ovation 5X00226G04 Controller IOIC Card

Overview

The Emerson 5X00226G04 is an OCR 1100 Controller for the Ovation distributed control system. It provides mission-critical control processing with redundant failover capability for power generation, water, and wastewater applications.

Technical Specifications

• Manufacturer: Emerson
• Model: 5X00226G04
• Type: OCR 1100 Controller
• Redundant Control Capability: Yes, with seamless bumpless failover
• Processor: Intel-based processor
• I/O Interfaces: Ovation and WDPF I/O, for local and remote connections
• Maximum Points Supported: 32,000 points
• Sequence of Events: 1 ms resolution
• Standards Compliance: IEC 61131-3, Achilles Level 1 certification

Key Features

• High-speed processor for complex control algorithms
• Bumpless automatic failover between redundant controllers
• One-step data acquisition via predefined I/O database
• Virtual I/O capability for third-party systems over Ethernet

FAQ

Q: What industries is this controller used in?
A: It is commonly deployed in power generation, water treatment, and chemical processing industries.

Q: Does it support redundant operation?
A: Yes, it provides bumpless automatic failover between redundant controller pairs.

Installation Guidelines

1. Install the processor module into the primary slot of the Ovation controller rack.
2. For redundancy, install the partner module in the adjacent redundant slot.
3. Connect Ethernet and I/O network cables per the system architecture.

Selection Tips

• Choose 5X00226G04 for large-scale Ovation applications requiring up to 32,000 I/O points.
• Always deploy in redundant pairs for automatic failover in critical applications.
